Microscopy > Microscopes > Digital microscopes > Upright microscopes > Evident Olympus > DSX1000 > Evident Olympus Microscope DSX1000, OBQ, digital, infinity, Dl, LED (SP)
Product no.: 82910

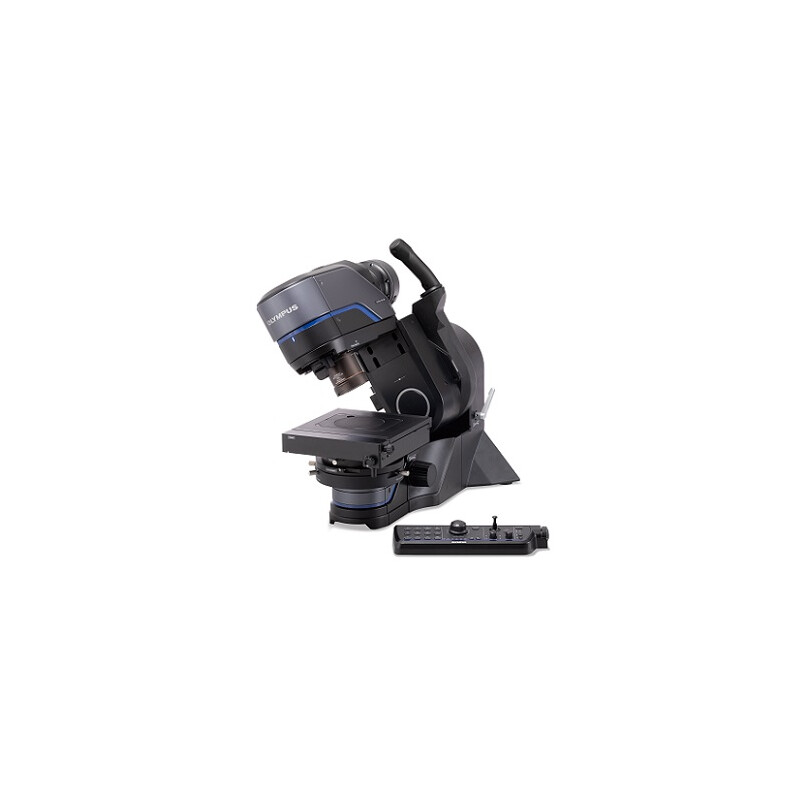

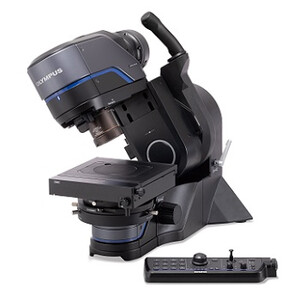

Microscope DSX1000, OBQ, digital, infinity, Dl, LED (SP)

$ 89,900.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

If you are interested in this product, please contact our customer service:

Contact our service

Product description

More about the series DSX1000...

In brief:

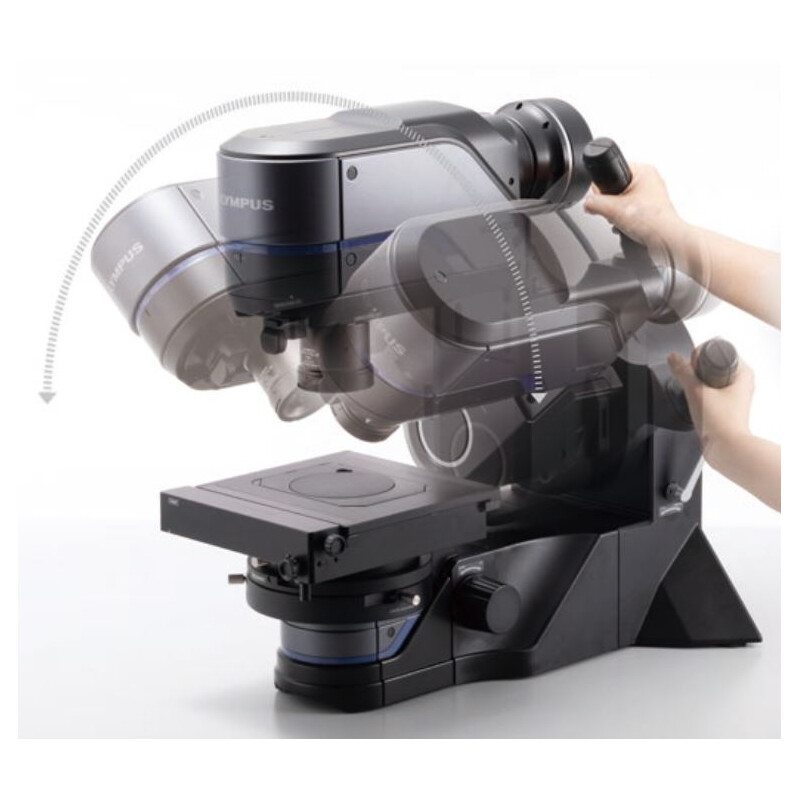

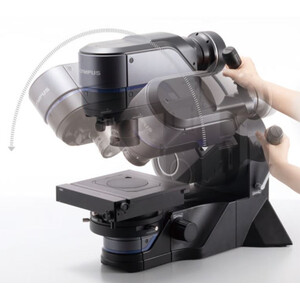

  • Model with swivel tripod (enables oblique viewing (OBQ))
  • Magnification range 23x to 8220x
  • All microscopy methods can be used with all magnifications
  • Includes control console specifically for the DSX1000 system
  • Compatible with Office 2013 / 2016 / 2019

Components included:

microscope:

N5736000 DSX10-TF Tilting Tripod

N5734600 DSX10-UZH Universal zoom head

N5737400 DSX10-MSTAD Table adapter

037499 U-SIC4R2 TABLE STRAIGHT

037498 U-MSSP4 TABLE INSERT PLATE SICN

5735200 DSX10-SXLOB10X

N5735100 DSX10-SXLOB3X

N5735900 DSX10-POAD

N5735700 DSX10-DIAD1X10X

N5735800 DSX10-DIAD3X

Computer:

E9701792 HW-WORKSTATION-HP-Z2G9-DSX1K

E9701661 HW-TFT-27-DELL-P2722H

N6438000 PV-3DAA

N6435100 PV-DSX-2.1-EL Main Licence

N5739900 DP74-PCIE-1-2 PCI card

ESS00257 DSX10__-D0-INST Installation

E0444004 SUP Training Software/System 0.5 day

Specifications

Optics


Number of objectives
2
Lighting
Incident light
Field curvature
Plan
Lamp type
LED
Objective 1
DSX10-XLOB3X
Objective 2
DSX10-XLOB10X
Lens type
Plan, achromatic
Optical system
infinity
infinity corrected
yes
Magnification
8220
Zoom shot
yes

Capacity


brightfield
yes
Dark field
yes
DIC, IVC, RC
yes

Mechanics


Working distance (mm)
66,1 mm–0,35 mm
Type of build
Digital
Viewing posture (°)
digital
Focusing
Motor-powered
Specimen stage
Cross table (manually)

Special features


Built-in digital camera
yes

Camera


Resolution Photograph (Pixel)
4800 × 3600
frame rate (fps)
60 (max.)
Size of chip (″)
1/1,2

General


Series
DSX1000

Contrast methods


DIC
yes
Dark field
yes
brightfield
yes
Polarization
yes

Field of application


Industry
yes
Education
yes

Area of application


Microbiology
yes
Metallurgy
yes
Mineralogy
yes
University
yes
Materials technology
yes
Semiconductor technology
yes
Odontotechnics
yes
Automotive
yes

Product safety

Manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
