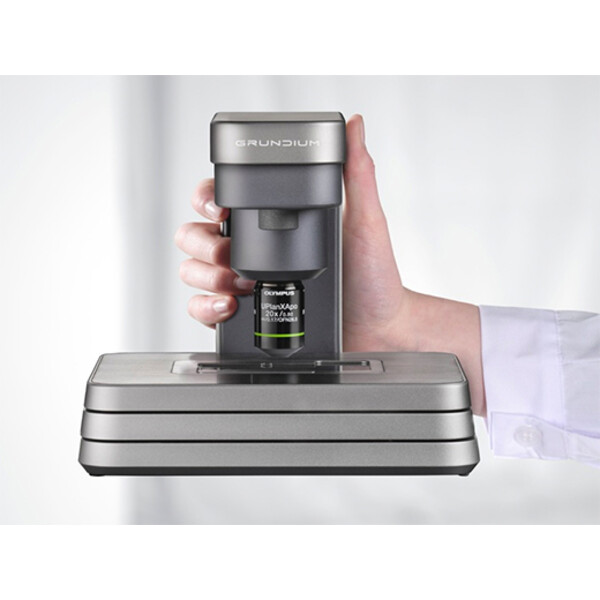

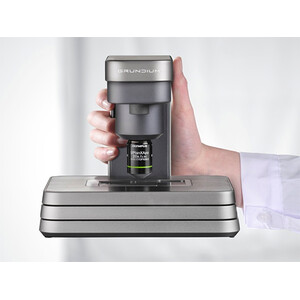

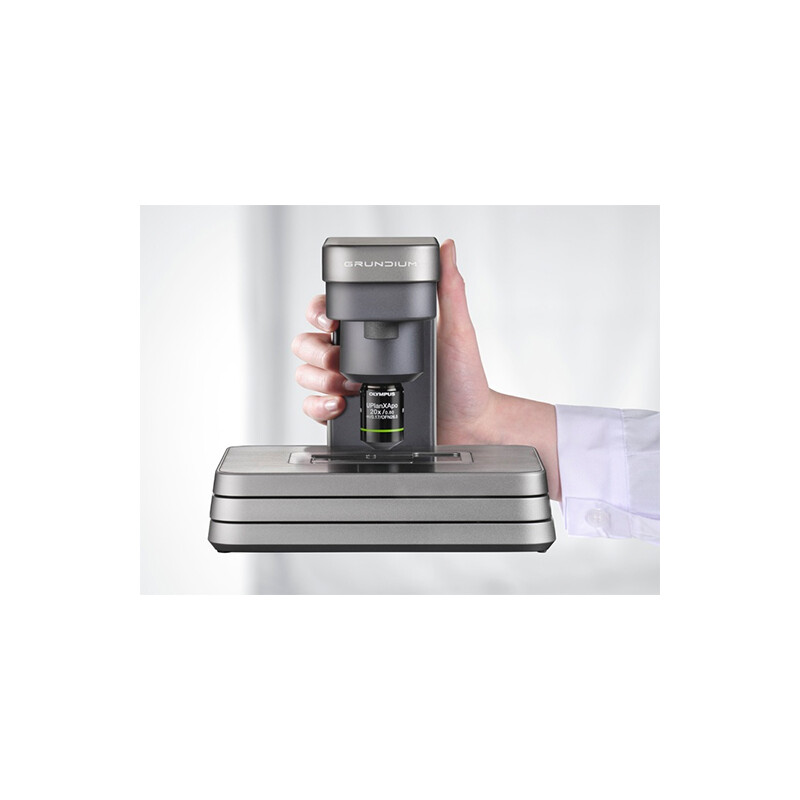

Grundium OCUS20 (GRU-OCUS20-2)
View, examine and share slides anytime, anywhere
Collaboration with Grundium
Evident Olympus is proud to collaborate with Grundium, enabling us to offer Grundium Ocus digital slide scanners with Olympus X Line lenses as part of our digital imaging solutions.
The exchange of images over long distances and telepathology are becoming increasingly common, especially in today's world, where virtual collaboration has become part of everyday life. When slides can be easily scanned and images accessed remotely, open and effective collaboration is possible even across long distances. Grundium is known for its small slide scanners, which are easy to transport and user-friendly and deliver high-quality, high-resolution images.
Specifications Ocus 40 Ocus 20
Product number: MGU-00004 MGU-00006
Numerical aperture 0.80 0.40
Resolution, microscope 0.25 μm/Pixel 0.5 μm/Pixel
Resolution 10 μm/Pixel 10 μm/Pixel
Depth of field 1 μm 5 μm
Focusing Fully electronic Fully electronic
Image sensor 12 megapixels 12 megapixels
Slide capacity 1 1
Slide format 75 × 25 mm (3 × 1 inch)
Scanning speed
(15 × 15 mm) approx. 3 minutes approx. 1 minute
Connectivity 1 GigE, 802.11 ac WLAN 1 GigE, 802.11 ac WLAN
Image formats TIFF, SVS
W × D × H 18 cm × 18 cm × 19 cm 18 cm × 18 cm × 19 cm
(7 × 7 × 7.5 inches) (7 × 7 × 7.5 inches)
Weight 3.5 kg 3.5 kg
Illumination: Köhler LED
Requirements
- One instrument with Internet connection, web browser and a screen
- Earthed power outlet or power bank
