Microscopy > Microscopes > Digital microscopes > Upright microscopes > Motic > DM > Motic Microscope DM-1802, mono, digital, 40x - 400x
Product no.: 45015

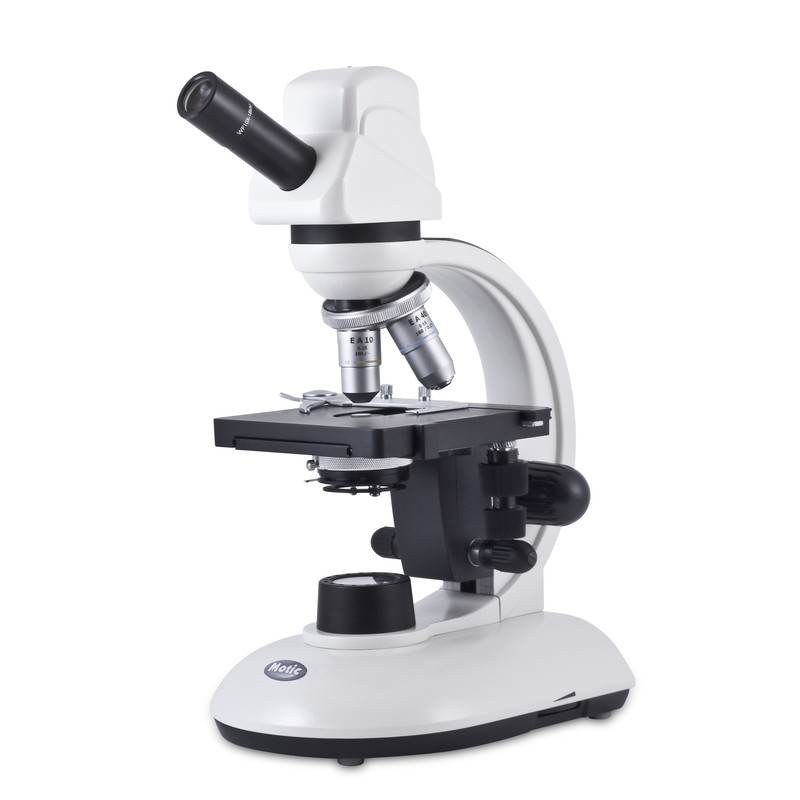

Microscope DM-1802, mono, digital, 40x - 400x

$ 1,190.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series DM...

DM-1802

Quality & Design

The Motic 18 series is known for its powerful optics, mechanical quality and modern design. The DM-1802 combines a high-resolution 3.0 megapixel camera with the features mentioned above.

Together with the multilingual Motic Images Plus 2.0 software, high-quality images, videos and accurate measurements are a breeze. Both this software and the corresponding calibration scale are included as standard.

Specification:

  • Monocular tube, 30° viewing angle with integrated digital camera with 1/2" CMOS chip
  • 2048x1536 pixels with USB 2.0 output
  • Wide field eyepiece WF 10x/18mm
  • 4-position objective turret, rearward facing
  • Achromatic lenses EA 4x, 10x, 40x (spring)
  • Separate coarse and fine adjustment, adjustable
  • Built-in cross table with coaxial drive
  • Focusable N.A. 1.25 Abbe condenser
  • Iris diaphragm with filter holder
  • Adjustable halogen illumination 12V/20
  • 100V-240V, VDE plug (CE)
  • Motic Images Plus 2.0 software for PC and MAC
  • Calibration scale, blue filter and dust cover

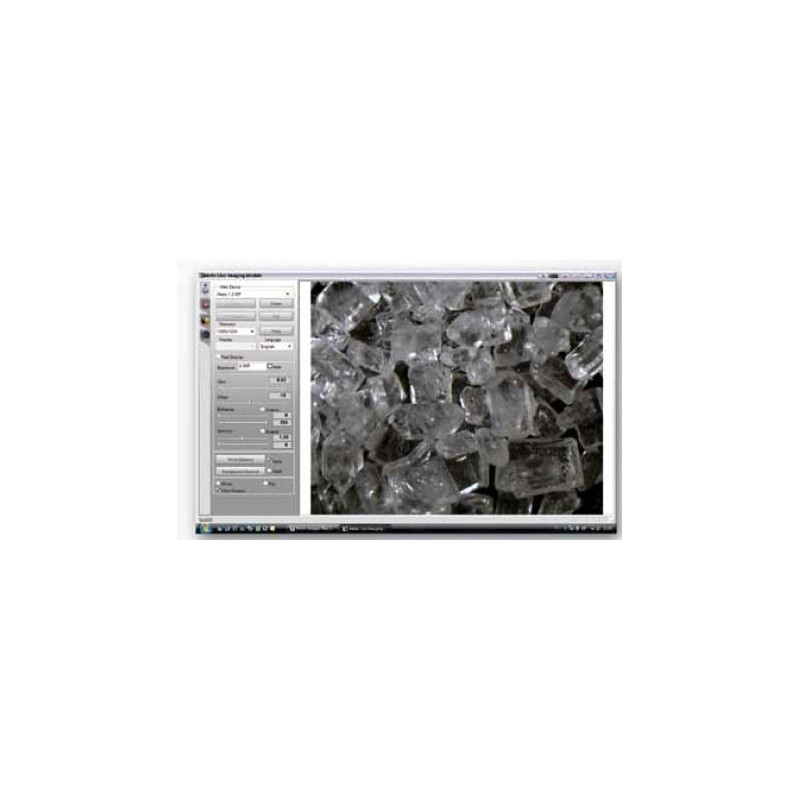

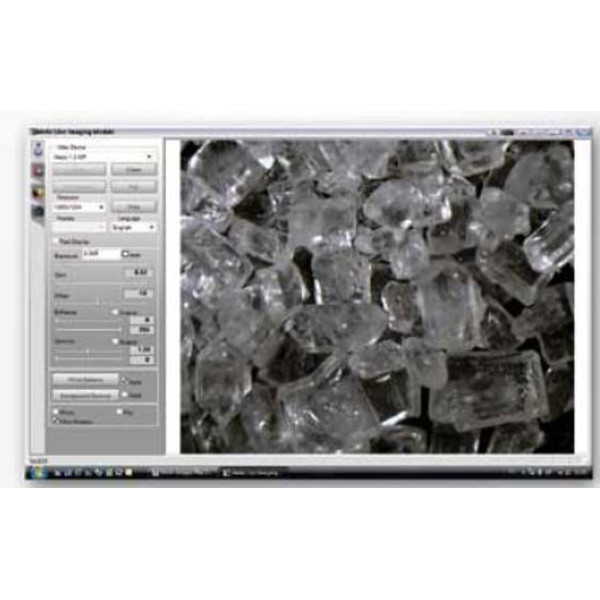

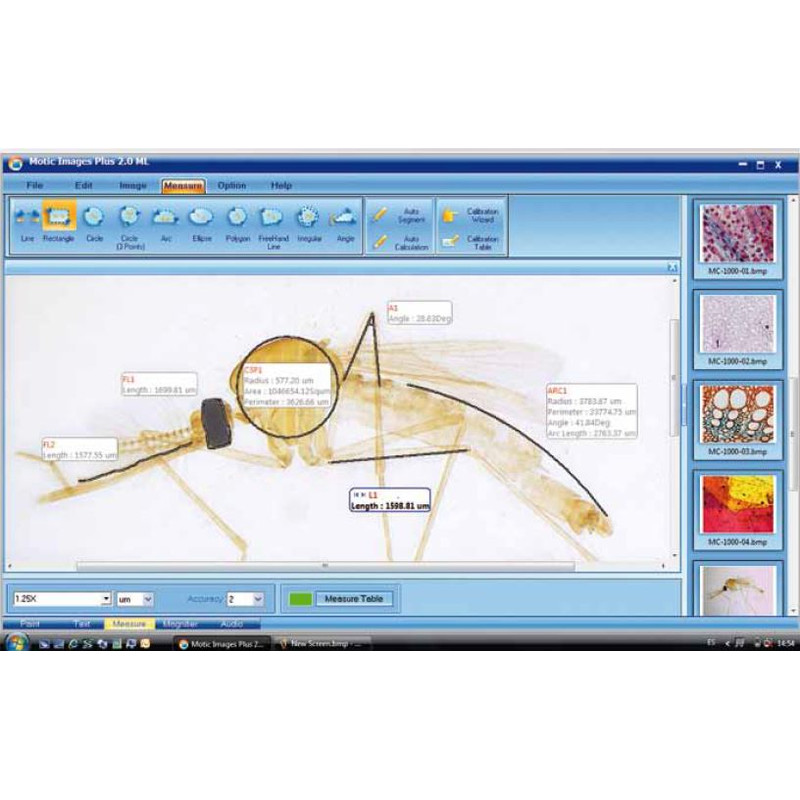

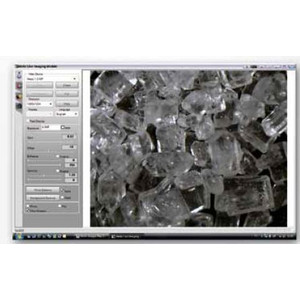

Motic Images Plus 2.0

The sophisticated image analysis software

The multilingual image analysis software, Motic Images Plus 2.0, is your ticket to the digital world of microscopy. It was introduced several years ago as 'basic' software for simple image acquisition and archiving. Motic Images Plus 2.0 has come a long way since then. With the help of many users worldwide, it has become a highly sophisticated image analysis software with the following main features:

  • Image capture
  • Automatic image acquisition
  • Video capture
  • Measurements
  • Automated counting
  • Report generation
  • Image comparison
  • Image merging

We are in close contact with many software users, with whose help we are able to provide a new update for Motic Images Plus 2.0 for download on our website approximately every 6 months. Once you have purchased a Moticam, you can download unlimited free updates at any time. In addition, we put a lot of effort into ensuring that our Moticams are compatible with a wide range of operating systems and, of course, their latest versions. Our cameras currently run on Windows (XP, Vista and 7), MAC and LINUX. If you would like to use your Moticam with other image analysis software, most cameras can be integrated using the TWAIN driver or DirectShow.

Specifications

Optics


Magnification
400 (40, 100, 400)
Eyepiece
10
Lens type
Achromatic
Condensor
Abbe condenser 1.25 N.A., focusable with iris diaphragm, with filter holder
Lighting
Transmitted light
Lamp type
Halogen (12V/20W, continuously adjustable)
Power supply
100-240V, VDE plug (CE) mains adaptor

Mechanics


Type of build
Digital
Focusing
Coarse and fine movement
Viewing posture (°)
30° angled eyepiece
Specimen stage
Cross table (175x140 mm, Translation: 76x50 mm)

Special features


Centering stage
-
Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

Camera


Megapixel
3.0
Image format
2048 x 1536

General


Colour
grey/black
Weight (g)
8600
Width (mm)
200
Length (mm)
400
Height (mm)
458
Series
DM

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
