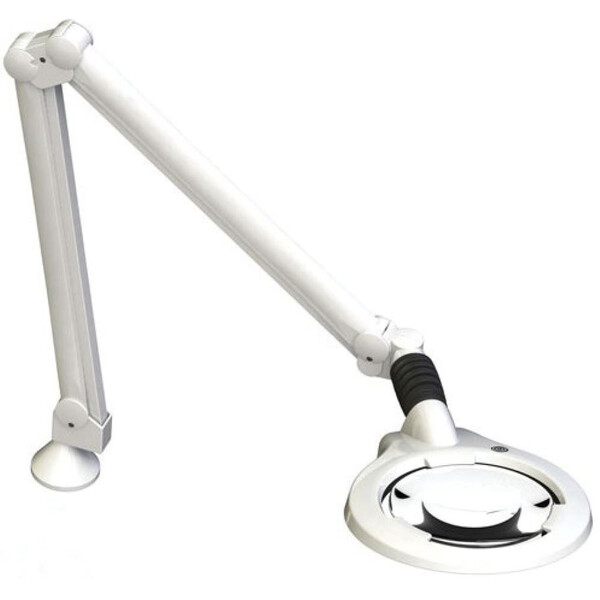

Circus LED
Powerful magnifying lamp with round glass lens
Ergonomic and economical. Circus LED is specially designed for demanding, everyday work in industry and manufacturing where foreign object damage (FOD-free design) must be ruled out. The Circus LED magnifying lamp is equipped with a highly flexible, self-balancing arm that allows precise positioning in any position. The closed design and spring-loaded arm make Circus LED an ideal instrument for environments where cleanliness is required.
Technical data
Lamps: Circus LED, 10W total energy consumption, 3830 lux at a focal length of 279 mm. Colour temperature is 4000°K (CCT). Colour rendering index (CRI): Ra 90.
Housing material & colour: Steel arm with aluminium head. Closed design, white with black accents.
Mounts: Standard with table clamp (AH clamp). Additional table clamps, table inlet sockets, etc. are available on request.
Optics: 3.5 (1.88x) or 5 (2.25x) dioptres, crown glass lens with 165 mm diameter
Secondary lens: For further magnification, a 4, 6 or 10 dioptre secondary attachment lens (STAYS) is available on request.
Light arm, technology & movement: Spring-balanced, parallel triple swivel arm with an arm length of 1000 mm.
Timer & dimming: Step dimming: 10-100%. Automatic switch-off function.
