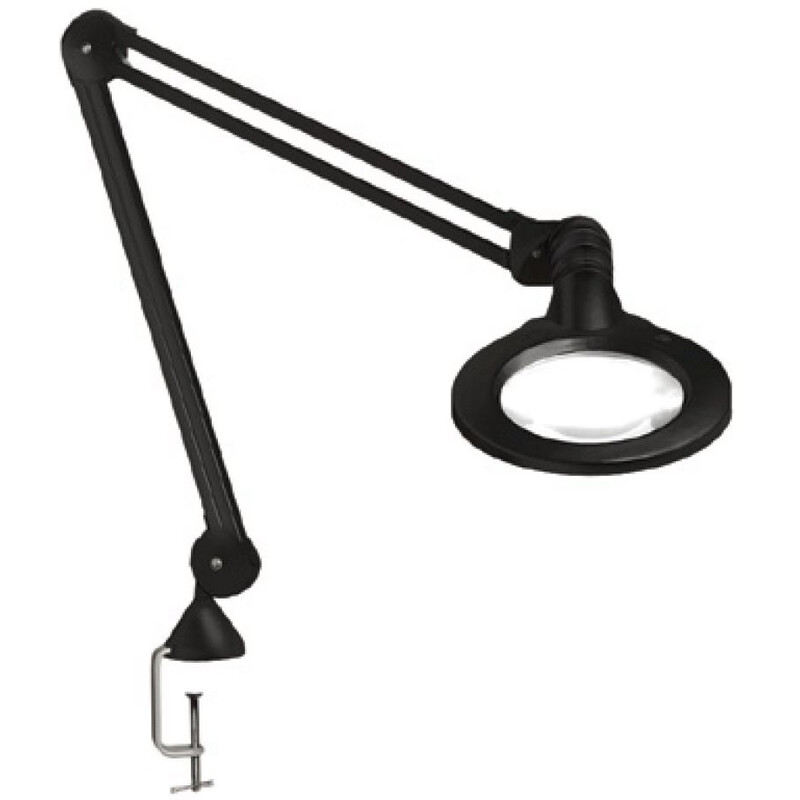

KFM LED / KFM LED ESD
Robust multi-purpose magnifying lamp
The KFM LED / KFM LED ESD magnifying lamp has a robust, all-metal construction with an elegant design, a flexible arm and excellent light output. It is suitable for all industrial purposes and professional applications. The high flexibility between the lamp head and the arm allows easy and precise positioning. The quality of the LED lighting provides virtually shadow-free magnification and excellent colour rendering. The KFM LED ESD lamp has been specially designed for the electronics industry to dissipate static charges in a controlled manner.
Technical data
Lamps: Two semi-circular LED modules, each with 9W. 3000 lux at 330 mm focal length. Colour temperature is 4000°K (CCT). Colour rendering index (CRI): Ra 80.
Housing material & colour: KFM LED: steel arm and aluminium head. Colour: light grey. KFM LED ESD: steel arm and aluminium head. Colour: black.
Mounting: Standard with table clamp (AH clamp). Additional table clamps, table inlet sockets, etc. are available on request.
Optics: 3 (1.75x) or 5 (2.25x) dioptres, white crown glass lens with 127 mm diameter.
Secondary lens: For further magnification, a 4, 6 or 10 dioptre secondary attachment lens (STAYS) is available on request.
Light arm, technology & movement: Spring-balanced, parallel triple swivel arm with an arm length of 1050 mm.
Timer & dimming: The LEDs are dimmable from 1-100%. Automatic switch-off function.
