Wave LED / LED ESD / LED UV

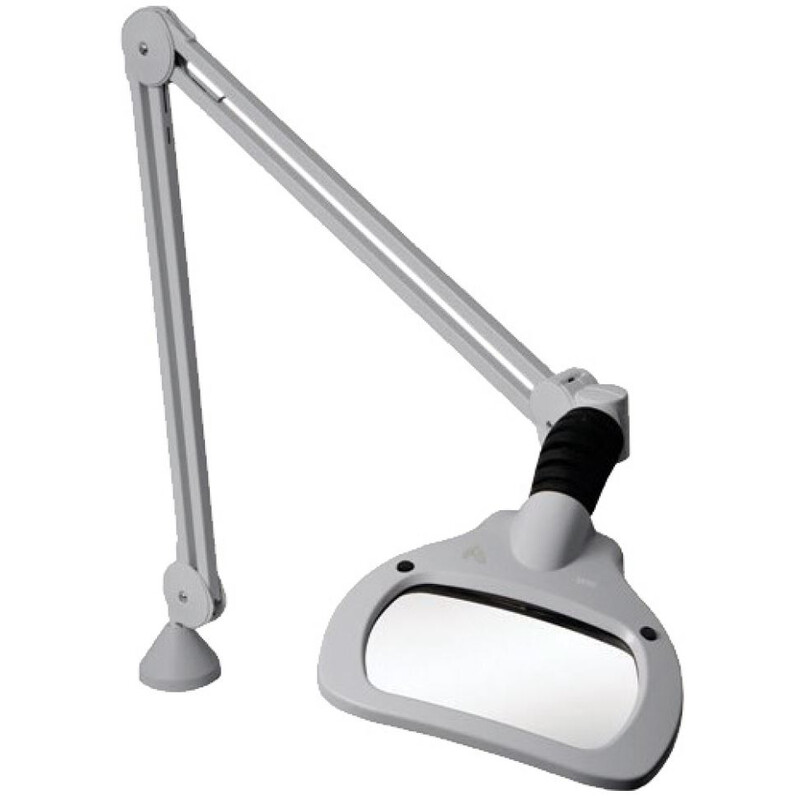

Economical LED magnifying lamp in rectangular shape
Ergonomic and efficient. The flexible, self-balancing arm and the friction-free joint between the lamp head and the arm make precise positioning child's play. The closed design makes it an ideal instrument for mechanical, electronic or other precision applications, as well as for the dental and jewellery industries. The Wave magnifying lamp offers shadow-free illumination and three-dimensional magnification through light from the left and/or right side. Wave LED ESD has been specially developed for the electrical industry, where static charges can cause damage to electronic components.
Technical
Lamps: Two dimmable LED modules, each with 6W. 4600 lux at a focal length of 279 mm. Colour temperature is 4000°K (CCT). Colour rendering index (CRI): Ra 80.
Housing material & colour: WAVE LED: Steel arm and aluminium head. Colour: light grey WAVE LED ESD: Steel arm and aluminium head. Colour: black.
Mounts: Standard with table clamp (AH clamp). Additional table clamps, table inlet sockets, etc. are available on request.
Optics: 3.5 (1.88x) or 5 (2.25x) dioptres, 171 mm x 114 mm rectangular crown glass.
Secondary lens: For further magnification, a 4, 6 or 10 dioptre secondary attachment lens (STAYS) is available on request.
Light arm, technology & movement: Spring-balanced, parallel triple swivel arm with an arm length of 1050 mm.
Timer & dimming: Step dimming: 0-50-100%. Selectable left/right lighting. Automatic switch-off function.
