Astronomy > Mounts & accessories > Mounts > Alt-azimuth with GoTo > iOptron > HAZ > iOptron Mount HAZ71 Strain Wave Alt-AZ
Product no.: 80761

Mount HAZ71 Strain Wave Alt-AZ

$ 4,230.00 incl. VAT plus shipping costs
too expensive?
short-term
Product can be shipped as of 01.07.2025 + lead time
  • Low weight with high load capacity
  • GoTo function with 212,000 objects
  • The ultimate AZ mount

Product description

The new HAZ71 Strain Wave from iOptron is an alt-azimuth mount with full GoTo functionality and other innovative features. It is compact and lightweight, yet can carry the highest payload of the HAZ series. This makes it a wonderful travel mount for visual use. The well-known Go2Nova® technology from iOptron also offers a database with 212,000 objects, ASCOM compatibility and, thanks to the integrated WLAN, control via tablet or Smartphone using SkySafari, Raspberry Pi or INDI. The large Vixen prism clamp and the stable construction allow the use of various telescopes up to medium size and even the connection of large binoculars!

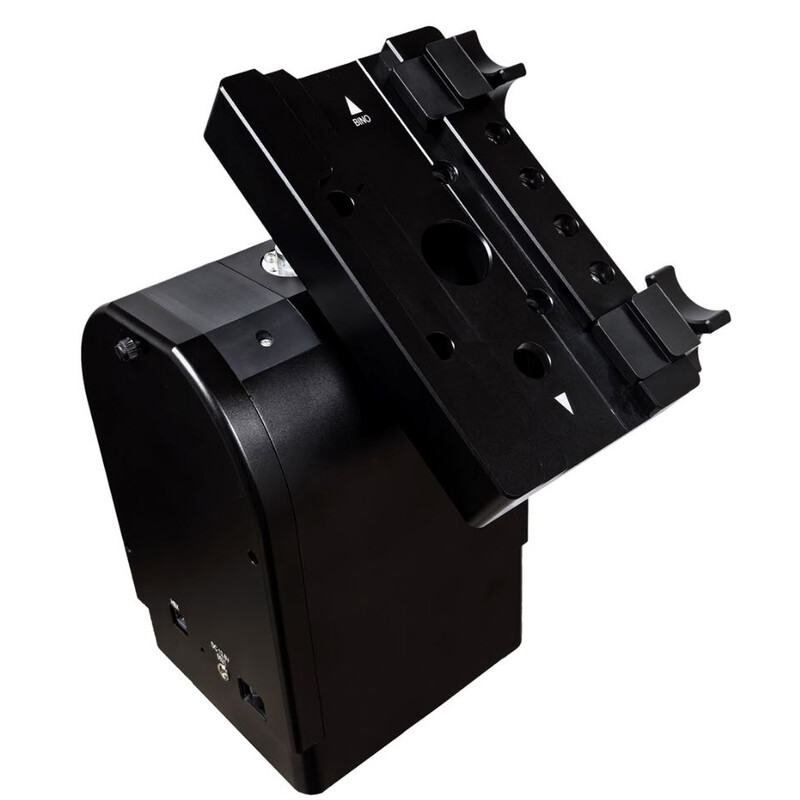

The multifunctional prism clamp mount can be adjusted either sideways or horizontally (upwards) on the mount, ensuring that large binoculars and telescopes with longer focal lengths can be securely attached. A counterweight bar with counterweight is not absolutely necessary.

The built-in "Electronic Friction Brake" control mechanism stops the movement of the mount immediately if the power supply is accidentally interrupted. After switching on, the mount calibrates itself automatically and also detects its position. A power supply is included, as is a sturdy (but lightweight!) carrying bag. A tripod and pier extension are available as optional extras, as the HAZ71 fits any stable photo tripod with the appropriate load capacity. However, we recommend using the iOptron "CF Tripod 40mm" (item 77370).

Specifications

Capacity


Max. additional load capacity (kg)
31
Interfaces
WiFi, USB, HC
Language
English
Mounting saddle
Vixen-Style
Weight mount head only (kg)
8,3
Input voltage
12
Amperage (A)
5
Cable-guide
intern
Encoder
no
declination axis material
Aluminium
right ascension axis material
Aluminium
Motor type
Stepper motors
Counterweight(s) (piece)
0 (Optional)
Drive type
Harmonic / Strainwave

Special features


GoTo system
yes
Handcontroller
yes
Level
yes

Equipment


Tripod
without tripod
Carry case
yes
Pole finder
no
Other contents
Power pack
Counterweights (piece)
0

General


Type
Mount
Series
HAZ
Type of build
Azimuthal

GoTo control


GPS
yes
WIFI
yes
PEC correction
no
Polar Alignment
computer assistance
GoTo Language
English
Software
Go2Nova 8409
Autoguiding
yes
Interfaces
Autoguider, USB
Database
212.000

Product safety

Manufacturer: iOptron Corporation - Air Freight Orders, 1 Merrill Street, MA 01801 Woburn, US, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
