Long mounting rail (Losmandy-style)

Omegon mounting rail for large telescopes

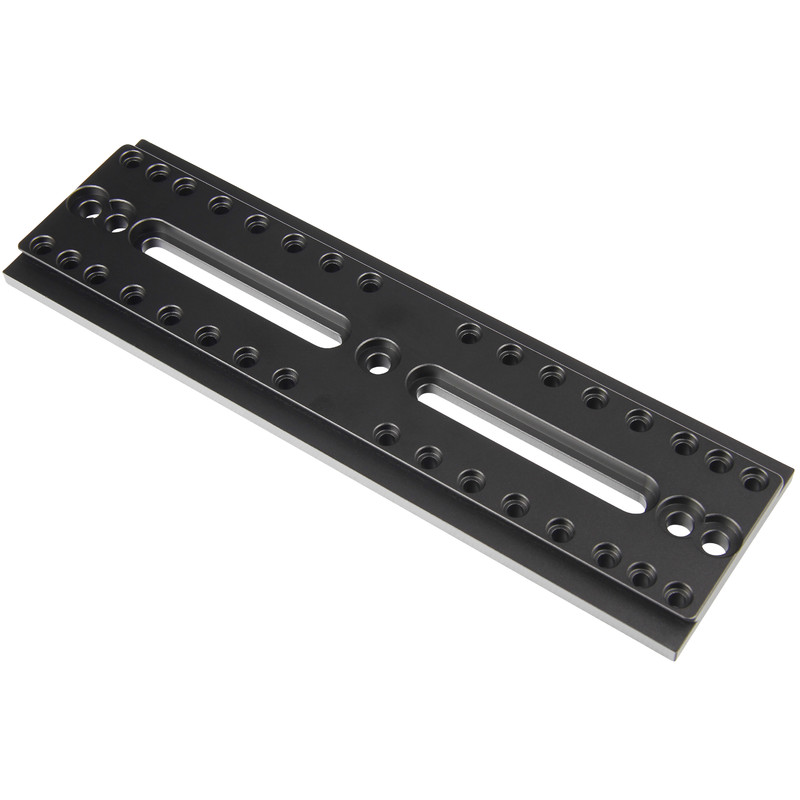

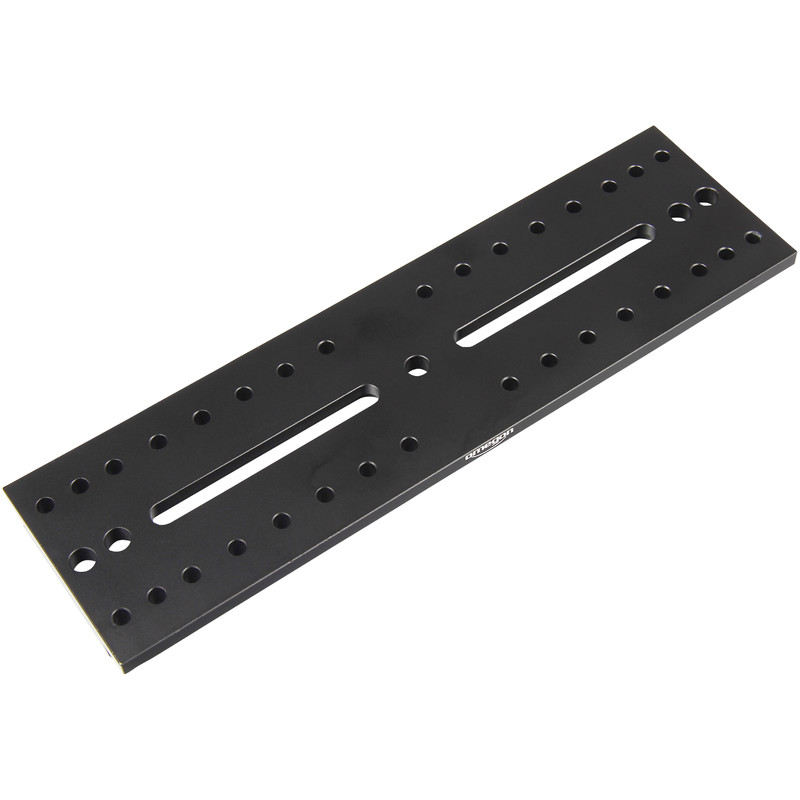

This 3" Losmandy-style mounting rail provides you with the best anchor for your telescope. The two slots and 37 additional drillings provided mean you can solve any adapter problem between the telescope and the mount.

The advantages in a nutshell

• 3" prism rail for mounts with Losmandy-style connection
• slots and countless drillings for connecting accessories
• CNC-machined from aluminium, black anodized

Suits every telescope

Drillings in the right place - not an easy task, as every observer requires something a little different. That is why you will find multiple drillings for flush-sitting screws. So decide whether to mount telescopic tube-ring clamps, guide scope, camera or spotting scope. Find your own particular combination - almost anything is possible.

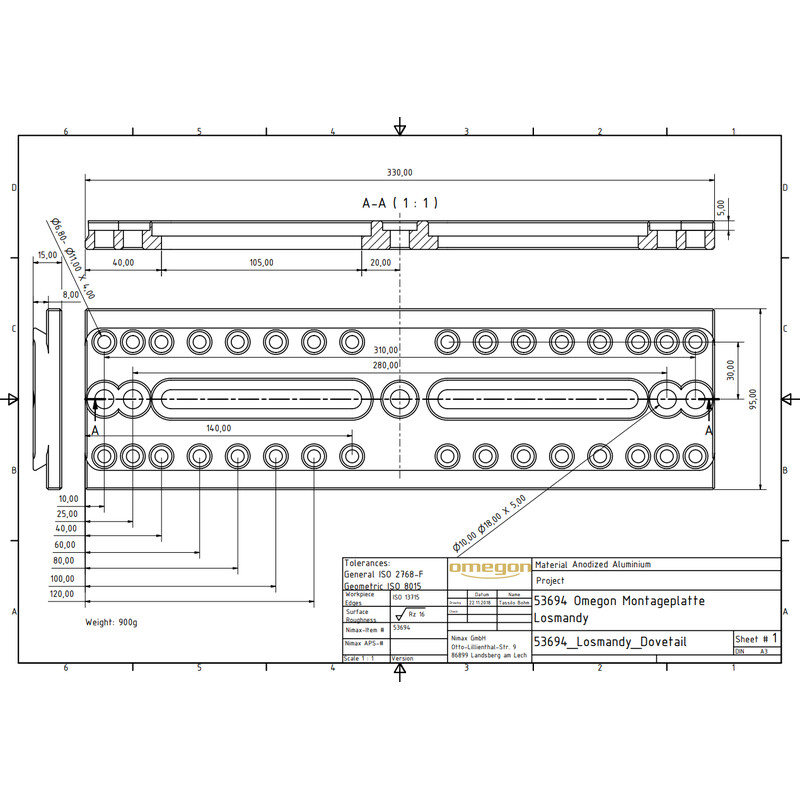

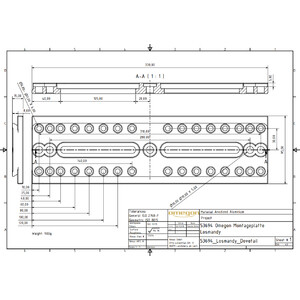

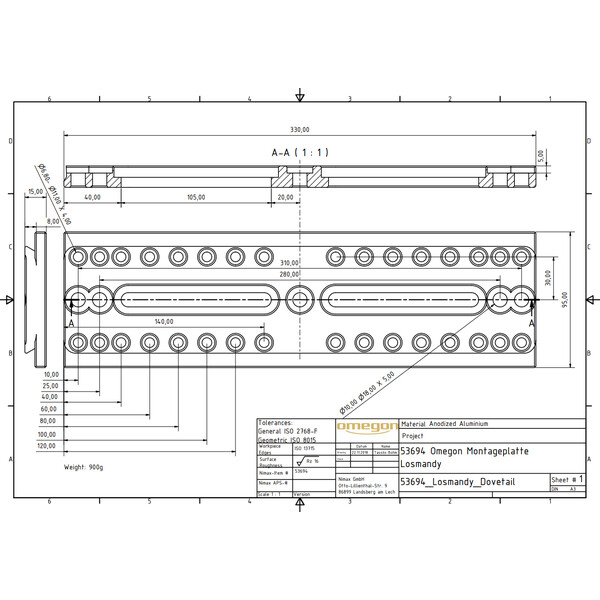

The first three holes on each side are 15mm apart. The first to the third is 30mm apart. The rest are 20mm apart. Therefore, there is a 55mm gap between the second and fifth hole.
