Product no.: 53222

Camera Alta F2 grade S

$ 8,100.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Apogee Alta family has been a mainstream of high end imaging for many years, offering a wide range of full frame and interline CCDs. Cooling performance down to 45° C below ambient ensures optimal signal to noise for long exposure applications. A USB 2.0 interface offers the convenience of simple, robust connection to PC.

Apogee Alta cameras are available with a wide variety of sensors, including: Back-illuminated sensors with very high quantum efficiency, some with sensitivity in the deep UV; Interline transfer sensors with fast electronic shuttering and inherent anti-blooming; front-illuminated CCDs with high sensitivity in the near-IR without etaloning and a range of resolution options up to 16.8 Megapixel.

Features and Benefits:

  • High resolution sensors: Sensors up to 16.8 Megapixel, offering large field of view at high resolution
  • Programmable TE cooling to 50 °C below ambient: Ideal for astronomy images, enabling long exposure acquisitions with optimized signal to noise ratio
  • High Dynamic Range: Large pixel sensor variants offer extended intrascene quantification of weak and bright objects
  • 16-bit digitization: High photometric accuracy
  • In built shutter: Shutter during readout and take dark reference frames - 25mm, 43mm or 63mm.
  • USB 2.0: Direct ‘Plug and Play’ connectivity
  • Programmable I/O port: Synchronization with intricate experimental set-ups
  • Remote triggering: LVTTL input allows exposure to start within 25 microseconds of rising edge of trigger
  • Focusing mode: Faster readout option, ideal for focus optimization
  • Precision locking filter wheels (optional): Choose from a range of Apogee family filter wheels, up to 10 position
  • Andor OEM optimization: Compact and robust, Andor integration support, Andor quality enhancement, Andor post-sale support. Now also supported by 'Andor SDK3'

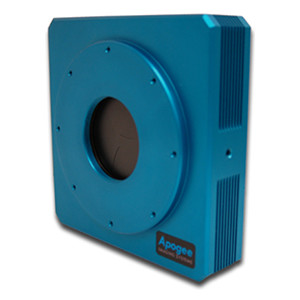

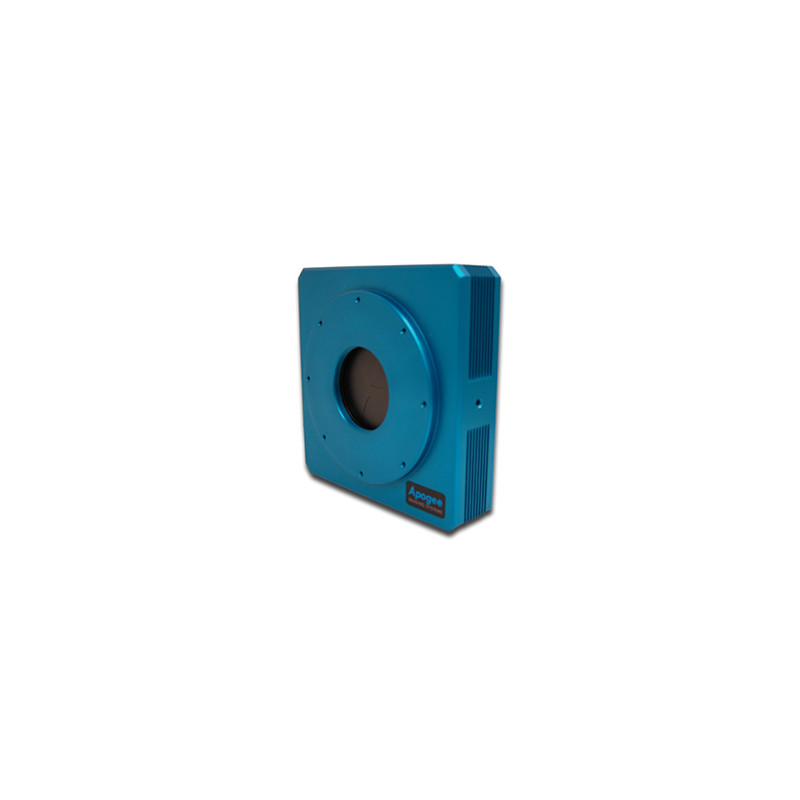

The Apogee Alta F2 has a 1.6 megapixel full frame sensor with very high quantum efficiency and high dynamic range when compared to interline CCDs. Low noise and large field-of-view make the Alta F2 a versatile performer suitable for OEMs, biological sciences, spectroscopy, and astronomy.

Special features:

  • Temperatur stability: +/- 0.1°C
  • Maximum Dynamic Range: 82 dB (12588:1)
  • Linearity: >99%
  • Camera Window: UV-grade fused silica
  • Image Sequencing: 1 to 65535 image sequences under software control
  • Shutter: 25mm
  • Blemish Specification: Grade S as per sensor manufacturer definition

Specifications

Capacity


Antiblooming
yes
Active cooling
yes
Colour camera
no
Interfaces
USB 2.0
Sensor type
CCD-chip (Kodak KAF-1603)
Size of chip (mm)
13,8 x 9,2
Pixel size
9
Resolution Photograph (Pixel)
1536 x 1024
Full Well Capacity
107.000
Bit depth (Bit)
16
Max. cooling difference below room temperature
-45
Reading noise
8,5
Dark current
0,0159
Binning
1 x 1 to 8x 1024
Microlenses
yes
Megapixel
1,6

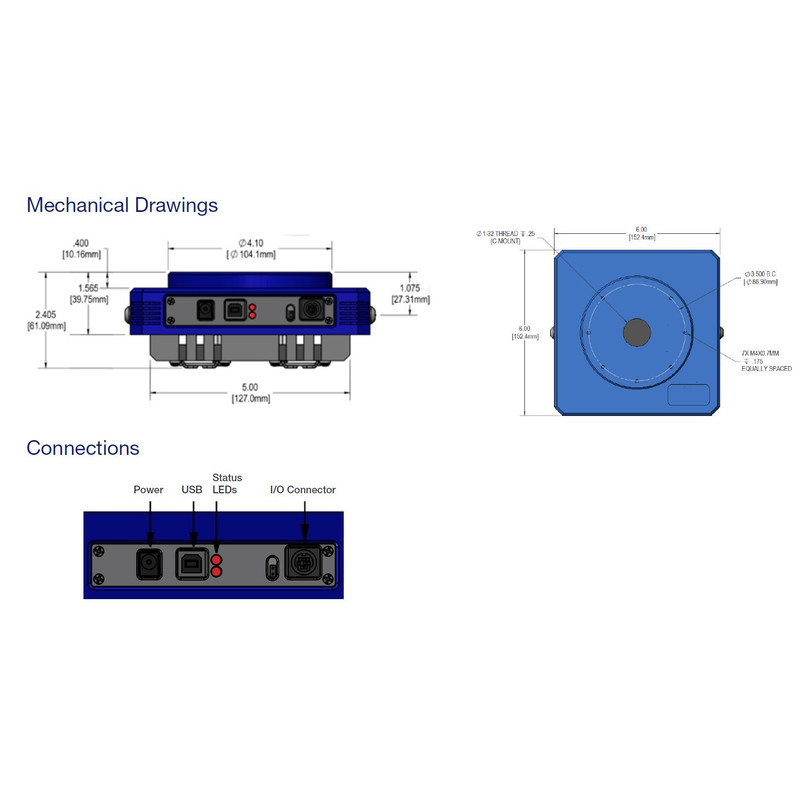

Flange focal distance (mm)
17,5
Max. exposure time (min)
95
Chip - Diagonal (mm)
16,6

General


Overall size LxWxH (cm)
15 x 15 x 6,3
Weight (g)
1400
Series
Alta

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

*All prices include VAT plus shipping costs.

Apogee Camera Alta F2 grade S

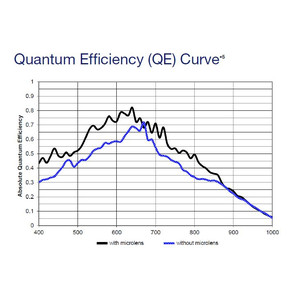

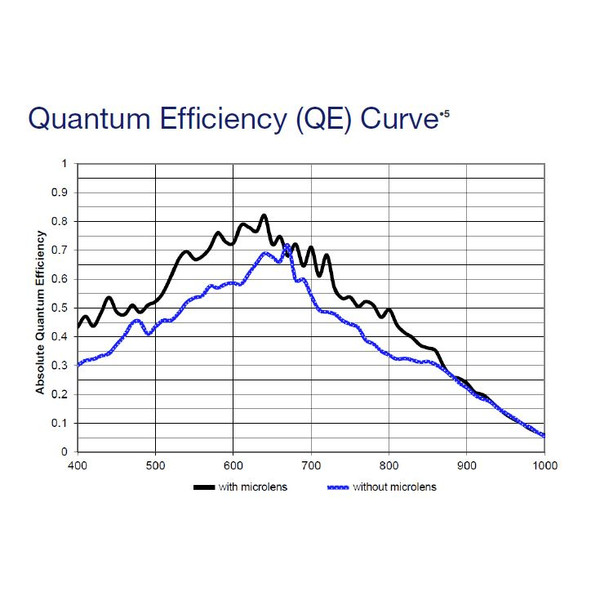

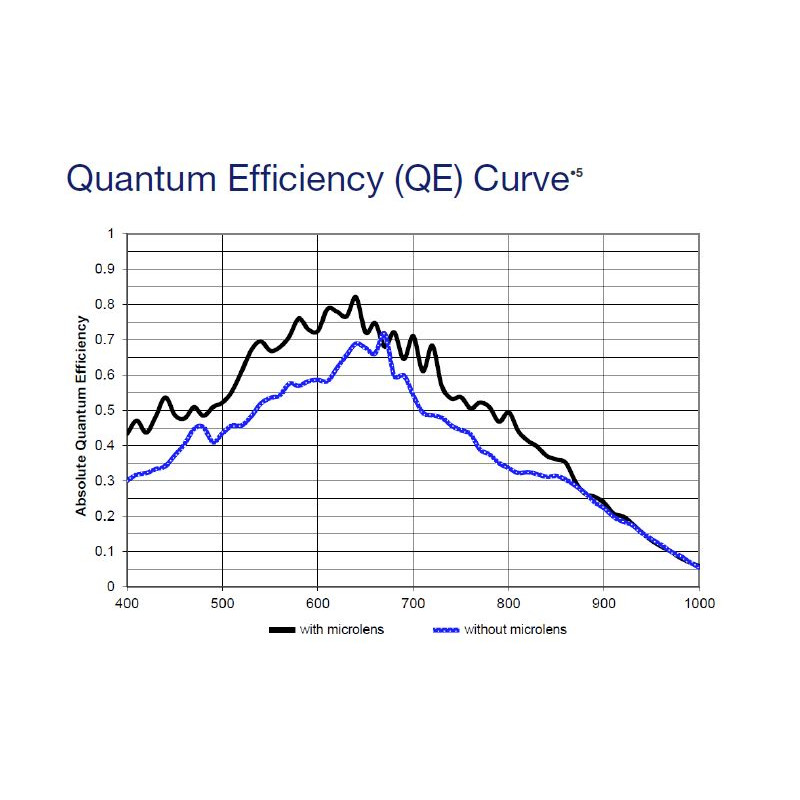

Quantum efficiency
