Astronomy > Telescope accessories > Spectroscopy & Photometry > Spectroscopes > Paton Hawksley > Paton Hawksley Spectroscope Star Analyser 100
Product no.: 14616

Spectroscope Star Analyser 100

$ 197.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery the day after tomorrow, 14.12.2024!

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

Use:

  • Professional Astronomers routinely use the power of spectroscopy to reveal the secrets of the universe. Now the Star Analyser can do the same for the amateur imager at an affordable price with this simple telescope attachment.
  • Used like a conventional 1.25 inch filter, it is the ideal accessory for today's low cost astronomical imaging cameras, webcams and video cameras.
  • For example, with a telescope of just 80mm aperture and a simple unmodified webcam, the hidden characteristics of hundreds of stars down to magnitude +4 can be revealed. With a 200mm aperture and a sensitive long exposure CCD imager, the identification of bright Novae and Supernovae or even a measurement of the expansion of the universe from the redshift of a Quasar are possible.

Features:

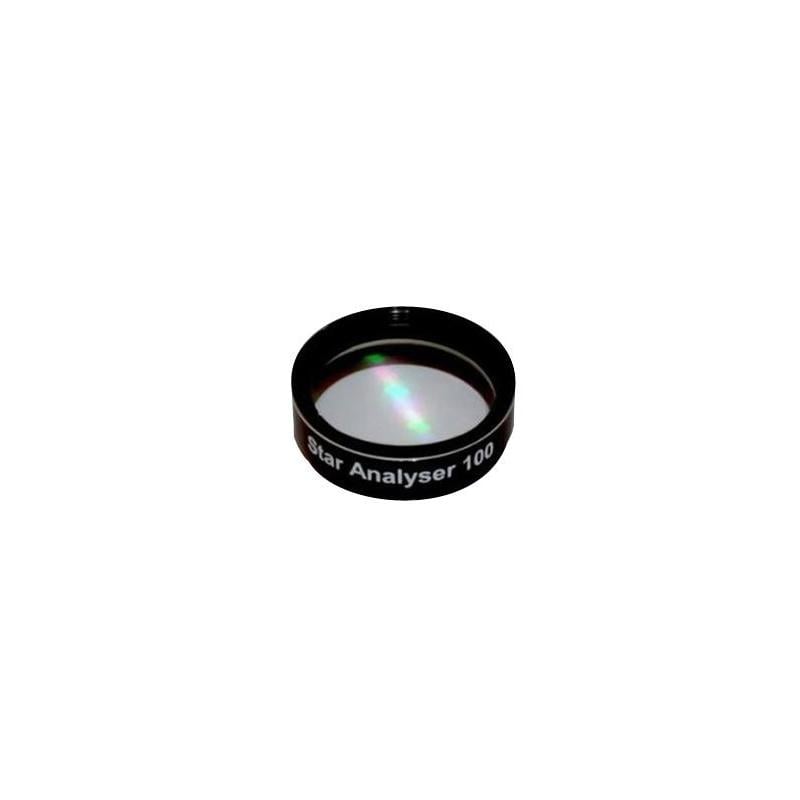

  • High quality transmission diffraction grating mounted in a standard 1.25 inch filter cell
  • Anti- reflection coated glass protects the grating surface
  • High efficiency 100 lines/mm blazed design
  • Simple to use - Screws into a camera eyepiece adapter like a normal filter
  • Spectrum direction marked on the filter cell. A locking ring maintains the orientation
  • Optimised for the small CCD sensors found in popular webcams, video and astro cameras.
  • Star and spectrum can be recorded in the same image, which aids identification and calibration
  • Grating distance can be adjusted if desired using spacer rings (purchased separately)
  • Can also be fitted to an eyepiece for visual use

Specifications

Capacity


Connection (to the telescope)
1,25"
Mount material
Aluminium

General


Type
Spectroscopes

Downloads

Product safety

manufacturer: Paton Hawksley Education Ltd., 17 Ashmead Business Park, Ashmead Road, Keynsham, BS31 1SX Bristol, GB, http://www.patonhawksley.co.uk
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy (2)

Paton Hawksley Prisma 3,8°

$ 105.00*

*All prices include VAT plus shipping costs.

Paton Hawksley Spectroscope Star Analyser 100

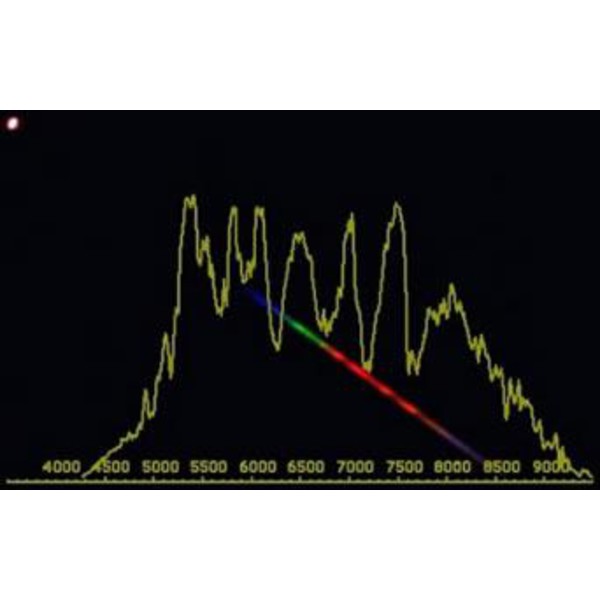

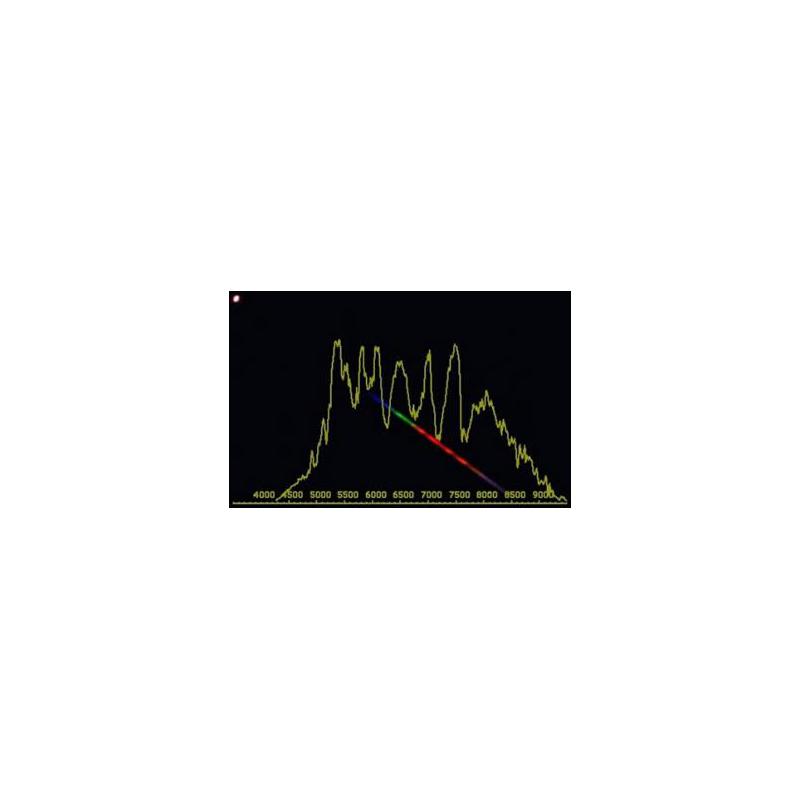

Spectrum with an image of Vega
