Product no.: 53112

Camera 16200 Color

$ 5,300.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Cooled Camera for Large Format Astrophotography

The Atik 16200 is the highest resolution astrophotography camera in the Atik Cameras range. It has the signature Atik blend of form and function, boasting an APS-H size sensor with a 35mm diagonal in a whole new case design.

The sensor has a generous 6µm pixel size which makes it suitable for a huge range of telescopes. The large format size of the camera makes it ideal for astrophotographers looking to capture widefield views of the night sky. It’s also an excellent match for longer focal lengths, capturing intricate details on even the smallest and faintest of objects. Whatever your astrophotography style, the large size of the images give you the freedom and flexibility to zoom in and take a closer look at regions of interest with the level of detail you’d expect from your main target.

The large size of the sensor is a match for 2"-filters, and is perfectly complemented by the 2" model of the EFW2-Filterwheel. It’s also fully compatible with Atik Air, making it easy to add wifi and ethernet connectivity to your set up.

The CCD is housed in a sealed, argon-purged chamber to create a dry, condensation free environment. The new dual-stage peltier heatsink for optimum cooling performance: At -45°C typical and a huge -50°C maximum! All this means you can take stunning low noise images, even when the temperature’s high outside.

Atik’s high-quality, custom electronics power the sensor to give a read noise of just 9e-. There’s also a new blade shutter which provides consistent and reliable performance over the camera’s lifespan.

All this is housed inside a brand new case design that gives you optimum performance with minimum fuss, making the Atik 16200 the perfect camera for astrophotographers who want large format images, without the large format price tag.

The Atik 16200 comes with a class 2 sensor fitted as standard. The premium prices placed on class 1 sensors just aren’t justifiable when using the camera for astrophotography.

Inside the box:

  • Camera body with 2” adapter
  • USB cable
  • Battery power connector (car lighter plug)
  • CD-ROM with drivers, software and user's manual (PDF)
  • Quickstart guide (paper)

Atik's highly acclaimed Artemis Capture software is included for camera control and data acquisition, along with a full ASCOM driver and plug-ins to allow use with Astroart and Maxim DL.

Specifications

Capacity


Megapixel
16,2
Resolution Photograph (Pixel)
4499 x 3599
Pixel size
6
Bit depth (Bit)
16
Reading noise
9
Full Well Capacity
40.000
Dark current
0,25
Interfaces
USB 2.0 High Speed
Amperage (A)
3
Input voltage
12
Max. exposure time (min)
infinity
Min. exposure time
0,2
Max. cooling difference below room temperature
50
Flange focal distance (mm)
19,5
Supported operating systems
Windows 10/Vista/Win7/Win8 (not RT)
Cable length (m)
3 & 1,8
Active cooling
yes
Colour camera
yes
Chip - Diagonal (mm)
35
Sensor type
CCD-chip

General


Series
16200
Weight (g)
1300

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
no
Nebulae & galaxies
yes

Recommended accessories

Media (1)

Springer Inside PixInsight

$ 26.90*

*All prices include VAT plus shipping costs.

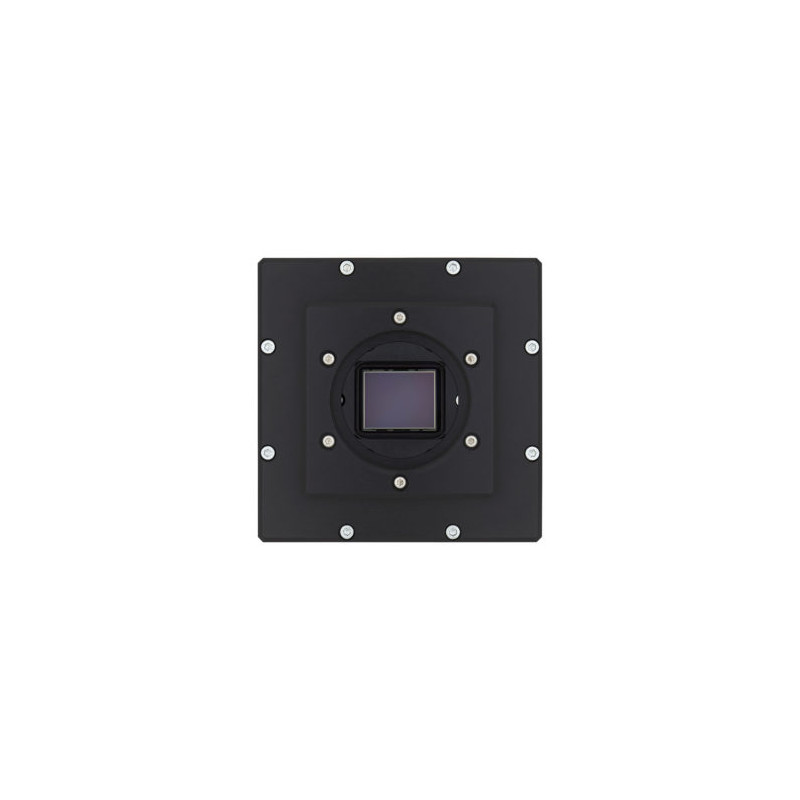

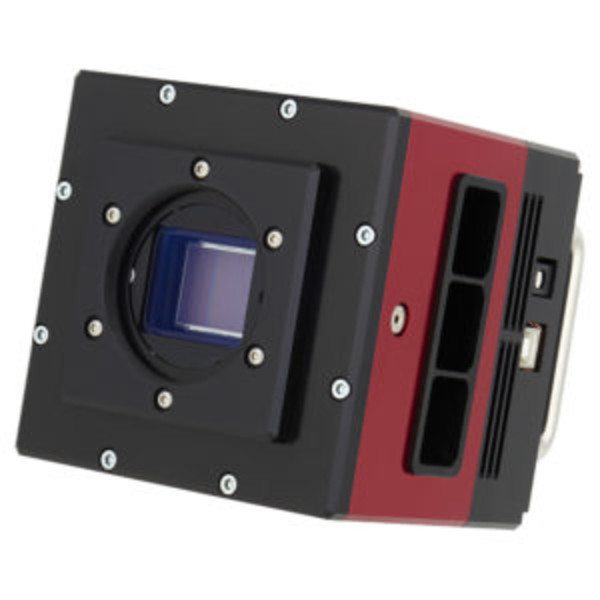

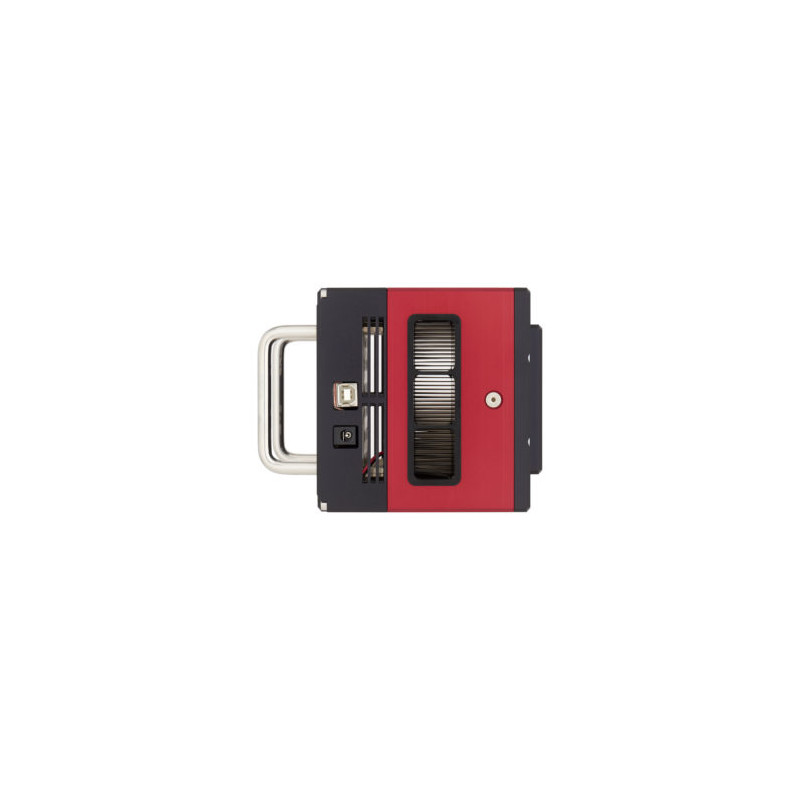

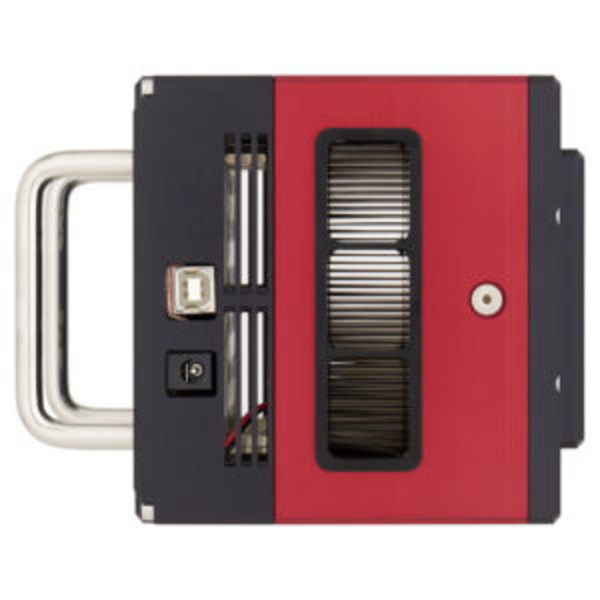

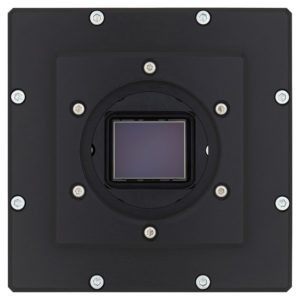

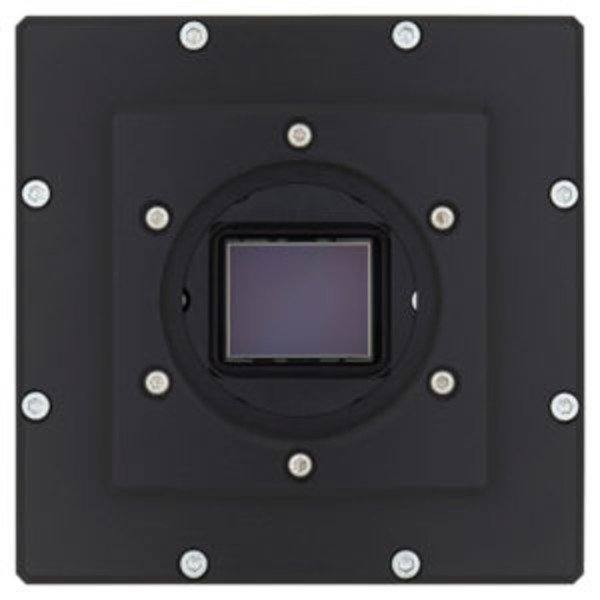

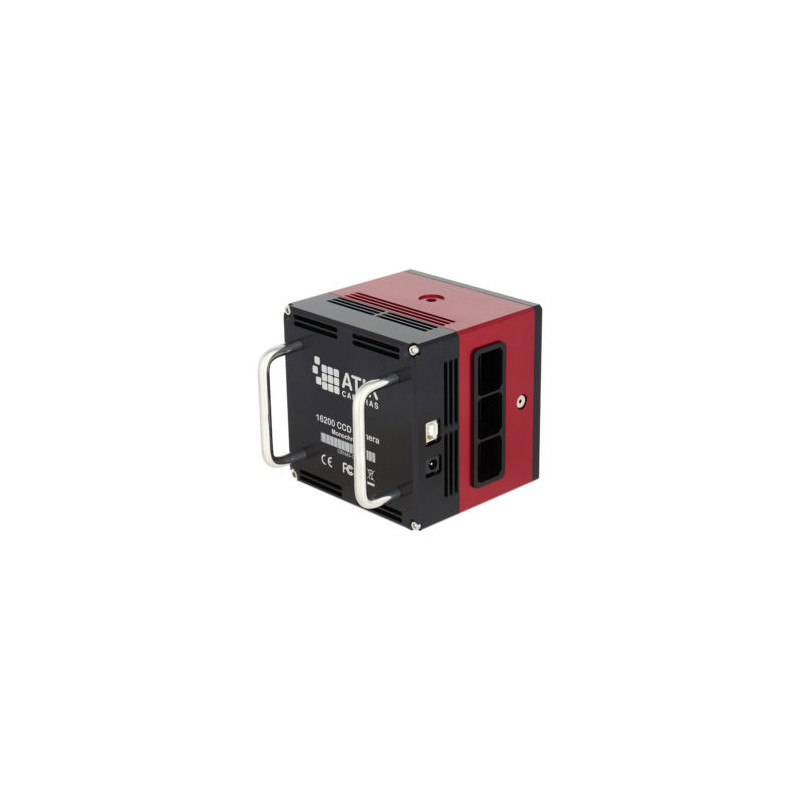

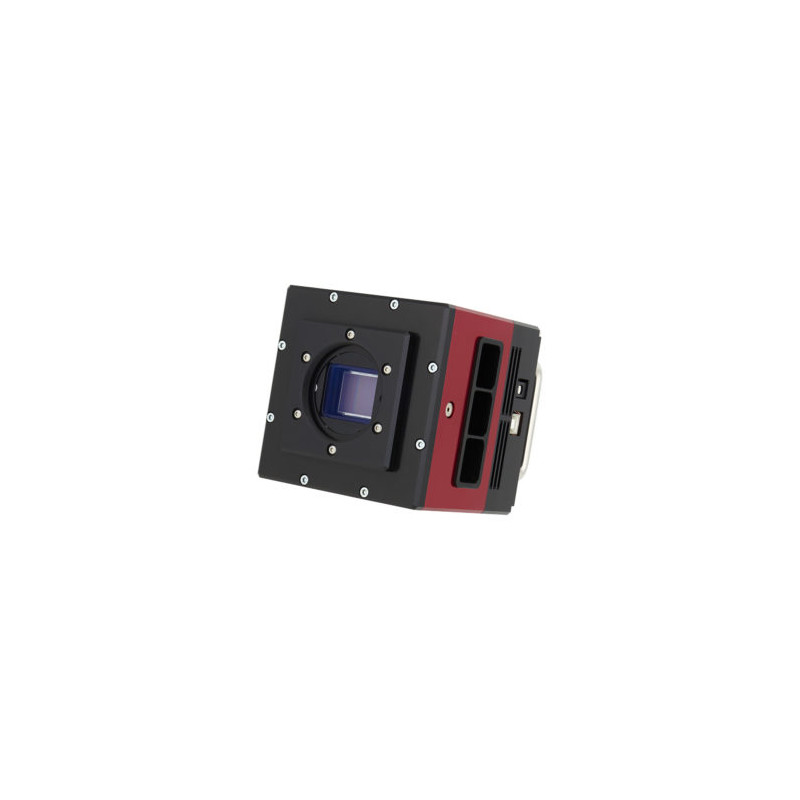

Atik Camera 16200 Color
