Product no.: 54776

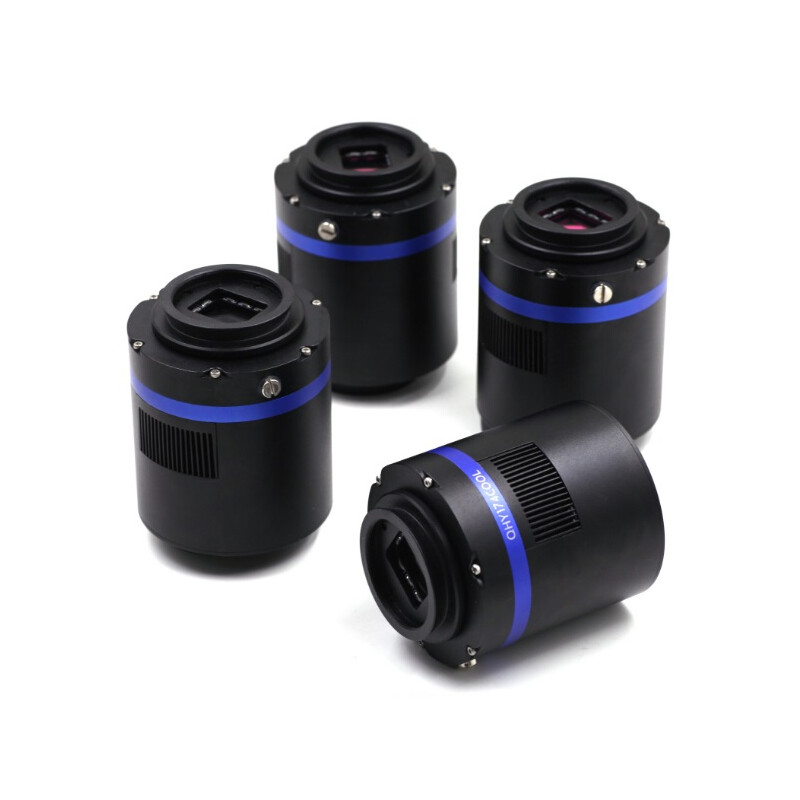

Camera 163 cool Mono

$ 1,600.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

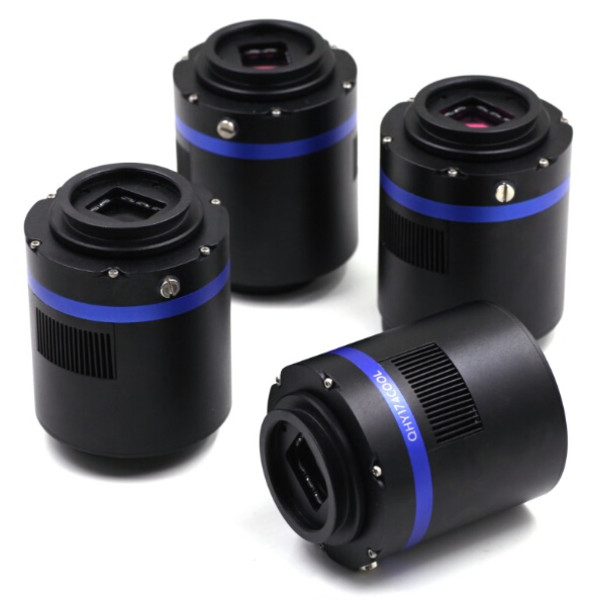

The ALccd-QHY cameras 163, 174, 178, 224 and 290 are based on state-of-the-art CMOS sensors with sensor diagonals of up to 22 mm. The models differ mainly in their sensor and pixel size and whether they have a BSI (back illuminated) or FSI (front illuminated) sensor.

The cameras are very compact, which is particularly useful for smaller, portable telescopes, but a small camera is also advantageous in special technical assemblies.

The integrated DDRII buffer memory has a storage capacity of 128 MB and ensures that no images are lost during download. It is also a prerequisite for ensuring that no images are lost or that images can be downloaded at all, even with low-performance PCs and USB 2.0.

The sensor chamber of the cooled cameras is sealed and heated with a special heater. This prevents fogging, especially in areas with high humidity.

The sensor does not require a mechanical shutter; it works electronically. The ALccd-QHY 174 model has a global shutter, while the other models have a rolling shutter.

The series includes various light detection technologies, via BSI (backlighting) or classic FSI (front lighting). BSI sensors, as used in the ALccd-QHY 178 and 290 models, generally have higher light sensitivity due to the characteristic properties of these sensors.

The ALccd-QHY 163, 174, 178, 224 and 290 cameras require a 12V power supply for operation. The connection is screw-mounted and securely connected to the power supply plug.

Specifications

Capacity


Colour camera
no
Active cooling
yes
Sensor type
CMOS Chip (Panasonic MN34230)
Megapixel
16
Resolution Photograph (Pixel)
4656 x 3522
Pixel size
3,8
Size of chip (mm)
17,7 x 13,4
Chip - Diagonal (mm)
22,2
Bit depth (Bit)
12
Max. exposure time (min)
30
Min. exposure time
0,00005
Max. cooling difference below room temperature
40
Reading noise
2,4
Antiblooming
yes
Connection (to the telescope)
T2
Shutter
Electronic

Special features


Infrared filters
no

General


Weight (g)
450
Series
Cooled CMOS Mono
Diameter (mm)
77
Height (mm)
92,5

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Product safety

Manufacturer: Astrolumina, Alfred-Wirth-Straße 12, 41812 Erkelenz, DE, http://www.astrolumina.de
