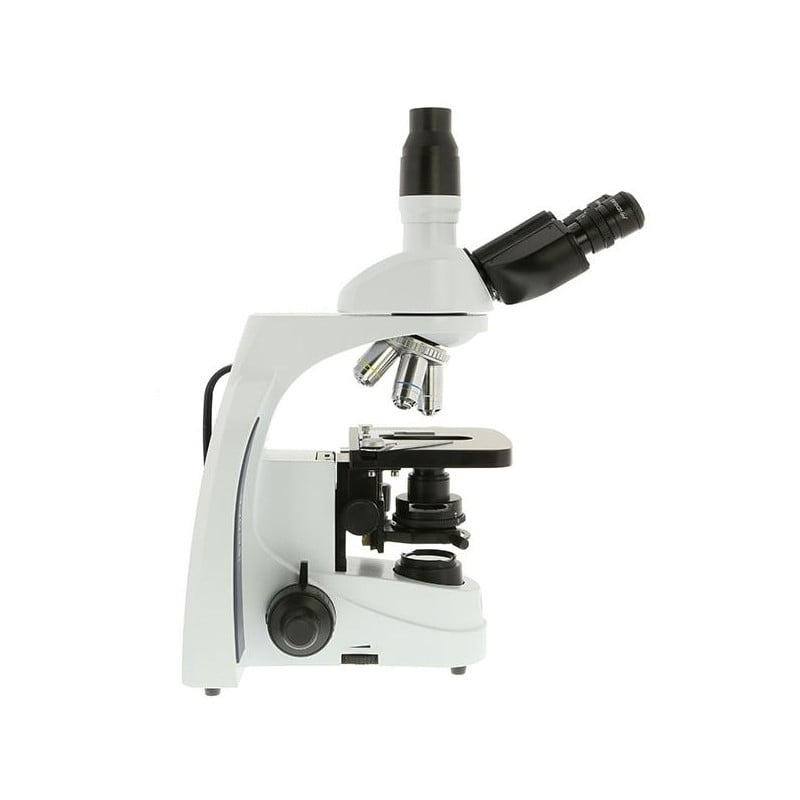

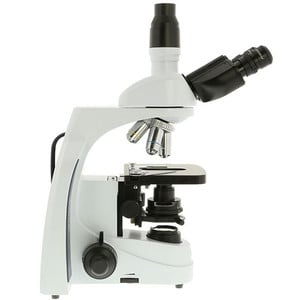

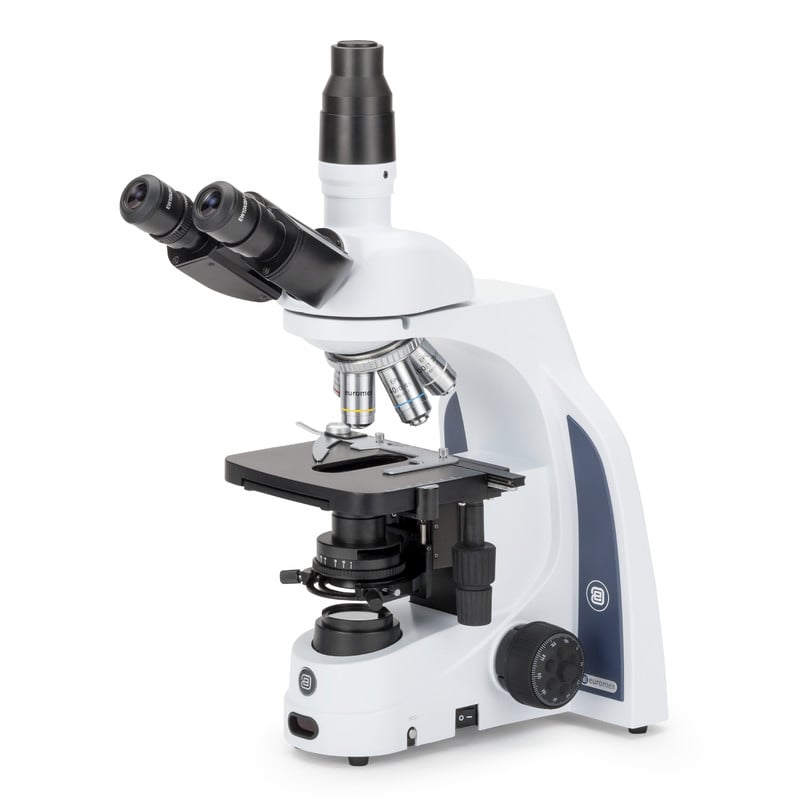

iScope® IS.1153-EPL – Trinocular training and routine microscope with phototube
The IS.1153-EPL is the trinocular version of the proven iScope® basic model with E-Plan lenses. With the additional phototube, it is perfect for camera use or live image transmission in teaching or in the laboratory.
This model also features robust E-Plan IOS lenses and a large microscope stage without a distracting rack. The simple LED lighting without a Köhler system makes the microscope particularly low-maintenance and user-friendly – ideal for daily use in teaching and routine analysis.
Euromex iScope for brightfield IS.1153-EPL
- Eyepieces EWF10x/20 mm
- Head Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on left eyepiece
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives E-Plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN objectives. All optical parts are anti-fungus treated
- Stage 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100V-240V power supply (CE)
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
