Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Evident Olympus > CX23 > Evident Olympus Microscope Olympus CX23 Photo, trino, plan, 40x,100x, 400x, LED
Product no.: 54512

Microscope Olympus CX23 Photo, trino, plan, 40x,100x, 400x, LED

$ 2,270.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
Product questions?
advice for Microscopy

Product description

More about the series CX23...

Olympus CX23 Standardconfiguration with trinocular tube (E07MIS0047)

The CX23 series of microscopes from Olympus have become our customers’ most popular educational microscopes over the past 2 years! Olympus offers these microscopes with economical LED lighting technology!

User-friendly Microscope for the Classroom

Focused on improving workflow for educational microscopy, the CX23 upright microscope requires minimal setup

Upright microscope set for transmitted light observation with trinocular tube

  • integrated LED illumination
  • quadruple nosepiece
  • fixed mechanical stage (120 x 132 mm, travelling range 76 x 30 mm)
  • right hand low drive control
  • specimen holder for one slide
  • Abbe condenser, NA 1.25
  • Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 μm/rotation
  • trinocular tube with two widefield eyepieces for FN20 and 30° inclination
  • selection of the beam path (eyepiece/camera port = 0/100 or 100/0)
  • diopter adjustment on both eyepieces
  • interpupillary distance adjustment 48-75 mm
  • Plan 4x, NA = 0.1, WD = 27.8 mm, CC= -
  • Plan 10x, NA = 0.25, WD = 8 mm, CC = -
  • Plan 40x, NA = 0.65, WD = 0.60mm, CC = 0.17
  • All optics feature antifungus treatment

Included components:

  1. CX23RTFS2-1-2 Microscope Stand (N5731300)
  2. Dust cover (038159)
  3. UYCP power cable (035425)

Specifications

Optics

Lighting
Transmitted light
Lamp type
LED
Image scale
4,10,40
Condensor
Abbe (Securely mounted)
Power supply
Power plug
Optical system
infinity
Objective 1
Plan 4x, NA = 0.1, AA = 27.8 mm, DK = -
Objective 2
Plan 10x, NA = 0.25, AA = 8 mm, DK = -
Objective 3
Plan 40x, NA = 0.65, AA = 0.60mm, DK = 0.17
Field curvature
Plan

Capacity

brightfield
yes
Field of view value
20

Mechanics

Type of build
Trinocular
Viewing posture (°)
30° angled eyepiece
Focusing
Coarse and fine movement
Revolver
4

Special features

Built-in digital camera
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes
Centering stage
yes

General

Length (mm)
238
Width (mm)
197
Height (mm)
385
Weight (g)
6000
Series
CX23
Colour
white

Field of application

Education
yes
Medicine
yes
Hobby
yes

Area of application

University
yes
Veterinary medicine
yes
Naturalist
yes
Internal medicine
yes
Dermatology
yes
Technical training
yes

Miscellaneous

supplier product number
E0460047 (E07MIS0047)
show more...

Product safety

Manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
Product safety

Recommended accessories

Microscopy > Microscopy accessories (12)
Camera adaptor

Evident Olympus Camera adaptor Olympus U-CMAD3-1-7 C-mount (U-TV1X ,U- TV0,5X, U-TVZ,U-TVZA)

$ 261.00*
+ Show more accessories in this category: 11
Microscopy > Microscopy supplies (10)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
+ Show more accessories in this category: 9
Maintenance & Cleaning > Cleaning towelettes (3)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*
+ Show more accessories in this category: 2
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
+ Show more accessories in this category: 3

*All prices include VAT plus shipping costs.

show more...
Evident Olympus Microscope Olympus CX23 Photo, trino, plan, 40x,100x, 400x, LED

Example image 1

Evident Olympus Microscope Olympus CX23 Photo, trino, plan, 40x,100x, 400x, LED

Example image 2

Evident Olympus Microscope Olympus CX23 Photo, trino, plan, 40x,100x, 400x, LED

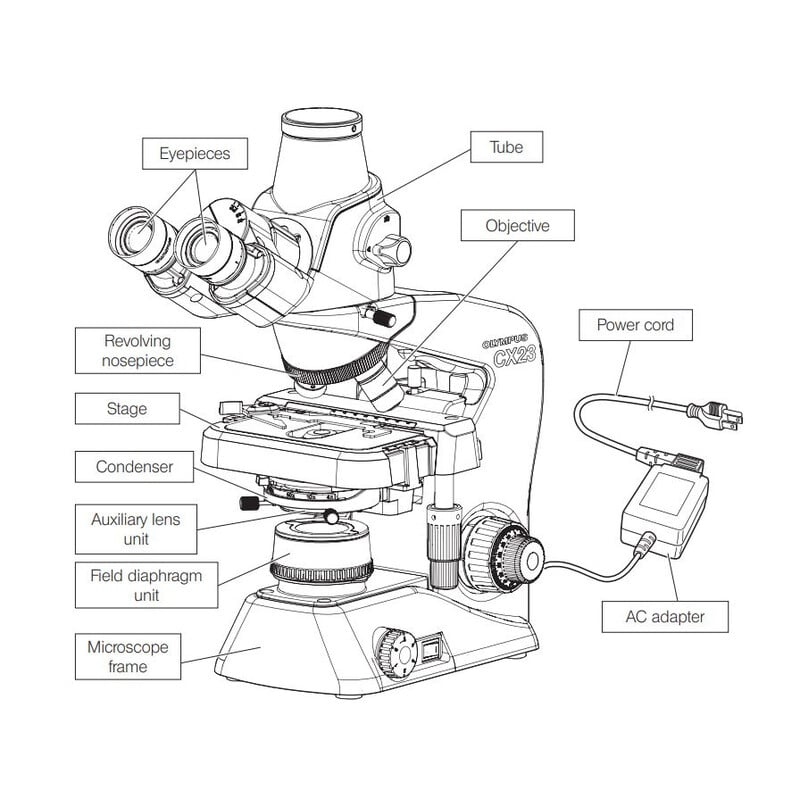

Standard combination
