OBT-1 series
The OBT-1 microscopes are high-quality school microscopes that stand out thanks to their clear controls, robustness and modern design. They are suitable for use in primary and secondary schools, training or as a hobby. Translucent and thin, high-contrast, undemanding specimens such as plant tissue or stained cells/parasites can be viewed.
Highlights of the series:
- Steplessly dimmable 1 W LED
- Mobile use thanks to optional battery operation
- 0.65 condenser lens with adjustable aperture diaphragm (OBT 101)
- Height-adjustable and therefore focusable 1.25 Abbe condenser with aperture diaphragm (models OBT 102 - OBT 106)
- Coarse and fine adjustment on both sides
- Mechanical cross table (on models OBT 103 - OBT 106)
- Large selection of different eyepieces and lenses
- Scope of delivery: Dust cover and operating instructions

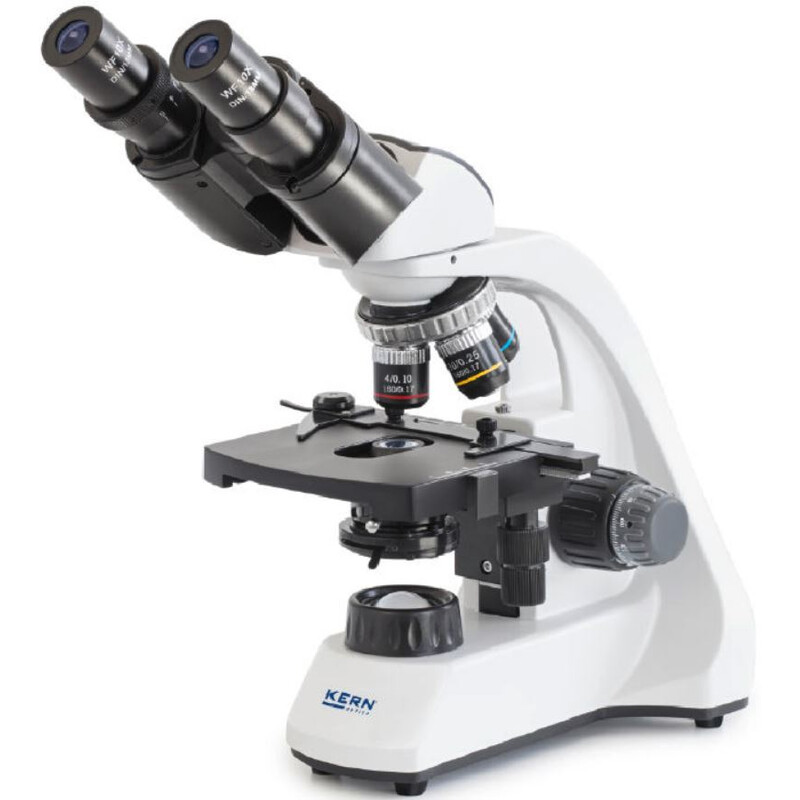

Specification OBT 106
- Final optics (DIN)
- Binocular
- Tube 45° inclined/360° rotatable
- 4-position objective turret
- Lenses: 4 x / 10 x / 40 x/ 100x achromatic
- Focusable 1.25 Abbe condenser with aperture diaphragm
- Mechanical microscope stage WxD 115 x 110 mm, travel range 52x20 mm, 1 slide holder
- 1W LED transmitted light
- Overall dimensions: W×D×H 195×147×325 mm
- Weight: 2.755 kg
