Product description

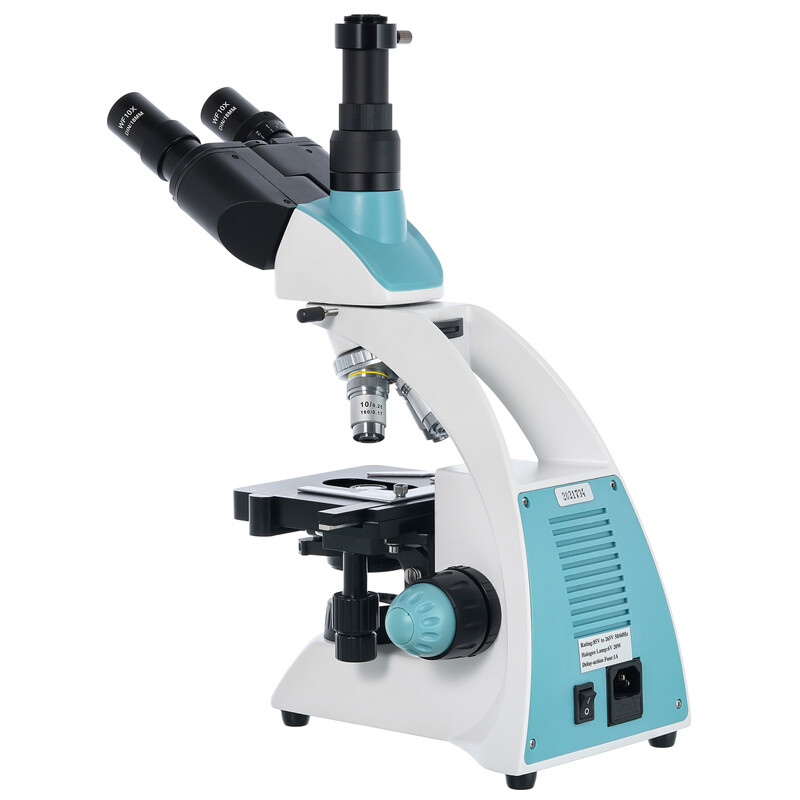

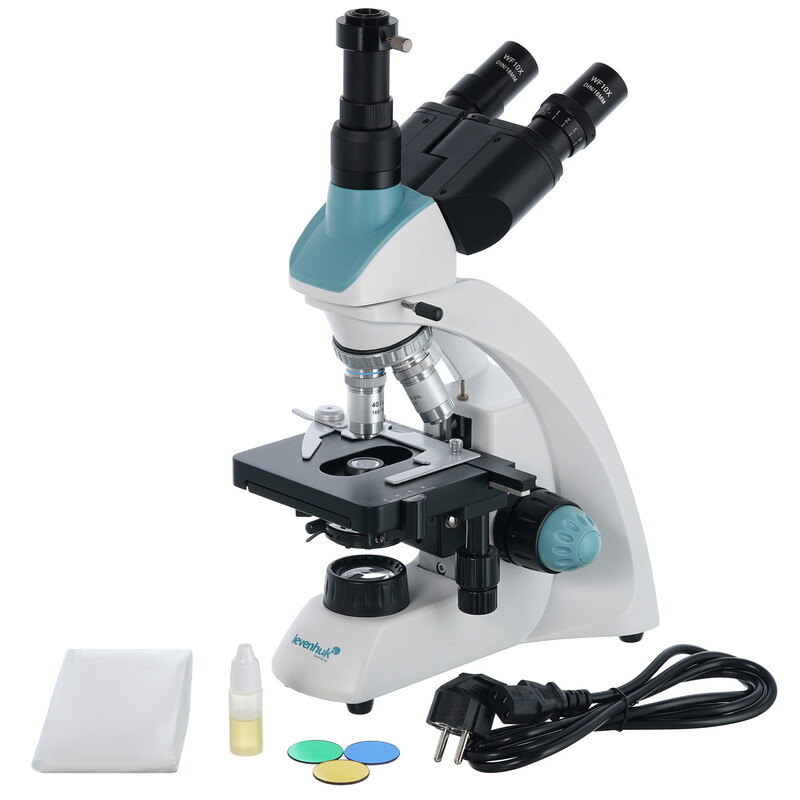

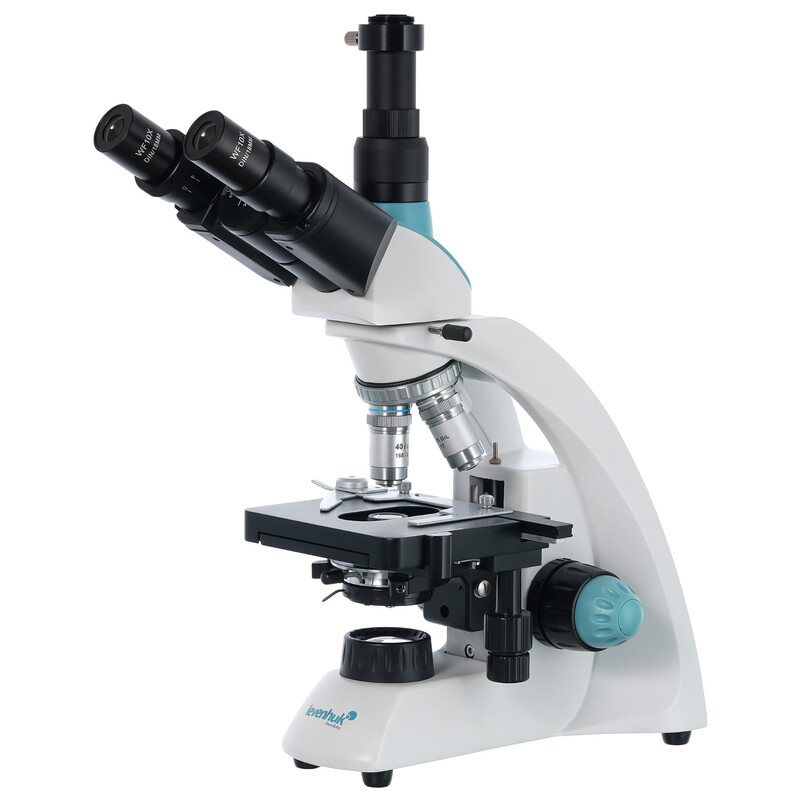

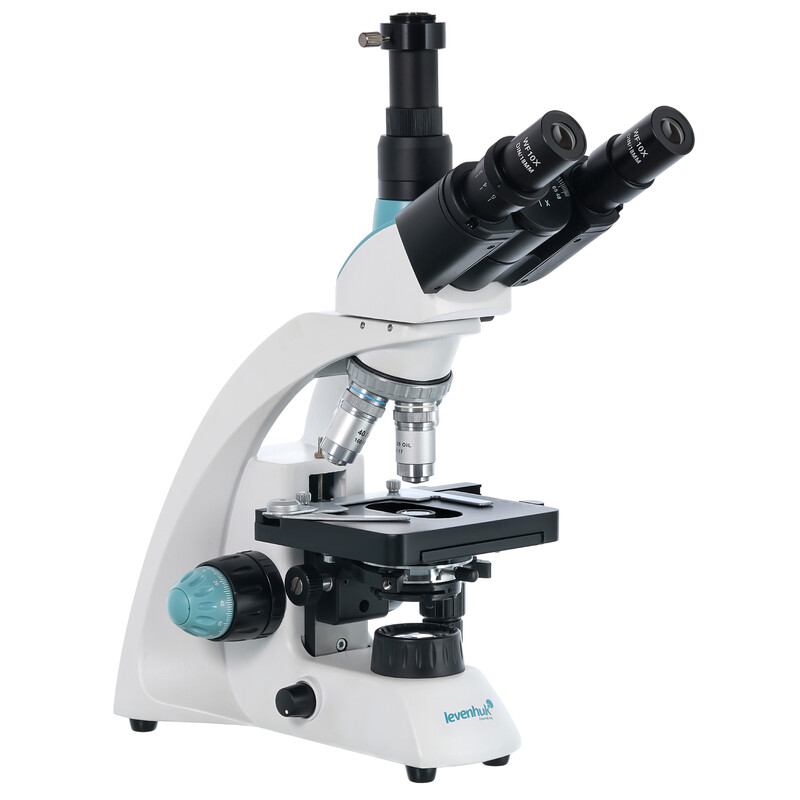

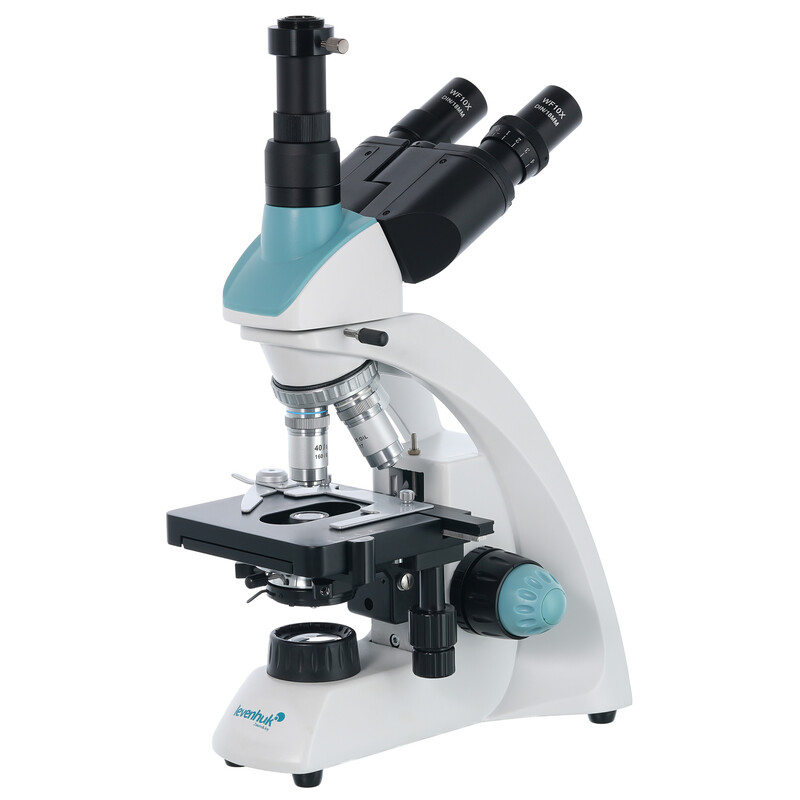

Levenhuk 500T is a trinocular laboratory microscope with a magnification range from 40x to 1000x. It is equipped with the wide-field achromatic optics, which deliver clear and sharp images. Since halogen light is used as illumination, the image looks true-to-life, and all of the colors and details of the samples seem crisp and clear. The microscope is a true treasure for working in a research laboratory, medical center, or veterinary office.

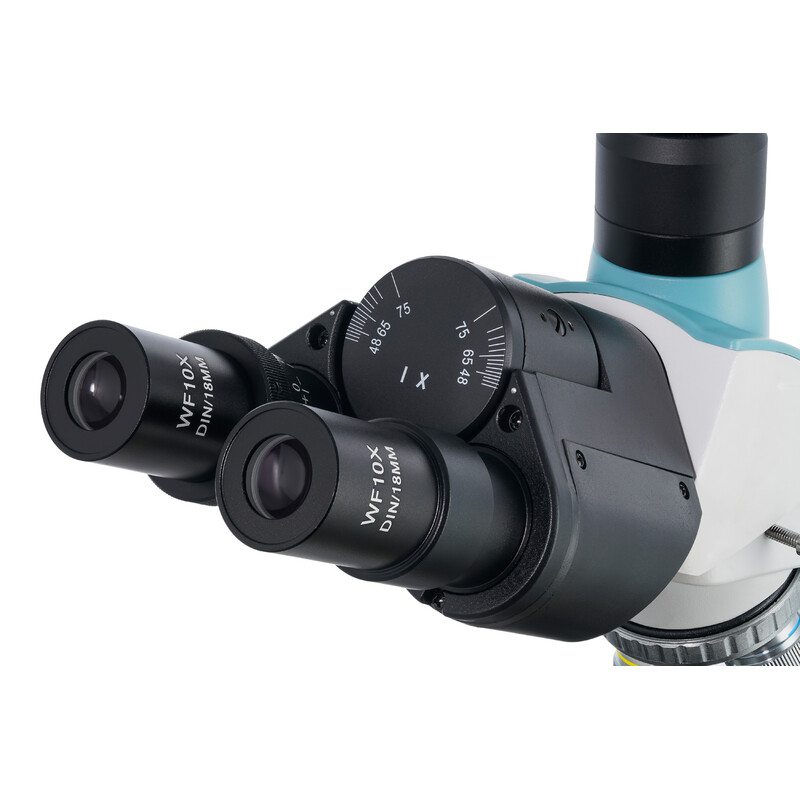

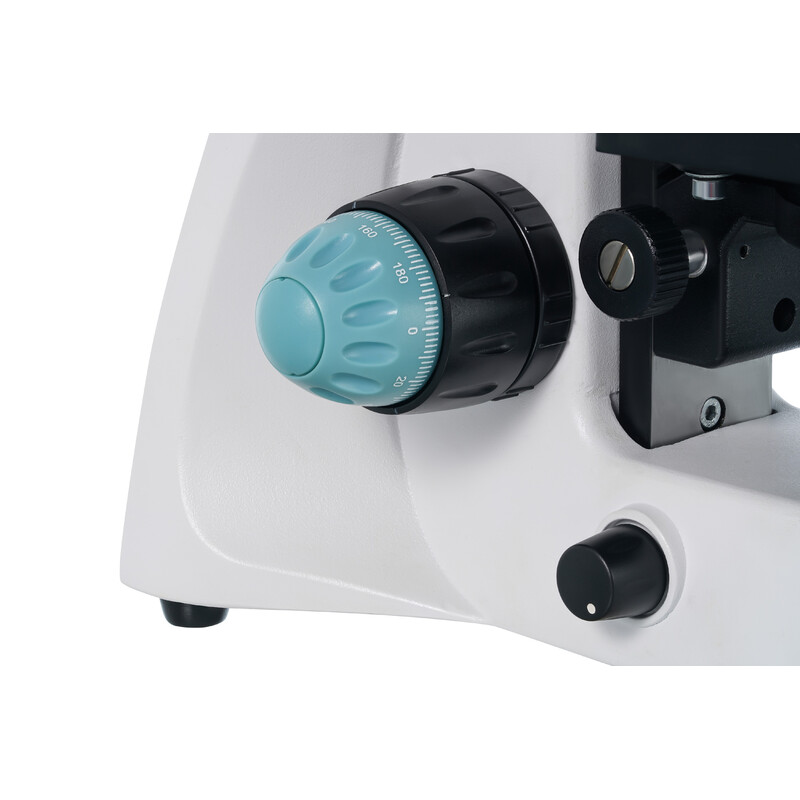

The head consists of an inclined visual unit and a vertical tube for installing a digital camera in it (not included). The head can be rotated 360°. The kit includes two wide-field eyepieces and four achromatic objectives with various magnification. The sharpness of the optics is adjusted using coarse and fine focusing knobs located on the base of the microscope. This microscope is designed for bright field observations. A 100x objective can be used for observations using the oil immersion method. To protect the front lens, the 40x and 100x objectives are equipped with spring-loaded frames.

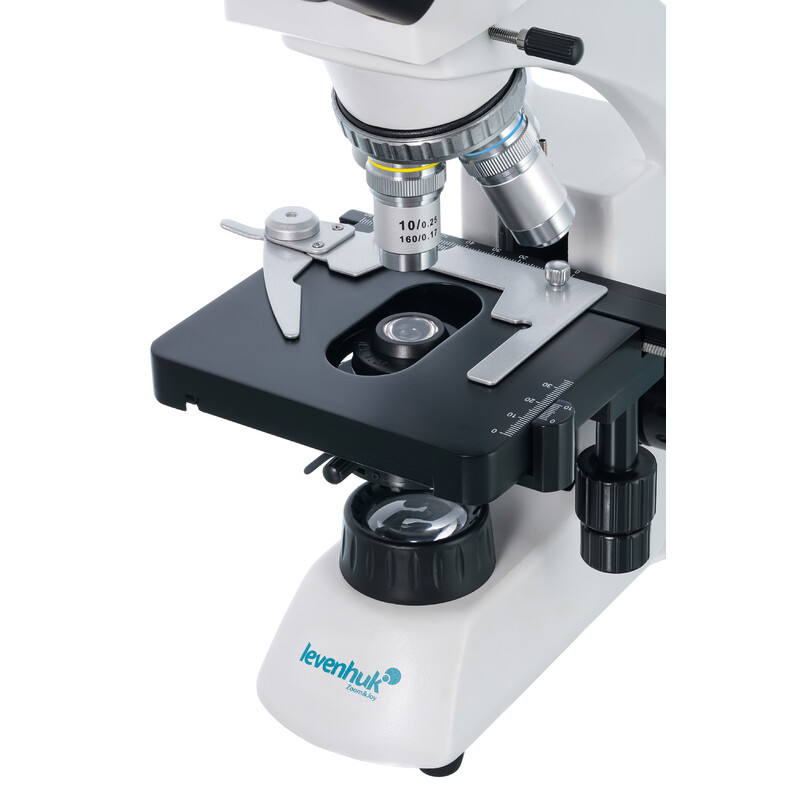

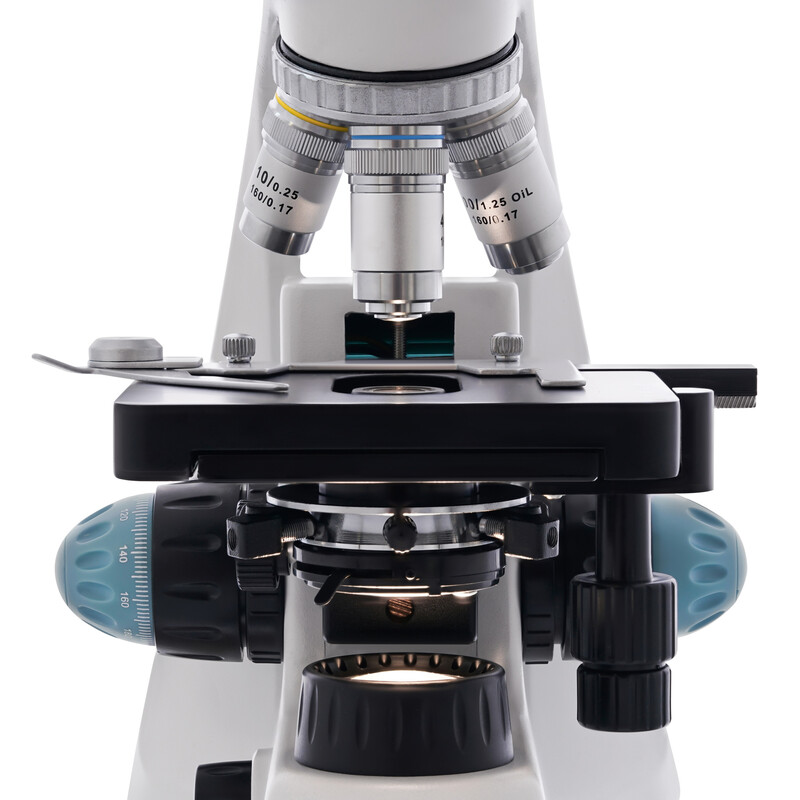

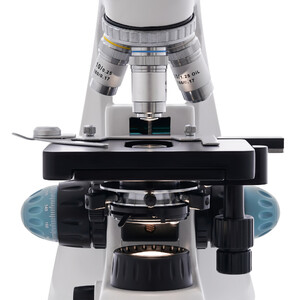

A mechanical scale is installed on the stage: it helps you quickly place the sample exactly under the objective. Under the stage, there is a bright field Abbe condenser with adjustable height. There is an iris diaphragm and filter holder. The lighting system consists of a halogen bulb with a collector. The powerful bulb provides uniform and bright lighting of the working area. The light brightness is adjustable. AC power is used for the power supply.

Specifications

Optics


Lighting
Transmitted light
Lamp type
Halogen
Magnification
40–1000
Eyepiece
10
Number of objectives
4
Lens type
Achromatic
Condensor
NA 1,25 (Iris diaphragm)

Capacity


Brightness control
yes
Power supply
110-220V (Power pack)
Polarization
no

Mechanics


Type of build
Trinocular
Viewing posture (°)
30
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Revolver
3
Eyepiece tube diameter (mm)
23,2
Pupillary distance (mm)
48-75

Special features


Built-in digital camera
-
Luminous field diaphragm
yes
Filter holder
yes
Dust cover bag
yes
Immersion lens
yes
Wide-angle eyepiece
yes

Field of application


Hobby
yes
Education
yes

Area of application


Naturalist
yes
Secondary school
yes
