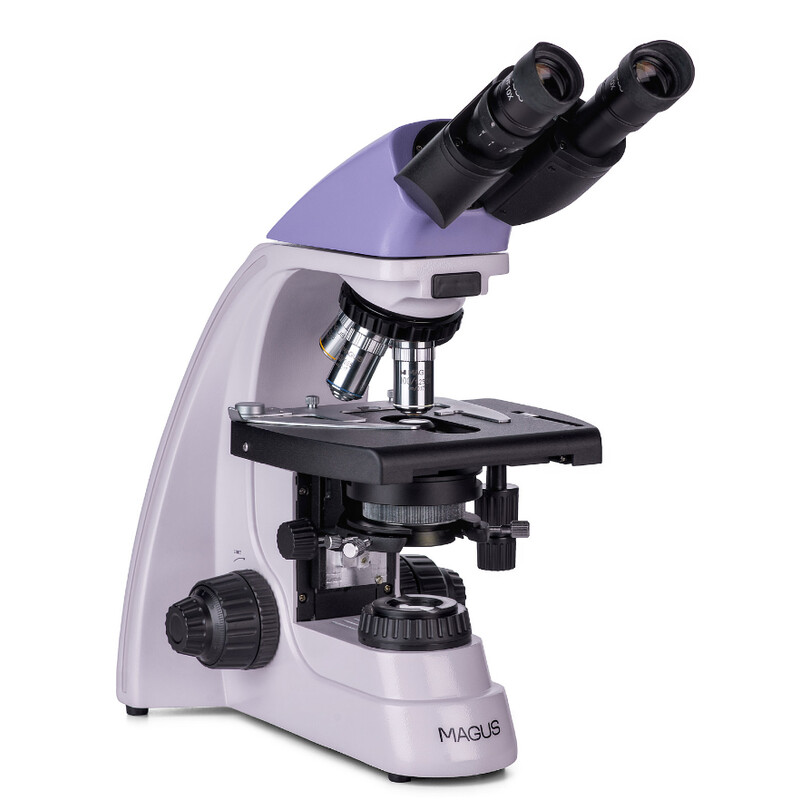

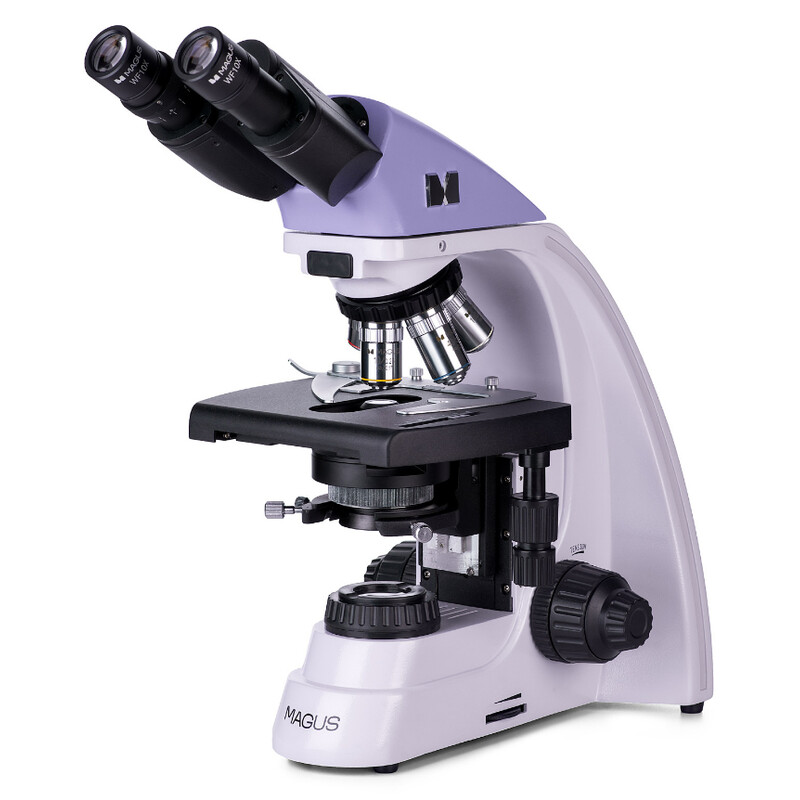

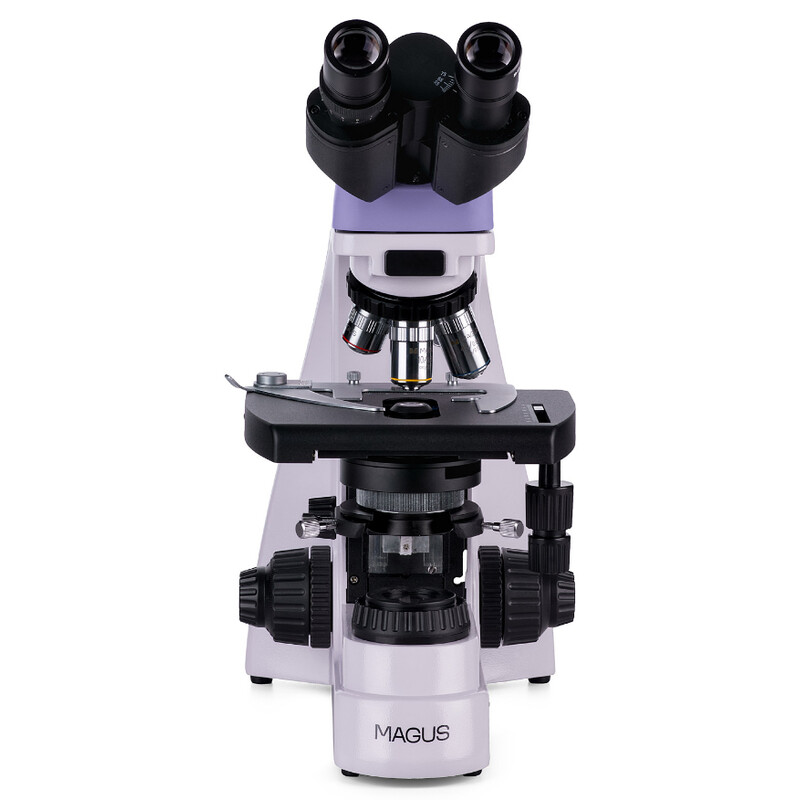

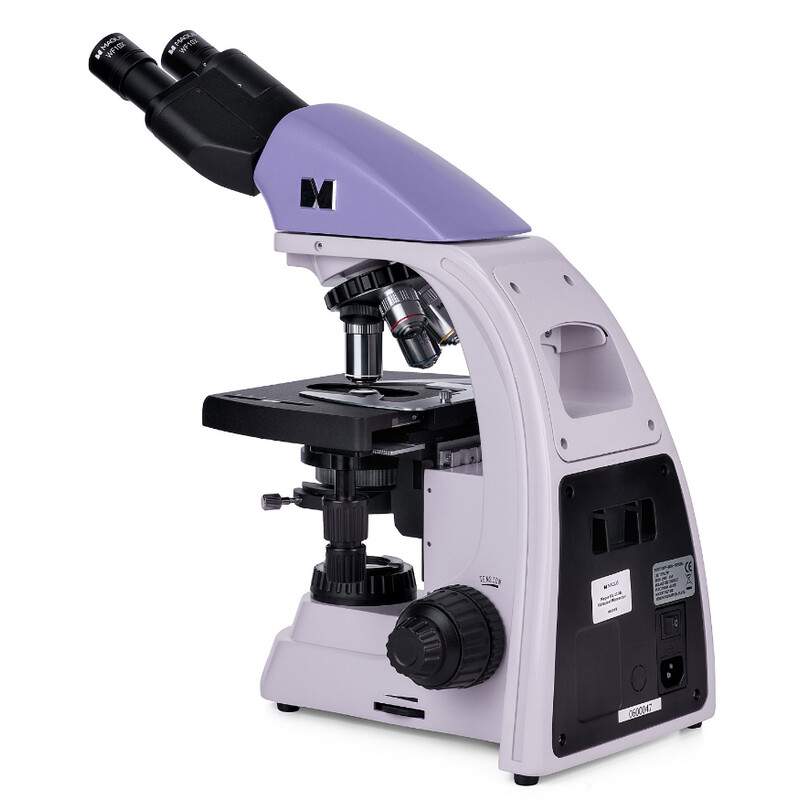

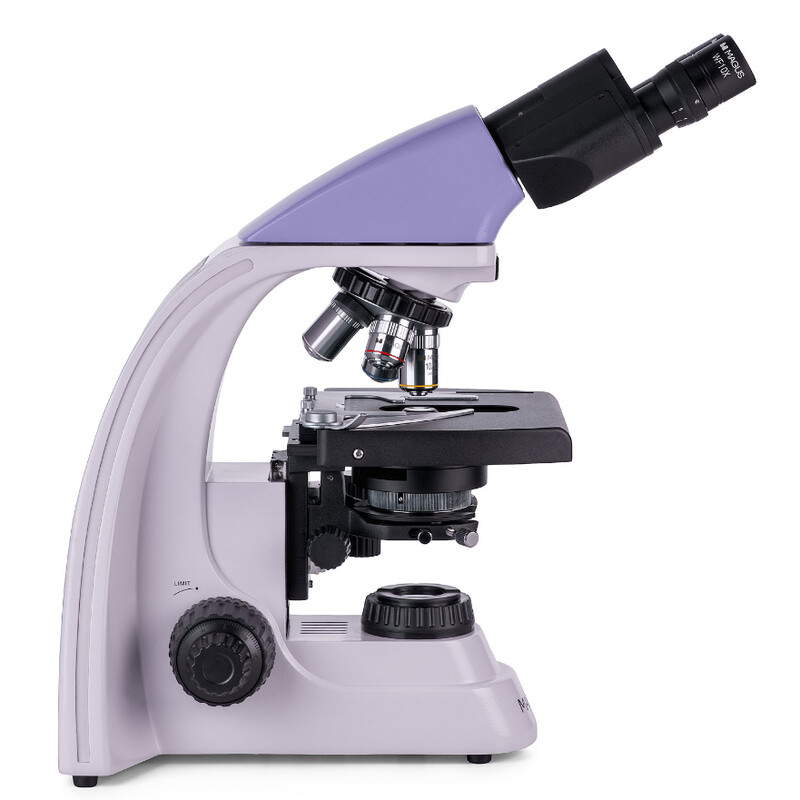

The MAGUS Bio 230BL is a binocular microscope with achromatic lenses and LED lighting for the observation of biological samples such as smears and thin sections. The observations are carried out using transmitted light microscopy (bright field). The microscope can be optionally equipped with dark field, polarised light and phase contrast devices. Areas of application: pharmacy, medicine, biotechnology, veterinary medicine, forensics, agriculture, etc.
Optics

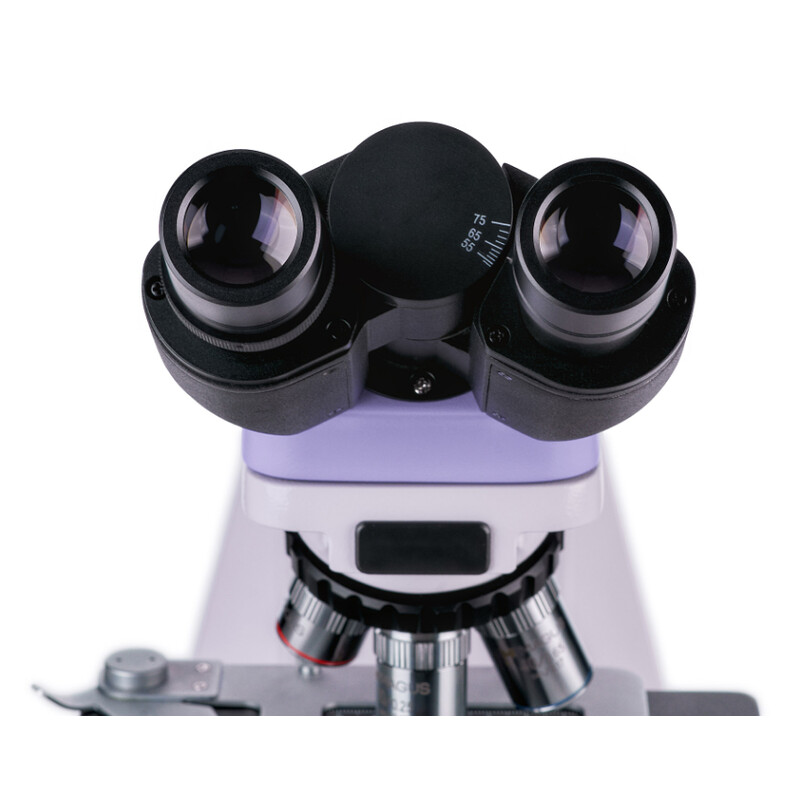

The observation tubes can be rotated 360°, allowing you to adjust the eyepieces to the height of the observer. There is an adjustment ring on the left tube for diopter compensation. A digital camera (sold separately) can be inserted into the same tube.
As the objective turret has 5 connections, an additional lens can be attached to the lenses supplied to achieve a higher magnification than the magnification range otherwise possible. The basic magnification of the microscope ranges from 40x to 1000x, and the upper limit can be increased to 1500x, 1600x or 2000x by adding additional eyepieces. The optics of the microscope are infinity-corrected. The rotating objective turret is directed inwards.
lighting

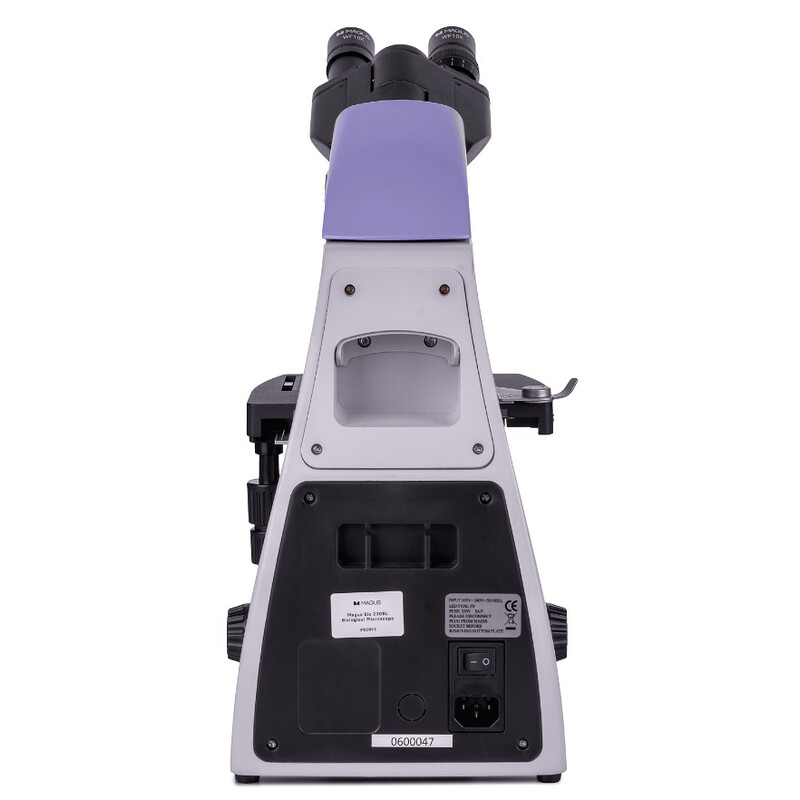

The transmitted light source is a 3 W LED powered by an AC power pack. The colour temperature remains constant when the illumination brightness is adjusted, and the LED has a service life of 50,000 hours.

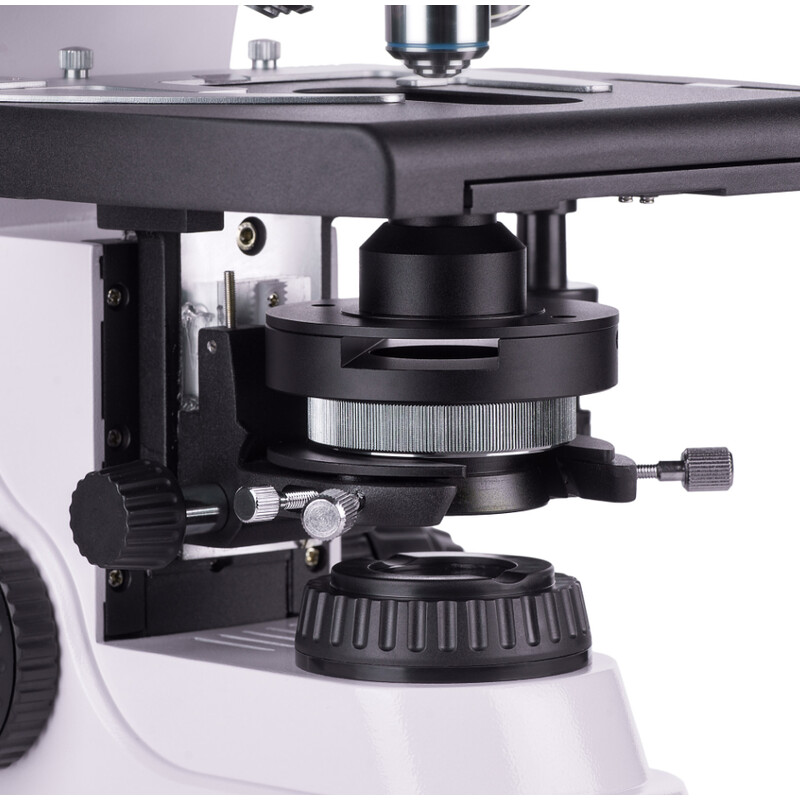

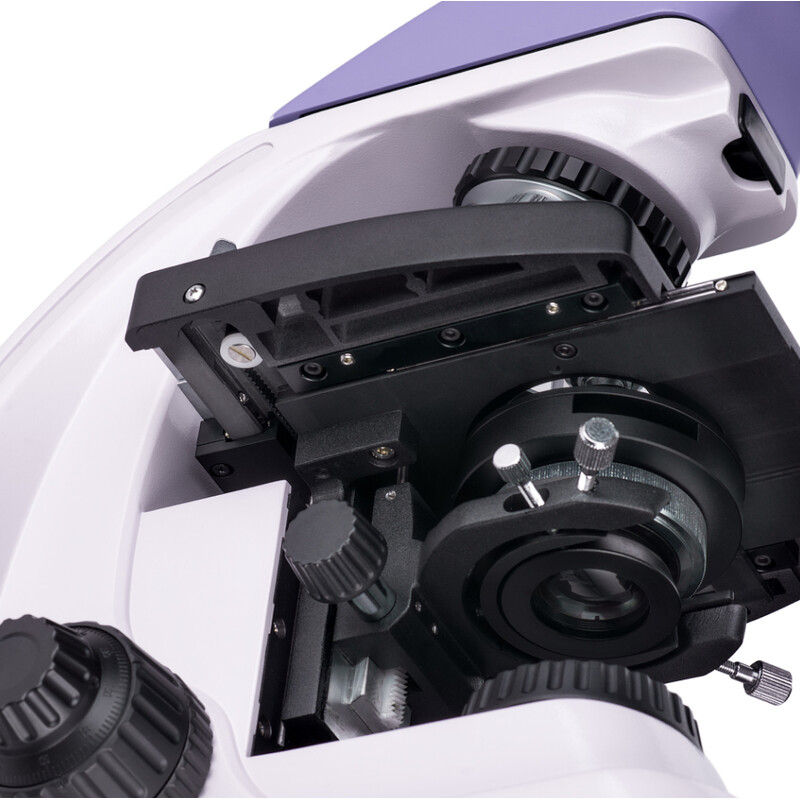

The lighting is controlled by adjusting the aperture and the field diaphragm, i.e. it is possible to adjust the Köhler illumination. The Abbe condenser is height-adjustable and can be centred. A dark field slider or phase contrast slider can be inserted into a slot in the condenser. The sliders make it easy for the user to switch from one microscopy technique to another.
Microscope stage and focusing mechanism
You can move the object to be examined over the microscope stage using the mechanical attachment, which can be removed if necessary. The microscope stage does not have a positioning frame, so the mechanical part takes up less space.
Focusing is controlled by moving the coarse and fine drives. These knobs are located on the same axis (coaxial) on each side of the microscope. They are located at the base and can be turned easily and effortlessly with your hands. The coarse drive has a locking knob and a tension adjustment. The knob is smooth and easy to turn.
accessories
Additional accessories for the MAGUS Bio 230BL microscope: dark field condensers, polarisation devices, digital cameras, calibration slides, eyepieces, objectives, phase contrast devices, etc.
Main features
- Infinity-corrected achromatic lenses, rotating objective turret with 5 lens mounts
- Binocular head with adjustment ring for diopter compensation on the left tube
- The eyepiece is adjusted by 360° eyepiece rotation
- The 3 W LED has a service life of 50,000 hours
- Coarse and fine adjustment, tension adjustment knob for coarse adjustment, locking knob for coarse adjustment
- Field diaphragm, dark field and phase contrast slider (mounted in the condenser slot)
- Extensive optional accessories

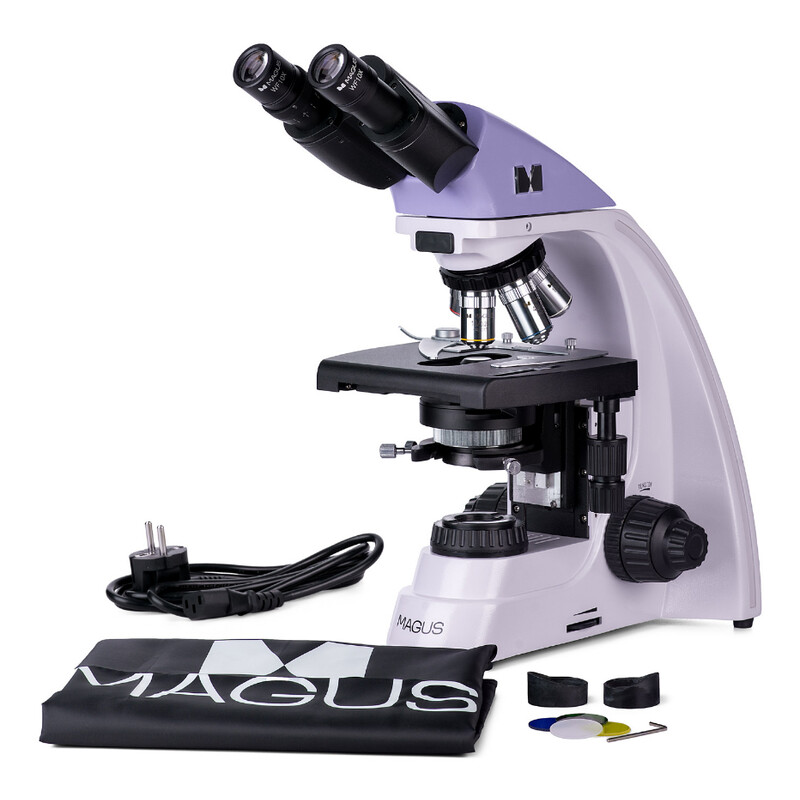

Scope of delivery:
- Base with power connection, transmitted light source, focusing mechanism, microscope stage, condenser holder and objective turret
- Abbe condenser
- Binocular head
- Infinity-corrected achromatic lenses: 4x/0.10
- Infinity-corrected achromatic lenses: 10x/0.25
- Infinity-corrected achromatic lenses: 40x/0.65 (spring-loaded)
- Infinity-corrected achromatic objectives: 100x/1.25 oil (spring-loaded)
- Eyepiece 10x/18 mm with long eye relief (2 pcs.)
- Eyecups (2 pcs.)
- Filters (4 pcs.)
- Bottle of immersion oil
- AC power supply cable
- Dust cover
- Operating instructions and warranty card
