Microscopy > Microscopes > Upright microscopes > Bright field microscopes > MAGUS > BIO > MAGUS Microscope Bio 230T trino, infinity, 40x-1000x Hal
Product no.: 84980

Microscope Bio 230T trino, infinity, 40x-1000x Hal

$ 1,150.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • 360° rotatable binocular head
  • Objective turret for 5 lenses
  • Coarse and fine adjustment
  • Halogen lamp 12V/30W G4

Product description

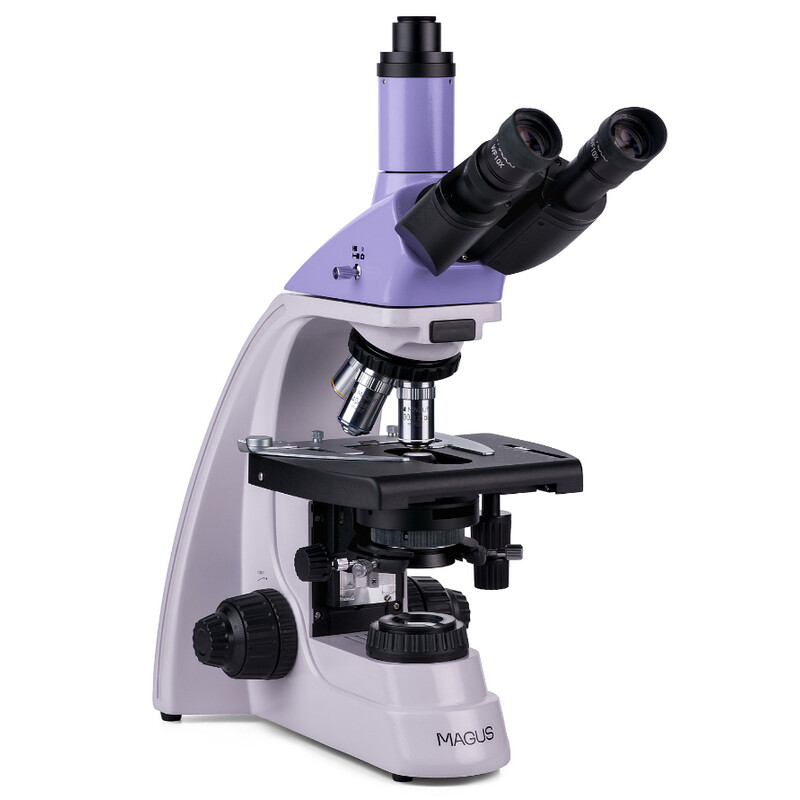

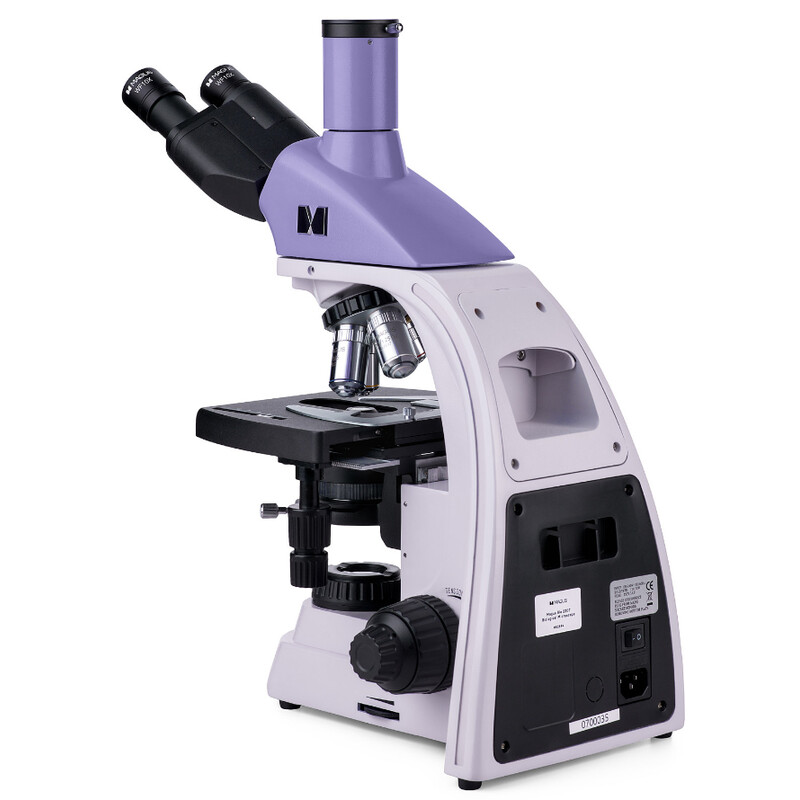

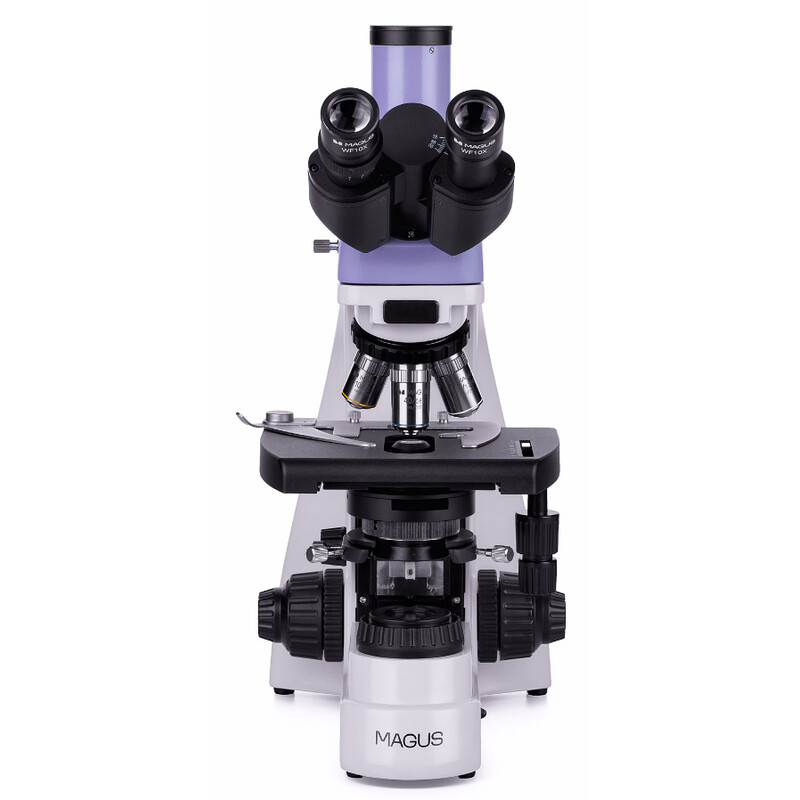

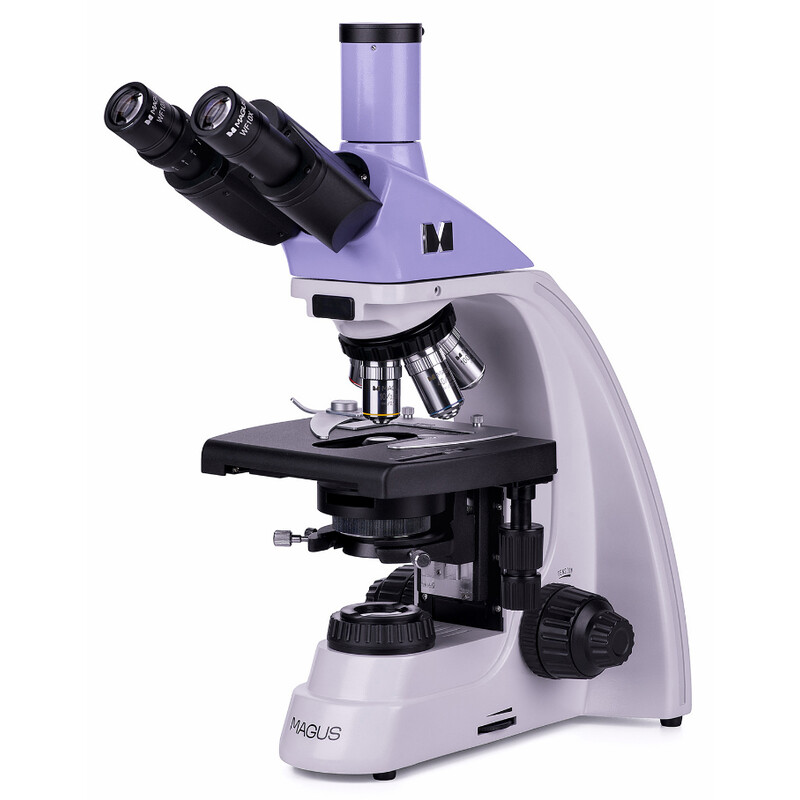

The MAGUS Bio 230T is a biological trinocular microscope for laboratory and research observations in the fields of medicine, pharmaceuticals, forensics, biotechnology, etc. It is suitable for examining flat biological translucent and transparent samples: thin sections and smears. Equipped with achromatic lenses and a halogen bulb, the transmitted light microscopy method (bright field) is used to examine samples. The design of the microscope allows additional accessories to be installed, enabling the use of other microscopy techniques: dark field, phase contrast, polarised light.

Optics

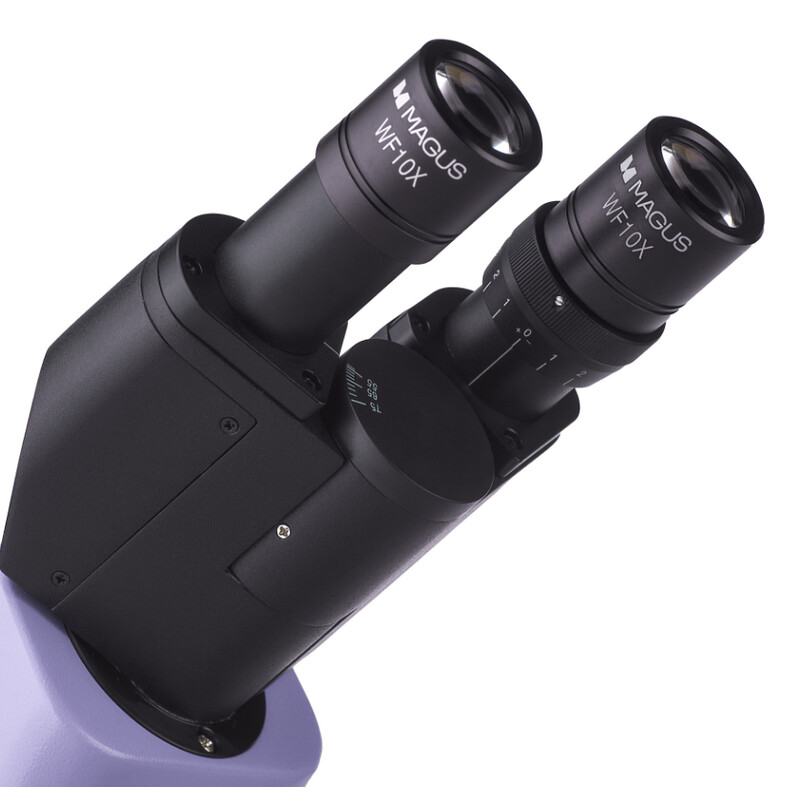

The trinocular head provides an additional vertical tube for installing a digital camera. The camera (not included) is an excellent solution for creating digital archives of your examinations and outputting images to an external screen. The observation tubes can be rotated 360° to adjust them to the user's height. The left eyepiece is equipped with a diopter adjustment ring.

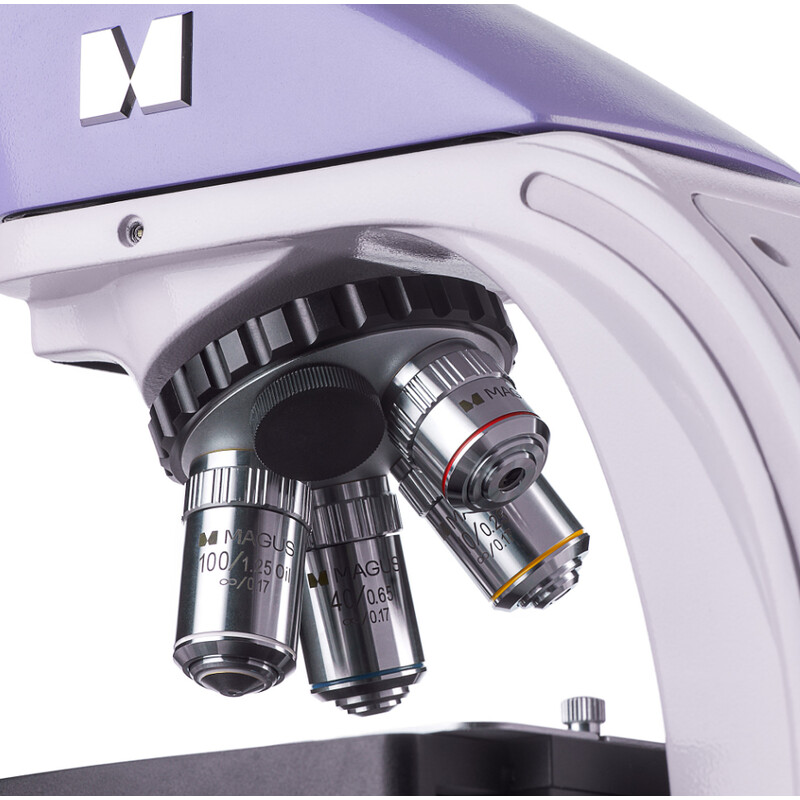

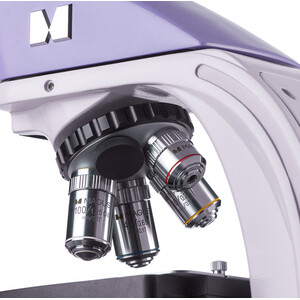

The rotating lens turret is directed inwards so that the space above the table remains free. Five lenses can be inserted into the lens turret at the same time (4 lenses are included and the 5th connection is provided for an additional lens). In the basic configuration, the infinity-corrected lenses offer a magnification of 40x to 1000x. With optional eyepieces, the upper limit can be increased to 1500x, 1600x or 2000x.

lighting

The halogen bulb produces warm spectrum lighting that is easy on the eyes and ideal for hours of work with the microscope. The bulb has a power rating of 30 watts, ensuring high brightness and contrast of the transmitted image regardless of the type of lens or observation technique used.

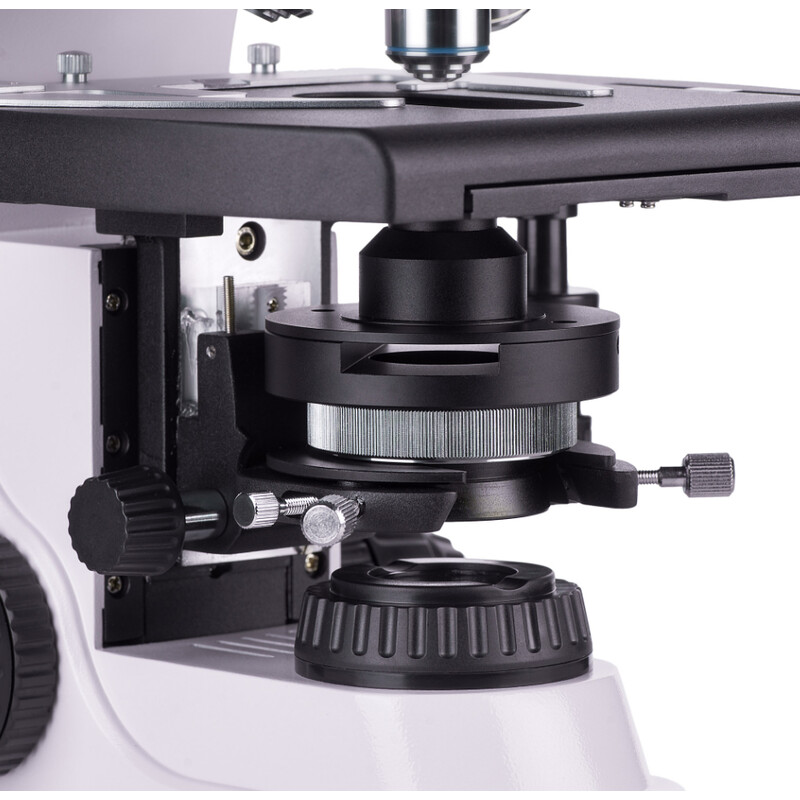

The Abbe condenser is height-adjustable and can be centred. The lighting is controlled by adjusting the iris and field diaphragm, and it is possible to adjust the Kohler illumination for a clearer image. The condenser has a slot for installing a phase or dark field slider, which speeds up the process and makes it easier to switch between different microscopy techniques.

Microscope stage and focusing mechanism

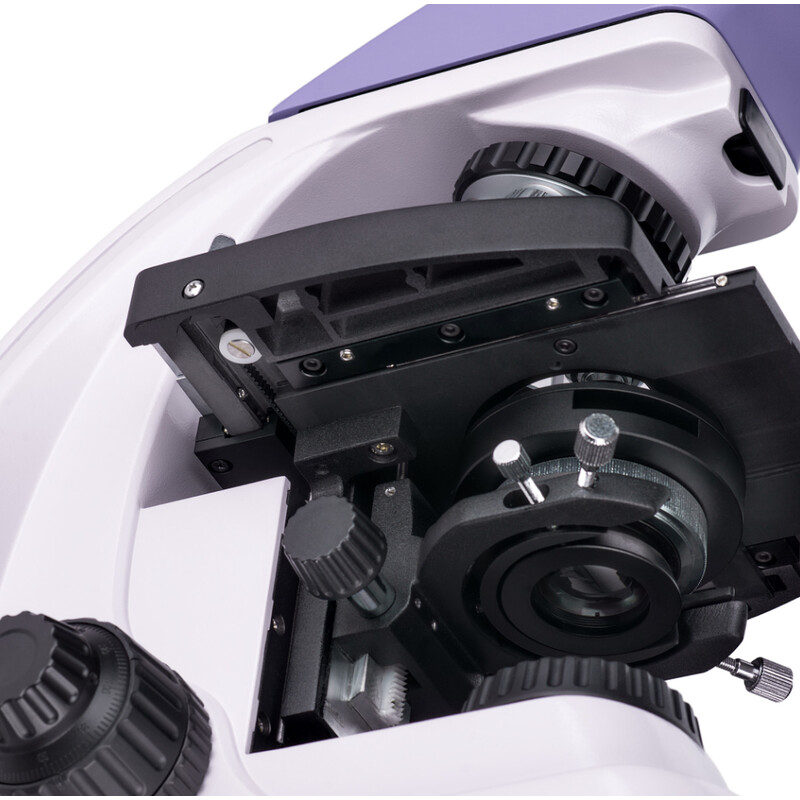

The microscope stage has no positioning frame. This is an advantage of the mechanical microscope stage, as it makes the microscope easier to operate. The sample can be moved smoothly across the stage. The mechanical attachment is removable (it can be removed for manual scanning).

There is a coarse and fine drive, and the focus knob moves smoothly and requires no additional effort. The coarse drive has a locking knob and a tension adjustment. The focusing knobs are coaxial and positioned for maximum comfort during hours of observation. They are located on the microscope base so that you can rest your hands comfortably on the table.

accessories

To maximise the capabilities of the MAGUS Bio 230T microscope, you can upgrade it with additional accessories. These include eyepieces and lenses, digital cameras and calibration slides, dark field condensers, polarised light and instruments for phase contrast microscopy.

Main features

  • Trinocular head with additional vertical tube for installing a digital camera
  • 360° rotation to adjust to the observer's height
  • Infinity-corrected achromatic lenses, rotatable objective turret for 5 lenses
  • Adjustment ring for diopter compensation on the left tube
  • 30 W halogen bulb with AC power supply, Abbe condenser with one slit for dark field and phase contrast sliders, field diaphragm
  • Coaxial coarse and fine adjustment, locking knob and tension adjustment knob for coarse adjustment
  • Optional accessories to increase the performance of the microscope

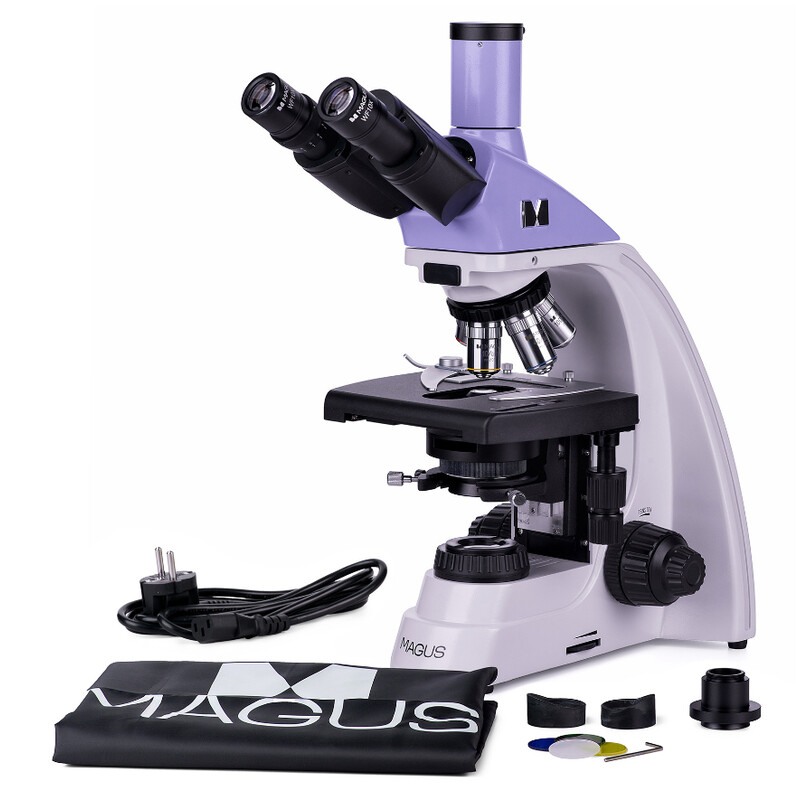

Scope of delivery:

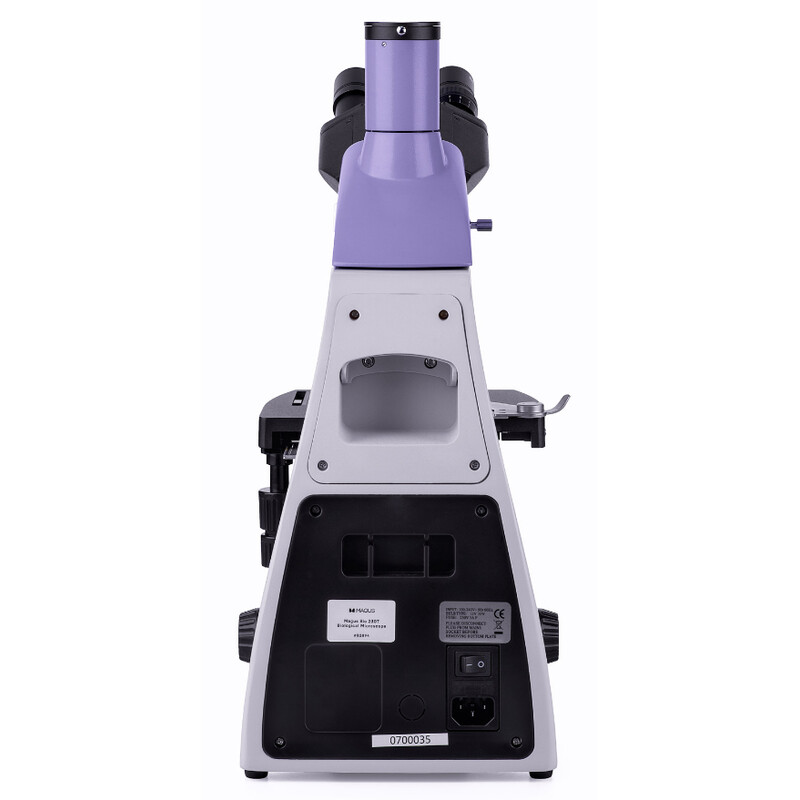

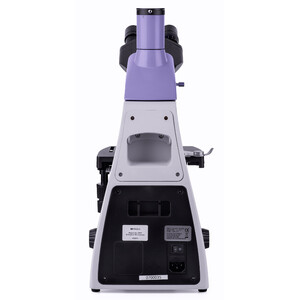

  • Base with power connection, transmitted light source, focusing mechanism, microscope stage, condenser holder and objective turret
  • Abbe condenser
  • Trinocular head
  • Infinity-corrected achromatic lenses: 4x/0.10
  • Infinity-corrected achromatic lenses: 10x/0.25
  • Infinity-corrected achromatic lenses: 40x/0.65 (spring-loaded)
  • Infinity-corrected achromatic objectives: 100x/1.25 oil (spring-loaded)
  • Eyepiece 10x/18 mm with long eye relief (2 pcs.)
  • Eyecups (2 pcs.)
  • Filters (4 pcs.)
  • Camera adapter C-mount
  • Bottle of immersion oil
  • AC power supply cable
  • Dust cover
  • Operating instructions and warranty card

Specifications

Optics


Number of objectives
4
Lighting
Transmitted light
Field curvature
Plan
Colour correction
achromatic
Suspension
yes
Immersion lens
yes
Condensor
Abbe
Lamp type
Halogen
Objective 1
4x/0,1
Objective 2
10x/0,25
Objective 3
40x/0,65
Objective 4
100x/1,25
Lens type
Achromatic
Eyepiece
10
Power supply
Power pack
Magnification
40-1000
Optical system
infinity

Mechanics


Type of build
Trinocular
Viewing posture (°)
30
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Eyepiece tube diameter (mm)
22
Pupillary distance (mm)
48-75
Revolver
5

Special features


Dust cover bag
yes

General


Series
BIO
Width (mm)
200
Length (mm)
400
Height (mm)
436
Weight (g)
8000

Contrast methods


brightfield
yes

Field of application


Hobby
yes

Area of application


Hobby
yes

Product safety

Manufacturer: Levenhuk Optics s.r.o., V Chotejne 700/7, 102 00 Prag, CZ, www.levenhuk.com
