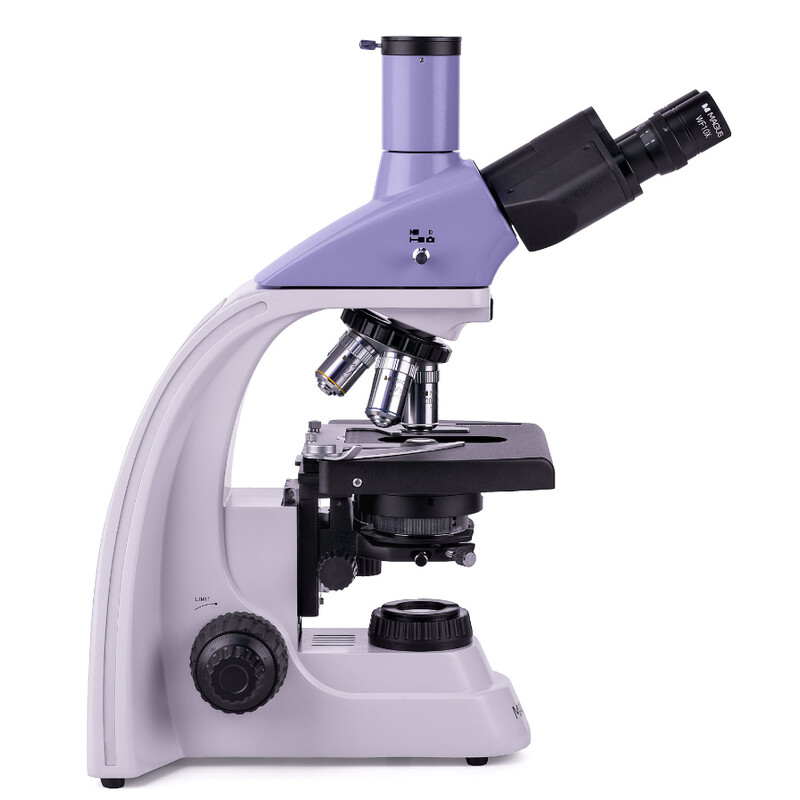

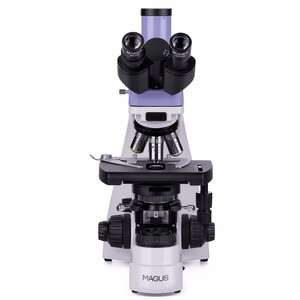

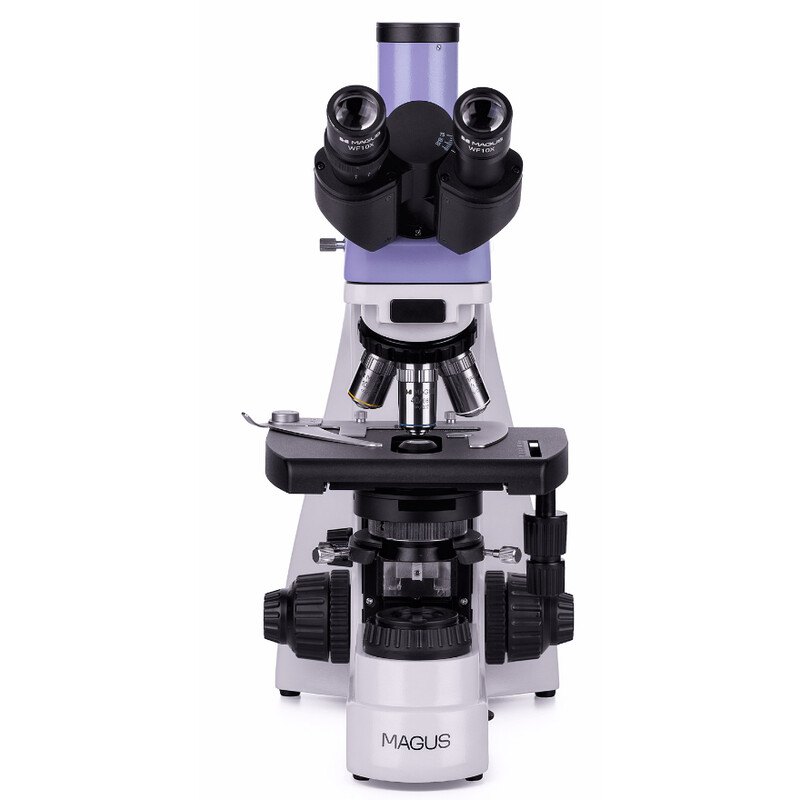

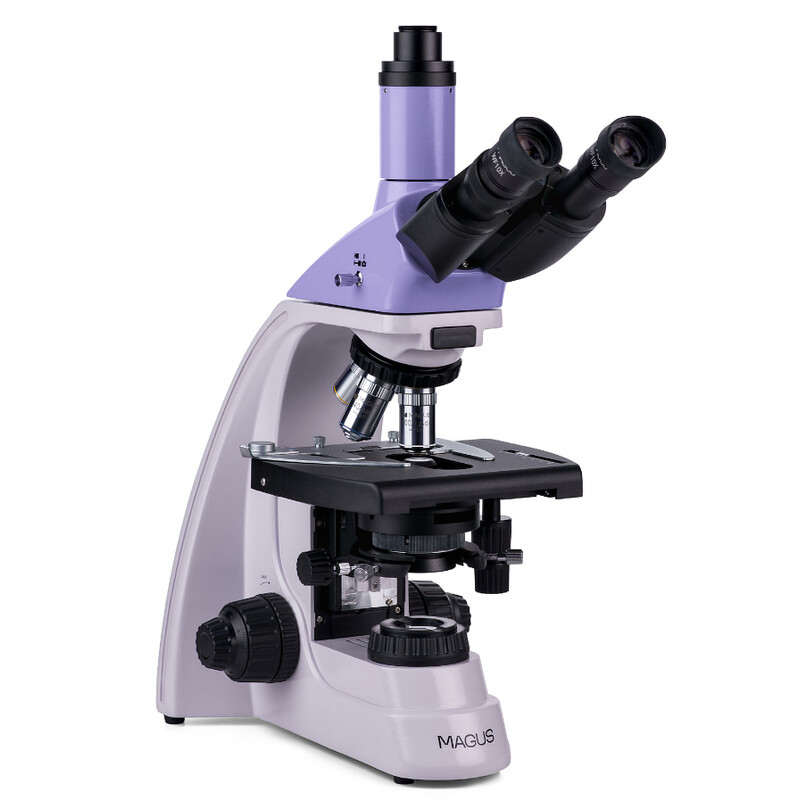

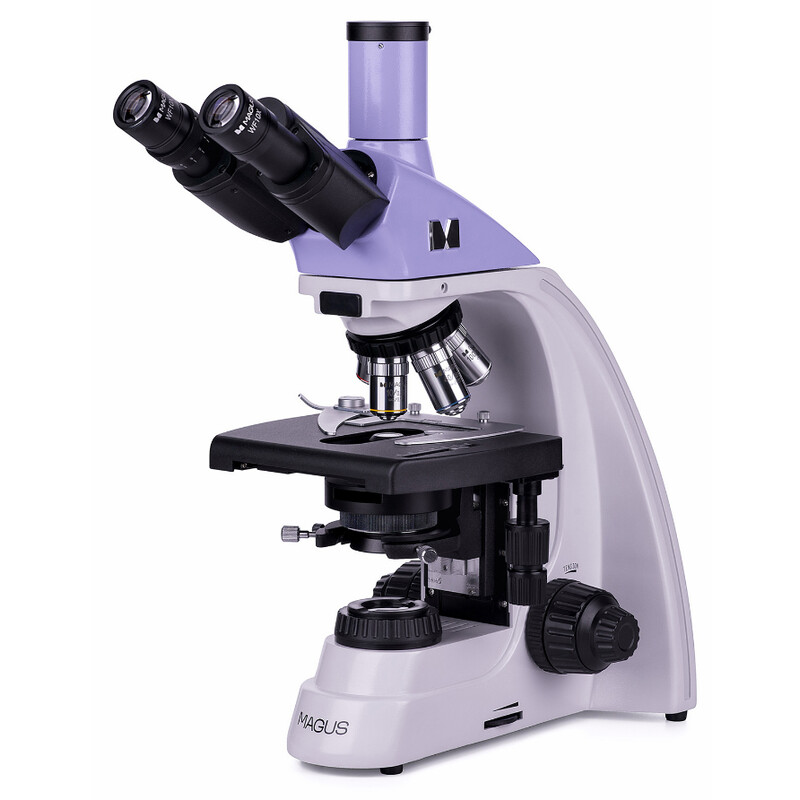

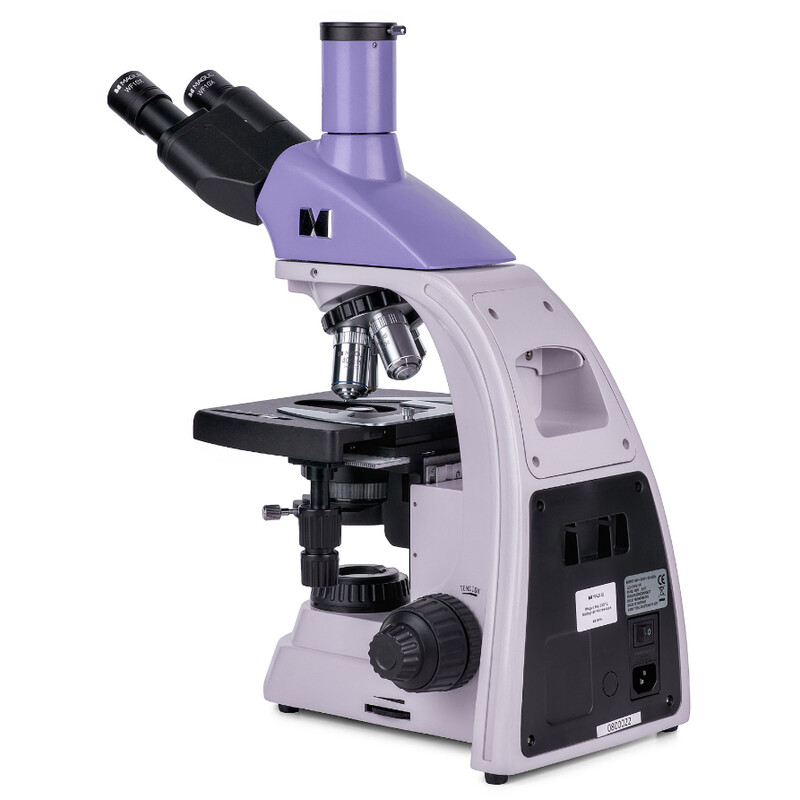

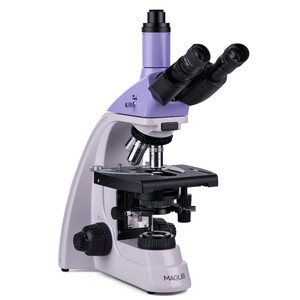

The MAGUS Bio 230TL microscope is an indispensable tool in a hygiene laboratory or in a diagnostic or research centre. The microscope has a trinocular head and a transmitted light source (LED) and is suitable for the observation of translucent and transparent samples. In the basic configuration, bright field technology is used for examinations. With additional accessories, microscopy techniques such as dark field, polarised light and phase contrast are available for further examinations.
Optics
The observation tubes can be rotated 360°, allowing you to adjust the eyepieces to the height of the observer. The diopter adjustment for the left tube can be adjusted. There is a vertical tube for attaching a digital camera (not included).

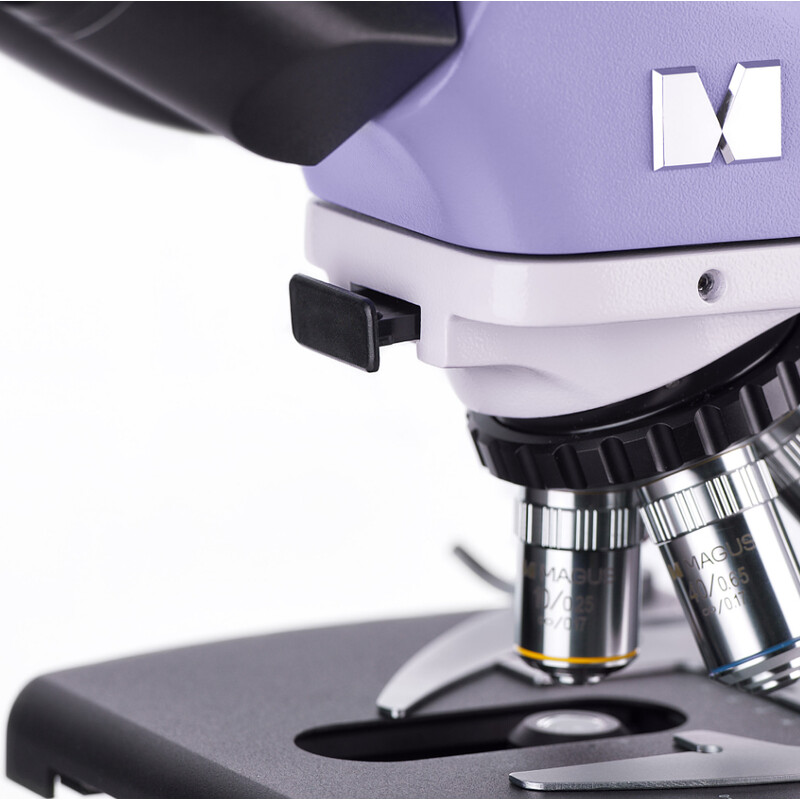

The microscope uses infinity-corrected achromatic lenses; 5 lenses can be inserted into the lens turret at the same time. One connection remains free for attaching an additional lens. The rotating lens turret with the lenses is directed inwards – the user can see the lenses inserted into the beam path. The magnification range of the microscope is 40x to 1000x, and the upper limit can be increased to 1500x, 1600x or 2000x with additional eyepieces.
lighting
Thanks to the LED, the colour temperature does not change when adjusting the lighting. The LED has a power of 3 W and a service life of 50,000 hours. It is powered by the AC power supply.

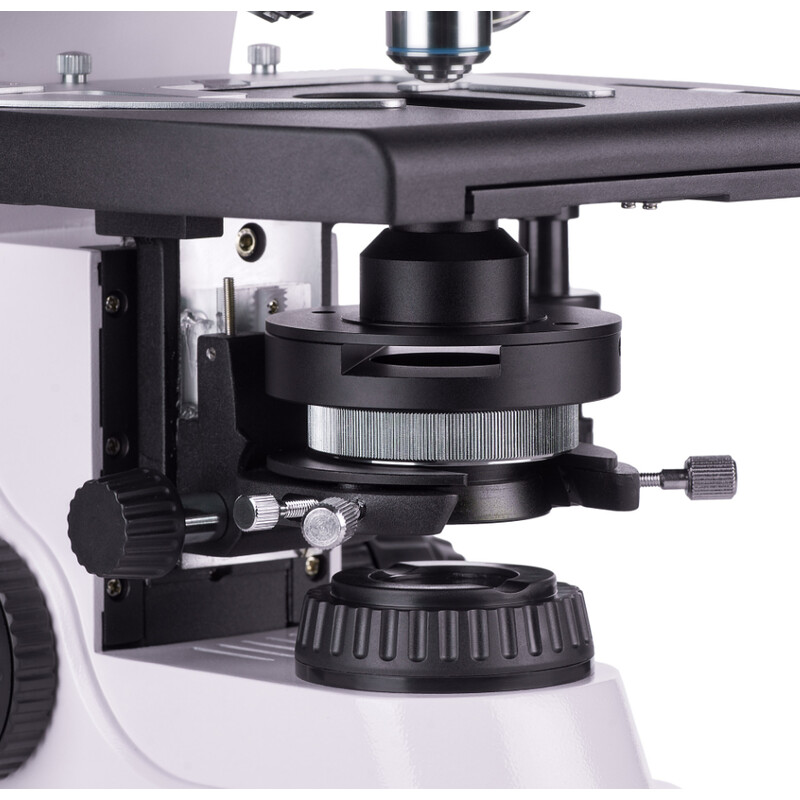

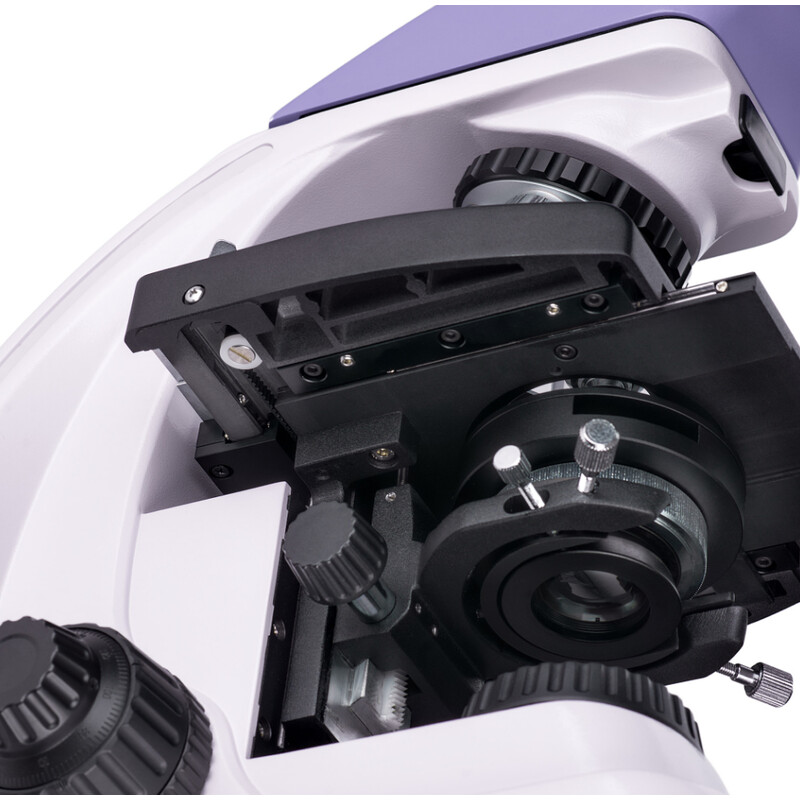

The Abbe condenser has a slot for a dark field or phase contrast slider. Sliders allow you to switch between different microscopy techniques much more quickly. The microscope is also equipped with a field diaphragm for adjusting Köhler illumination. The condenser is height-adjustable and can be centred.
Microscope stage and focusing mechanism
The sample moves smoothly and precisely. The mechanical attachment can be removed from the microscope stage if necessary (e.g. for manual scanning). A microscope stage without a positioning frame is also easier to handle.
The focusing knobs are coaxial and located on each side of the microscope, allowing the user to rest their hands freely on the table. There is a fine adjustment knob and a coarse adjustment knob. The mechanisms move smoothly, requiring no additional effort. There is a tension adjustment knob and a lock knob for the coarse adjustment knob.
accessories
Optional accessories expand the capabilities of the MAGUS Bio 230TL microscope depending on the specific application. These include eyepieces, lenses, dark field and phase contrast condensers, polarizers, digital cameras, calibration slides, etc.
Main features
- Trinocular head with vertical tube for camera, 360° rotatable, dioptre adjustment on left tube
- Revolver for 5 lenses, infinity-corrected achromatic lenses
- Transmitted light observations, light source – 3 W LED with long service life
- Coarse and fine adjustment, voltage adjustment knob and locking knob for coarse adjustment
- Condenser with a slot for a phase or dark field slider
- Option to install additional accessories

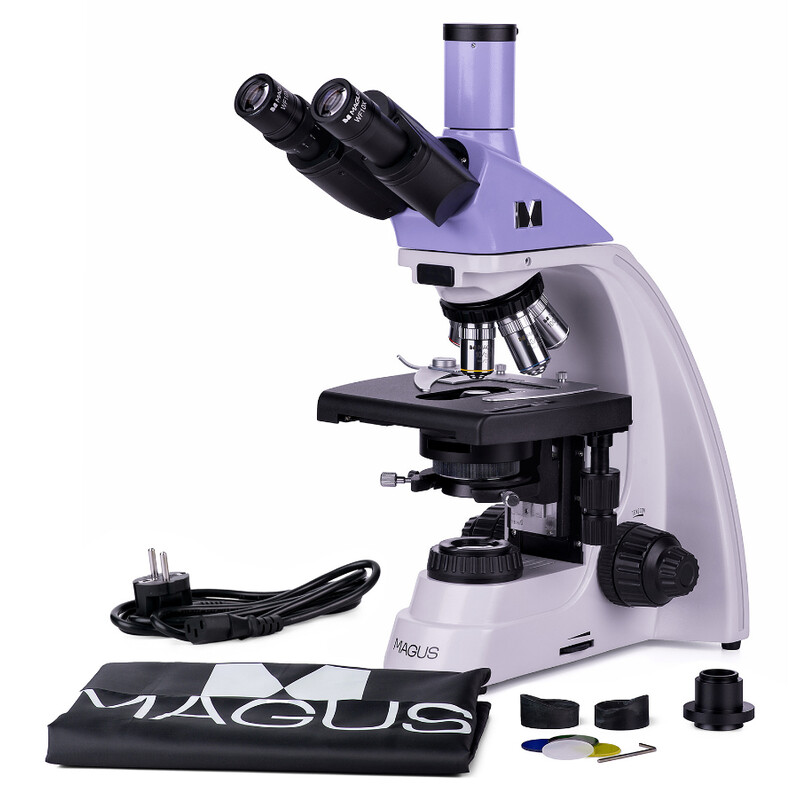

Scope of delivery:
- Base with power connection, transmitted light source, focusing mechanism, microscope stage, condenser holder and objective turret
- Abbe condenser
- Trinocular head
- Infinity-corrected achromatic lenses: 4x/0.10
- Infinity-corrected achromatic lenses: 10x/0.25
- Infinity-corrected achromatic lenses: 40x/0.65 (spring-loaded)
- Infinity-corrected achromatic objectives: 100x/1.25 oil (spring-loaded)
- Eyepiece 10x/18 mm with long eye relief (2 pcs.)
- Eyecups (2 pcs.)
- Filters (4 pcs.)
- Camera adapter C-mount
- Bottle of immersion oil
- AC power supply cable
- Dust cover
- Operating instructions and warranty card
