B1 Elite Series
The Motic B1Elite models bridge the gap between educational and professional use of a microscope. The table without protruding rack is designed for beginners, as is the dark field option with its attractive image characteristics. The "cool" LED lighting protects heat-sensitive specimens in biology lessons. The improved semi-plan objectives, together with the 3W LED lighting and coaxial focusing drive, provide professional equipment for doctors in private practice and small laboratories. Phase contrast is achieved via plug-in sleeves for the 10X/40X phase objective and ensures use with urine sediments and smears.
Highlights of the series:
160 mm FINITE SYSTEM
360° ROTATABLE HEAD
10x/18 WIDE-FIELD EYEPIECES
QUADRUPLE OBJECTIVE TURRET
SEMI-PLAN ACHROMATIC OBJECTIVES
MECHANICAL X/Y MICROSCOPE STAGE WITHOUT RACK AND PINION
COAXIAL FINE AND COARSE DRIVE
1.25 N.A. ABBE CONDENSER WITH IRIS DIAPHRAGM
3 W LED LIGHTING WITH INTENSITY CONTROL
ACCESSORIES FOR PHASE CONTRAST, POLARIZATION AND DARK FIELD

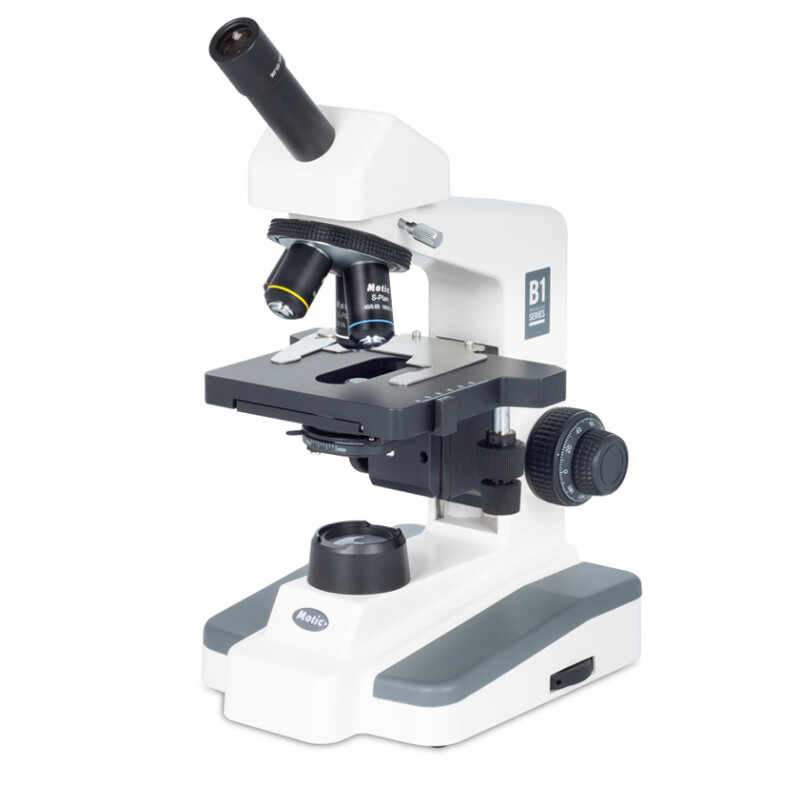

Specification B1-211E-SP Monocular 40x - 1000x (1100100501142)
Optical system: Finite system 160 mm
Observation tube: Monocular tube, 360° rotatable
Viewing angle: 45°

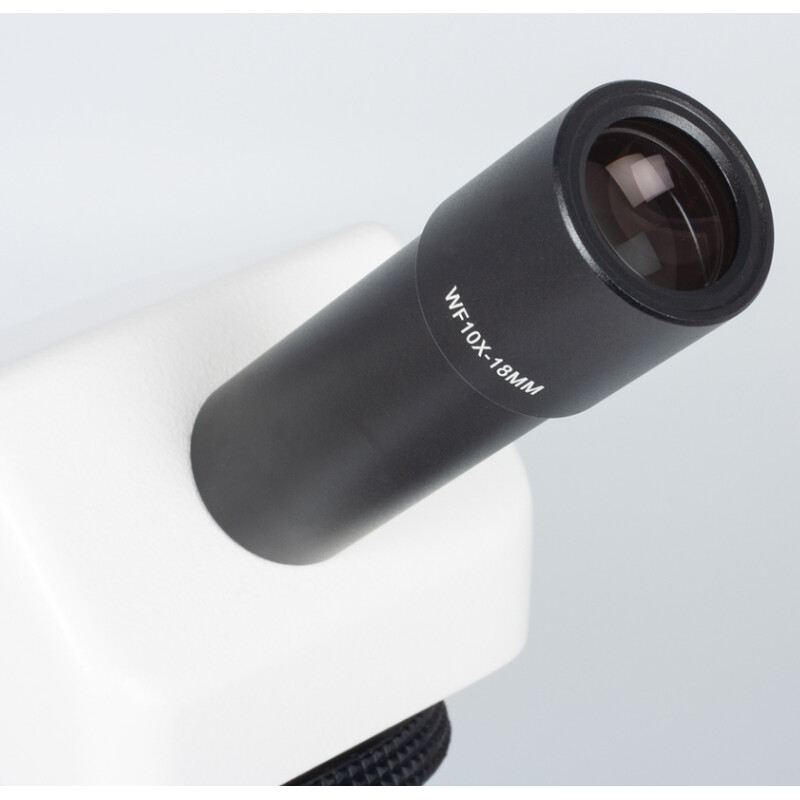

Eyepiece: Wide field WF 10X/18mm, lockable

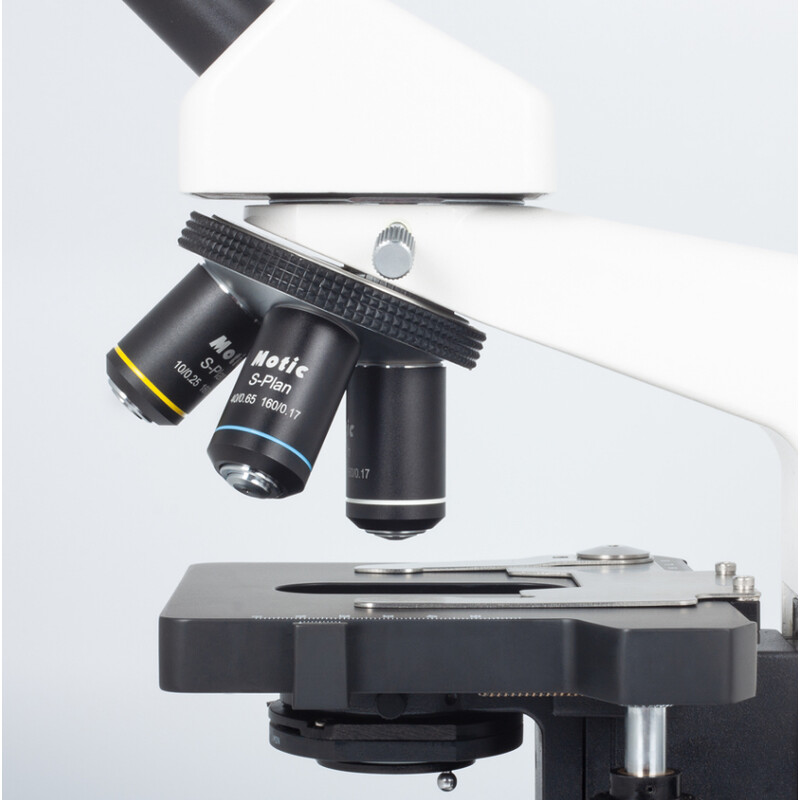

Objective lens turret: 4-fold
Lens quality: SP semi-plan achromatic, DIN
Objectives: 4X/0.10 (AA 17.9mm), 10X/0.25 (AA 5.3mm), 40X/0.65/S (AA 0.61mm), 100X/1.25/S-oil (AA 0.165mm)
Objective thread: W 4/5"x1/36" (RMS)
Condenser: Focusable Abbe condenser N.A. 1.25 with iris diaphragm
Stand type: Upright

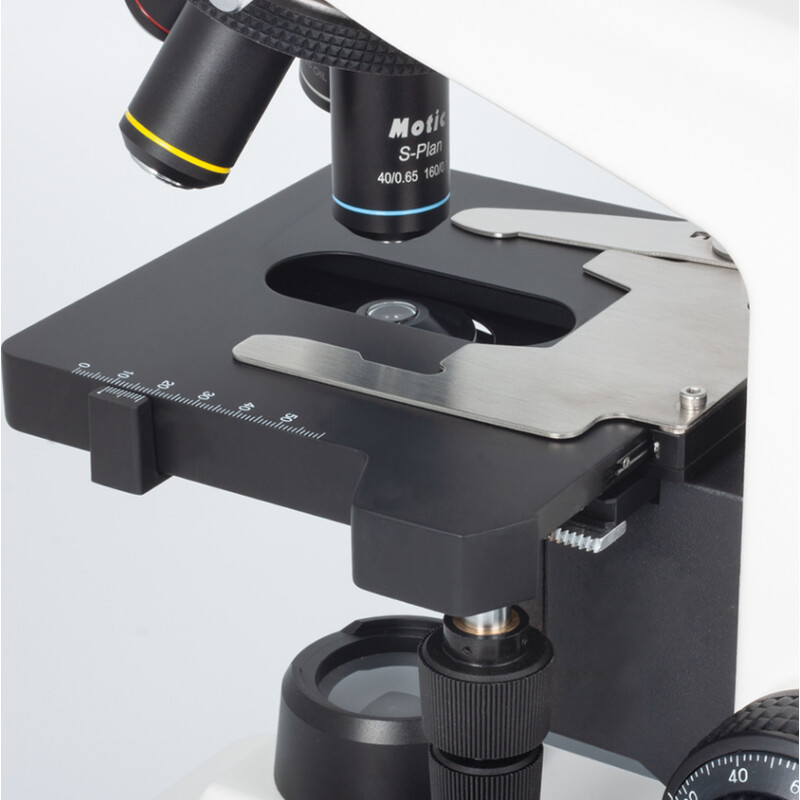

Stage: Mechanical stage with built-in rack-free, coaxial controls in low position with sample holder
Table size: 140 x 135 mm
Travel range X&Y: 76x40mm
Focus: Coaxial coarse/fine drive; adjustability
Fine focus step size: 2 µm
Travelrange in Z: 27 mm
Upper table stop: Preset at factory, but adjustable

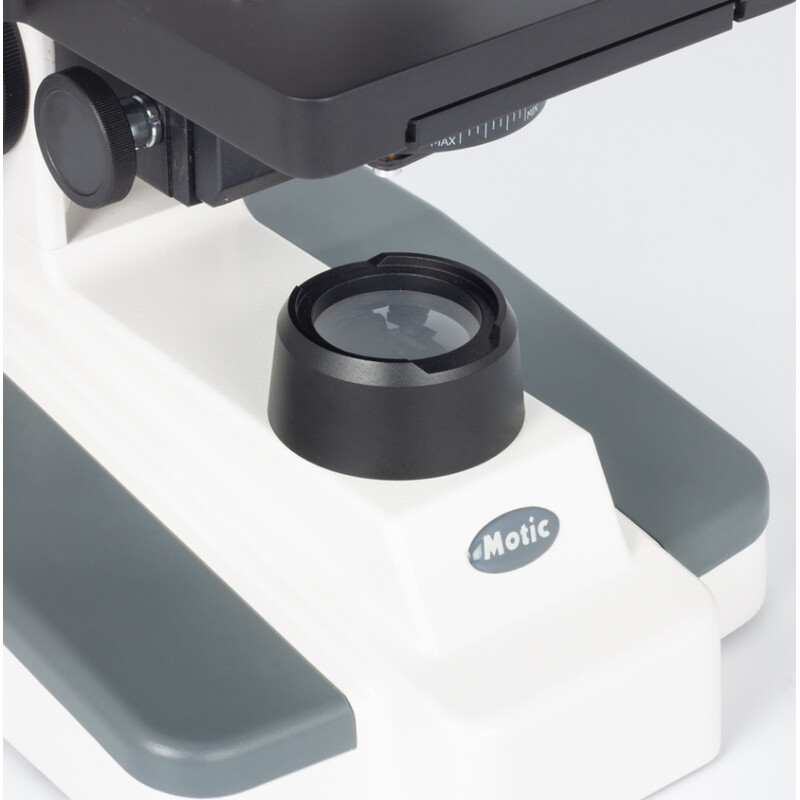

Transmitted light: 3W LED with intensity control
Transformer: external
Mains voltage: 110-240V (CE)
Dimensions LxWxH: 245x190x380 mm
Weight: 6.8 kg
Scope of delivery: Dust cover, power cord, immersion oil 5ml
