B1 Elite Series
The Motic B1Elite models bridge the gap between educational and professional use of a microscope. The table without protruding rack is designed for beginners, as is the dark field option with its attractive image characteristics. The "cool" LED lighting protects heat-sensitive specimens in biology lessons. The improved semi-plan objectives, together with the 3W LED lighting and coaxial focusing drive, provide professional equipment for doctors in private practice and small laboratories. Phase contrast is achieved via plug-in sleeves for the 10X/40X phase objective and ensures use with urine sediments and smears.
Highlights of the series:
160 mm FINITE SYSTEM
360° ROTATABLE HEAD
10x/18 WIDE-FIELD EYEPIECES
QUADRUPLE OBJECTIVE TURRET
SEMI-PLAN ACHROMATIC OBJECTIVES
MECHANICAL X/Y MICROSCOPE STAGE WITHOUT RACK AND PINION
COAXIAL FINE AND COARSE DRIVE
1.25 N.A. ABBE CONDENSER WITH IRIS DIAPHRAGM
3 W LED LIGHTING WITH INTENSITY CONTROL
ACCESSORIES FOR PHASE CONTRAST, POLARIZATION AND DARK FIELD

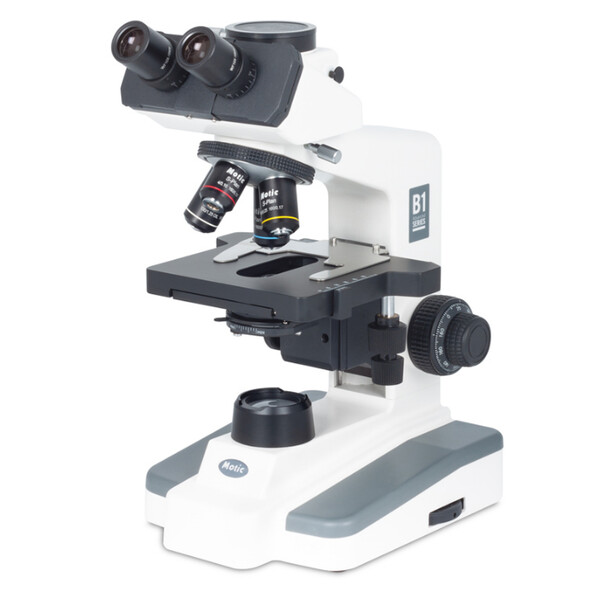

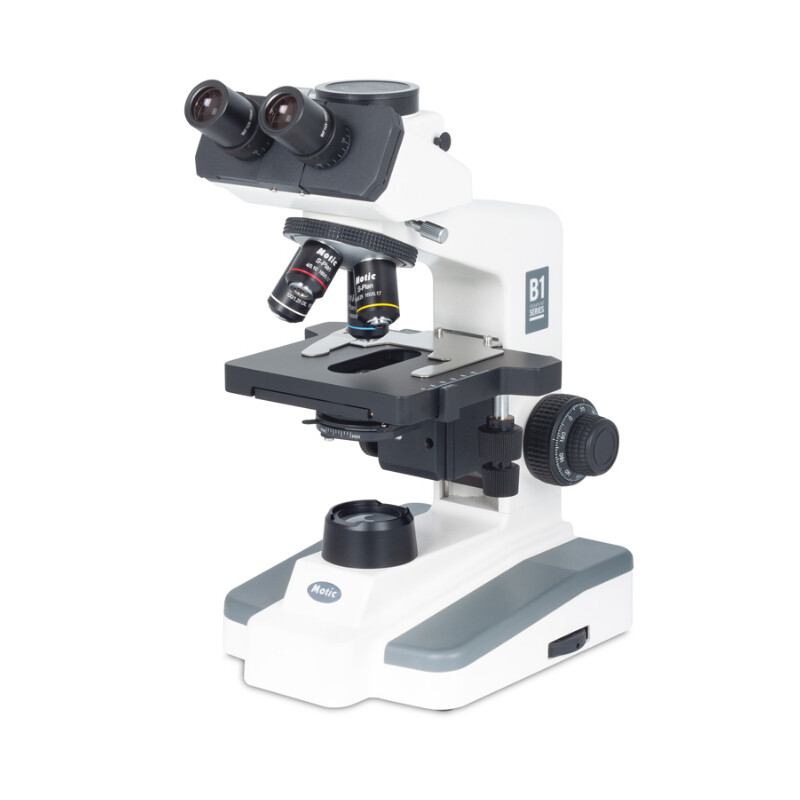

Specification B1-223E-SP Trinocular 40x - 600x (1100100601129)
Optical system: Finite system 160 mm

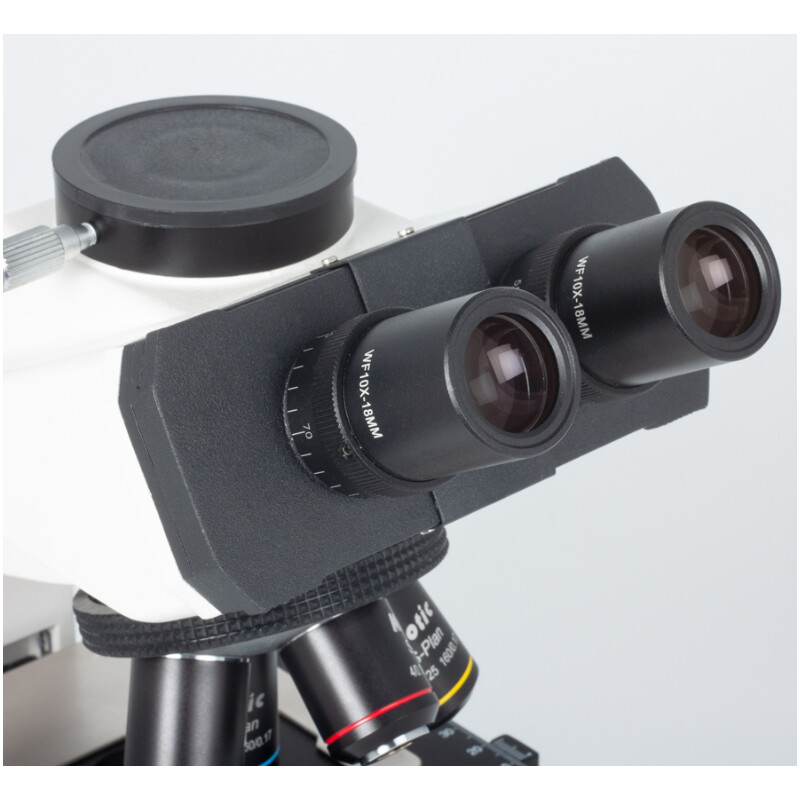

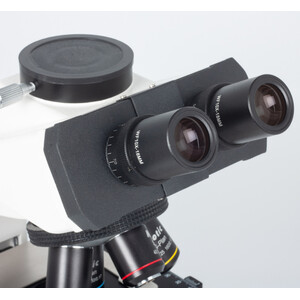

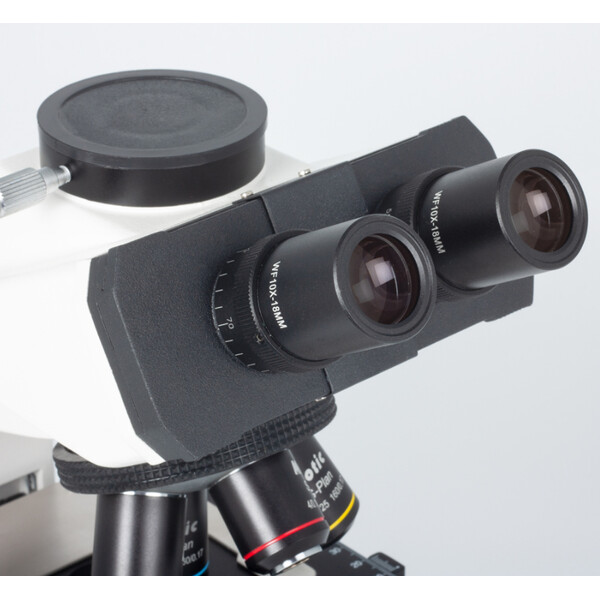

Observation tube: Trinocular tube, 360° rotatable
Beam splitter trinocular tube: 100:0/0:100/30:70
Viewing angle: 30°
Eye relief: 55-75 mm
Diopter adjustment: +/- 5 dpt on both eyepieces
Eyepieces: Wide field WF 10X/18mm
Objective turret: 4-fold
Lens quality: SP semi-plan achromatic, DIN

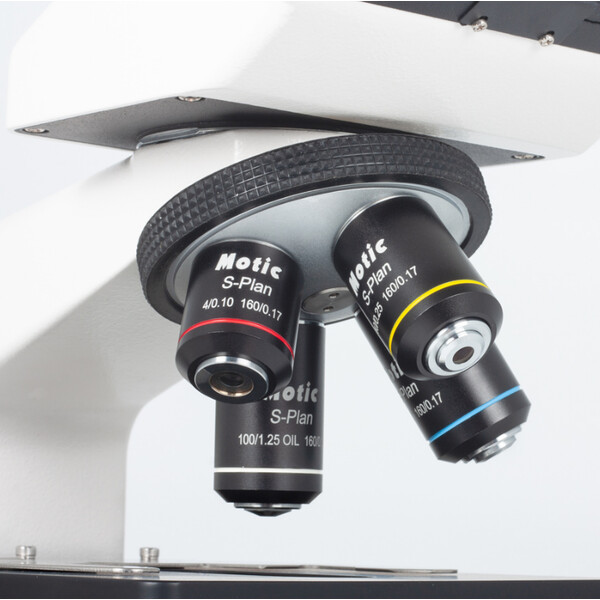

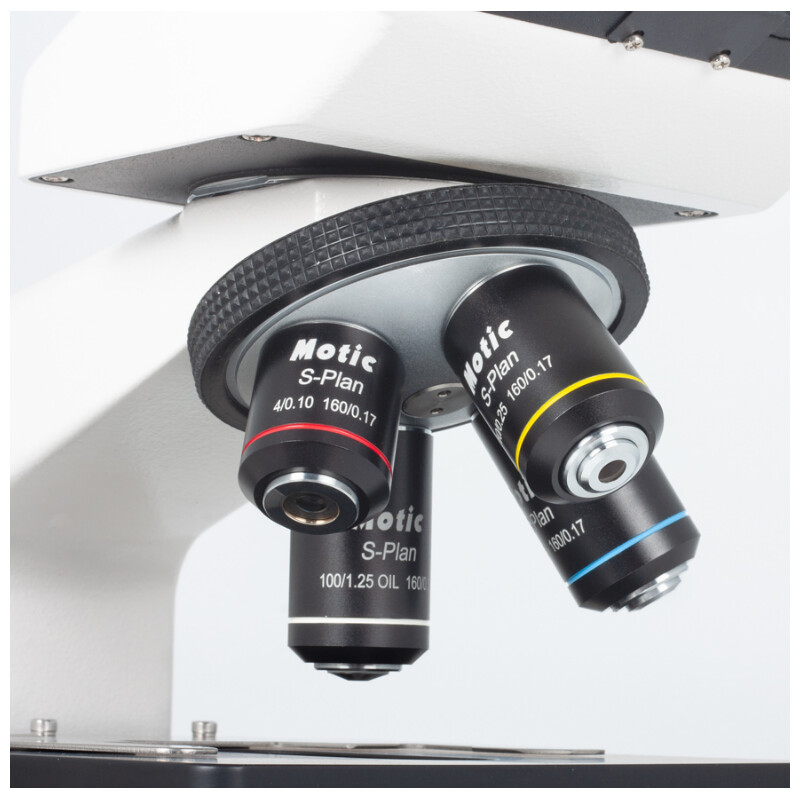

Objectives: 4X/0.10 (AA 17.9 mm), 10X/0.25 (AA 5.3 mm), 40X/0.65/S (AA 0.61 mm), 60X/0.85/S (AA 0.12 mm)
Objective thread: W 4/5"x1/36" (RMS)
Condenser: Focusable Abbe condenser N.A. 1.25 with iris diaphragm
Stand type: Upright

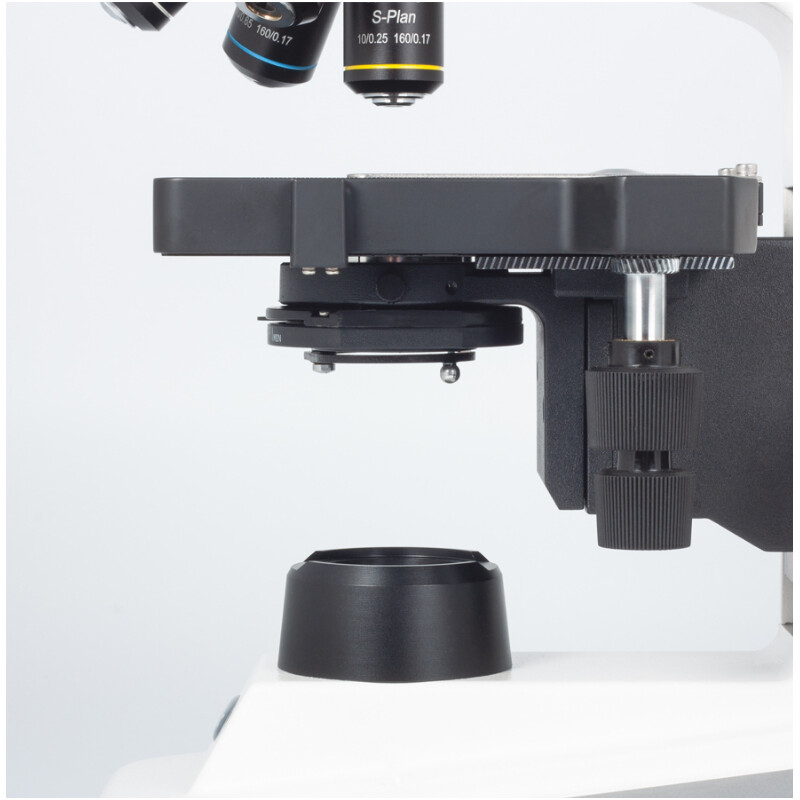

Stage: Mechanical stage with built-in rack-free, coaxial controls in low position with sample holder
Table size: 140x135mm
Travel range X&Y: 76x40mm
Focus: Coaxial coarse/fine drive; adjustability
Fine focus step size: 2 µm
Travelrange in Z: 27 mm
Upper table stop: Preset at factory, but adjustable
Transmitted light: 3W LED with intensity control
Transformer: external
Mains voltage: 110-240V (CE)
Dimensions LxWxH: 245x190x380 mm
Weight: 6.8 kg
Scope of delivery: Dust cover, power cord
