Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Motic > Panthera > Motic Microscope Panthera E2, Trinocular, HF, Infinity, plan achromat, 40x-1000x, fixed Koehl.LED
Product no.: 65803

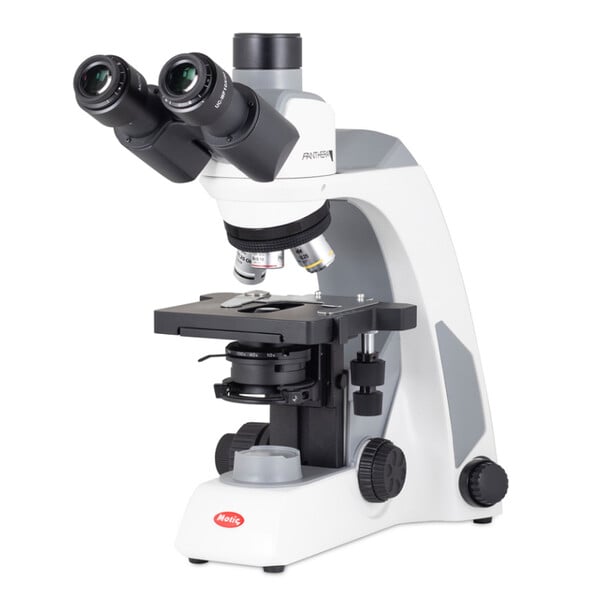

Microscope Panthera E2, Trinocular, HF, Infinity, plan achromat, 40x-1000x, fixed Koehl.LED

$ 1,980.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Panthera...

PANTHERA E2

The basic set for academic laboratory requirements.

The new Panthera E2 microscope series allows you to experience life sciences in a new way, with the best possible learning effect. Even in a small laboratory with a limited budget, this new technology from Motic is impressive. Panthera E2 microscopes combine high-quality materials and precise technology to create a durable and robust design. The smooth operation of the mechanics ensures fast and reliable results that take your daily work in the classroom and laboratory to a higher level of quality. The user-friendly design, robust construction and unique features guarantee optimum performance, even under heavy use. The models in this series impress with their smooth operation and feel. Plant sections, transparent native samples and even medical specimens are displayed with impressive image quality.

Highlights of the series:

360° ROTATING HEAD

QUAD LENS TURRET

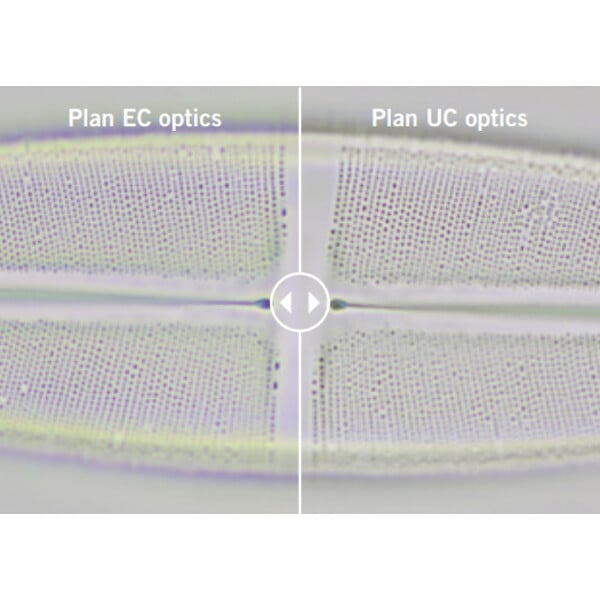

ULTRA CONTRAST (UC) PLAN ACHROMATIC OBJECTIVES

GEAR-FREE MECHANICAL X/Y MICROSCOPE STAGE

COAXIAL FINE AND COARSE DRIVE

LED LIGHT INTENSITY INDICATOR

USB FOR POWER BANK

1 W LED LIGHTING WITH FIXED KÖHLER

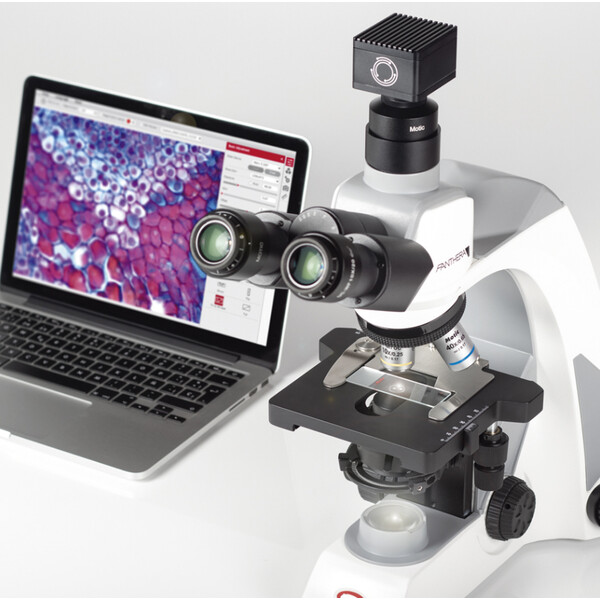

USB FOR CAMERA CONNECTION

ACCESSORIES FOR PHASE CONTRAST, POLARISATION AND DARK FIELD

Specifications Panthera E2 Trinocular (1100104601121)

Optical concept: Colour-corrected infinity optics (CCIS®)
Tube: Trinocular tube, Siedentopf type, eyepiece holder rotatable 360°
Viewing angle: 25°
Beam splitting Trinotube: Fixed 50:50 visual: camera output
Eye relief: 48-75 mm
Diopter adjustment: On both eyepieces +/- 5dpt

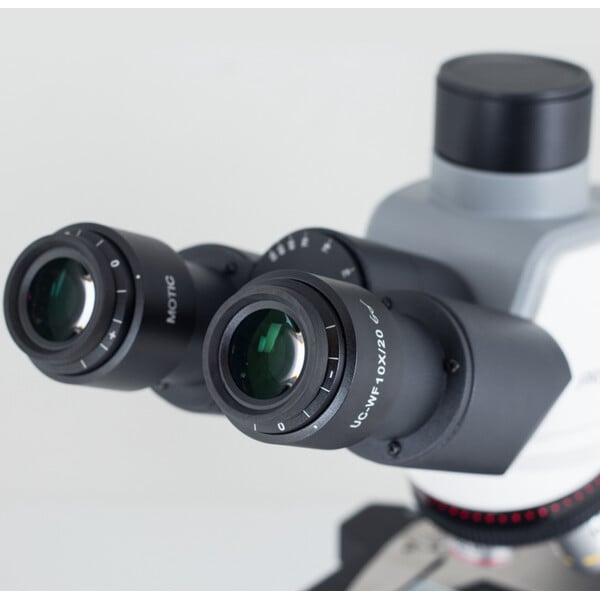

Eyepieces: Wide field UC-WF eyepieces 10X/20mm, with diopter adjustment
Lens turret: 4-fold, rearward facing
Lens class: CCIS® UC Plan Achromatic (Pb-free)

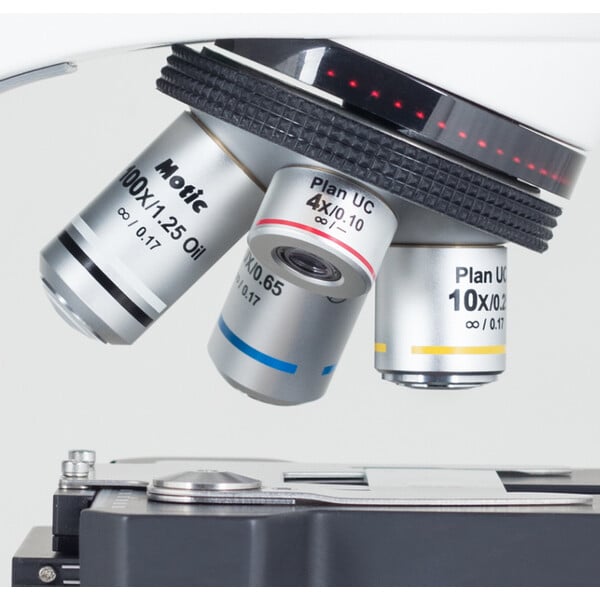

Lenses: 4X/0.10 (AA 30.5mm), 10X/0.25 (AA 17.4mm), 40X/0.65/S (AA 0.6mm), 100X/1.25 S-Oil (AA 0.16mm)
Lens thread: W 4/5" x 1/36" (RMS)
Tripod: Upright

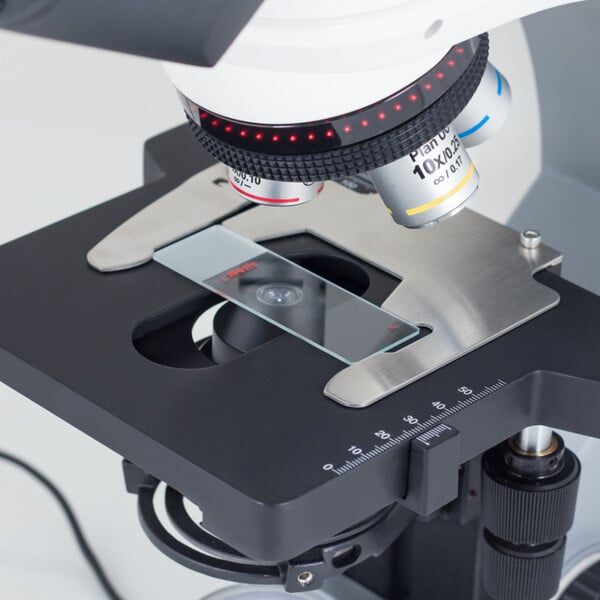

Table: Mechanical table with coaxial x/y drive and specimen holder
Table dimensions (mm): 140x135
Travel range (mm): 75x40
Condenser: Focusable/centring N.A. 0.90 / 1.25 Abbe condenser, with sliding slot
Aperture diaphragm: Iris diaphragm
Focus mechanism: Coaxial coarse/fine drive; adjustability
Fine focus step (µm): 2µm
Table travel (mm): 25mm
Upper table stop: Preset; adjustable
Filter holder: On the light exit of the stand base
Transmitted light: 1W LED, fixed Köhler, brightness adjustable
Lighting features: LED brightness indicator on revolver
Power supply: Integrated
Mains voltage: Universal power supply 110-240V (CE); USB 2.0 port for battery power supply
Additional features: USB 2.0 port for external camera power supply
Scope of delivery: Immersion oil 5ml, power cord, dust cover, hexagon socket wrench
Dimensions LxWxH: 282x210x396mm
Weight: 7.5kg

Specifications

Optics


Magnification
1000
Eyepiece
10 (UC-WF 10x/22mm)
Lens type
Plan, achromatic (CCIS)
Condensor
Abbe N.A. 0.90/1.25 (Abbe condenser (NA 1.25), with slider slot, centering and iris)
Lighting
Transmitted light
Lamp type
LED (Interchangeable halogen and LED lighting)
Optical system
infinity
Objective 1
4x/0.10 w.d. 30.5 mm
Objective 2
10x/0.25 w.d.17.4 mm
Objective 3
40x/0.65/S w.d. 0.6 mm
Objective 4
100x/1.25/S-Oil w.d. 0.16mm

Capacity


Brightness control
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes
Polarization
yes (optional)
Fluorescence
no
Dark field
yes (optional)
Phase contrast
yes (optional)

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement
Viewing posture (°)
25
Specimen stage
Cross table
Revolver
4

Special features


Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes (10x/22)

General


Colour
grey/black
Weight (g)
7500
Length (mm)
396
Height (mm)
282
Width (mm)
210
Series
Panthera

Field of application


Medicine
yes
Industry
yes
Hobby
yes
Biology
yes
Education
yes

Area of application


Metallurgy
-
Veterinary medicine
yes
University
yes
Materials Science
yes
Naturalist
yes
Gynecology
yes
Central laboratories
yes
Botany
yes
Microbiology
yes
Cytology & Pathology
yes
Secondary school
yes
High School
yes
Internal medicine
yes
Urology
yes
Marine Biology
yes
Technical training
yes

Miscellaneous


supplier product number
1100104601121

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
