Product no.: 71096

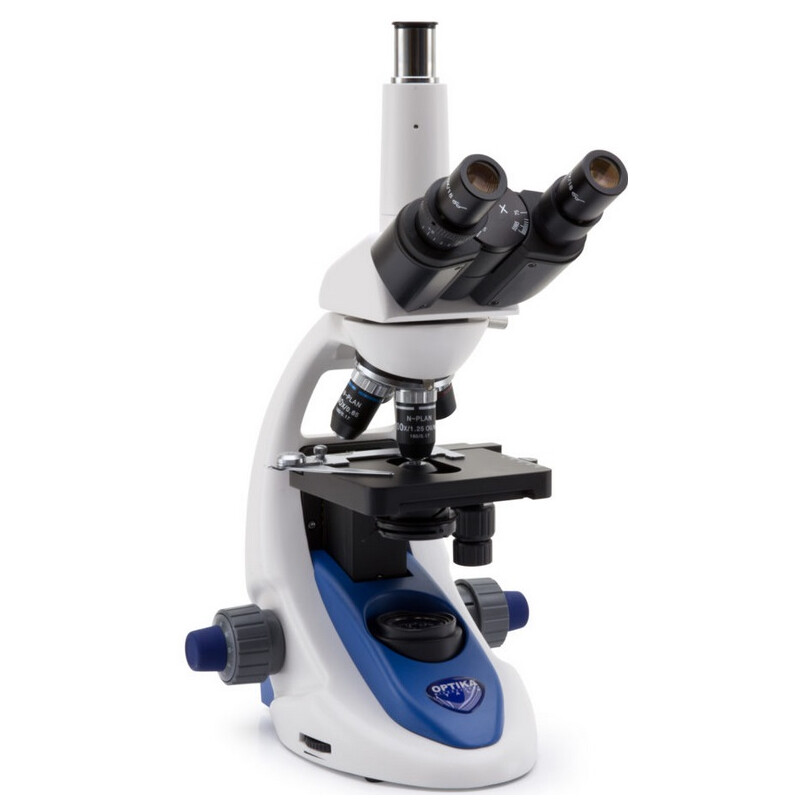

Microscope B-193PL,trino, DIN, N-plan, 40-1000xO/W, X-LED

RRP: $ 740.00 Our price:
$ 660.00 incl. VAT
Express shipment possible for delivery the day after tomorrow, 11.08.2022!
on stock
ready for shipping in 24 h + lead time

Product description

B-193PL

Trinocular microscope for camera connection ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. Slim and easy to carry, yet sturdy and resistant, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use

Head: Monocular 30° inclined; 360° rotating.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 60x/0.85

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

Specifications

Optics

Image scale
1000
Number of objectives
4
Lighting
Transmitted light
Field curvature
Plan
Colour correction
achromatic
Lamp type
LED
Objective 1
N-PLAN 4x/0.10
Objective 2
N-PLAN 10x/0.25
Objective 3
N-PLAN 40x/0.65
Objective 4
N-PLAN 100x/1.25 (Oil/Water)
Optical system
DIN (160mm)
infinity corrected
no
Magnification
1000

Capacity

Transmitted light
ja
brightfield
yes
Lamp type
LED
Magnification
1000

Mechanics

Type of build
Trinocular
Viewing posture (°)
45
Specimen stage
Cross table
Revolver
4

General

Series
B-190PL

Contrast methods

brightfield
yes

Field of application

Education
yes

Area of application

school
yes

Miscellaneous

supplier product number
B-193PL
