Moticam A Series
Highlights of the series:
- Ideally suited for beginners
- Models from 1 to 16 MP
- Easy to use
- Robust metal housing
- Flexible all-in-one solution with a wide range of accessories

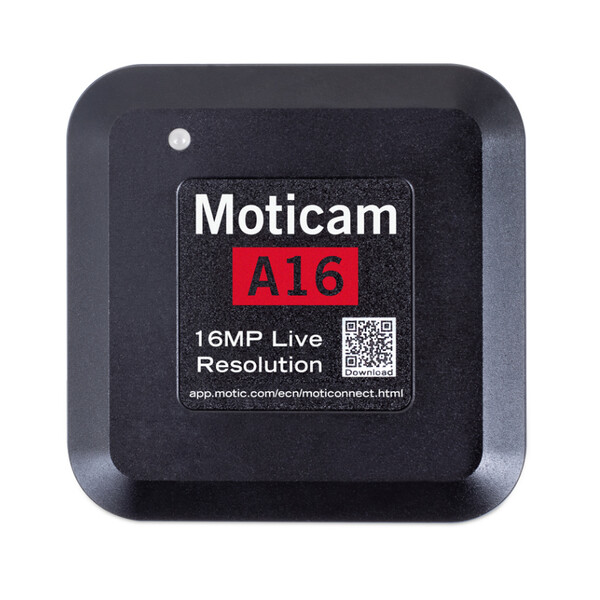

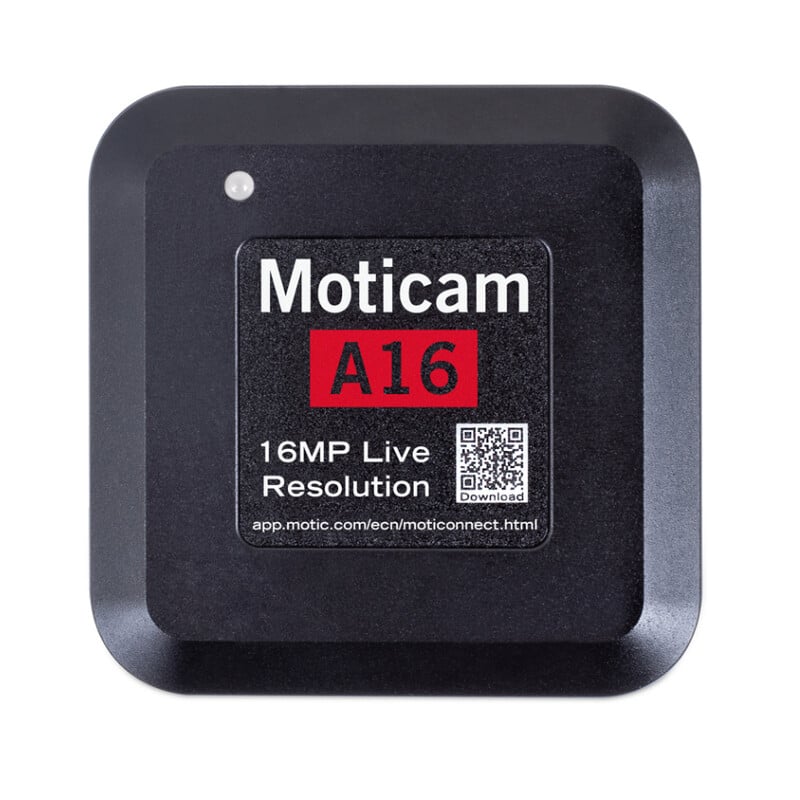

The Moticam A16 has the largest 1/2" sCMOS sensor in the A series. The resolution exceeds 4K and delivers up to 15 fps in live image mode. This Moticam is the instrument for forensic requirements. It is the ultimate and affordable Moticam for advanced enthusiasts with high demands.
Specifications Moticam A16:
Sensor type: sCMOS
Sensor size: 1/2.3"
Image area: 7.77 mm (diagonal)
Number of pixels: 16MP
Live display mode via USB: 4608x3456, 3264x2448, 1920x1080 pixels
Pixel size: 1.34x1.34µm
Scan mode: Progressive
Shuttermode: Rolling shutter
Data transfer: USB 2.0
Max. frames per second (fps): 4608x3456 @ 15 fps, 3264x2448 @ 15 fps, 1920x1080 @ 30 fps
Operating temperature: -10 to +60 degrees Celsius, non-condensing
Sensitivity: >2000mV
Supported instruments: TWAIN, SDK and Direct Show Driver
Supported operating systems: Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher
Minimum computer requirements: 2GHz dual-core processor, 2GB RAM
Lensconnection: C-mount
Focusable lens: 12 mm
Software: MotiConnect for Windows/OSX/Linux (download only)
Software features: Still image and video recording, still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system.
Power supply: 5V (from USB port)

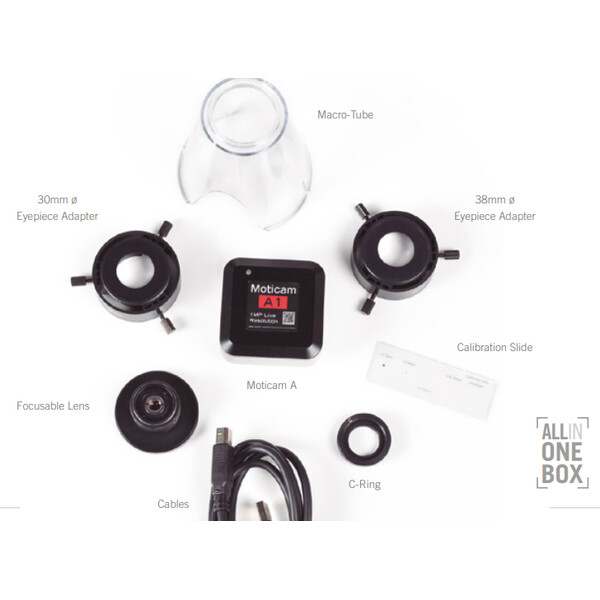

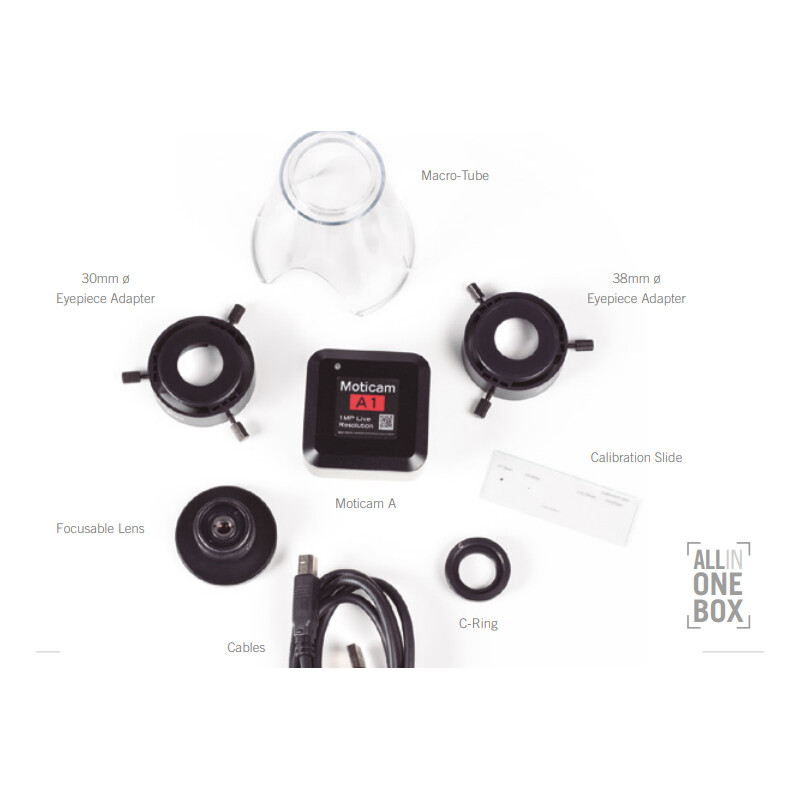

Scope of delivery: CS ring adaptor, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, Motic 4-position calibration slide holder, macro tube.
