More about the series EcoBlue...
Digital microscope with built-in 2.0 MP camera

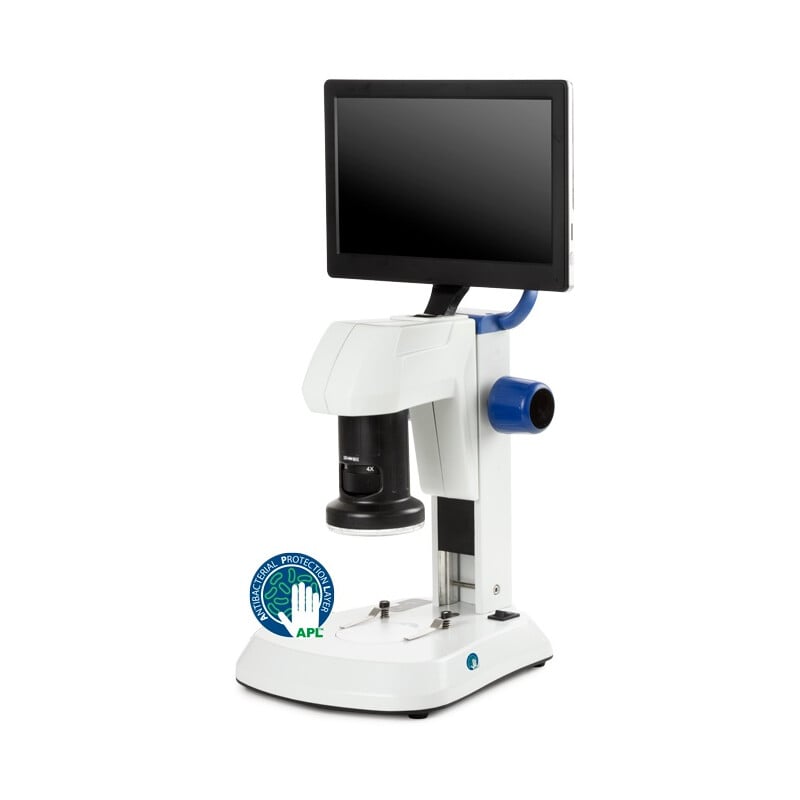

The EduBlue LCD microscope is equipped with a 1x to 4x zoom objective and allows observation of all types of objects directly on a 9" LCD screen. This type of microscope is well suited for educational purposes. The EduBlue LCD is equipped with a built-in 5 MP high-definition CMOS camera with 1920 x 1080 pixels.
TECHNICAL SPECIFICATIONS
CENTRAL ZOOM OBJECTIVE
- The EduBlue LCD ED.3000 has a single optical zoom lens with 0.7 to 4.5x zoom magnification. This allows for a magnification on the screen of 8 to 51.4x. Zoom settings are engraved at 0.7x, 0.8x, 1x, 1.5x, 2x, 3x, 4x and 4.5x. The working distance is 91 mm. A digital zoom with up to 10x magnification is available in the software, enabling digital magnification of up to 514x.
TRIPOD
- The central zoom lens with attached screen and LED ring light is mounted on a rack and pinion system that sits on a 30 x 180 mm metal stand.
LIGHTING
- Two types of lighting are available:
• An integrated 21 LED incident light ring illumination (5,500 K) with five intensity positions
• A transmitted light illumination with 7 LEDs (5,785 K) integrated into the base with two intensity settings
BUILT-IN CAMERA
- Built-in HD 5 MP CMOS high-speed camera with connected 9" screen. There is a USB port for a max. 16 GB SD memory card for recorded images. The operator can take pictures and save them to the SD card by pressing a record button on the left side of the screen. Images are saved in .jpg format and videos in .avi format.
INTEGRATED SOFTWARE
- The built-in on-screen software is controlled by the supplied computer mouse and has functions such as capture image, freeze image, automatic white balance, automatic exposure, file manager and grids. In addition, camera settings such as exposure time, gain, saturation, contrast, sharpness and HDR can be adjusted.
PACKAGING
- Supplied with 16 GB SD card, black/white object plate, a transparent glass object plate and an external 12V / 2A power supply.
APL (ANTIMICROBIAL COATING)
- APL (Antimicrobial Protection Layer) is a revolutionary colour treatment for the most critical parts of our products. A microscope with APL significantly reduces the growth of microorganisms, including bacteria and mould.
