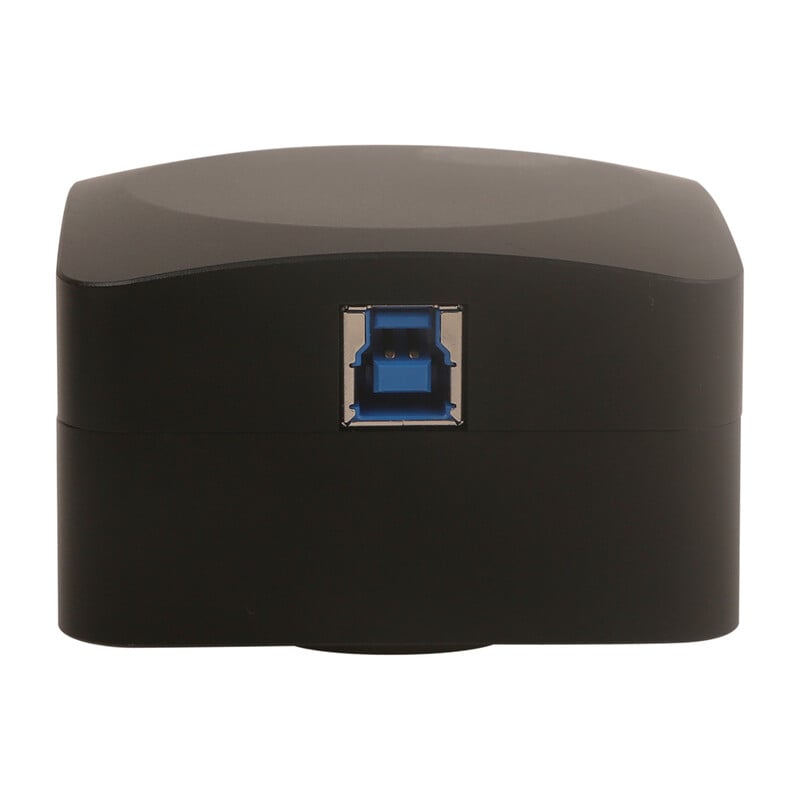

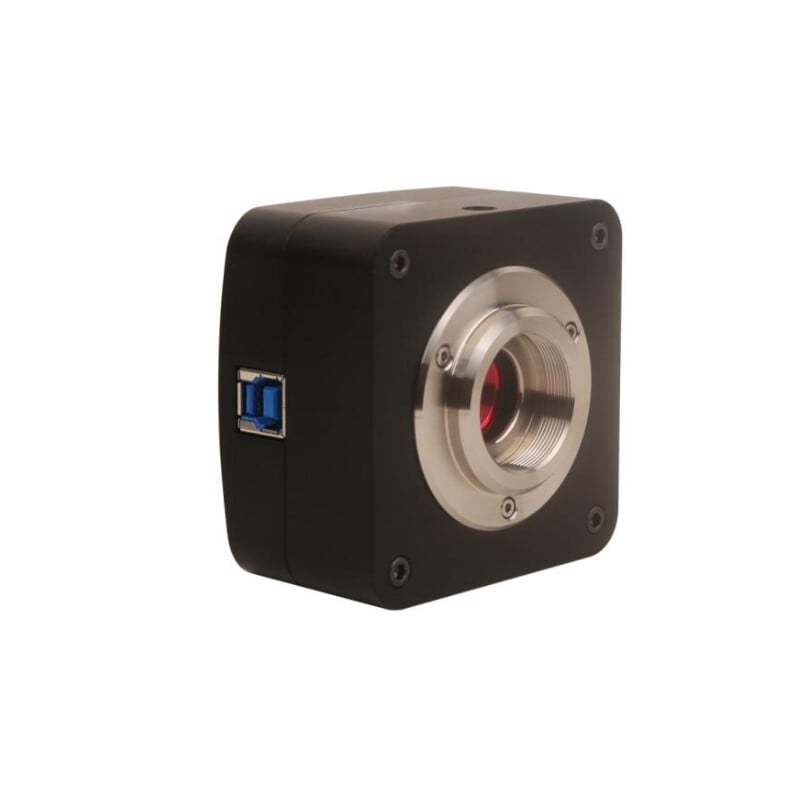

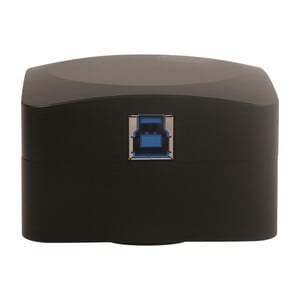

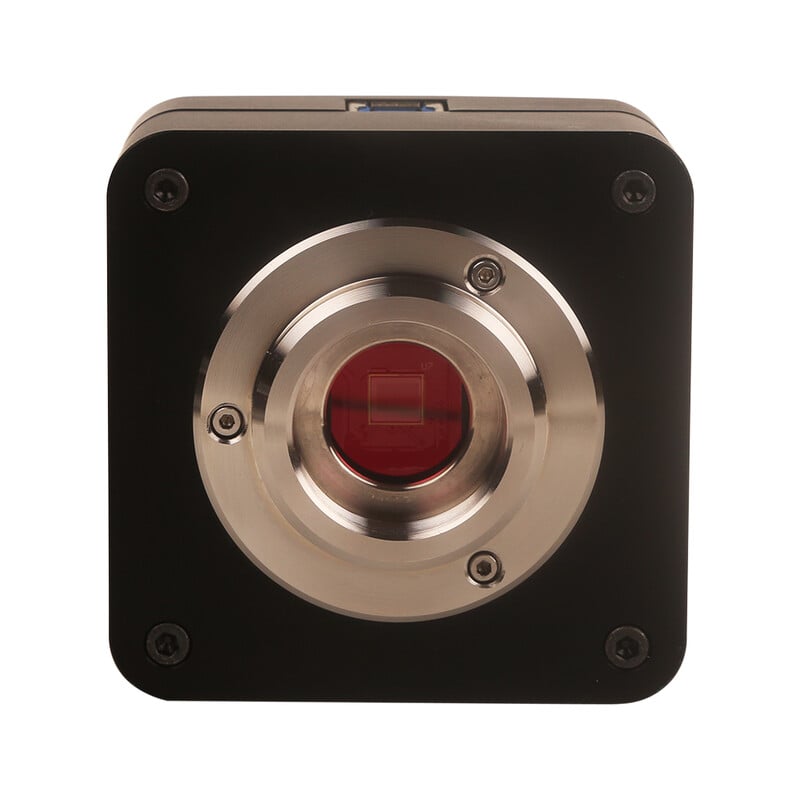

camera ToupCam E3ISPM 9000B, colour, CMOS, 1", 3.45 µm, 40 fps, 9 MP, USB 3.0

E3ISPM camera series

The E3ISPM series from ToupTek is equipped with SONY Exmor CMOS sensors and USB 3.0. The hardware resolutions of the series range from 1.5MP to 45MP and are supplied in a compact housing made of CNC aluminium alloy. In addition, the series features a 12-bit Ultra-Fine Hardware Image Signal Processor Video Pipeline (Ultra-Fine HISP VP) for demosaicing, automatic exposure, gain adjustment, one-push white balance, chrominance adjustment, saturation adjustment, gamma correction, luminance adjustment, contrast adjustment and RAW data format for 8/12-bit output. This shifts the main processing load from the PC to the Ultra-Fine HISP VP, significantly accelerating processing speed.

All cameras in the series come with the advanced video and image processing application ToupView/ToupLite. This is compatible with Windows/Linux/macOS/Android (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).

The series is designed for bright field microscopy and analyses that require a high frame rate.

Summary:

• SONY Exmor, Exmor R (back-illuminated), Exmor RS CMOS sensor with USB 3.0;
• Ultra-Fine HISP VP and USB3.0 5 Gbps for high frame rates;
• Super high sensitivity up to 2188mV (IMX264);
• Extremely low noise and low power consumption thanks to column-parallel A/D conversion;
• Hardware resolution between 1.5MP and 45MP;
• Rolling shutter or global shutter;
• Standard C-mount camera;
• Housing made of CNC aluminium alloy;
• Includes ToupView/ToupLite video and image processing software;
• Compatible with Windows/Linux/Mac OS, Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

Scope of delivery:

Camera; high-speed USB 3.0 cable, plug A to plug B, gold-plated / 2.0 m; CD (driver and software, Ø12cm)
