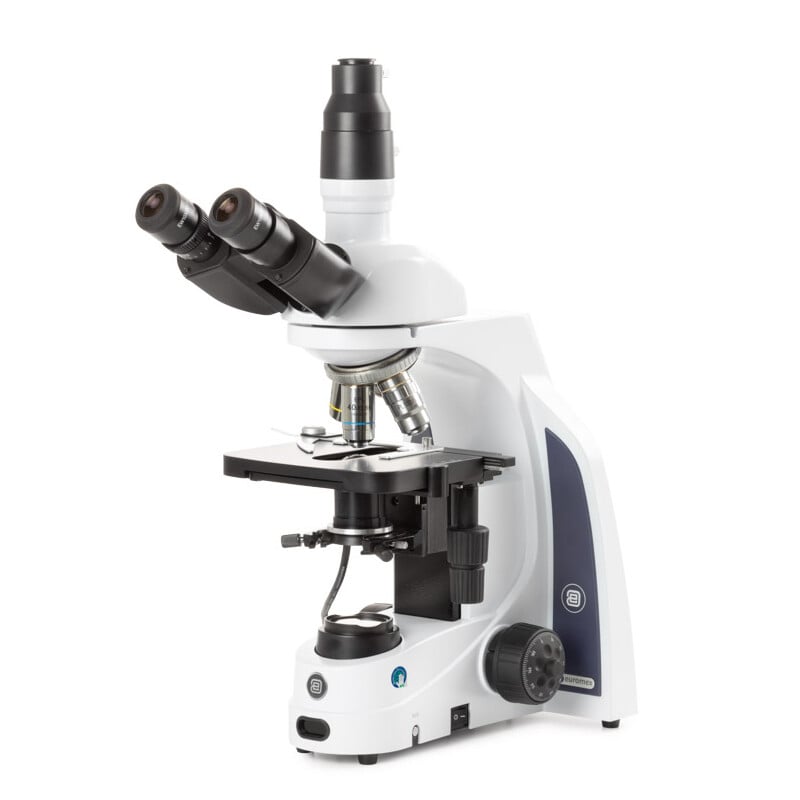

iScope® IS.1153‑EPL/DF – Entry into dark field microscopy for naturopathy with finite optics
The iScope® IS.1153‑EPL/DF is a practical trinocular microscope for dark field microscopy in naturopathy – ideal for live blood analysis and patient-oriented diagnostics. It works with E-Plan lenses based on a classic 160 mm tube system (finite optics) and is therefore particularly robust, attractively priced and easy to use.
An integrated cardioid condenser with 5 W LED dark field illumination enables high-contrast imaging of living cells and structures – without staining. A simple 3 W NeoLED transmitted light illumination is available for bright field operation (without Köhler system).
The trinocular head allows a camera to be connected – ideal for visualising blood images during patient consultations or for documentation purposes.
Recommended for:
Alternative practitioners, naturopathic practices, introduction to live blood analysis, patient-oriented dark field application – particularly suitable when a robust, low-maintenance system with solid image quality is required.
iScope for dark field iS.1153-EPL/DF
- Eyepieces EWF10x/20mm, Ø30 mm
- Head Trinocular with Siedentopf 30° inclined tubes. Adjustable eye relief 48 - 75 mm with diopter adjustment on one eyepiece
- Revolving head Inverted objective turret for 5 lenses
- Objectives EPlan EPL 4x/0.10, EPL 10x/0.25, EPL S40x/0.65, EPLi S100x/1.25 oil immersion with iris diaphragm, DIN objectives. All optical parts are treated against fungi.
- Table 156 x 138 mm microscope stage with rack and pinion
- Condenser Karioid dark field condenser with 5W LED+ Abbe N.A. 1.25 Bright field condenser - without Köhler LED
- Focus control Coaxial coarse and fine adjustments, 2 µm precise, 20 mm travel. Click-stop to prevent damage to lenses and specimens. Friction adjustment
- Lighting and power supply Adjustable 3W NeoLED™ transmitted light with internal 85V-240V power supply
- iCare sensor The unique iCare sensor was developed to prevent unnecessary energy loss. The microscope lighting switches off automatically when the user leaves their seat.
- CSS - Cable Storage System The ISCOPE's cable storage system allows the user to conveniently insert the power cable into the rear of the instrument, making storage easy.
