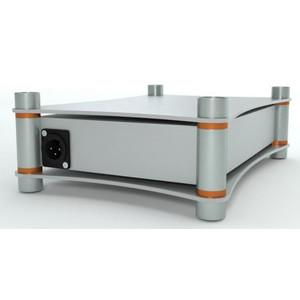

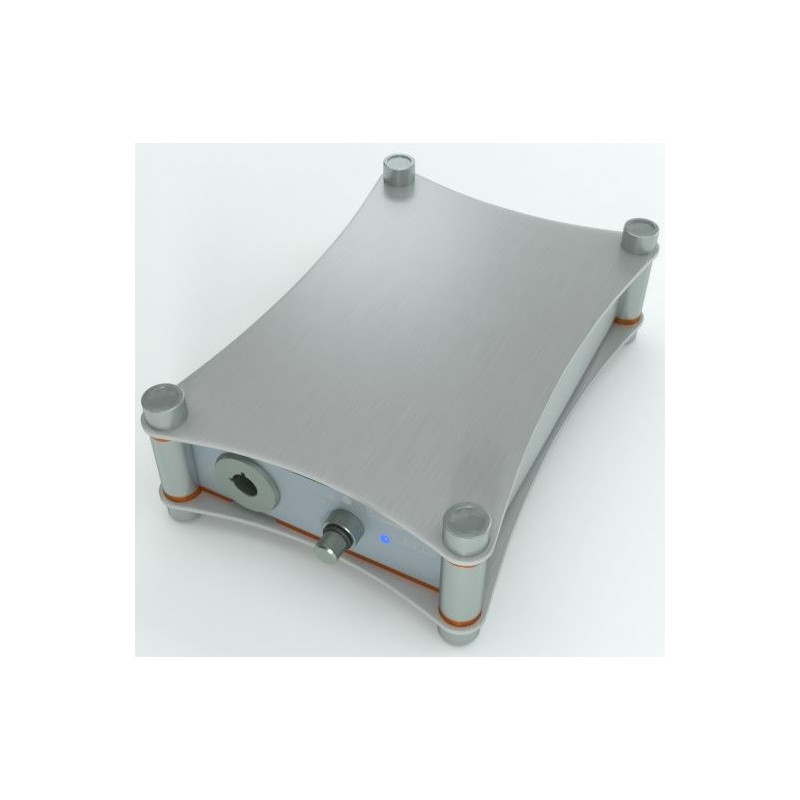

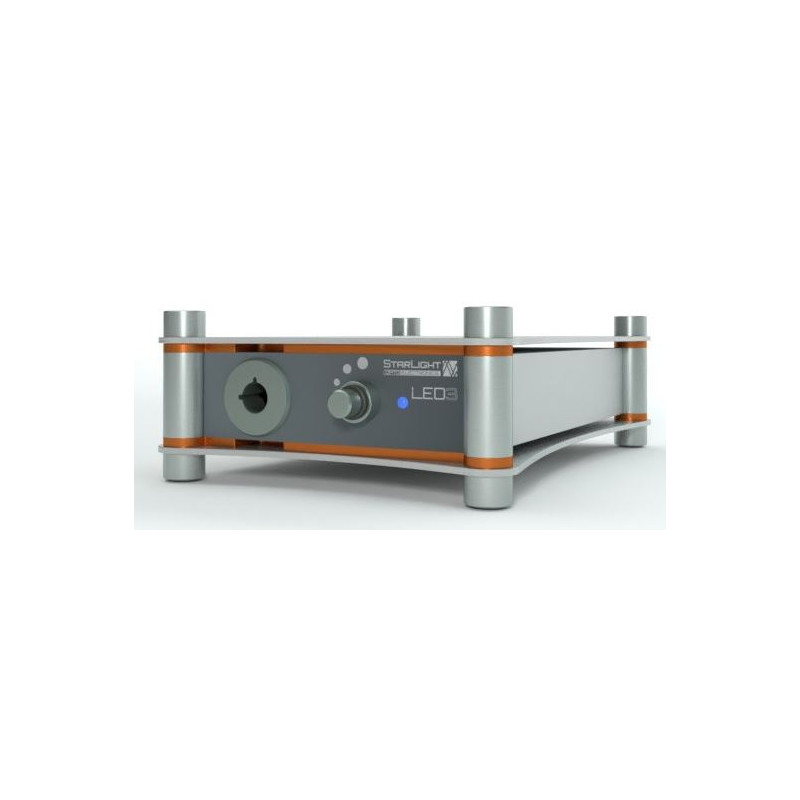

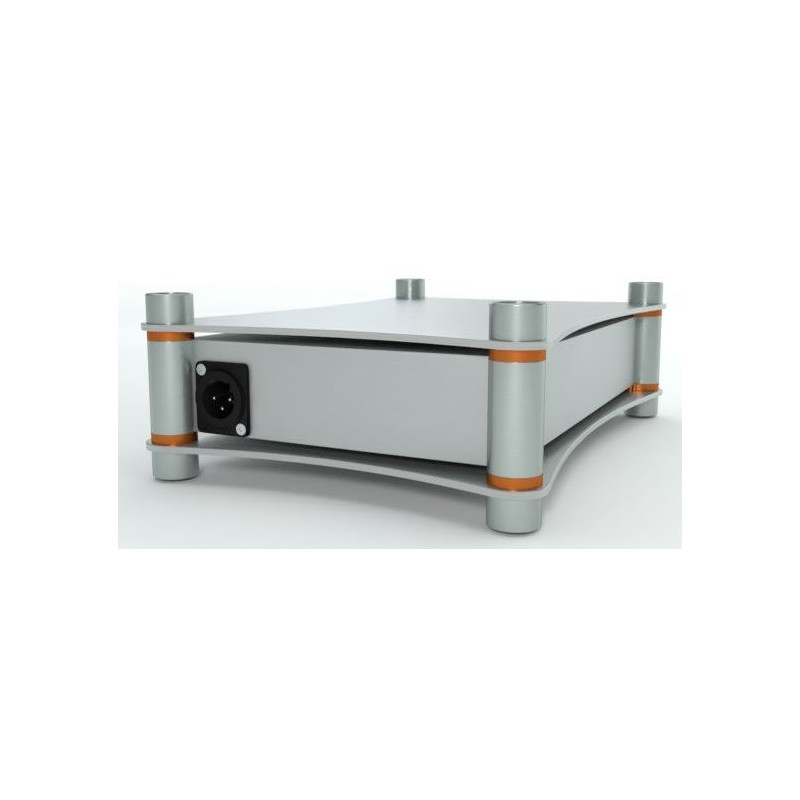

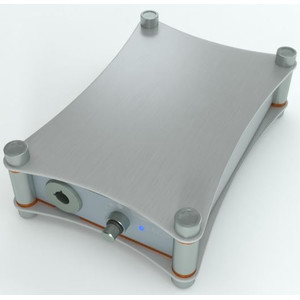

LED cold light source LED3
The fanless LED cold light source LED3 is available in four different versions. In addition to the versions with high luminous flux and high colour rendering index, there is a model with neutral white light and one with warm white light. This ensures that the optimum lighting is available for every application.
Like all LED cold light sources, the LED3 is characterised by the highest quality workmanship. Thanks to its well thought-out design and the high quality of the LEDs used, it is reliable, efficient and durable. Despite its fanless and therefore completely vibration- and noise-free cooling, this LED cold light source exceeds the brightness of a 150 W halogen cold light source. This sets new standards in terms of light output, especially in clean room applications.
- Flicker-free light thanks to optimised, low-loss electronics
- Robust aluminium housing in a modern design
- Can be adapted to different light conductors with adaptors
- Horizontal stacking and vertical positioning possible
Roma LED3-PC
Technical
Luminous flux at light conductor: 1 m × Ø 9 mm, approx. 590 lm
Colour temperature: 5700 K
Colour rendering index (CRI): 90
Light guide connection: Ø 15 mm
Power consumption: approx. 36 W
LED service life: 50,000 hours (manufacturer's specification)
Power supply input: 100 - 240 V AC, 50 - 60 Hz
Power pack output: 15 V DC, 0 - 4 A
Dimensions (L×W×H): 259 mm × 174 mm × 81 mm
Material: anodised aluminium
Colour: titanium and grey
Weight approx. 3.7 kg
Scope of delivery:
LED cold light source
LED3-N
power pack
Operating instructions
Accessories (selection)
