More about the series iScope...
Euromex introduces a complete new series of iScope® microscopes. These state-of-the-art instruments have been specifically designed for Life Sciences and Biomedical Sciences.
The iScope® is available in different configurations. Thanks to the high resolving power of the objectives and the 3W NeoLed transmitted LED illumination, these microscopes can be used for all kind of demanding applications as well for fundamental research. Please find below a summary of the specifications
- EWF10x/22 mm or EWF10x/20mm eyepieces
- Binocular and trinocular heads
- Quintuple nosepiece
- E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives
- E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
- Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
- 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
- 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
- Height adjustable Abbe condenser N.A. 1.25
- Coarse and fine height adjustment
- Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
- iCare sensor for energy saving
- CSS - Cable Storage System
- Models IS.1152-EPL and IS.1153-EPL are supplied with E-Plan objectives for bright field applications
- Models IS.1152-EPLi and IS.1153-EPLi are supplied with E-Plan IOS objectives for bright field applications
- Models IS.1152-PLi and IS.1153-PLi are supplied with Plan IOS objectives for bright field applications
The iScope is also available in a multi-head configuration

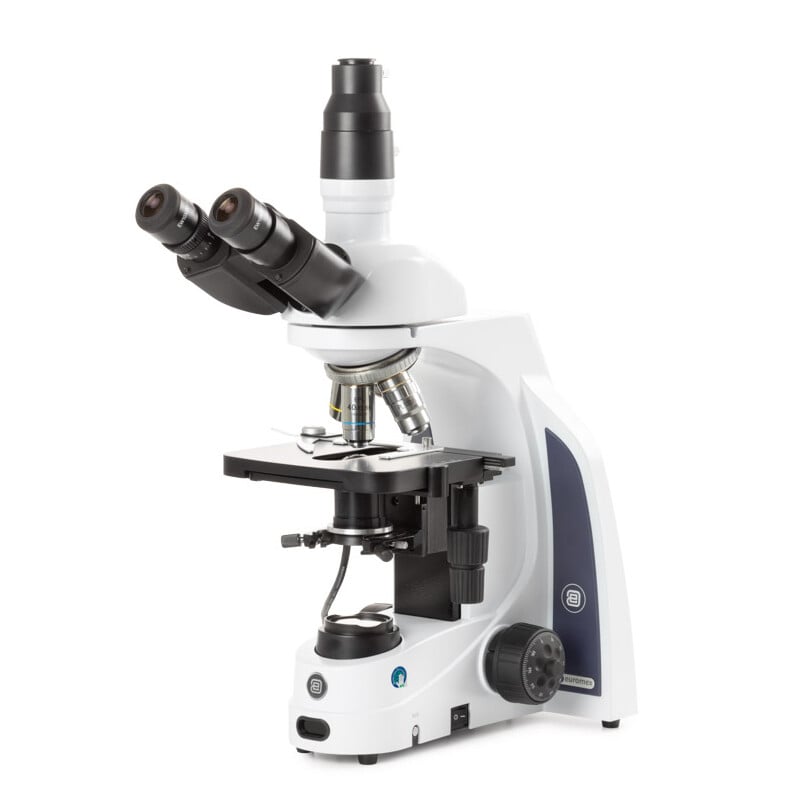

iScope for dark field iS.1153-EPL/DF
- Eyepieces EWF10x/20mm, Ø30 mm
- Head Trinocular with Siedentopf 30° inclined tubes. Adjustable eye relief 48 - 75 mm with diopter adjustment on one eyepiece
- Revolving head Inverted objective turret for 5 lenses
- Objectives EPlan EPL 4x/0.10, EPL 10x/0.25, EPL S40x/0.65, EPLi S100x/1.25 oil immersion with iris diaphragm, DIN lenses. All optical parts are treated against fungi.
- Table 216 mm x 150 mm microscope stage with rack and pinion
- Condenser Karioid dark field condenser with 5W LED+ Abbe N.A. 1.25 bright field condenser
- Focus control Coaxial coarse and fine adjustments, 2 µm precise, 20 mm travel. Click-stop to prevent damage to lenses and specimens. Friction adjustment
- Lighting and power pack Adjustable 3W NeoLED™ transmitted light with internal 85V-240V power pack
- iCare sensor The unique iCare sensor was developed to prevent unnecessary energy loss. The microscope lighting switches off automatically when the user leaves their seat.
- CSS - Cable Storage System The ISCOPE's cable storage system allows the user to conveniently insert the power cable into the back of the instrument for easy storage.
