Night vision devices & thermal cameras > Instruments > Digital night vision device > AGM > AGM Night vision device Fuzion TM35-384
Product no.: 74392

Night vision device Fuzion TM35-384

$ 2,640.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Equipped with thermal and optical sensors
  • 1920×1080 Optical resolution
  • Video recording and snapshot, integrated EMMC (16 GB)
  • 6 display modes
  • Waterproof according to IP67

Product description

The AGM Fuzion Handheld Thermal & Optical Bi-spectrum Monocular is equipped with 12μm high sensitivity VOx thermal detector, ultra-low light 1/2" CMOS optical detector, 1024×768 OLED display and eyepiece with a large field of view. The device can quickly detect hiding objects even under extreme environments such as smoke, fog, rain, snow, etc. It can be widely applied to scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Due to its waterproof capability (IP67) the device performs well even in severe weather conditions and challenging environments.

The Fuzion’s user-friendly interface, comfortable and ergonomic operating controls makes adoption and application incredibly simple. The monocular offers three different variants of image view: thermal, visible light, and fusion that can be easily adapted depending on different environmental conditions. The Fuzion uses one 18650 rechargeable Lithium battery (2 are included) for up to 5-hours of operating time. In addition, an external power supply can be used to provide an increase in operating time.

Key features:

  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, visible light channel, or both them combined
  • 12 μm, 35 mK NETD high sensitivity thermal detector
  • Fast 50 Hz imaging
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Ultra-Low-Ligth detector
  • 1920×1080 Optical resolution
  • 1024×768, 0.39-inch OLED display
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Wi-Fi hotspot
  • Standby mode
  • Up to 5 hours continuous running
  • Waterproof
  • Limited 3-Year Warranty

Specifications

Capacity


Type of build
Monocular
Technology
Fusion
Magnification
Optical
objective
22mm
Maximum operating distance (m)
1750
Battery durability (h)
5 h (WiFi & CVBS aus) & 3 h (WiFi & CVBS an)
Image display
Different versions (Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion)
Display resolution (Pixel)
1024x768
Resolution Sensor Digital (Pixel)
1920x1080 bei 25 fps
Resolution Sensor Thermal (Pixel)
384x288
Battery type
18650 (austauschbar & 2x im Lieferumfang enthalten)
Screen size (″)
0,39
Image cycle rate (Hz)
50
Display type
OLED
Sensor type Digital
CMOS (1/2" progressive scan CMOS)
Sensor type Thermal
VOx (12 μm VOx uncooled focal plane arrays)
Zoom (digital)
2/4/8
Lens (thermal)
35mm f:1.0
Enlargement (thermal)
3,5

Special features


Video connection
yes
Splash-proof
yes
Watertight
yes
WiFi
yes

Field of view


True field of view (°)
10,5 x 7,9

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes

General


Length (mm)
168
Width (mm)
51
Height (mm)
87
Weight (g)
480

Product safety

Manufacturer: AGM Global Vision ltd, #6 Andrey Lyapchev blvd & Zheko Voyvoda st., 1756 Sofia, BG, de.agmglobalvision.eu/
Responsible person: AGM Global Vision ltd, #6 Andrey Lyapchev blvd & Zheko Voyvoda st., 1756 Sofia, BG, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 1.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 6.90*

*All prices include VAT plus shipping costs.

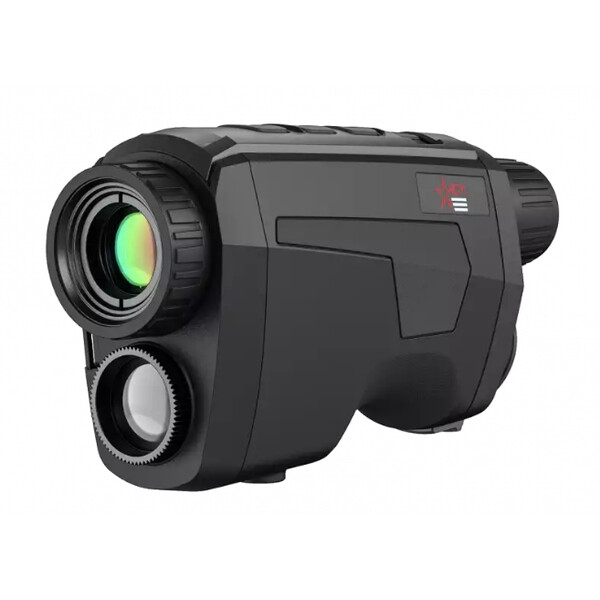

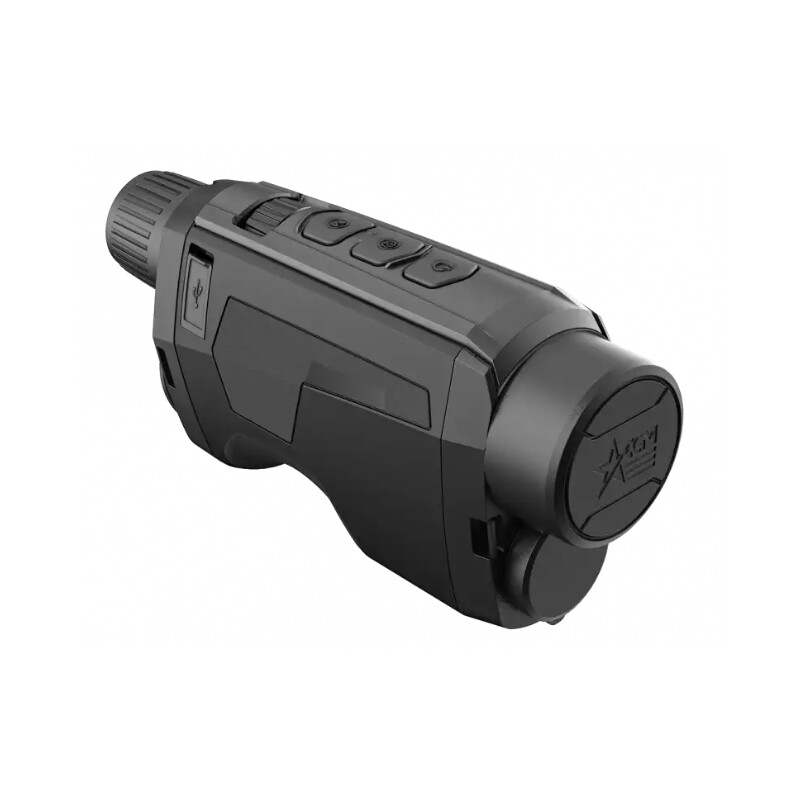

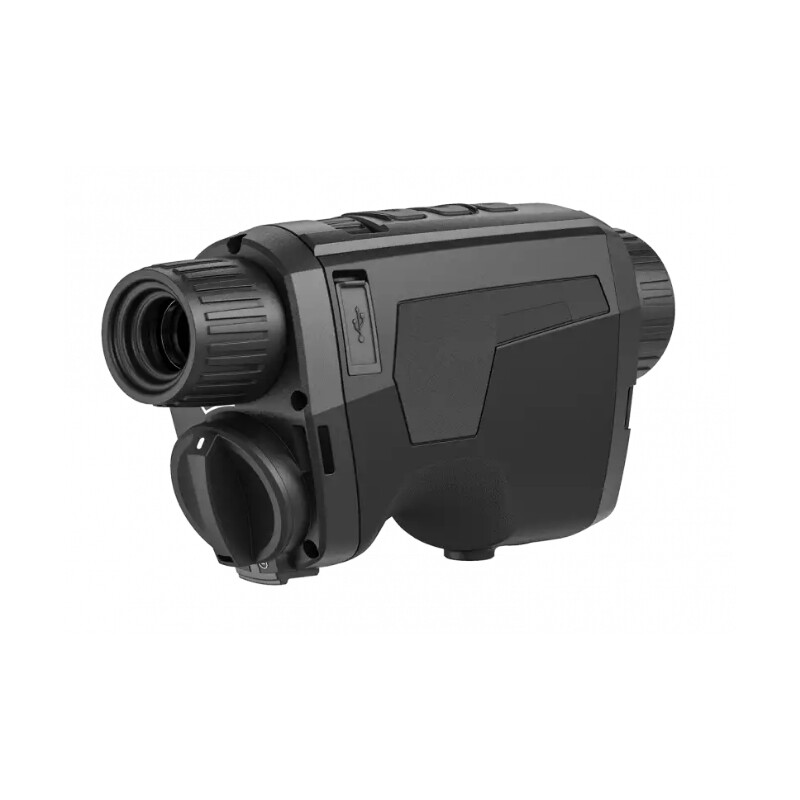

AGM Night vision device Fuzion TM35-384

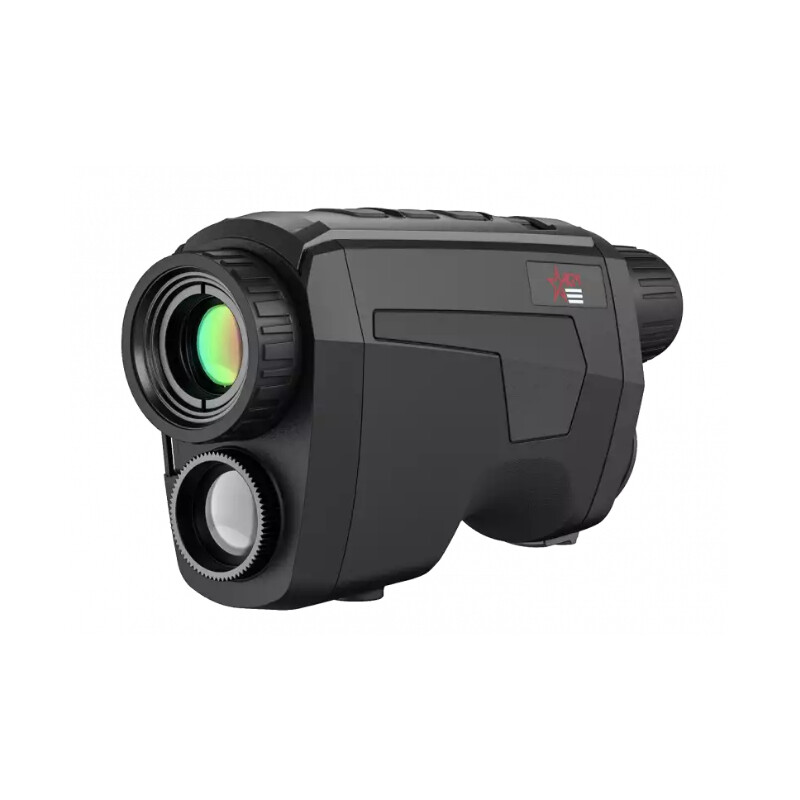

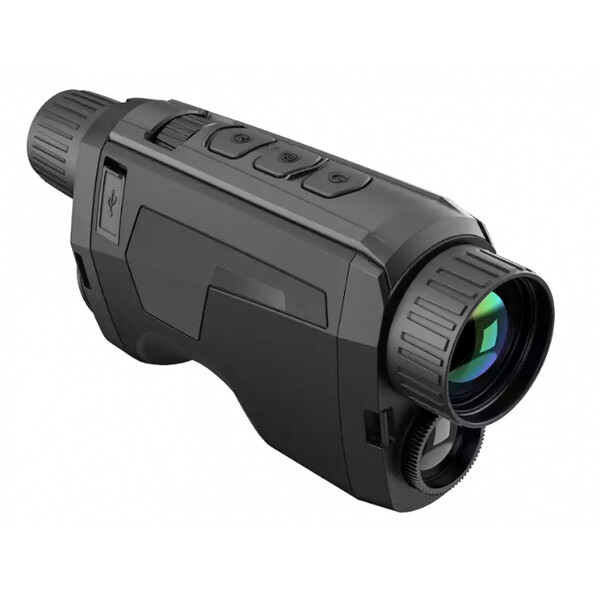

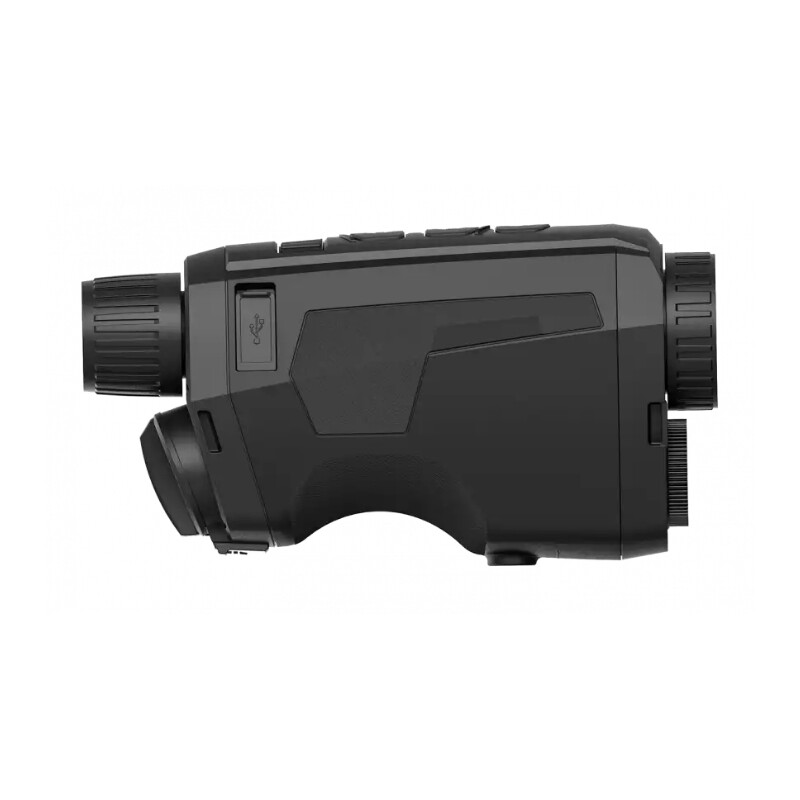

AGM Night vision device Fuzion TM35-384

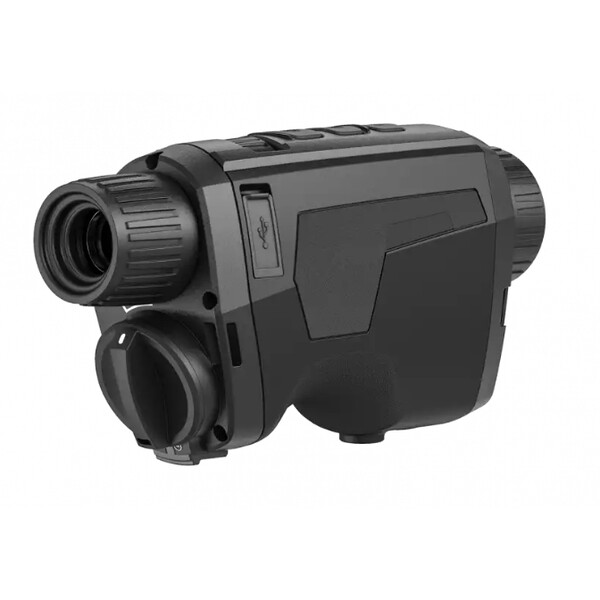

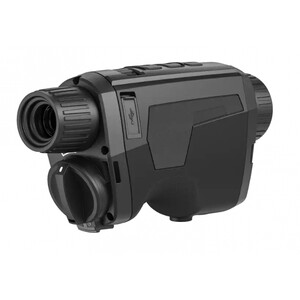

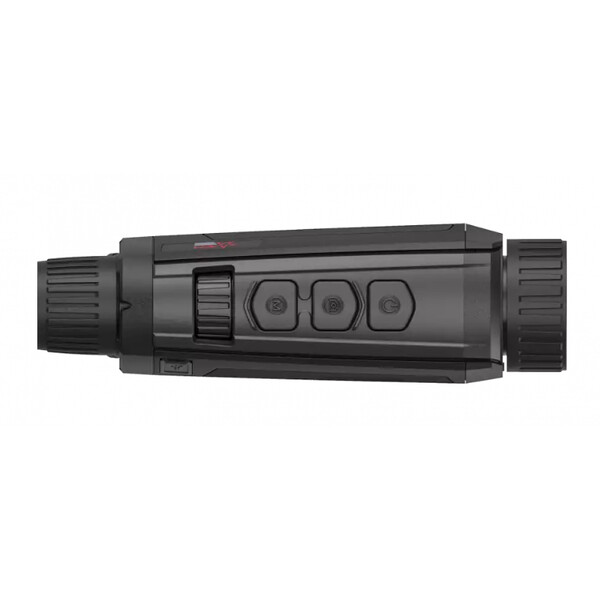

AGM Night vision device Fuzion TM35-384

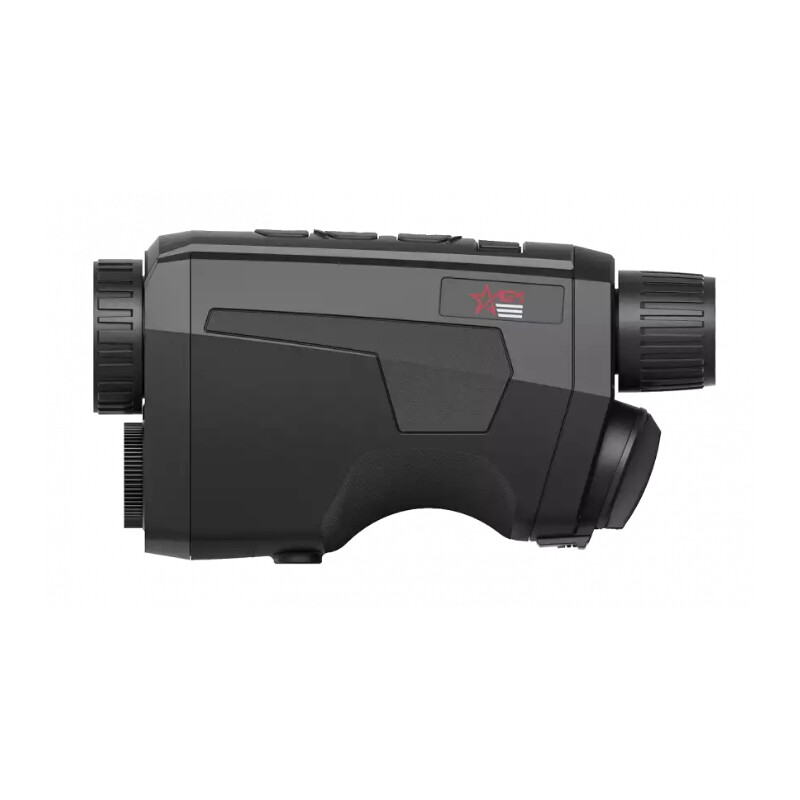

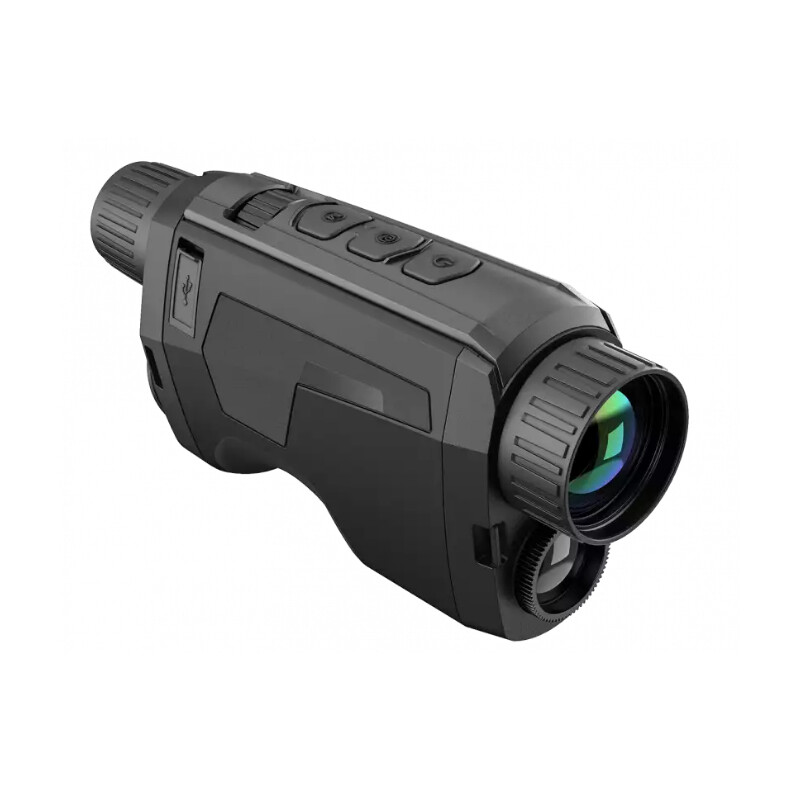

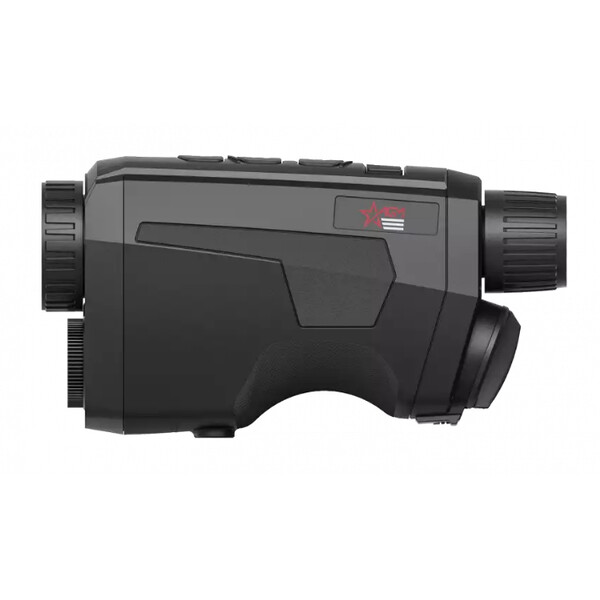

AGM Night vision device Fuzion TM35-384

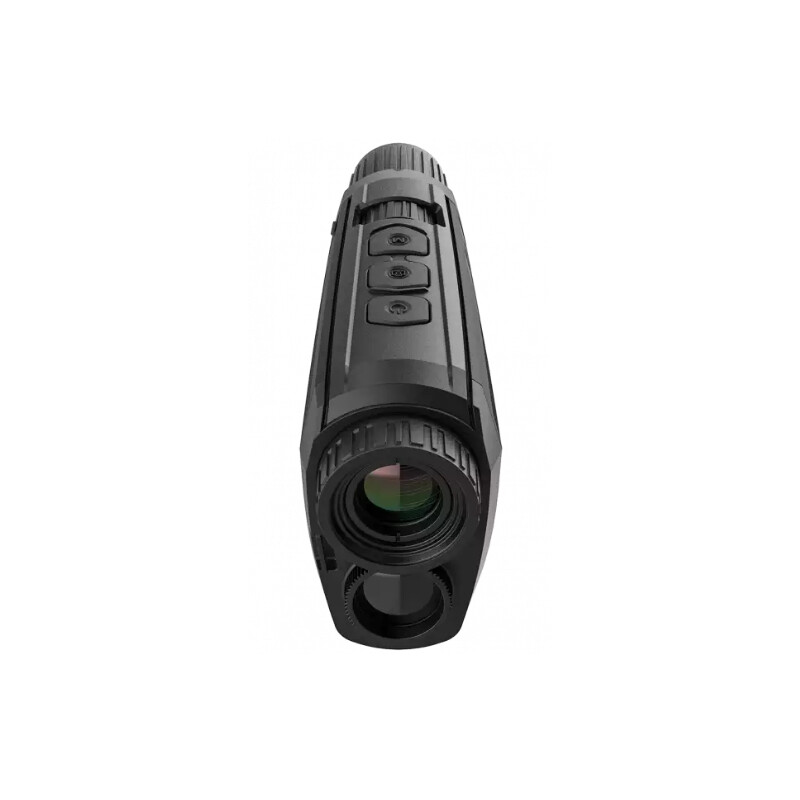

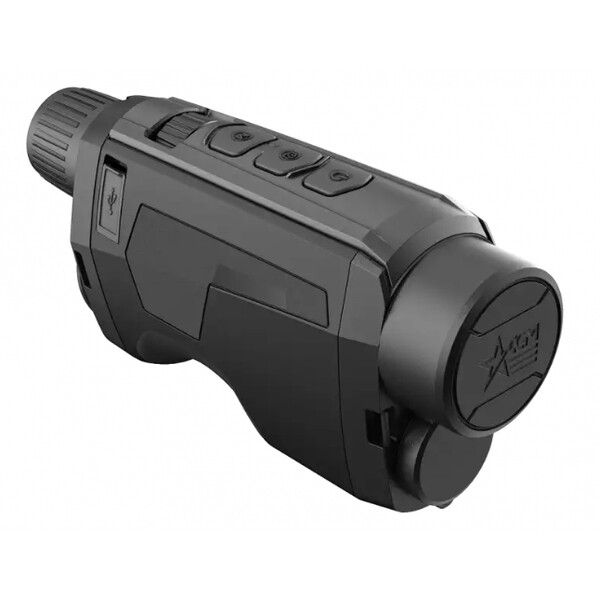

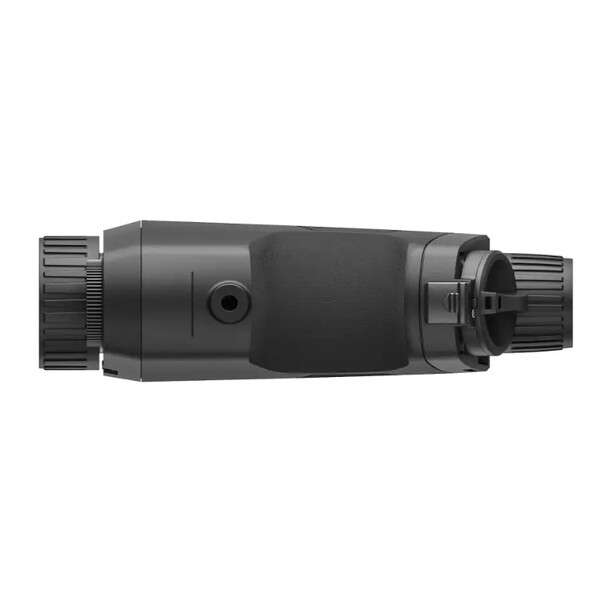

AGM Night vision device Fuzion TM35-384

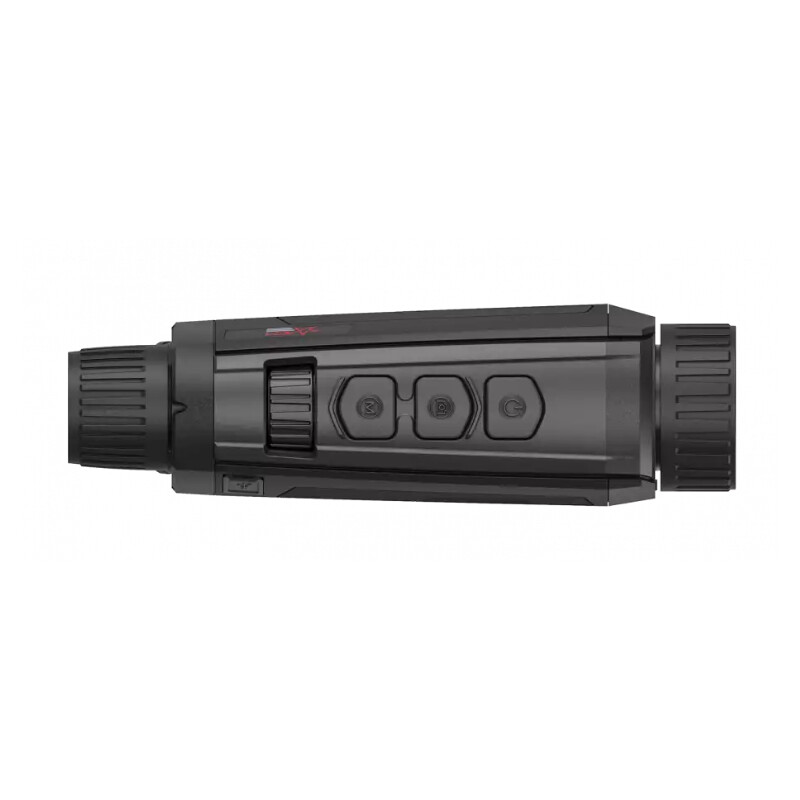

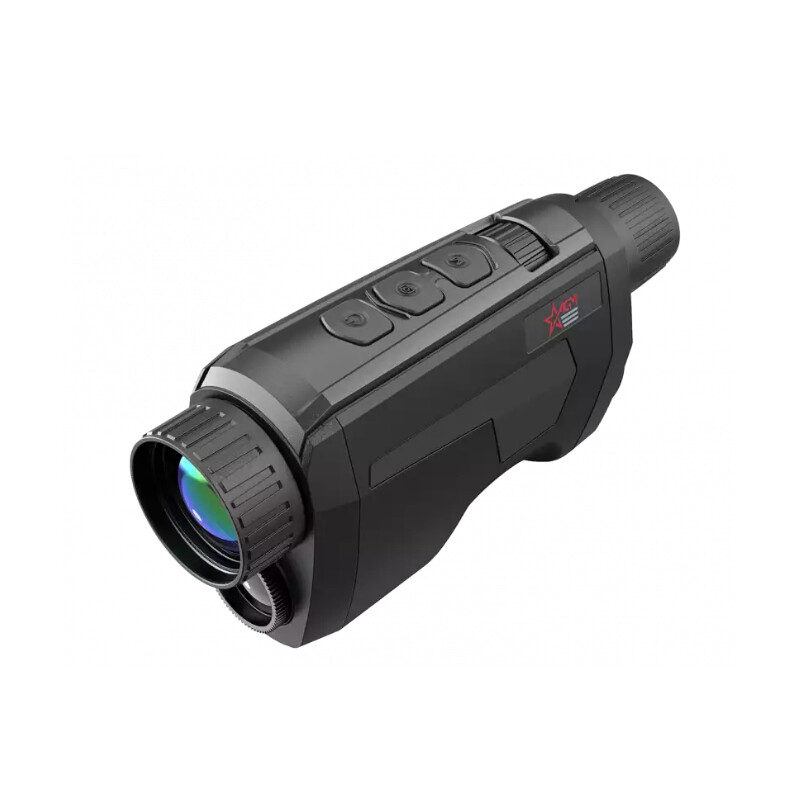

AGM Night vision device Fuzion TM35-384

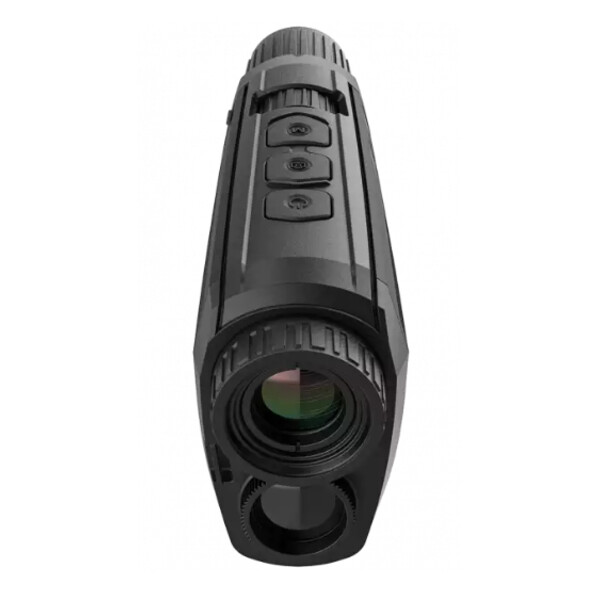

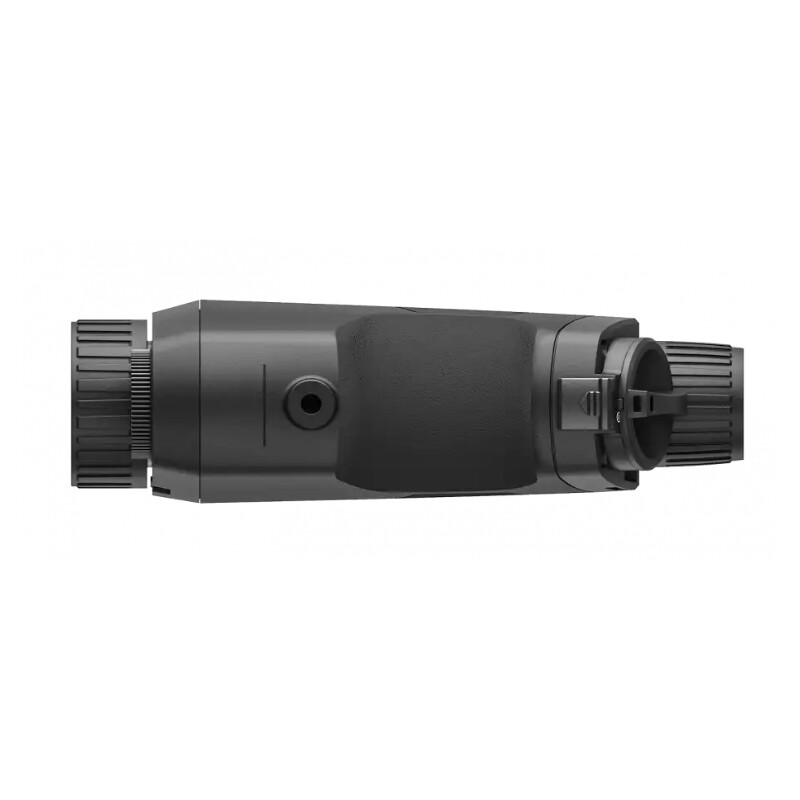

AGM Night vision device Fuzion TM35-384

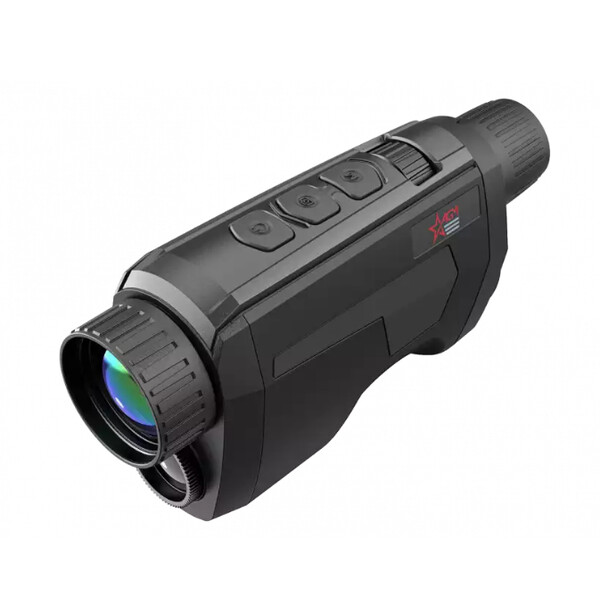

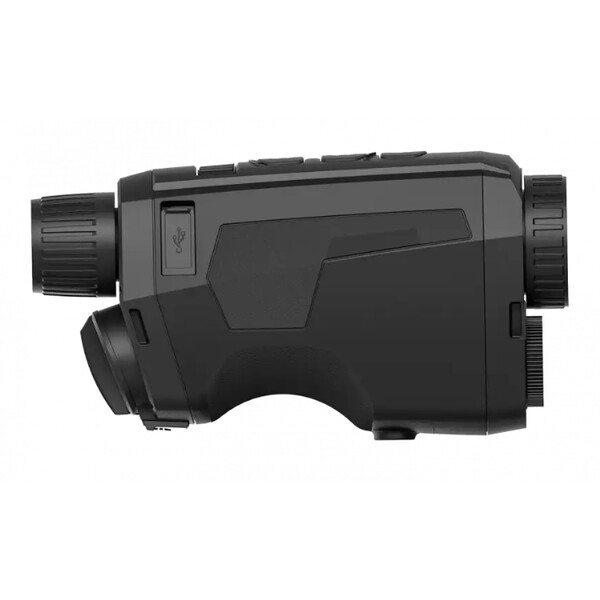

AGM Night vision device Fuzion TM35-384
