Night vision devices & thermal cameras > Instruments > Digital night vision device > Sytong > HT-77 > Sytong Night vision device HT-77-12mm-LRF / 48mm Eyepiece German Edition
Product no.: 80786

Night vision device HT-77-12mm-LRF / 48mm Eyepiece German Edition

$ 456.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Digital night vision device with laser rangefinder
  • 12 mm lens
  • Adaptors for 48 mm eyepiece diameter included in delivery
This product is available in the following variants:
Eyepiece attachment Price
42mm $ 456.00
45mm $ 456.00
48mm $ 456.00

Product description

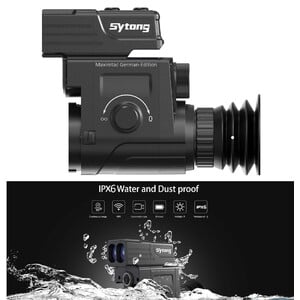

Digital night vision device Sytong HT-77 LRF German Edition - with integrated laser rangefinders
The Sytong HT-77 LRF is the big brother of the HT-660 with many unique advantages. The device offers new possibilities at night that were not available before!

The advantages of the Sytong HT-77 LRF:

  • The instrument is equipped with a full HD Sony sensor of the latest generation – the image is significantly sharper and much clearer, both during the day and at night!

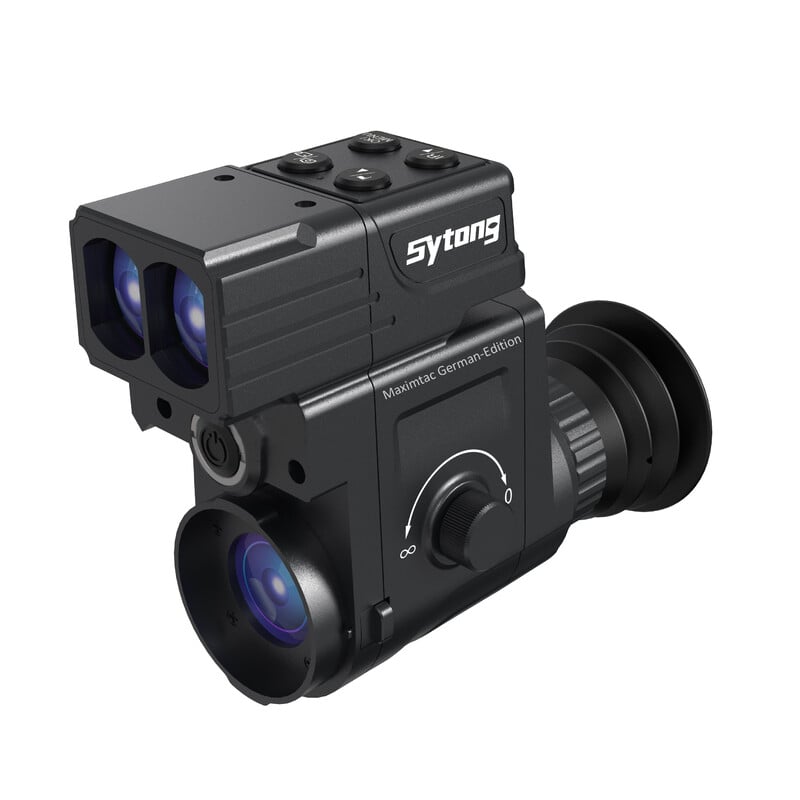

  • Integrated laser rangefinder (LRF) with a range of up to 600 m and an accuracy of +/- 1 m. (LRF can only be used at night or at dusk)

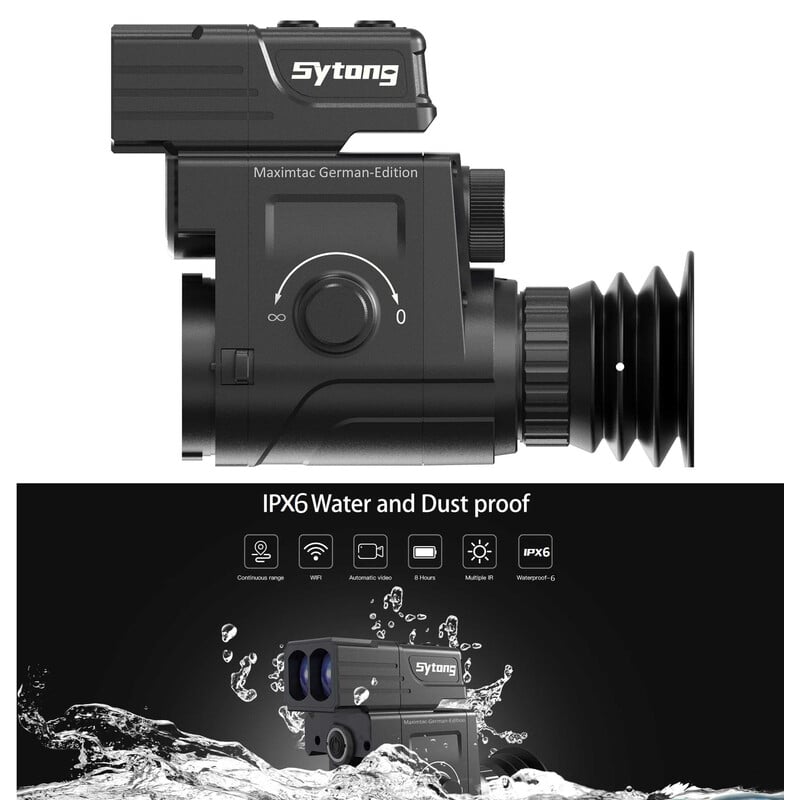

  • Absolutely weatherproof according to IPX6
  • In addition to black and white, a new night vision mode in green has been added to reduce strain on your eyes at night.
  • Higher display resolution OLED HD 1280x960 px
  • Side focus adjustment
  • Despite technical upgrades, the Sytong HT-77 is still bulletproof up to 6000 joules.

This model is an HT-77 LRF with a 12 mm objective lens and laser rangefinder. The scope of delivery includes an eyepiece adaptor for 48 mm outer diameter.

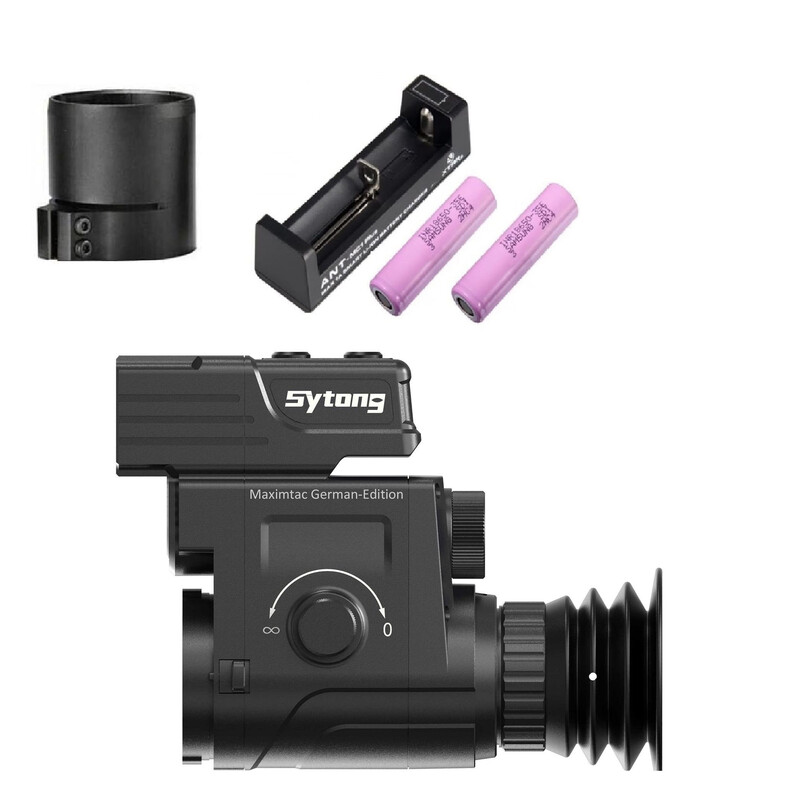

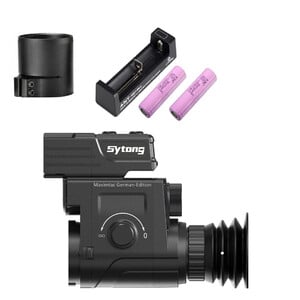

Scope of delivery:

  • Sytong HT-77 LRF "German Edition"
  • 18650 Li-ion standard battery
  • Extra-strong replacement battery from Samsung or LG 18650 Li-ion with 3450 mAh
  • Xtar USB charger with charge level indicator for 18650 Li-ion batteries
  • German and English operating instructions
  • 2 sealing rings for bayonet mount and battery cover
  • tripod adapter
  • Storage bag
  • USB charging cable / data cable
  • Cleaning cloth
  • Tool
  • Adapter ring for eyepieces with 48 mm outer diameter

Further advantages of the Sytong HT-77 LRF:

  • The IR illuminator is not permanently installed in the device and can be purchased separately from us – can be used in compliance with weapons legislation
  • Longer battery life, as the optionally available IR illuminator is powered by its own battery
  • The screen can be dimmed down to 10% at the touch of a button, i.e. from "extra dark" to "extra bright".
  • Integrated gyrometer sensor with rotation and tilt angle display
  • The sensor can quickly dim the image when the IR illuminator is switched on, preventing the eye from being overexposed
  • No moreglare from overly focused IR light, which also makes it much more comfortable to use in the forest
  • According to the manufacturer, the instrument is bulletproof up to 6000 joules, tested with calibre 9.3x62 mm
  • Own app for live image transmission with direct access to previously stored photos and videos, which can be downloaded directly to your Smartphone
  • Better positioned buttons simplify operation, especially in manual mode
  • The SD card is much easier to change
  • Picture-in-picture function
  • As this is a retrofit device, unlike add-on devices, its mount does not change the point of impact of the riflescope, meaning that it does not need to be zeroed in. As soon as you align your reticle with the target, you will hit it even if the device is mounted at an angle .
  • Mounting on the eyepiece has an advantage over mounting on the objective, as the latter would cause the coated lenses of the optics to lose more transmission. This means that the game is easily recognisable and can be targeted even in poor visibility conditions.
  • Suitable for glasses wearers thanks to diopter adjustment, shooting without glasses possible
  • The focusable objective lens ensures razor-sharp images at different distances
  • Suitable for day and night
  • Thanks to video and photo recording options, you can document your night-time wildlife observations or hunting moments for later viewing and save them to the 32 GB micro SD card

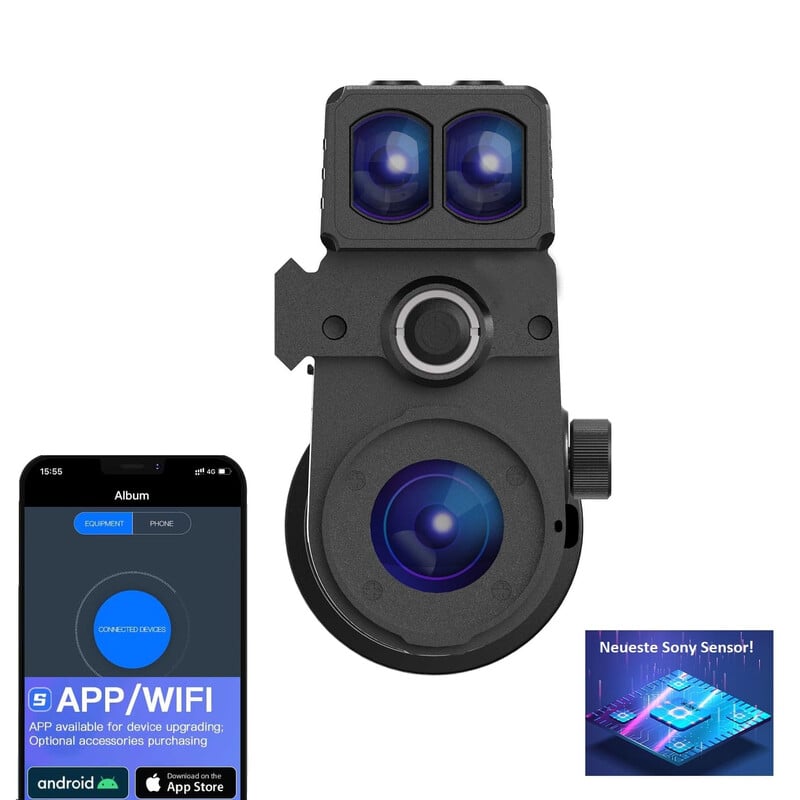

  • Live image transmission to your device via WLAN connection – live images can be viewed and saved on your phone or tablet using a special Sytong app (iOS and Android compatible).
  • Thanks to the included eyepiece adaptor with bayonet lock, the instrument can be mounted and removed in seconds with a single turn of the hand.
  • Playback function: for photos and videos Preview in the device

Our expert comment:

Legal notice for customers in Germany:
The standard version (EU version) of Sytong night vision devices are classified as prohibited items in Germany due to their adjustable reticle and aiming laser (even when deactivated). If you are stopped by the authorities, you may lose your right to own a firearm!

We only offer instruments in the German Edition!

The purchase, possession and test firing of these Sytong German Edition night vision devices at a shooting range is permitted in Germany for holders of a valid hunting licence in accordance with weapons legislation!

Before mounting night vision devices on riflescopes/firearms, check the hunting laws of your federal state or ask your local hunting/firearms authority whether this is permitted in your federal state!
Stefan Rieger

Specifications

Capacity


Technology
Digital
Magnification
1,5
Front lens diameter (mm)
3,5
objective
12mm
Display resolution (Pixel)
1280x960
Image display
Different versions
Diopter compensation
+/- 5
Battery durability (h)
7
Connection
Sytong / Pard A / Pard V
Eyepiece attachment
48mm

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
ancillary lenses available
no
attachment
no
WiFi
yes
Rangefinder
yes

Field of view


Close focus limit (m)
3

Area of application


Object protection & observation
-
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
111
Width (mm)
62
Height (mm)
106
Weight (g)
330
Series
HT-77

Product safety

Manufacturer: Shenzhen Sytong Technology Co., Ltd., 2nd Floor, Building 2, Tongfuyu Industrial Park, Shenzhen, CN, [email protected]
Responsible person: Maximtac e.K., Marktring 6-8, 49191 Elm, DE, [email protected]
