Night vision devices & thermal cameras > Instruments > Digital night vision device > Sytong > HT-88 > Sytong Night vision device HT-88-16mm/940nm/42mm Eyepiece German Edition
Product no.: 80769

Night vision device HT-88-16mm/940nm/42mm Eyepiece German Edition

$ 560.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Digital aftermarket device with high-resolution Sony sensor
  • 16 mm lens
  • Focusable IR lighting with 940nm
  • Adaptors for 42 mm eyepiece diameter included in delivery
This product is available in the following variants:
Eyepiece attachment Price
42mm $ 560.00
45mm $ 560.00
48mm $ 560.00

Product description

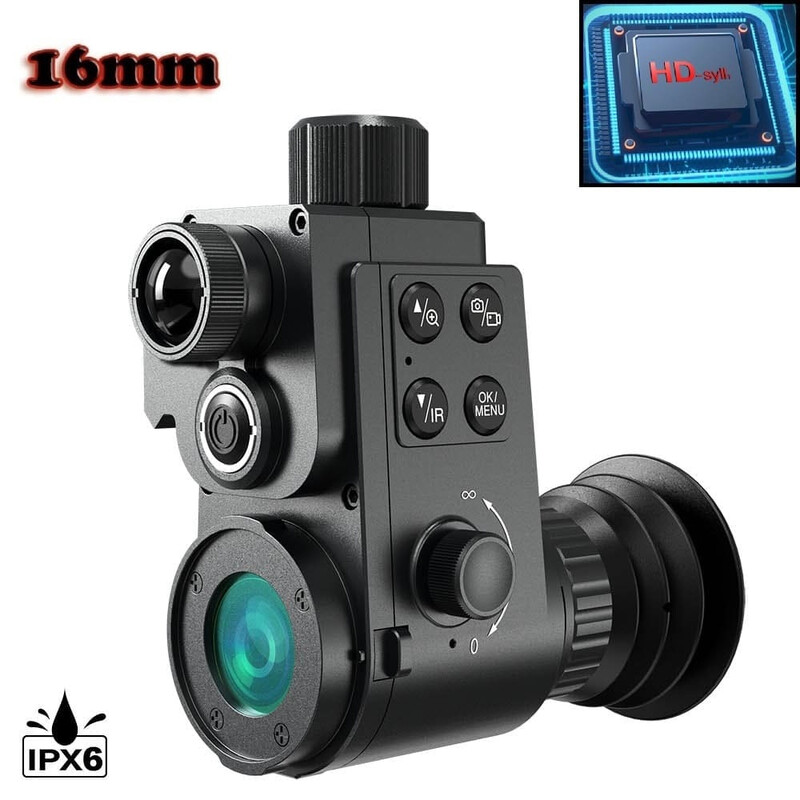

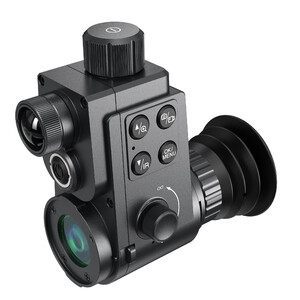

Digital night vision device Sytong HT-88
The Sytong HT-88 retrofit device is the successor to the successful HT-77. The new and revised design ensures a slim and compact construction. Thanks to the vertically mounted and centrally located battery, the device is significantly shorter and lighter than its predecessor. This means that there is virtually nothing built up on the eyepiece, which changes the familiar stop and significantly improves the eye relief. The OLED display is significantly larger and has a resolution of 1440x1080 pixels. Despite the various new features, the instrument has retained the tried-and-tested features of its predecessor, such as the adapter mount, menu navigation and battery system. This means that you can use your adaptors, batteries and mounts as they are.

This model is an HT-88 with a 16 mm objective lens and a built-in 940 nm IR illuminator.

IR emitter 940 nm: Considered 100% animal-proof, but can only provide an acceptable image up to approx. 120 m.

Scope of delivery:

  • Sytong HT-88 "German Edition"
  • 18650 Li-ion standard battery
  • Extra-strong replacement battery from Samsung or LG 18650 Li-ion with 3450 mAh
  • Xtar USB charger with charge level indicator for 18650 Li-ion batteries
  • German and English operating instructions
  • 2 sealing rings for bayonet mount and battery cover
  • tripod adapter
  • Storage bag
  • Power plug for USB and USB charging cable / data cable
  • Cleaning cloth
  • Tool
  • Adapter ring for eyepieces with 42 mm outer diameter

The advantages of the Sytong HT-88 at a glance:

  • New latest generation Full HD Sony sensor
  • Large OLED HD display that processes the full performance of the sensor
  • 25% larger field of view than its predecessor (approx. 40 m)
  • Significantly better residual light amplification thanks to the new sensor
  • Lighter and shorter thanks to the new design
  • Completely weatherproof in accordance with IP66
  • Picatiny rail for an additional spotlight available
  • Night vision mode in black and white and green; the green colour reduces strain on your eyes at night
  • Higher display resolution OLED HD 1440x1080 px

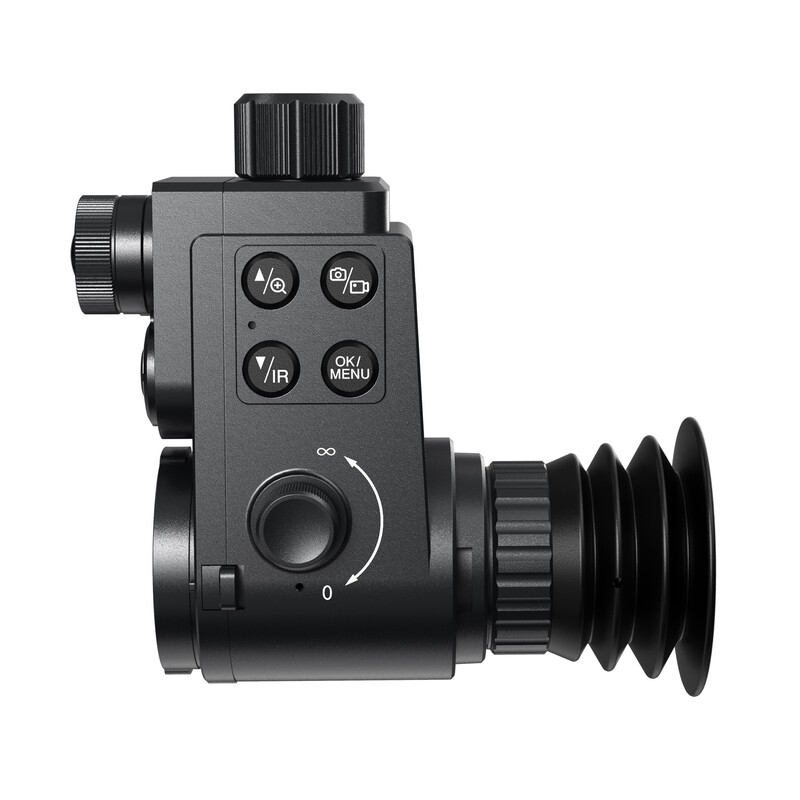

  • Side focus adjustment
  • Bulletproof up to 6000 joules

This digital dual-use device with built-in three-stage infrared illuminator (IR LED), which is permitted in Germany, provides good visibility in the dark. It can be used as a handheld monocular observation device, but can also be quickly mounted without tools as a night vision attachment to daylight optics such as binoculars or riflescopes, thus serving as dual-use target optics for night hunting abroad.

The HT-88 is lightweight (only 270 g) and handy. It is powered by a replaceable 18650 Li-ion battery and also has a German-language menu. This makes it not only a good friend for various outdoor activities in the dark, but also ideal for hunters and nature observers. You can document your night-time observations with the integrated photo and video recorder and save them to the micro SD card (32 GB) or transfer them to your mobile phone (via WiFi).

When used without additional magnification by binoculars or riflescopes, the instrument's own 2x optical magnification and digital magnification (3.5x) allow clear identification of game up to approx. 200 metres.

The Sytong HT-88 is the ideal companion for night hunting abroad (or in Germany, where it is permitted). It is connected to the eyepiece (not the objective!) of the riflescope using an adaptor with a bayonet lock. The effective extension to the rear is only approx. 8 cm, with virtually no extension of the eye relief. In good weather and with suitable optics, game can be clearly seen even in complete darkness at distances of up to 400 metres.

Our expert comment:

Legal notice for customers in Germany:
The standard version (EU version) of Sytong night vision devices are classified as prohibited items in Germany due to their adjustable reticle and aiming laser (even when deactivated). If you are stopped by the authorities, you may lose your right to own a firearm!

We only offer instruments in the German Edition!

The purchase, possession and test firing of these Sytong German Edition night vision devices at a shooting range is permitted in Germany for holders of a valid hunting licence in accordance with weapons legislation!

Before mounting night vision devices on riflescopes/firearms, check the hunting laws of your federal state or ask your local hunting/firearms authority whether this is permitted in your federal state!
Stefan Rieger

Specifications

Capacity


Technology
Digital
Magnification
2
Zoom (digital)
3,5
objective
16mm
Detection distance (m)
220
Display resolution (Pixel)
1440x1080
Image display
Different versions
infrared lighting wavelength (nm)
940
Diopter compensation
+/- 5
Battery durability (h)
7
Connection
Sytong / Pard A / Pard V
Eyepiece attachment
42mm

Special features


Infrared illuminator
yes
Digital imaging
yes
Splash-proof
yes
Threaded tripod connector
yes
WiFi
yes

Area of application


Object protection & observation
-
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
115
Width (mm)
53
Height (mm)
85
Weight (g)
270
Series
HT-88

Product safety

Manufacturer: Shenzhen Sytong Technology Co., Ltd., 2nd Floor, Building 2, Tongfuyu Industrial Park, Shenzhen, CN, [email protected]
Responsible person: Maximtac e.K., Marktring 6-8, 49191 Elm, DE, [email protected]

Recommended accessories

Night vision devices & thermal cameras > Accessories (13)
Eyepiece adaptor

Sytong universal quick-action adaptors

$ 57.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Sytong Night vision device HT-88-16mm/940nm/42mm Eyepiece German Edition

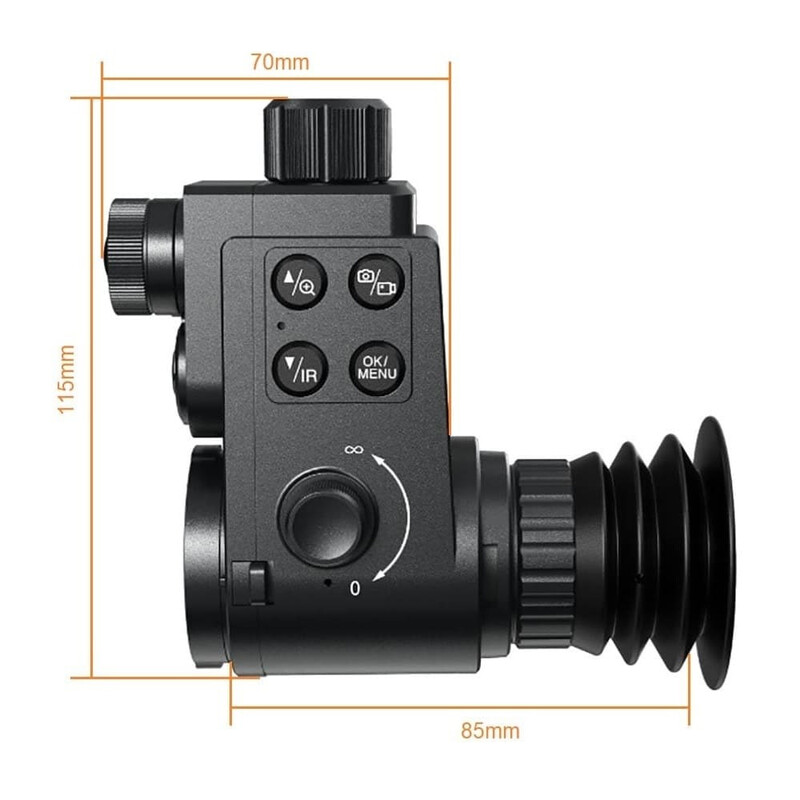

Dimensions
Sytong Night vision device HT-88-16mm/940nm/42mm Eyepiece German Edition

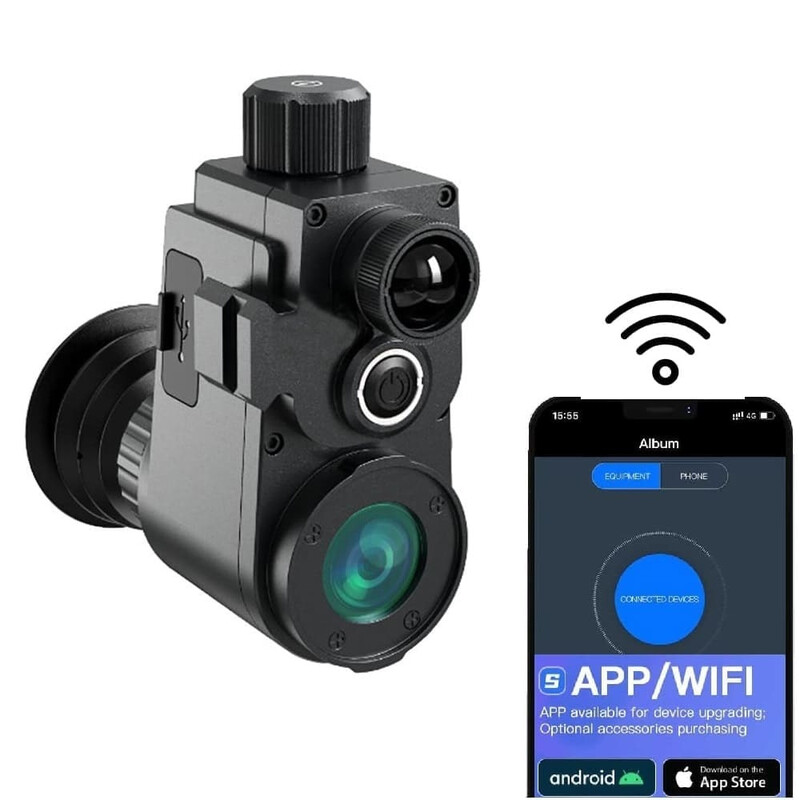

Photo and video transmission via app
Sytong Night vision device HT-88-16mm/940nm/42mm Eyepiece German Edition
High-resolution Sony sensor for detailed images
Sytong Night vision device HT-88-16mm/940nm/42mm Eyepiece German Edition

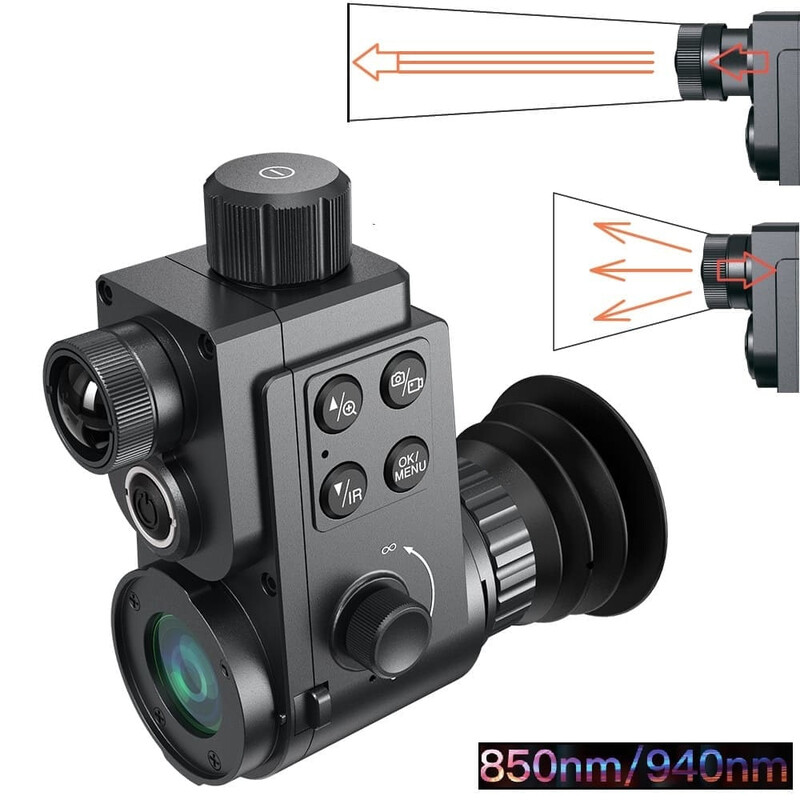

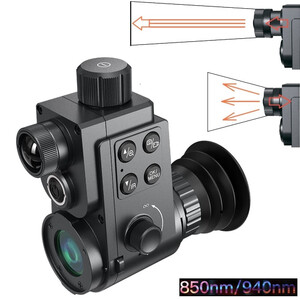

Focusable IR lighting
Sytong Night vision device HT-88-16mm/940nm/42mm Eyepiece German Edition

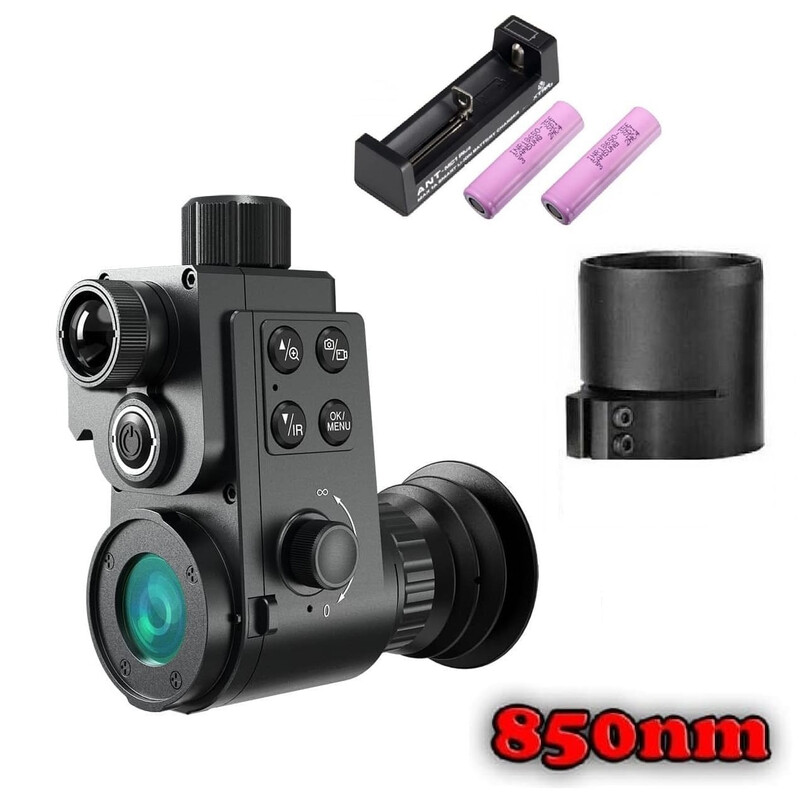

Scope of delivery: Charger, two rechargeable batteries, adaptors for 42 mm
