Calcium K (Ca-K) Telescopes and Filters are used to study the wavelength of 393.4nm. This emission line is one of 2 that are produced by Calcium just at the edge of the visible spectrum in a layer that is slightly lower and cooler than the layer viewed in Hydrogen-alpha. The emission line displays areas of Super Granulation Cells that are brightest and strongest in areas of high magnetic fields such as sunspot activity and active regions. Having the ability to study the Calcium K and the Hydrogen-alpha line provides important insights into the structure, strength, and depth of these active regions.
The Calcium K line is centered at 393.4nm. This wavelength is considered to be slightly outside the visible spectrum on the UV side. While most people can visually see the violet color of the wavelength, many cannot resolve the contrast due to yellowing of the cornea. People who have had cataract surgery are often able to see considerable detail. But, it is for these reasons that the Ca-K line is typically studied via the use of cameras which are able to provide stunning details.
Internal narrowband filters allow for a <2.4 Angstrom bandpass. Primarily an imaging system due to the difficulty of many to visually see everything that CaK has to offer.
Scope of delivery:

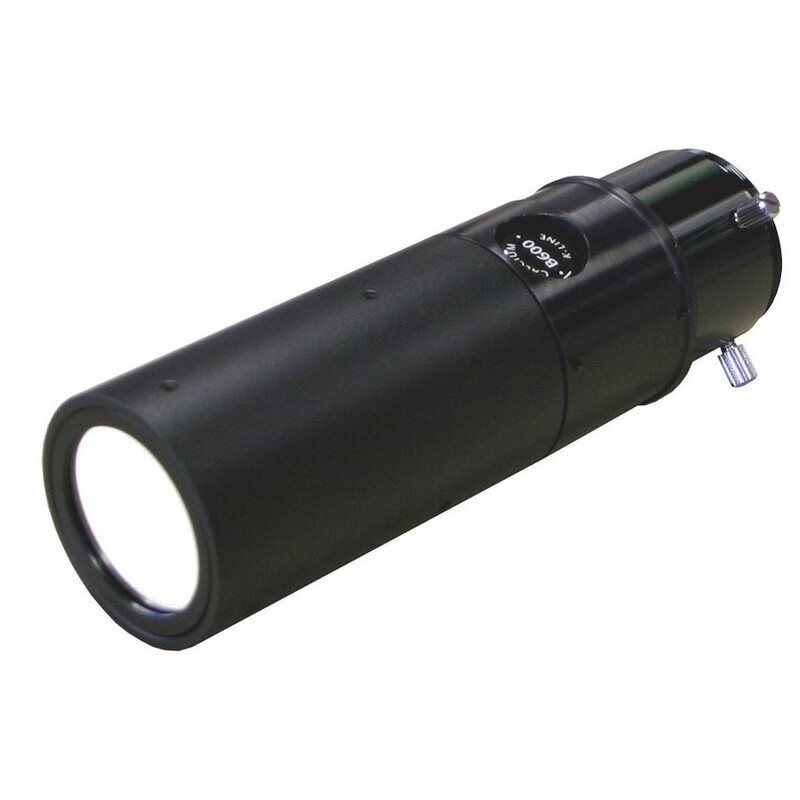

- Extension tube with T2 and 2" connections, for 2" focusers
- Blocking Filter B600 with IR and UV protection
The module can be used without hesitation with telescope apertures of up to 4" (102 mm) and a focal length of up to 600 mm.
The LSCaKD is also available with the B1200 blocking filter, which provides better illumination for photography and can be used with telescopes with a focal length of up to 1200 mm.
