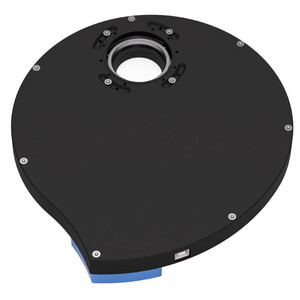

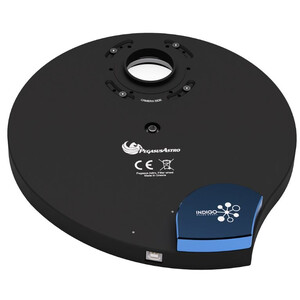

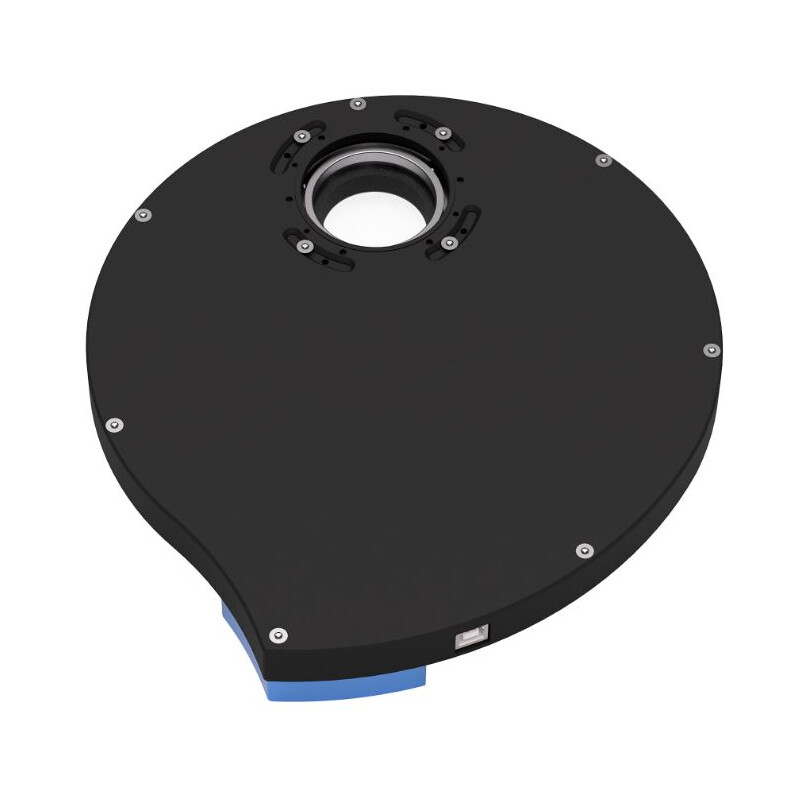

Indigo Filter Wheel offers a range of cutting-edge features to enhance your astrophotography and astronomical observations.
This compact and efficient device boasts seamless filter switching, ensuring precise and effortless transitions between filters for minimal image disruption. With its robust build quality and compatibility with 7 position 2inch mounted or 50mm unmounted filters, the Indigo Filter Wheel provides versatility and convenience.
Its integrated stepper motor technology and optical encoders allows for precise filter positioning, and it’s designed to work seamlessly with popular astrophotography software for remote operation.

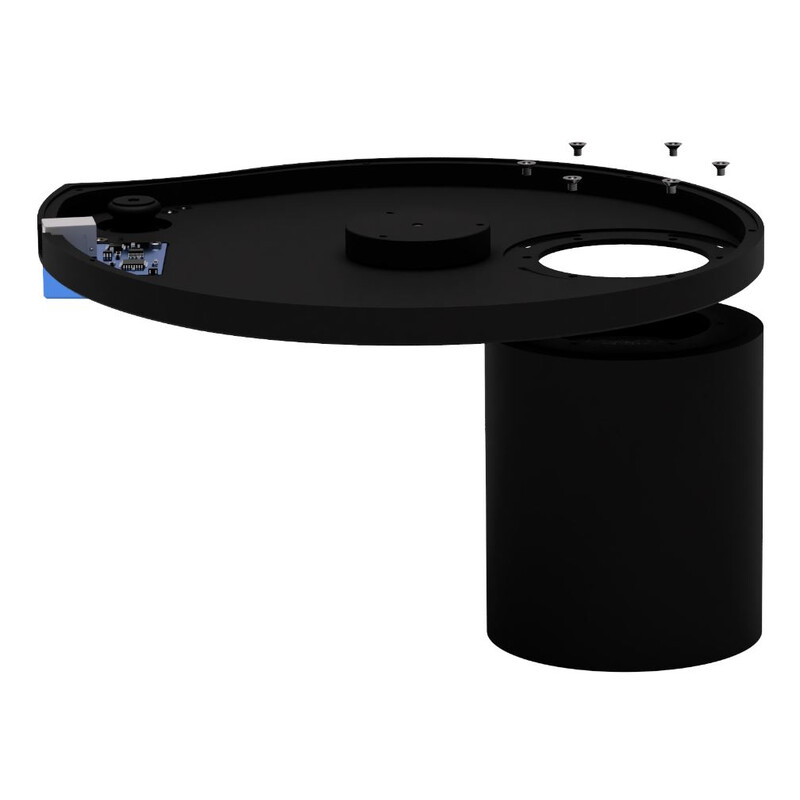

Both sides of the filter wheel have M54 openings. The screw slide adapter allows you to properly align the orientation of your camera or telescope side. Just untie the screws and rotate the adapter to the desired orientation.

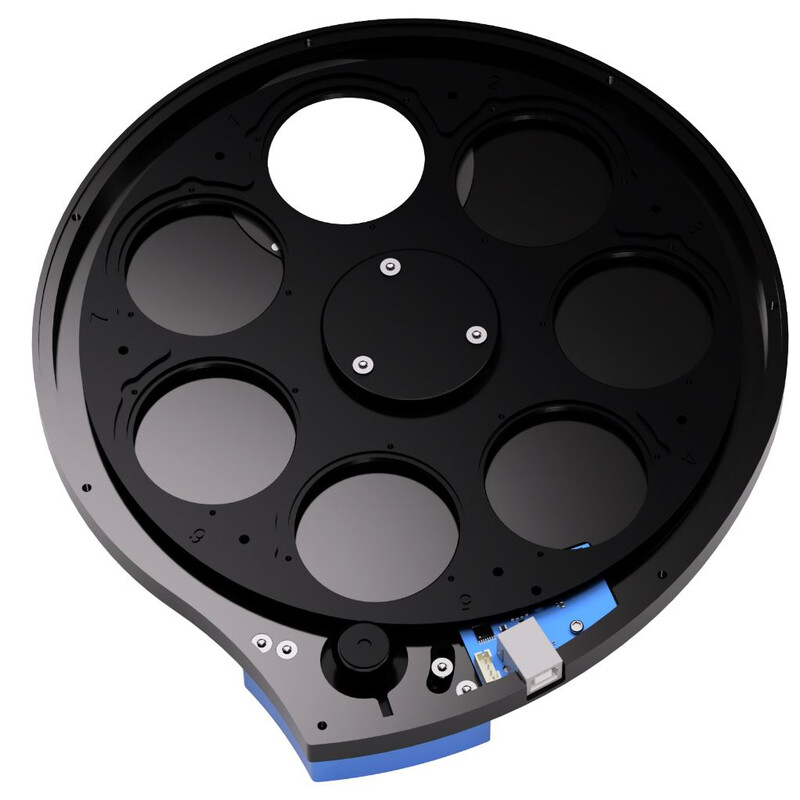

The carousel has seven (7) slots and accepts 2-inch mounted or 50mm unmounted filters. (Max filter diameter should be 50.8mm)
Filter Wheel rotates clock or counterclockwise direction for filter selection. A combination of a direct drive stepper motor and optical encoders ensures that your filter selection is precise, and deadly accurate on every filter location.
The wheel employs a shortest-path algorithm, ensuring the most efficient and optimal filter changes with minimal movement.
The body of the Indigo filter wheel is aluminum CNC milled. High-quality aluminum alloy allowed to design the filter wheel as thin as possible.
(19.0mm, 19.6mm with adapters installed on both sides).

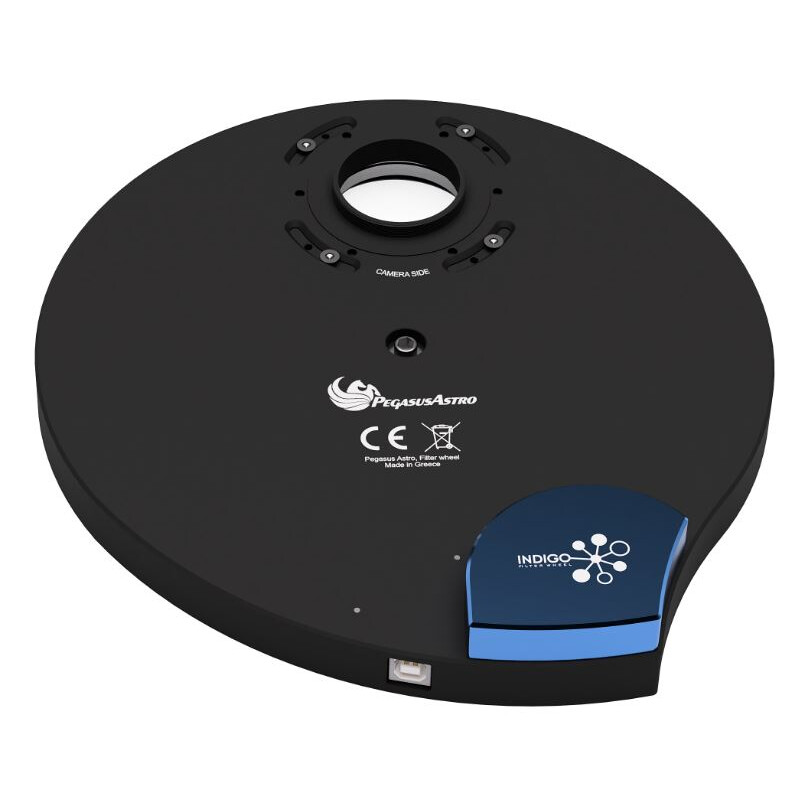

Camera connection: The camera side allows direct connection with astronomical cameras that follow:
- 6 x hole pattern (62mm diameter pattern) – can accept M3 or M2.5 screws.
- 4 x hole pattern for PlayerOne cameras.
- M42 male / 0.75mm pitch.
