Microscopy > Microscopes > Digital microscopes > Hand-held microscopes > Bresser > Sonstige > Bresser USB Digital Microscope DST-1028, screen, 10x-280x, AL LED 5.1MP
Product no.: 75639

USB Digital Microscope DST-1028, screen, 10x-280x, AL LED 5.1MP

$ 195.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 13.08.2025 + lead time

Product description

BRESSER USB digital microscope DST-1028 5.1MP

(5808600)

Powerful digital microscope for hobby and professional use

  • High-quality USB digital microscope with LED illumination
  • Bright ring light illumination from eight adjustable LEDs
  • High-quality zoom optics: 10x to 280x magnification
  • Working distance from 110 mm (10x) to 10 mm (280x)
  • Includes PC software (download) with measuring function
  • For Windows 8.1, 10, 11

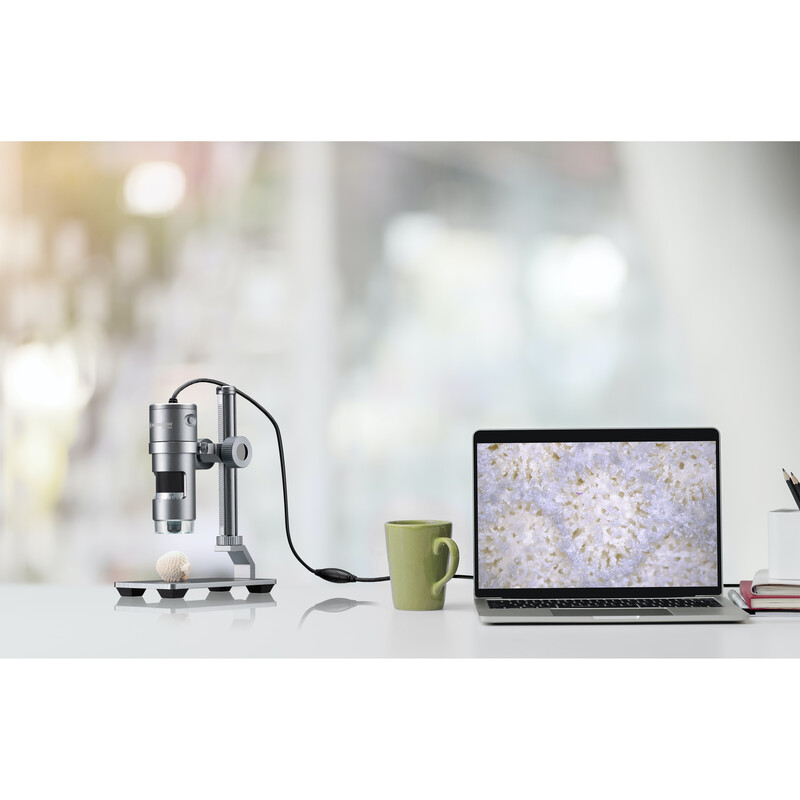

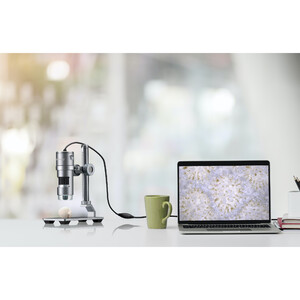

The digital microscope allows you to view your sample easily and conveniently on your PC with detailed images. The digital handheld microscope is particularly suitable for examining material samples, circuit boards and electronic components, but also plants, insects and much more. In addition to applications in schools and hobbies, the digital microscope is also suitable for tasks in quality assurance.

The instrument features high-quality optics with stepless zoom. This allows the sample to be documented at magnifications between 10x and 280x. The appropriate magnification can always be selected depending on the object being examined. The digital reflected light microscope with its ring light ensures optimum illumination and high-contrast images of your sample. The ring light consists of eight LEDs. The brightness can be conveniently adjusted using the dimmer integrated into the USB connection cable.

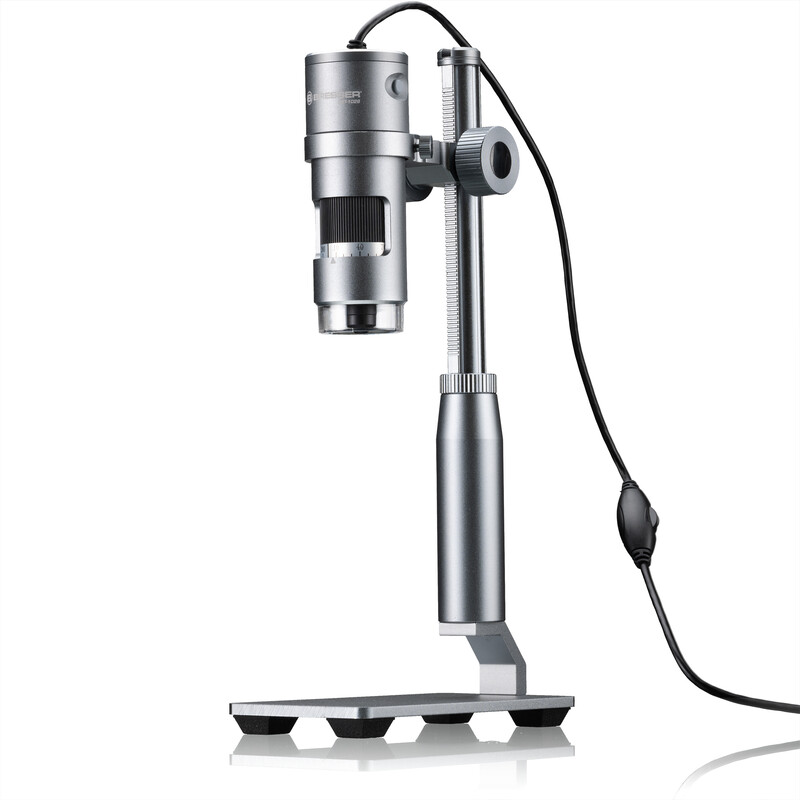

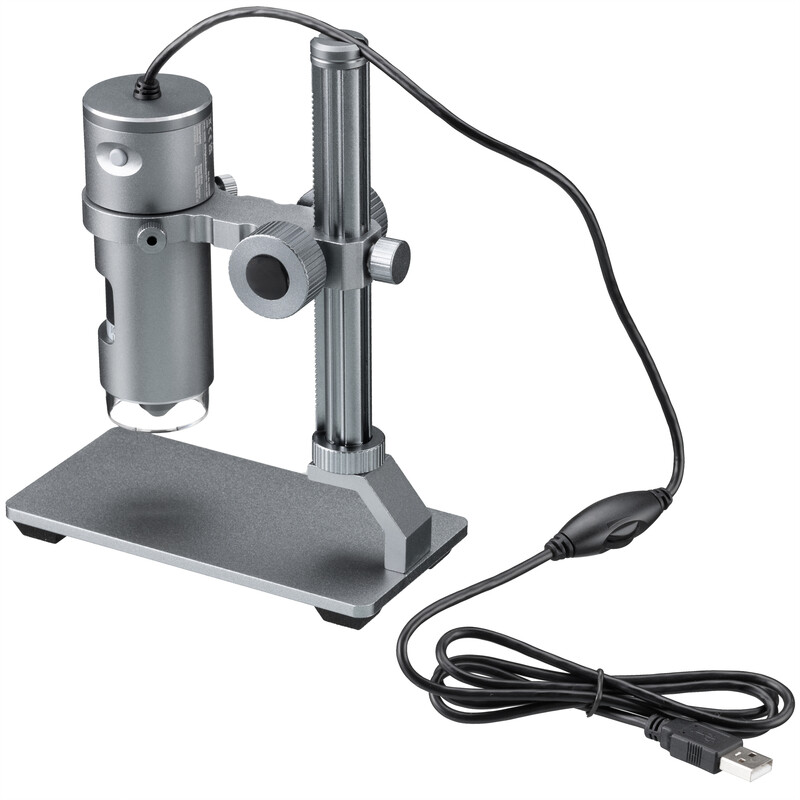

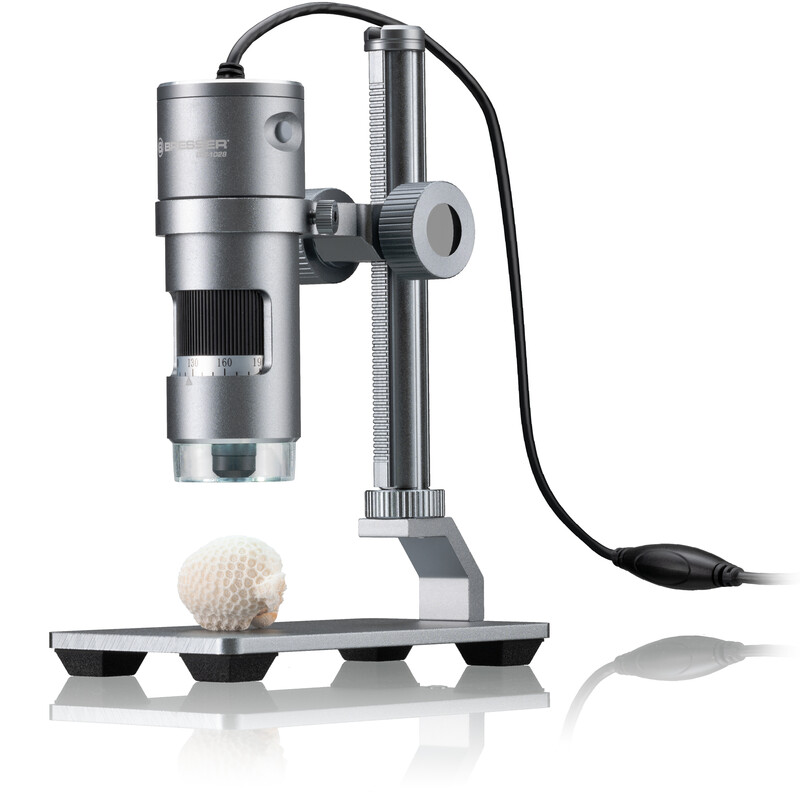

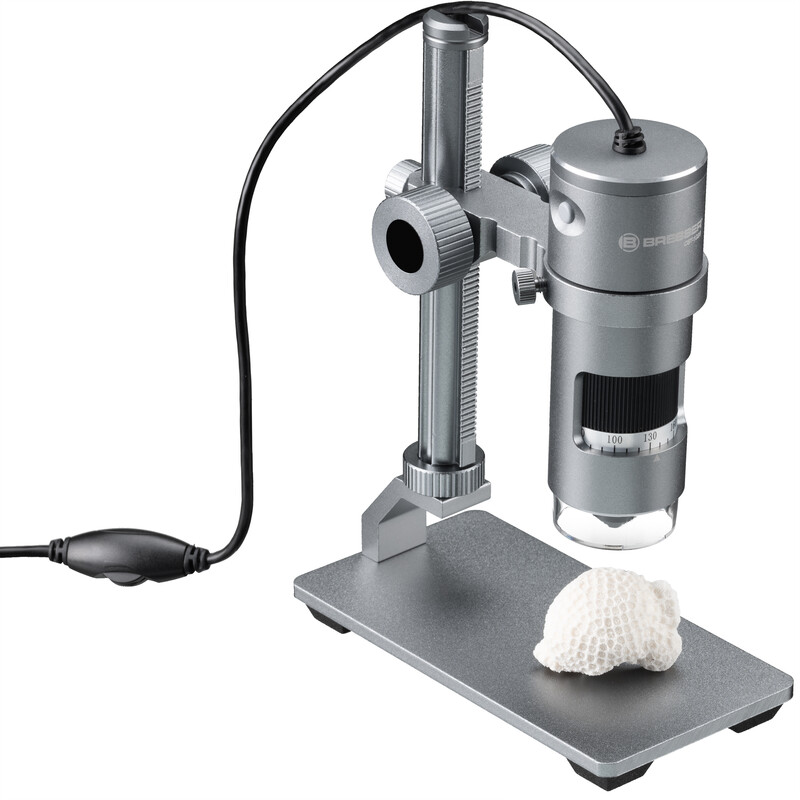

The microscope has a stable, adaptable metal stand that can be adjusted in height depending on the height of the object and the magnification used. This allows both larger and very flat objects (e.g. printed documents) to be examined.

At low magnifications, the working distance is 110 mm, allowing work with tools, e.g. for preparation, to be carried out underneath.

FEATURES

  • Digital USB reflected light microscope with LED ring lights
  • High-quality optics with continuous zoom
  • Generous working distance for larger objects
  • Solid metal construction


SYSTEM REQUIREMENTS

  • Windows 8.1, 10 or 11
  • Intel i3, i5, i7 or i9 processor from 2nd generation or higher
  • AMD FX or Ryzen processor
  • Optical drive or internet connection for software download
  • USB

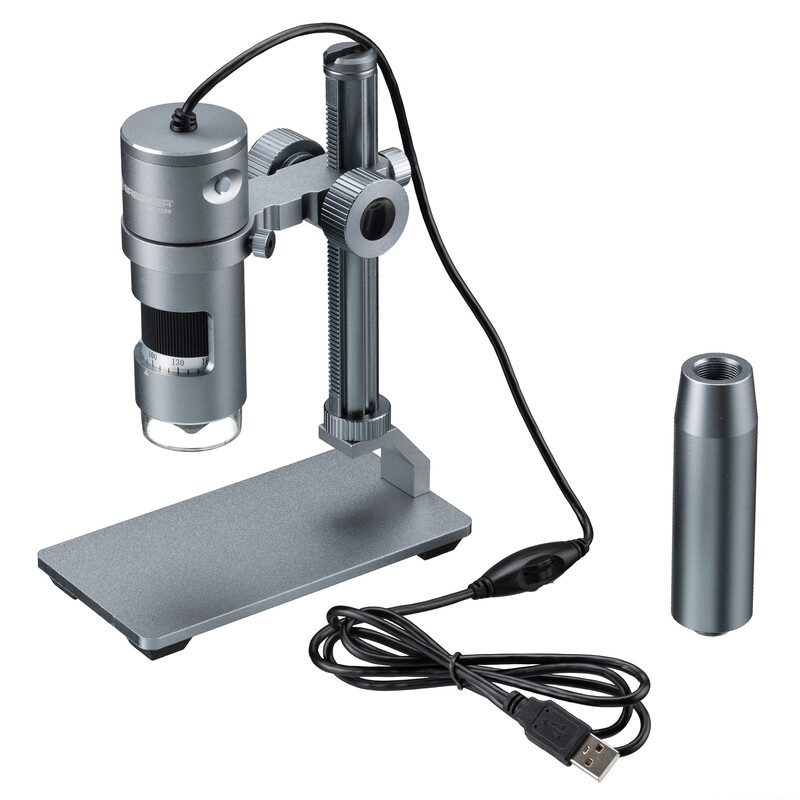

SCOPE OF DELIVERY

  • Digital microscope incl. software download (for Windows only)
  • Integrated USB connection with control dial for light intensity
  • Metal stand with integrated focusing
  • Extension for tripod

Specifications

Optics


Lighting
Incident light
Lamp type
LED
Optical system
without
Power supply
USB
Magnification
10-280
Zoom shot
yes

Capacity


Connection
USB

Special features


Built-in digital camera
yes

Camera


Resolution Photograph (Pixel)
2592 x 1944
sensor
CMOS
Megapixel
5.1

General


Height (mm)
200
Length (mm)
148
Width (mm)
77
Series
Sonstige
Weight (g)
700

Field of application


Hobby
yes

Area of application


Parasite analysis
yes
Maker
yes

Miscellaneous


supplier product number
5808600

Product safety

Manufacturer: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, www.bresser.de
