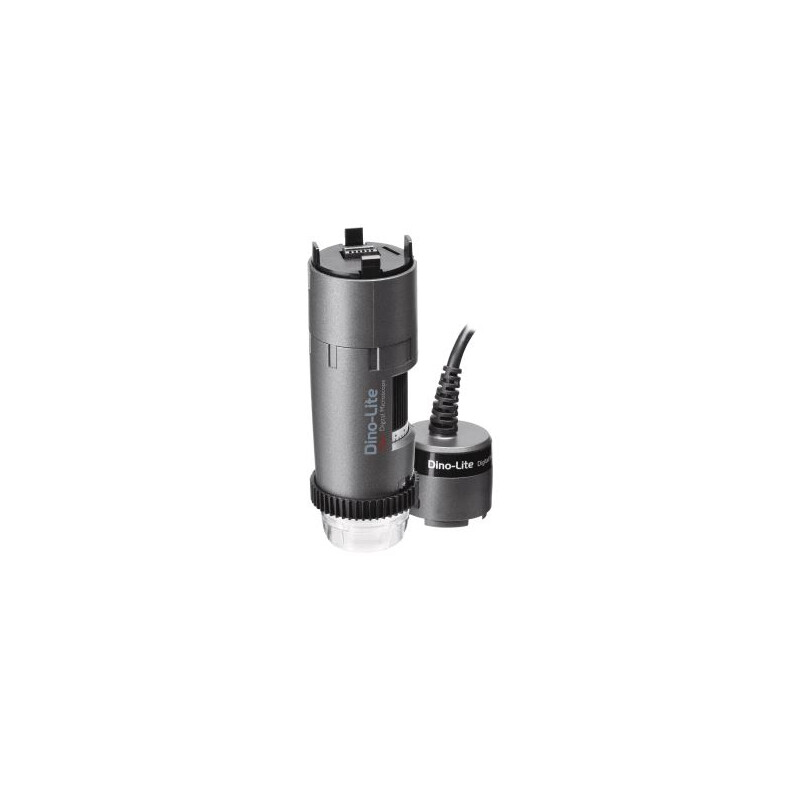

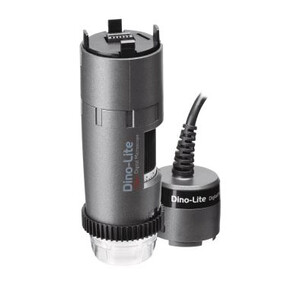

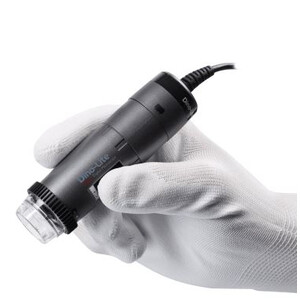

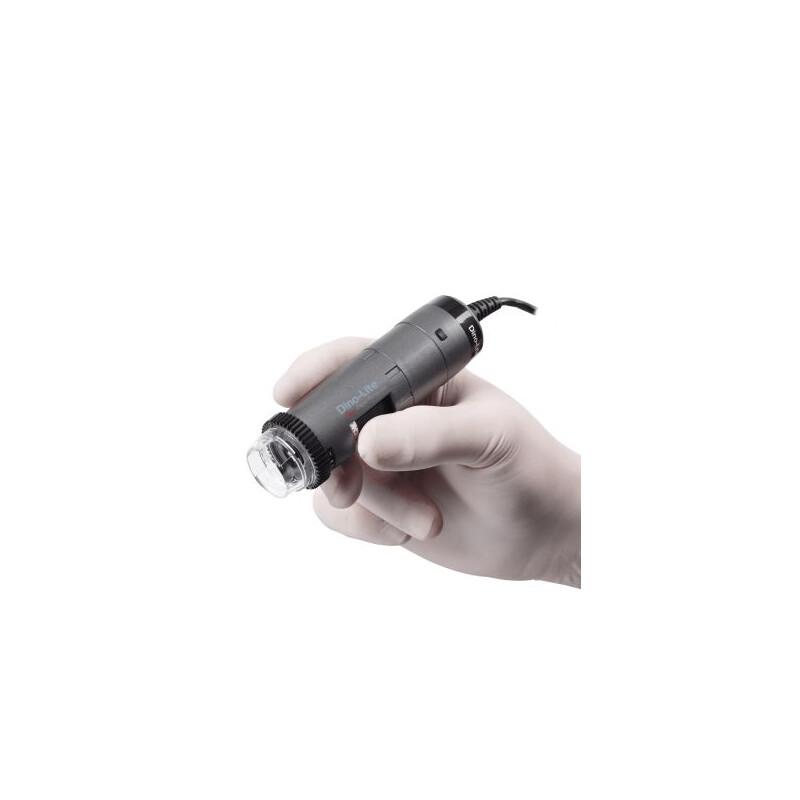

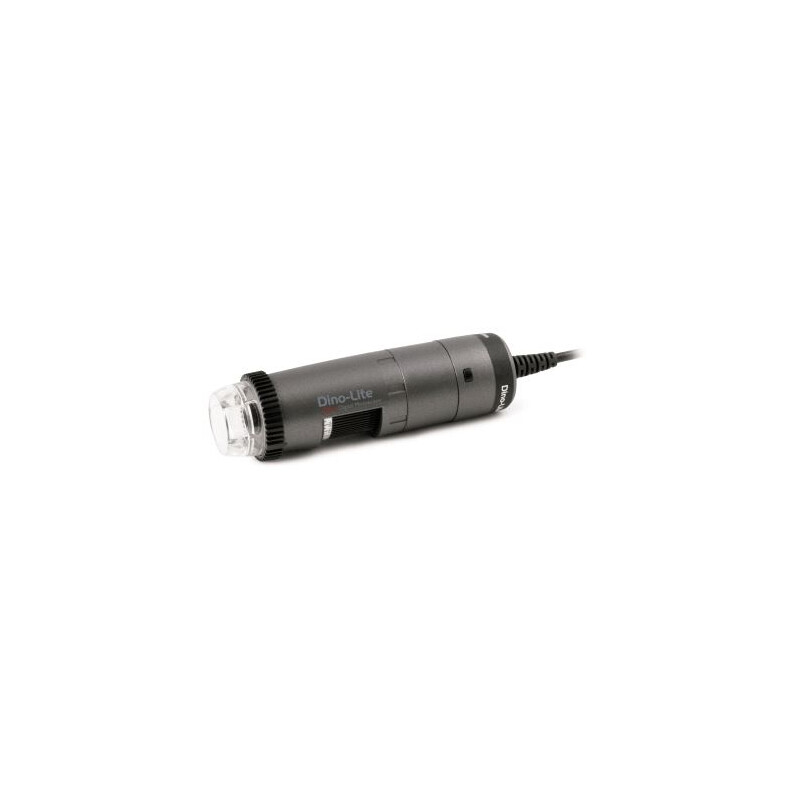

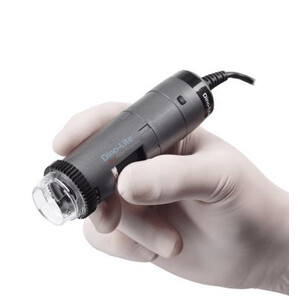

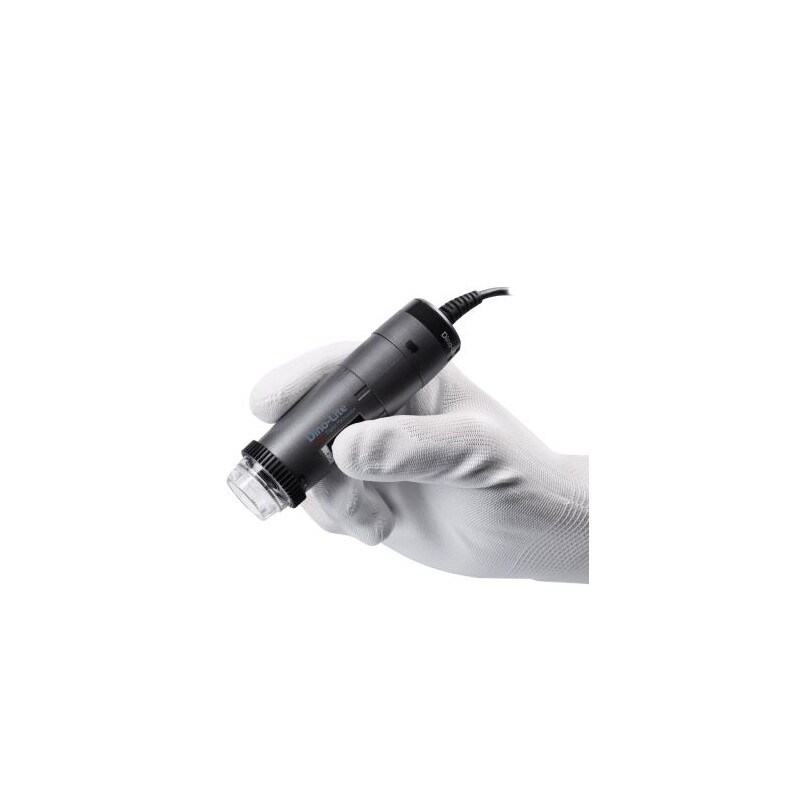

Dino-Lite AF4115ZT
The Dino-Lite AF4115ZT is part of the Universal Series and connects to your device via USB. The AF4115ZT is ready for wireless operation, but requires the WF-20 (optional) to turn it into a completely wireless solution.
The AF4115ZT is equipped with premium features such as Flexible LED Control (FLC), an integrated polariser and extended measurement functions.
The most important features of the AF4115ZT are:
- Ready for wireless operation, requires the WF-20 adaptor (optional)
- 1.3MP EDGE SENSOR
- 20-220x magnification
- Integrated polariser (anti-reflection coating)
- Flexible LED Control (FLC)
- and more
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 20-220x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.12 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-20 adaptor (optional)
Housing
- Housing material: Composite/plastic housing
- Dimensions: 11.4 cm (L) x 3.3 cm (D)
- Weight: 111 g
- Cable length: 1.8m
Features
- Special feature: Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents: Microscope, Carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3C-Eextension cap, N3C-L- Long cap, N3C-S- Side light cap
