Microscopy > Microscopes > Digital microscopes > Hand-held microscopes > Dino-Lite > Basic > Dino-Lite Microscope AM4013MZTL, 1.3MP, 10-90x, 8 LED, 30 fps, USB 2.0
Product no.: 76899

Microscope AM4013MZTL, 1.3MP, 10-90x, 8 LED, 30 fps, USB 2.0

$ 850.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Magnification from 10x to 90x possible
  • Resolution of 1.3MP
  • Connection via USB 2.0
  • Internal, linear polariser available

Product description

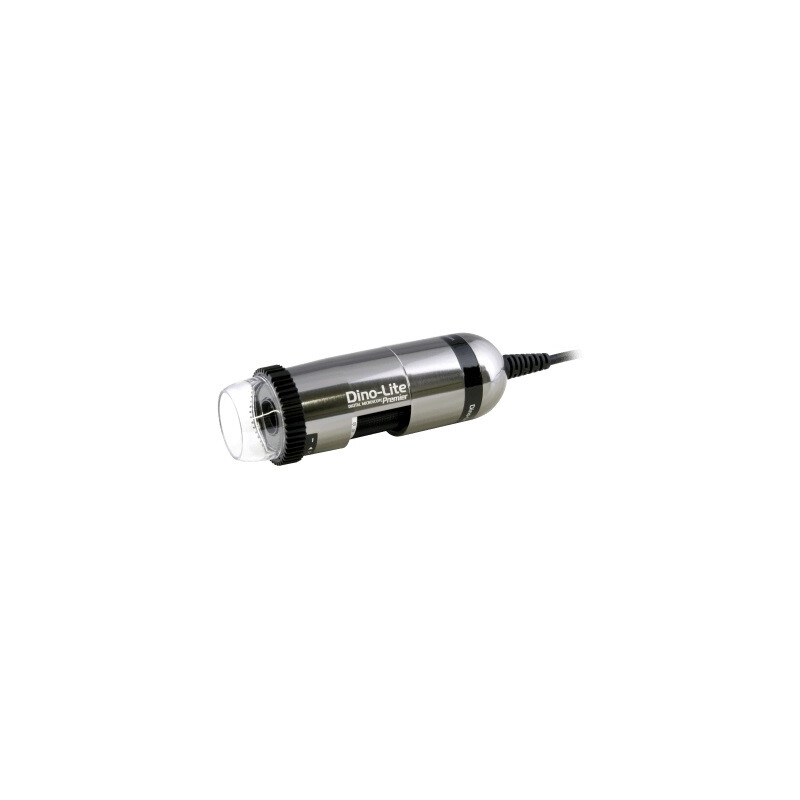

Dino-Lite AM4013MZTL

By using the polarisation filter, the AM4013MZTL is the right choice when working with materials with high glare, such as plastics and metals. This model also has an aluminium housing, which offers improved protection and durability, looks good and feels good. This model also has a long working distance.

Specifications

Light

  • Light/ LED type: White
  • Number of LEDs: 8
  • LED on/off switchable: Yes
  • Infrared filter: IR cut filter >650 nm
  • Diffuser available: No
  • Emission filter: No
  • Polariser: Yes, linear

Optics

  • Magnification: 10-90x
  • Macro zoom: No
  • Working distance: Long
  • Lens type: Glass with anti-reflection coating

Sensor

  • Sensor type: CMOS
  • Resolution: 1.3 megapixels (1280x1024)
  • Maximum frame rate: 30 fps

Compatibility

  • Interface: USB 2.0
  • Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and above
  • Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
  • Supported image formats: (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
  • Supported video formats (Windows): WMV, FLV, SWF
  • Supported image formats (MacOS): JPEG, PNG
  • Supported video formats (MacOS): MOV
  • Imaging standards: DirectShow, UVC
  • Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)

Housing

  • Housing material: Metal housing
  • Magnification lock: No
  • Dimensions: 10.5 cm (L) x 3.2 cm (D)
  • Weight: 140g
  • Cable length: 1.8m

Features

  • Special feature: No
  • Measurement: Yes
  • Calibration: Yes
  • Microtouch sensor: Yes
  • ESD safe: Yes

Information

  • Package contents: Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual

Specifications

Optics


Magnification
10-90
Lighting
Incident light

Capacity


Lamp type
8 LED
Interface
USB 2.0
Megapixel
1.3
Resolution Photograph (Pixel)
1280x1024
frame rate (fps)
30

Camera


sensor
CMOS

General


Weight (g)
140
Length (mm)
105
Diameter (mm)
32
Series
Basic

Field of application


Industry
-
Education
yes
Hobby
yes
Medicine
-

Area of application


Odontotechnics
-
Semiconductor technology
-
Metallurgy
-
Veterinary medicine
-
University
-
Materials technology
yes
Mineralogy
yes
Naturalist
yes
Naturopathy
yes

Miscellaneous


supplier product number
AM4013MZTL

Product safety

Manufacturer: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, DE, www.metav-shop.de
