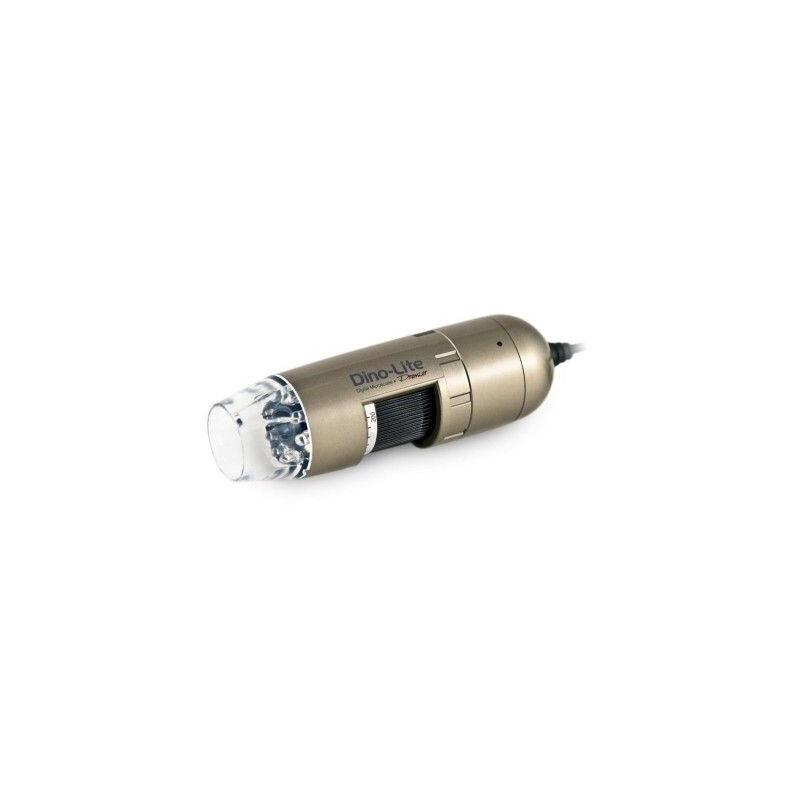

Dino-Lite AM4113TL-M40
The AM4113TL-M40 is a special version of the series with a long working distance and a lower magnification range between 5x and 40x.
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: No
- Emission filter: No
- Polariser: No
Optics
- Magnification: 5-40x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software DinoCapture: 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Composite/plastic housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 105 g
- Cable length: 1.8m
Features
- Special feature: No
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
