Dino-Lite AM7013MZT

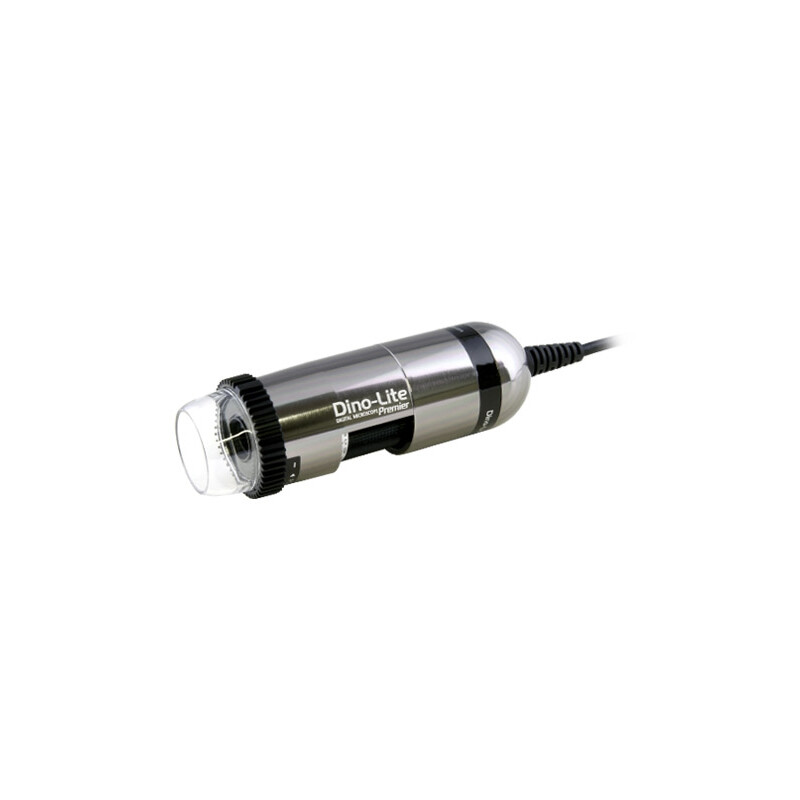

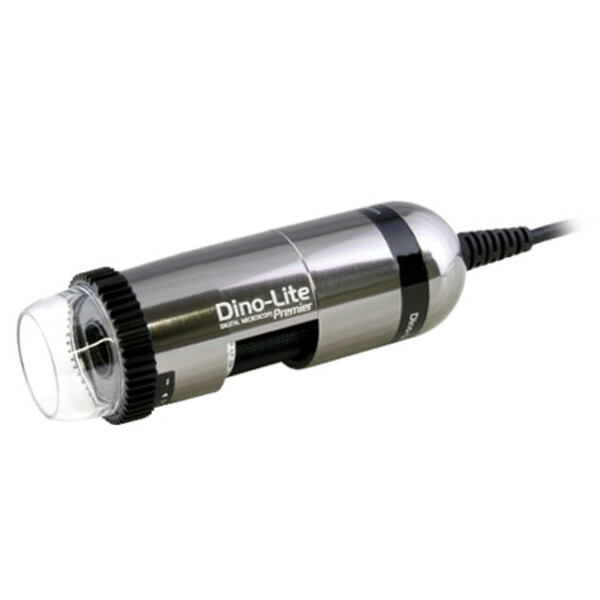

The Dino-Lite Premier AM7013MZT4 digital handheld microscope allows you to see at 430x~470x magnifications with the benefits of adjustable polarisation. It has a five-megapixel sensor that allows you to view great detail and capture large images at 2592 x 1944. This model is ideal for situations that require over 400x magnification with polarisation yet need the large details of a five-megapixel sensor.
The polarisation ability allows you to see fine details of surfaces such as semi-transparent materials like jewellery, skin, glass or plastic. It is also ideal for examining highly reflective materials such as metals or solder joints. The polariser on the AM7013MZT4 can be freely adjusted, allowing for different amounts of polarisation for effective examination. The Dino-Lite Premier AM7013MZT4 is a USB 2.0 device allowing you to digitally examine objects on your computer. It comes with DinoCapture 2.0 software that allows you to take pictures, record video, and annotate on images. Certain models such as this also feature measurement and calibration tools. The AM7013MZT4 is a great tool for high magnification imaging that requires polarisation.
Specifications
Interface: USB 2.0
Product Resolution: 5M pixels (MJPEG codec may be required to run at 2592 x 1944 resolutions)
Magnification Rate: 430x~470x
Sensor: Colour CMOS
Frame rate: Up to 30 fps
Save formats:
- Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM; DinoXcope: PNG, JPEG
- Movie: DinoCapture2.0: WMV, FLV, SWF; DinoXcope: MOV
Microtouch: Touch-sensitive trigger on the microscope for taking pictures
Lighting: 8 white LED lights switched on/off by software
Polariser: Yes
Measurement function: Yes
Calibration function: Yes
Operating system supported: Windows XP/7/8/10/11, macOS 10.14 or later
Unit weight: 140 g
Unit Dimensions: 10.5cm (H) x 3.2cm (D)
