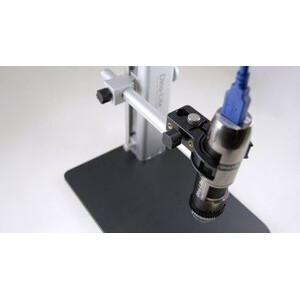

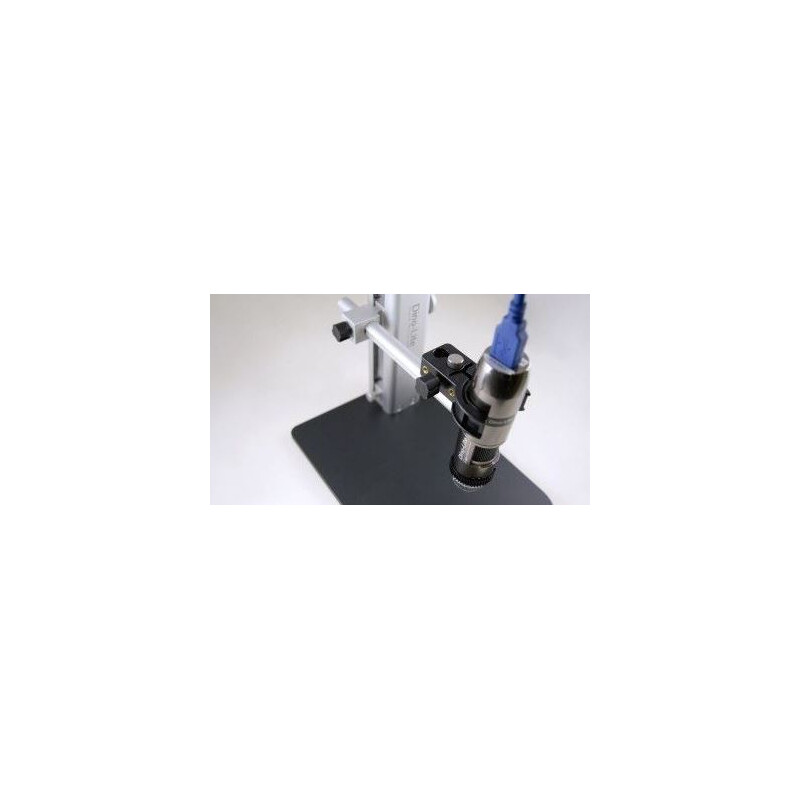

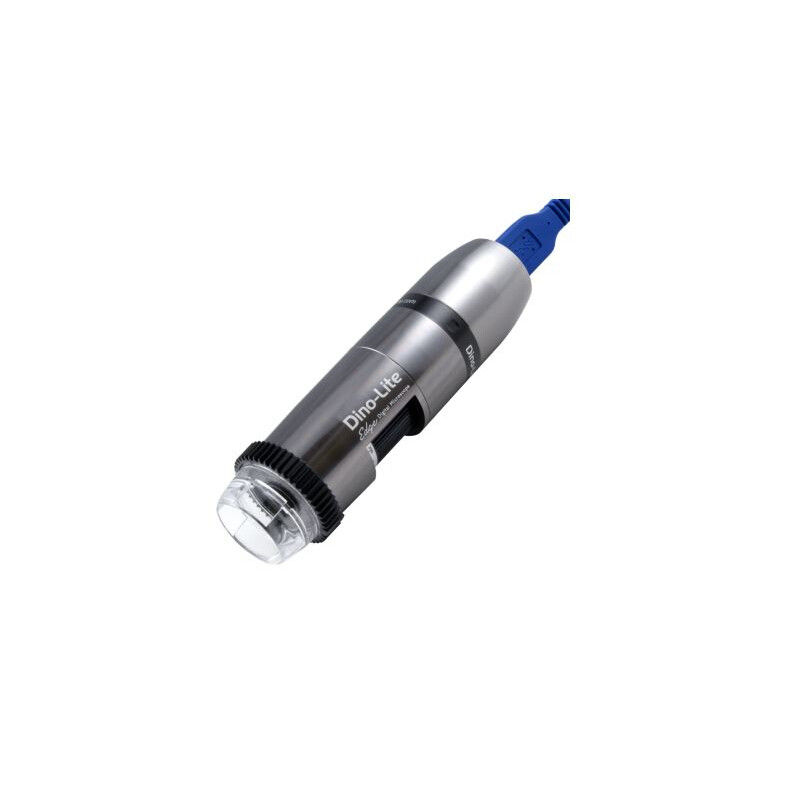

Dino-Lite AM73515MZT – Professional USB 3.0 microscope
The Dino-Lite AM73515MZT offers fast data transfer (up to 5 Gbit/s) and a frame rate of up to 45 FPS at 1280 x 960 pixels thanks to USB 3.0. With its edge optics and flexible LED control, it delivers outstanding image quality and precise colour reproduction.
The robust metal housing and AMR function, which automatically displays and saves the magnification, make it the ideal choice for demanding applications in research and industry.
Highlights:
- USB 3.0 for fast transfer
- Up to 45 FPS
- Edge optics for maximum image quality
- AMR function for automatic magnification
Discover the Dino-Lite AM73515MZT for the best image quality and performance.
Specification
lighting
- LED type: White
- Number of LEDs: 8
- LED switchable on/off: Yes
- Infrared filter: IR blocking filters > 650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-220x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflective coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2560x1920)
- Maximum frame rate: 45 FPS (max. 20 FPS video recording)
Compatibility
- Interface: USB 3.0, cable included**
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and higher
- Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)
- BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)
Supported image formats (MacOS)
Supported video formats (MacOS)
Image standards
WLAN
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 11.9 cm (L) x 3.3 cm (H)
- Weight: 110 g
- Cable length: 1.8 m
Functions
- Special features: Automatic magnification display (AMR), flexible LED control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD-safe: Yes
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
