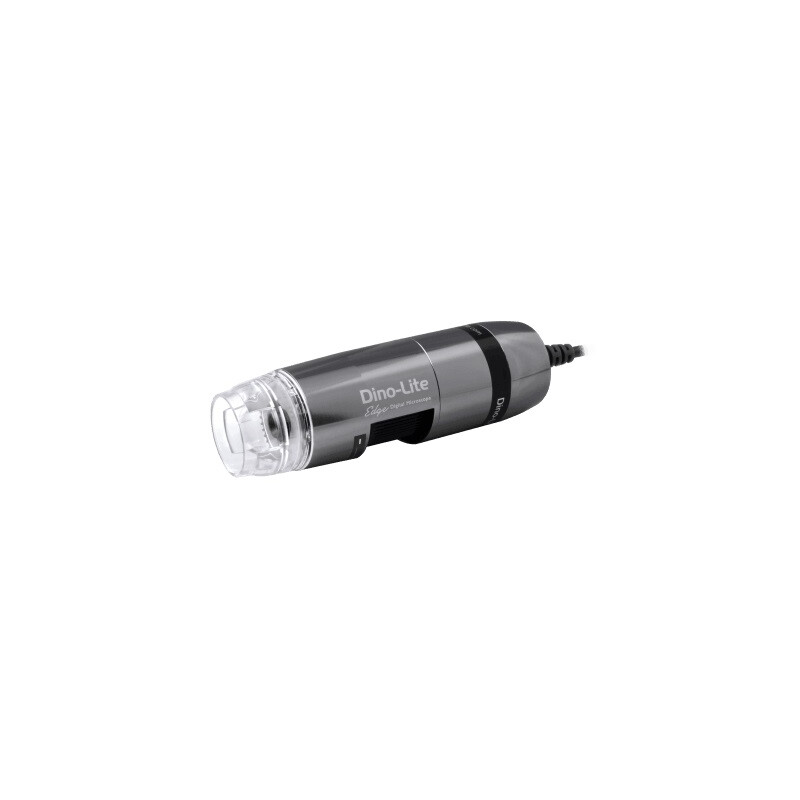

AM7515MT8A Handheld Microscope

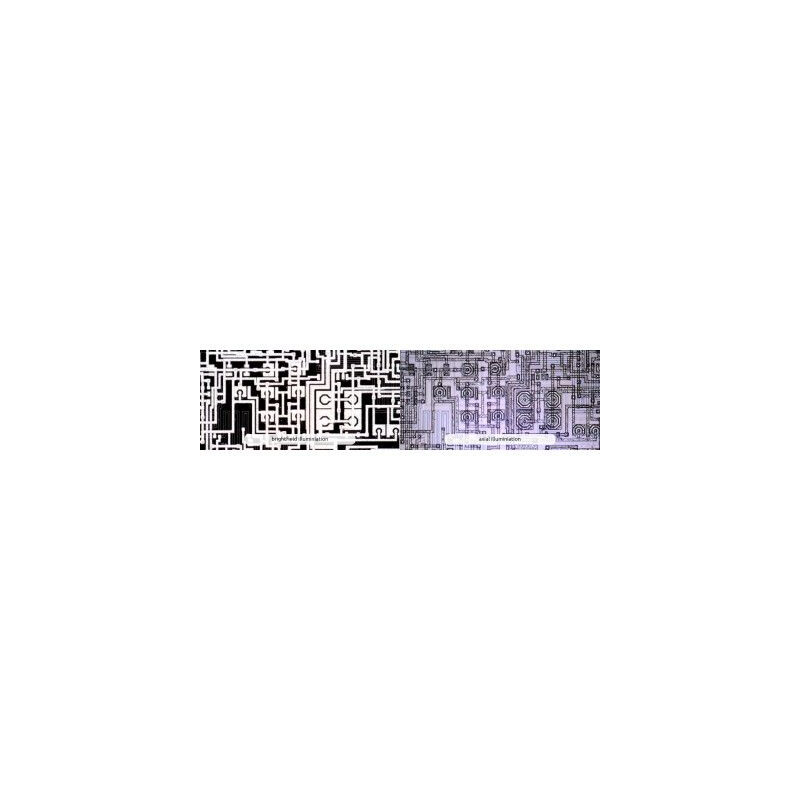

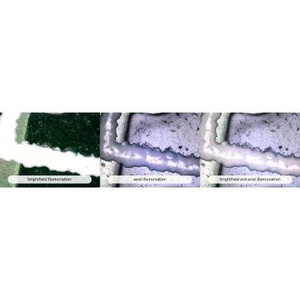

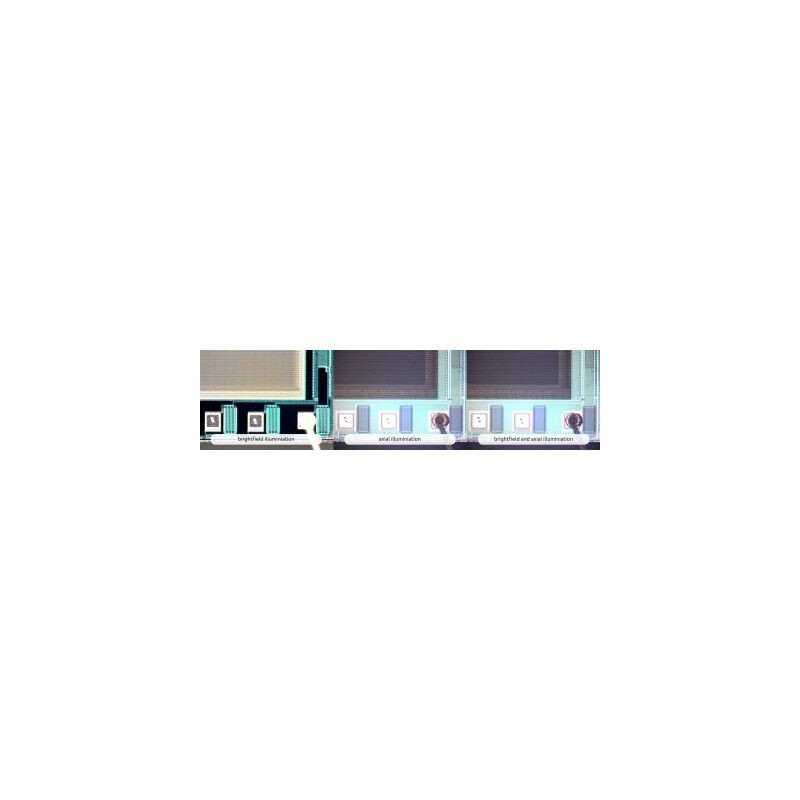

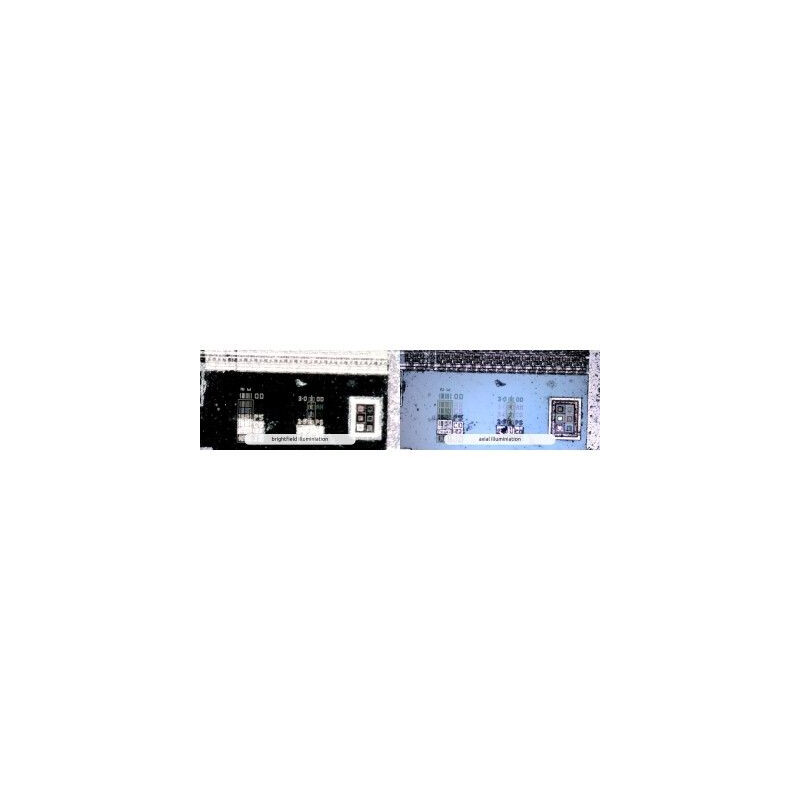

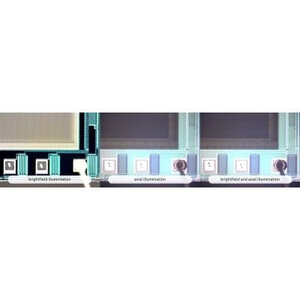

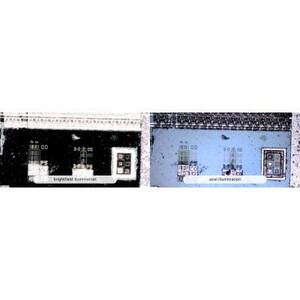

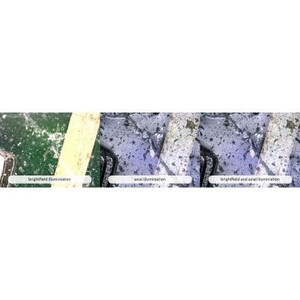

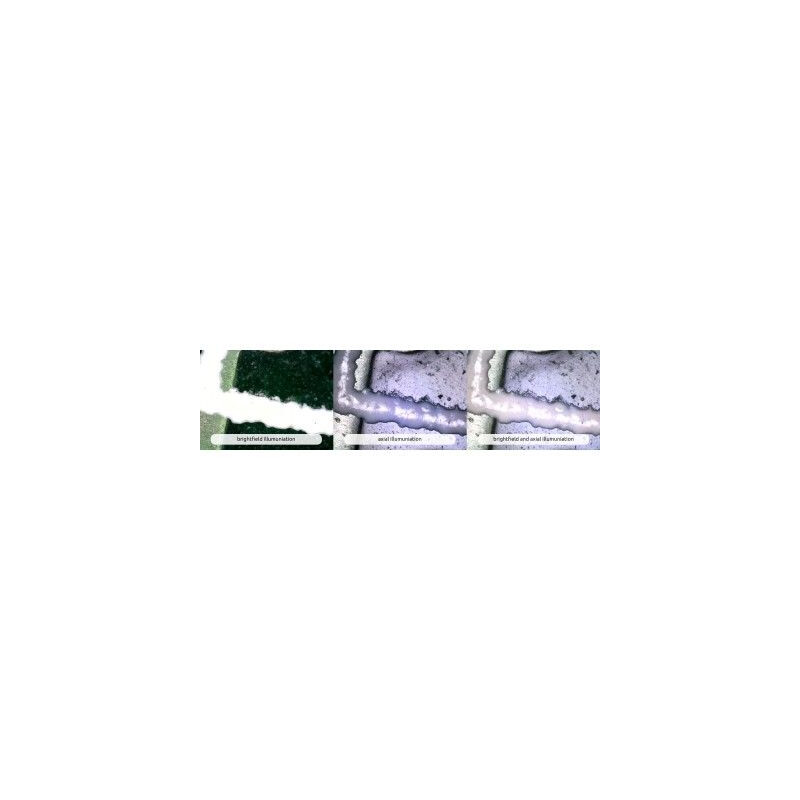

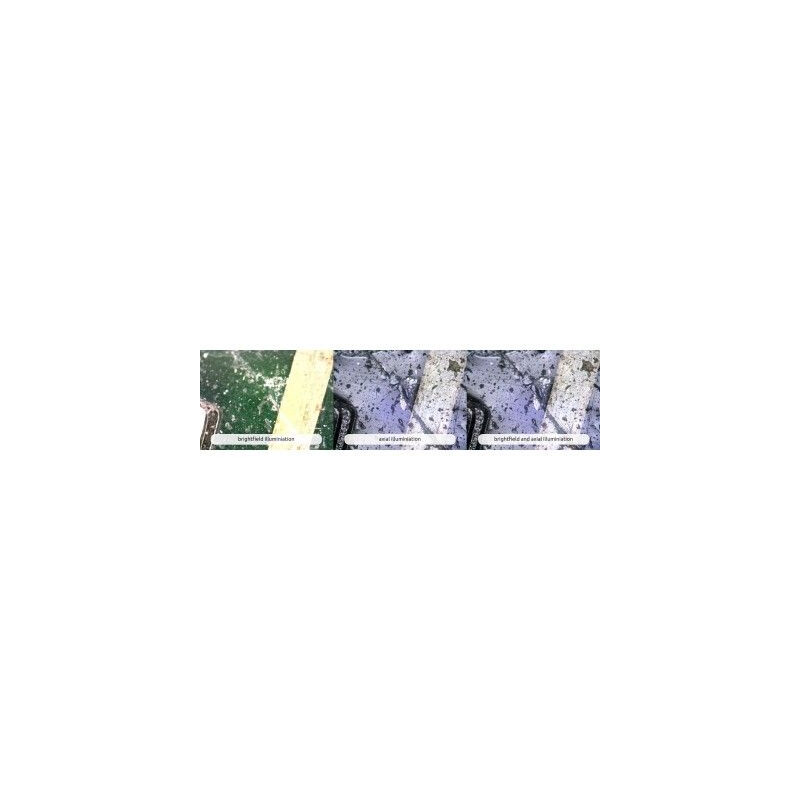

The AM7515MT8A is a 5-megapixel microscope from the Dino-Lite Edge series with a magnification range of 700x - 900x and built-in coaxial illumination. When using the Flexible LED Control (FLC), this model can switch between bright field illumination and coaxial illumination or mix the two illumination types.

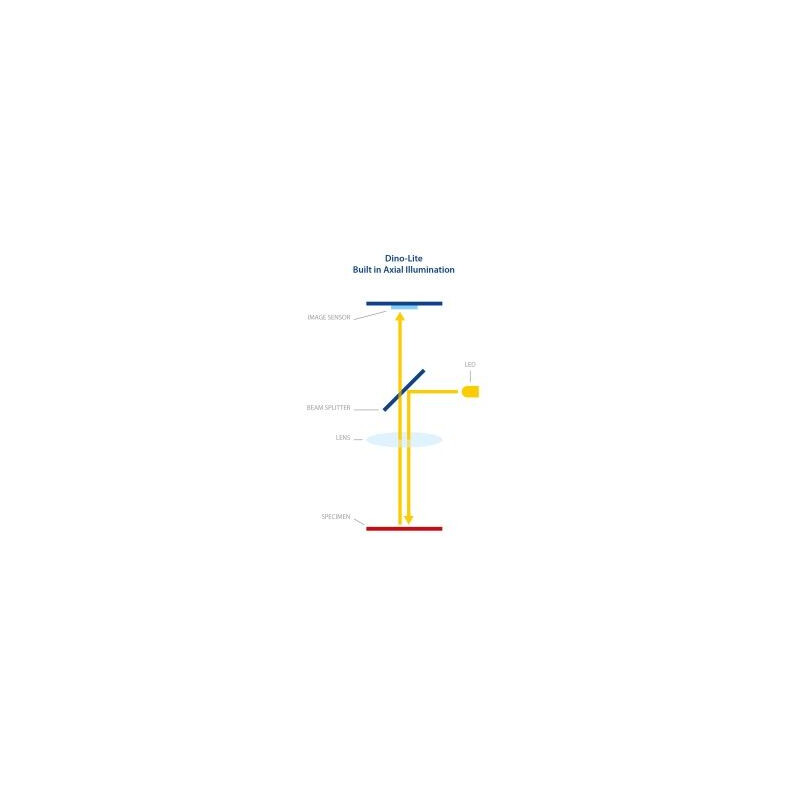

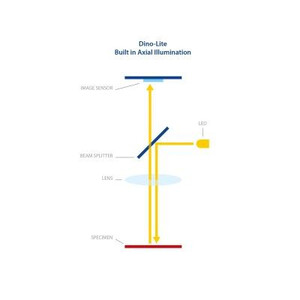

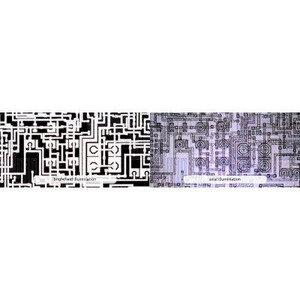

Coaxial illumination technology reveals details that are very difficult to see under normal lighting conditions, for example when inspecting wafer discs, microchips or other microelectronics. The AM7515MT8A includes the Automated Magnification Reading (AMR) feature, which automatically detects the magnification and displays it in the included Dino-Lite software. These unique features make the Dino-Lite AM7515MT8A a great inspection tool for material analysis, electronics inspection or similar applications requiring high magnification, coaxial illumination, flexibility and mobility. The Dino-Lite AM7515MT8A is bundled with the user-friendly DinoCapture 2.0 software for Windows. For this model, it includes features such as Automated Magnification Reading (AMR), Flexible LED Control (FLC), calibration, measurement, image capture and annotation, and video recording. When focusing at such high magnifications, it is recommended to use a high-precision tripod. The Dino-Lite RK-10A, for example, is a great addition. It is a high-quality, stable and robust tripod solution made of durable stainless steel and lightweight aluminium and offers very precise fine focusing.
(*This model currently only works with Windows OS.)
Specifications
LIGHTING
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: No
- Emission filter: No
- Polariser: No
OPTICS
- Magnification: 700-900x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
SENSOR
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30 fps
COMPATIBILITY
- Interface: USB 2.0
- Operating system: Windows XP, Vista, 7, 8 & 10
- Included software: DinoCapture 2.0 (Windows)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Imaging standards: DirectShow, UVC
HOUSING
- Housing material: Aluminium alloy housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 140g
- Cable length: 1.8m
FEATURES
- Special feature: Aut. Magn. reading, Flexible LED Control (FLC), Coaxial illumination
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
INFORMATION
- Package contents: Microscope, Carry pouch, Software CD, User manual, Quick guide, Calibration target, Front cover box
