Capacity

Minimum magnification

1,75

Maximum magnification

5

Front lens diameter (mm)

32

Eye relief (mm)

114

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

25,4

Type of build

zoomable magnification

Exit pupil at min. enlargement (mm)

18,2

Exit pupil at max. enlargement (mm)

6,4

Glass material

ED

Field of view

100 m adjustment per clic

7 mm

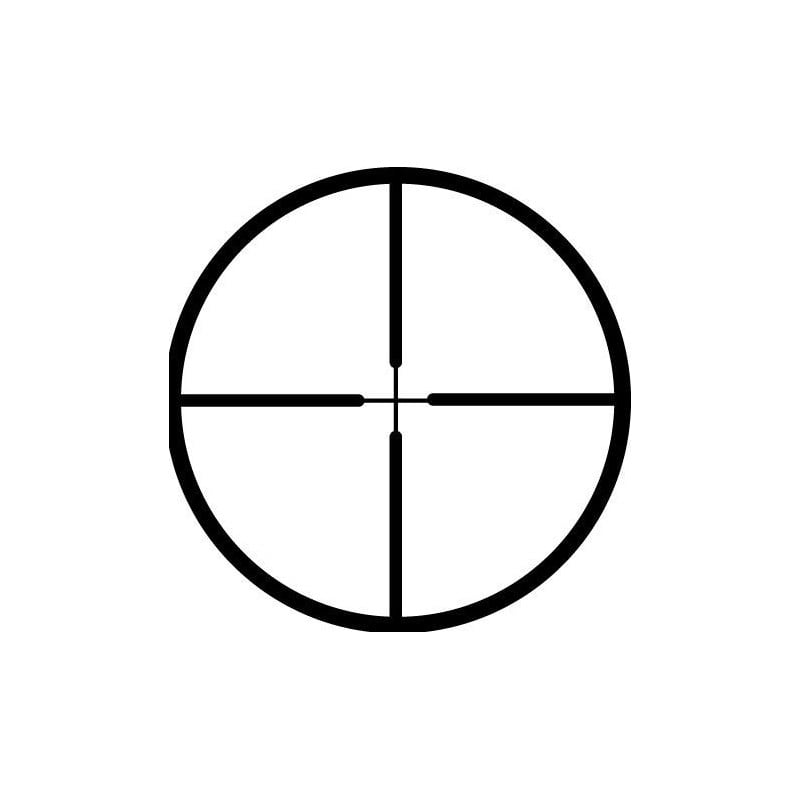

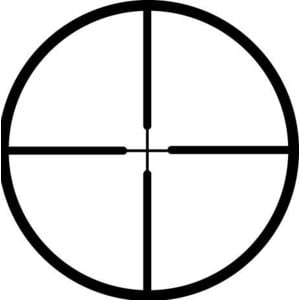

Reticle

Multi-X

Reticle plane

2. focal plane (SFP)

Twilight factor at min. enlargement

7,4

Twilight factor at max. enlargement

12,6

Field of view at max. enlargement (m)

5,0

Field of view at min. enlargement (m)

15,0

Reticle usage

Hunting

Special features

Illuminated reticle

-

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

-

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Integrated rangefinder

-

Bullet drop compensator

-

Watertight

yes

General

Length (mm)

260

Weight (g)

369

Series

Legend UHD

Colour

matt black

Central tube length (mm)

130

Area of application

Stalk hunting

good

Raised hide

middle

Drive hunting

good

Magnum caliber

good

long distance

-

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

Miscellaneous

supplier product number

851532

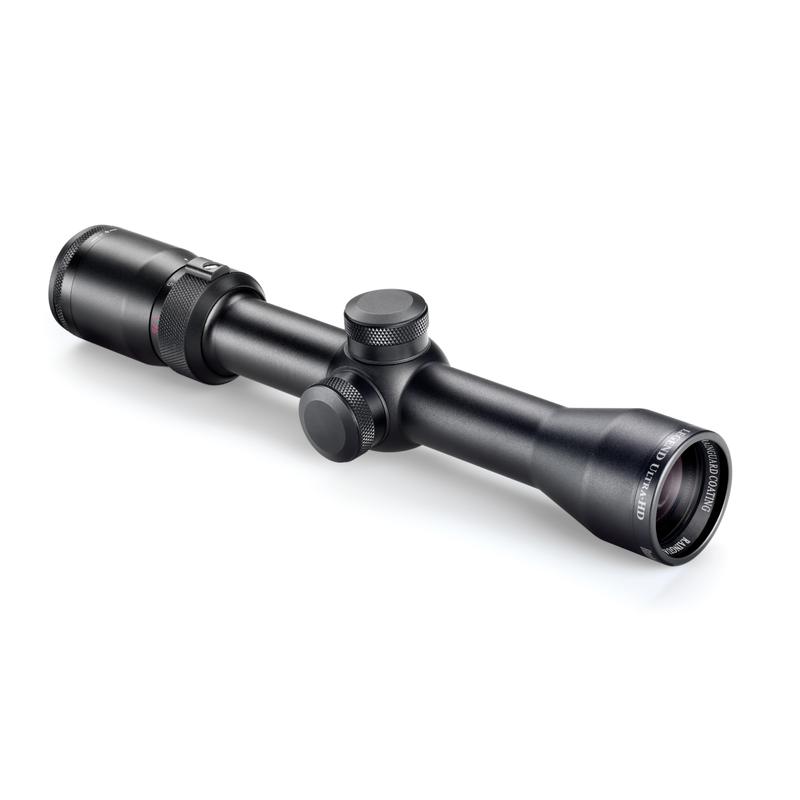

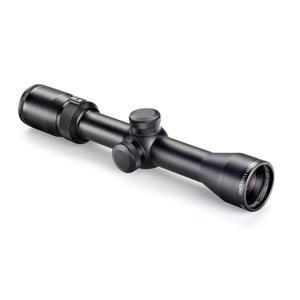

Riflescope Legend UHD 1.75-5x32, Multi-X telescopic sight
