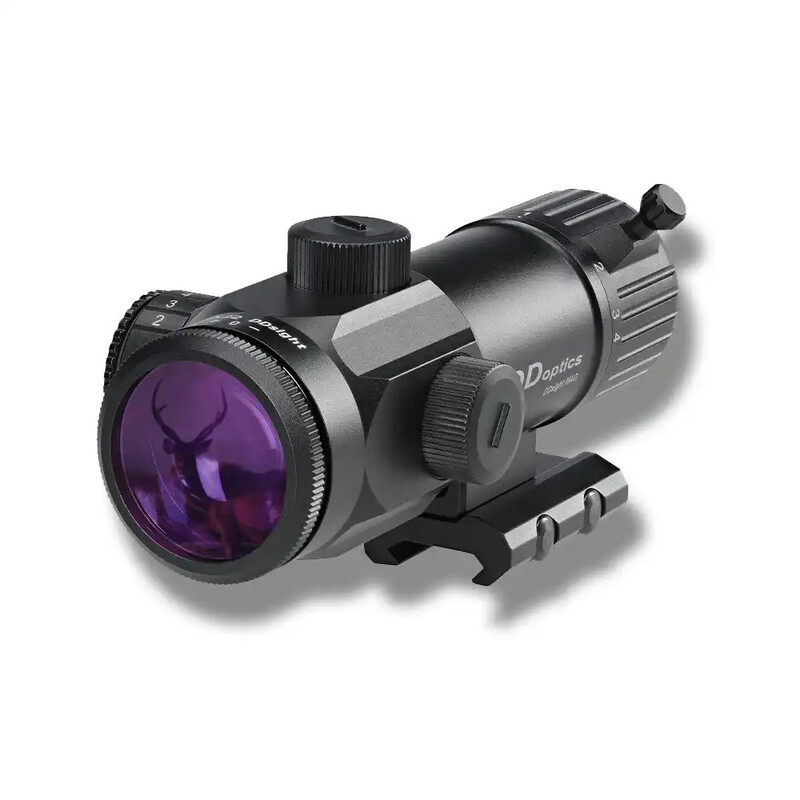

The new DDsight MAG 1–4×22 – perfection for the most demanding requirements
The DDsight MAG 1–4×22 combines state-of-the-art technology with maximum functionality – designed for shooters who value precision, speed and versatility.
Impressive specifications:
- Magnification: Continuously variable from 1× to 4× – ideal for quick target acquisition and precise shots.
- Field of view: 42.5 m at 1× and 11.8 m at 4× magnification for maximum overview.
- Optics: Fully multi-coated lenses with high light transmission (≥ 85%) for brilliant image quality.
- Diopter adjustment: Adjustable from −2.5 to +2.5 – ensuring the red dot is always displayed with razor-sharp clarity.
- Optional: iPoint technology: The iPoint switches on and off automatically as soon as the weapon is raised or lowered. The brightness of the red dot is controlled manually and precisely by the shooter.

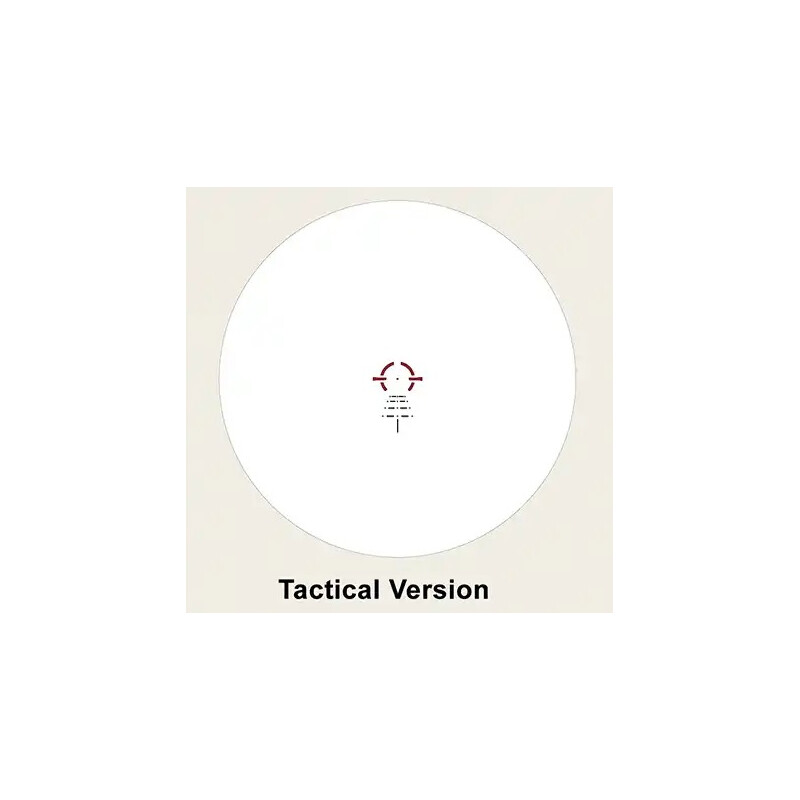

This model is the Tactical version.
Indestructible and flexible
Robustness and precision:
- Material: Made from high-quality 6061 aircraft-grade aluminium, a single piece with a matt black anodised finish for maximum protection.
- Shock- and water-resistant: IPX7 certified, withstands a water depth of 1 metre for 30 minutes.
- Temperature-resistant: Operates reliably between -20°C and +60°C.
- Precise click adjustment: Elevation and windage adjustment with 80 MOA range and 0.2 MRAD per click.
Compact design:
With a length of just 140 mm and a weight of 320 g (without mounts), the DDsight MAG 1-4x22 is light and handy – perfect for mobile use. This revolutionary reflex sight with integrated magnifier, dioptre adjustment and innovative iPoint technology sets new standards for hunters and sport shooters. Maximum flexibility and uncompromising performance – that’s the DDsight MAG 1-4x22!

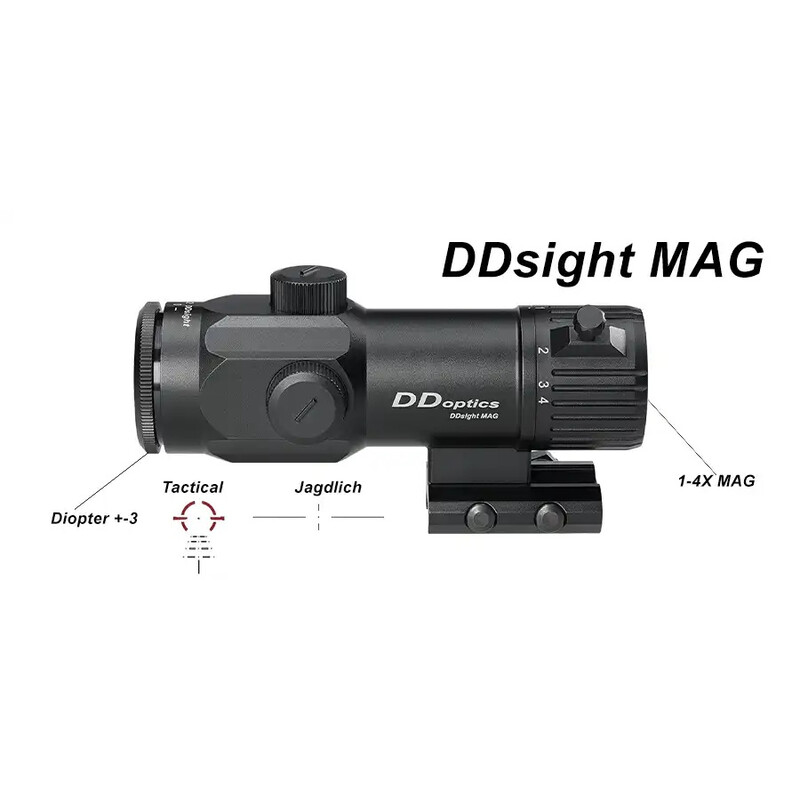

The DDsight MAG looks cool from every angle
The DDsight MAG 1-4x22 impresses not only with its inner qualities, but also with its appearance. The high-quality finish and sophisticated design make it a real eye-catcher from every angle. Functionality and style combined – a reflex sight that impresses in every respect. Cool from every angle, built for every challenge.

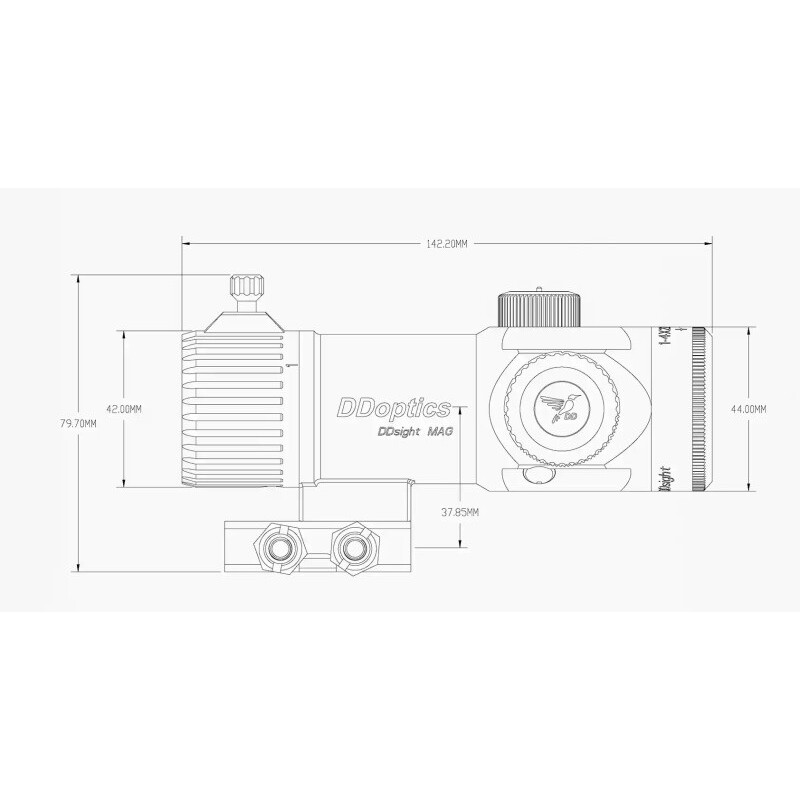

Optical axis height of 37.85 mm above the Weaver rail
The DDsight MAG from DDoptics has been specially developed for optimal compatibility with other sighting optics. With an optical axis height of 37.85 mm above the Weaver rail, it sits precisely within the ideal range for combination with magnification modules or other optical systems.
This height corresponds to the typical optical axis height of the widely used AR-15 platform, which is 37–39 mm above the Picatinny rail, ensuring perfect ergonomics and rapid target acquisition. The DDsight MAG thus offers the perfect balance of precision, comfort and versatility – ideal for professional users and discerning shooters.
