Riflescopes > Instruments > HAWKE > Vantage > HAWKE Riflescope Vantage 30 WA IR 1-8x24 Tactical BDC - 5.56
Product no.: 77786

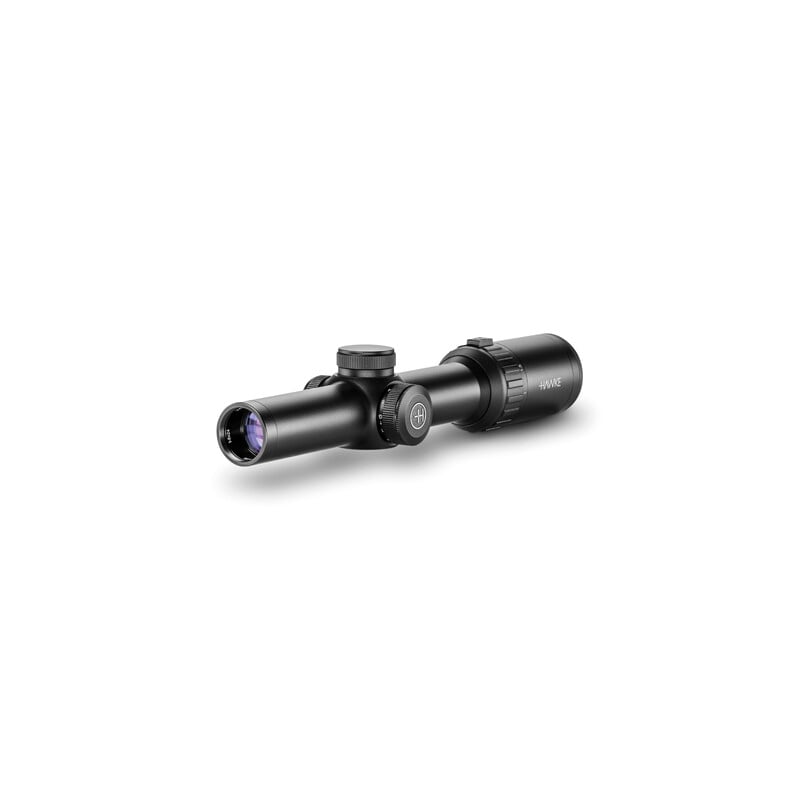

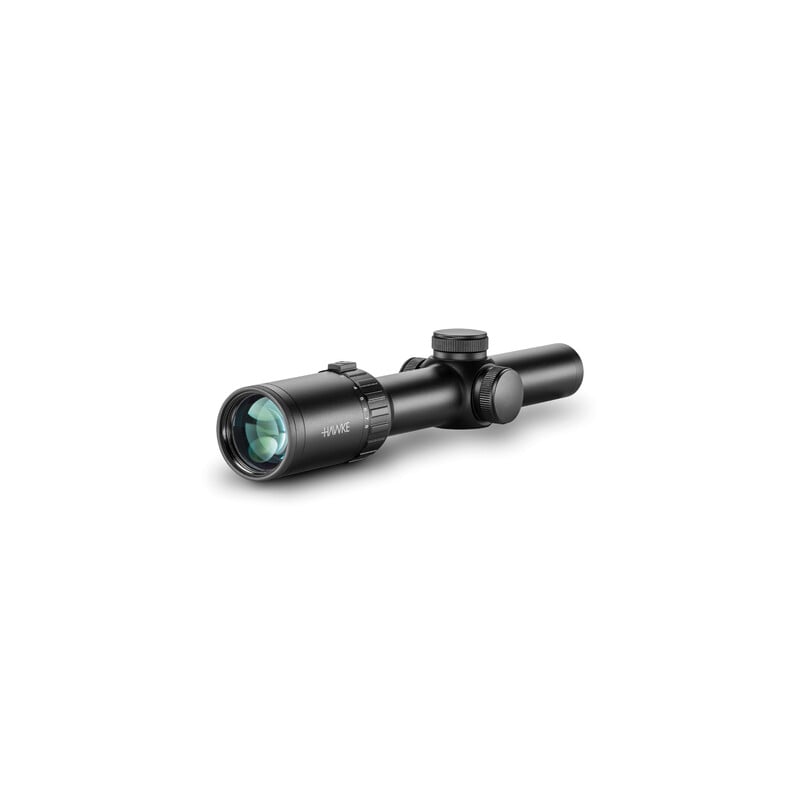

Riflescope Vantage 30 WA IR 1-8x24 Tactical BDC - 5.56

RRP: $ 570.00 Our price:
$ 520.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

More about the series Vantage...

In brief:

  • New H2 optical system
  • Reticle illumination (red & green)
  • Quick focus eyepiece
  • Complete, multi-coated lenses
  • Wide-angle field of view
  • Zoom ring with high rotational resistance

Designed for all hunting disciplines, from pest control to big game

All Vantage rifle scopes feature the new H2 optical system and are available in a wide range of configurations.

Models with the IR designation feature red and green lighting of the reticle with multi-stage brightness adjustment.

Tactical BDC - 5.56 reticle

The Tactical BDC - 5.56 reticle, exclusive to Hawke, works with the trajectory of your projectile and provides useful aiming points for AR rifles and pistols. The Tactical BDC - 5.56 is specially designed for the ballistics of 5.56 cartridges and ensures unprecedented accuracy.

The etched glass BDC (bullet drop compensating) reticle features an illuminated centre point and a horseshoe-shaped circle for quick target acquisition, as well as side markings for improved accuracy.

The initial zero setting can be made at approx. 46 metres. This allows good accuracy to be achieved when only the central aiming point is used up to approx. 183 metres. For optimum accuracy and correct use of the BDC, the zero setting should be set to approx. 183 metres and adjusted accordingly.

The BDC reticle can also be used for other cartridges and ammunition by adjusting the magnification.

Alternatively, the aiming points can be calibrated for distances in metres by slightly reducing the magnification.

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
1
Maximum magnification
8
Front lens diameter (mm)
24
Eye relief (mm)
97
Lens coating
fully, multiple
Central tube diameter (mm)
30
Exit pupil at min. enlargement (mm)
24
Exit pupil at max. enlargement (mm)
3

Field of view


100 m adjustment per clic
1/2 MOA
Field of view at 100 m (m)
40,1 - 5
Reticle
Tactical BDC - 5,56
Reticle plane
2. focal plane (SFP)
Reticle usage
Hunting

Special features


Illuminated reticle
yes
Dew protected
yes
Watertight
yes
Parallax adjustment
-
Protection cap
yes
Water-proof
yes

General


Length (mm)
267
Central tube length (mm)
60
Weight (g)
468
objective lens outside diameter (mm)
43
eyepiece outer diameter (mm)
30
Series
Vantage

Miscellaneous


Battery type
CR2032

Product safety

Manufacturer: Hawke Optics Limited, Avocet House, Wilford Bridge Road Meltin, Woodbridge, IP12 1RB Suffolk, GB, life.hawkeoptics.com/
Responsible person: Umarex Sportwaffen Gmbh + Co. KG, Donnerfeld 2, 59757 Arnsberg, DE, [email protected]
