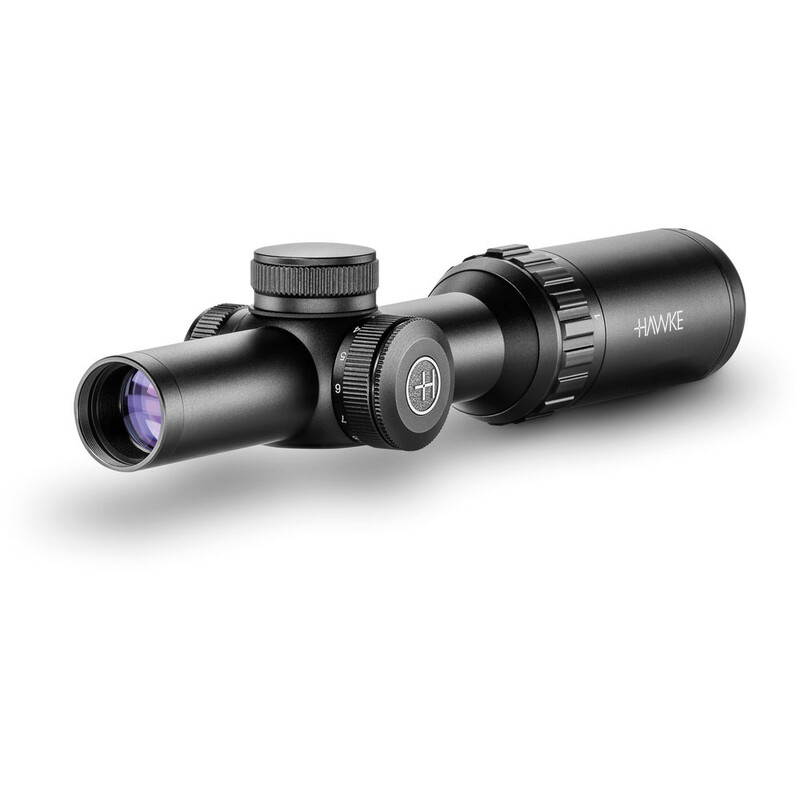

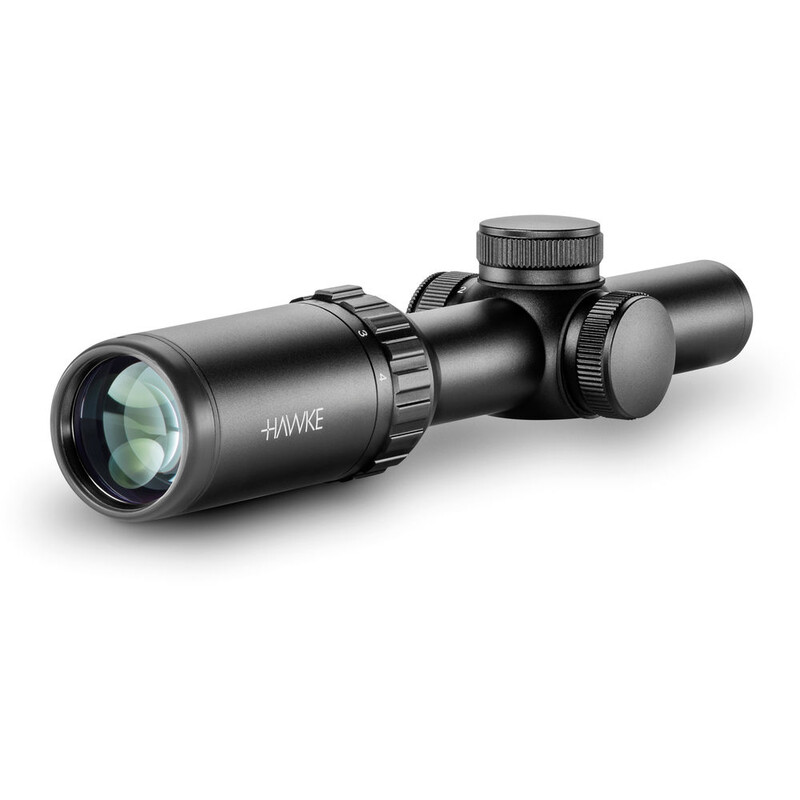

VANTAGE IR
An enhanced version of the Vantage, the Vantage IR range offers either a 1 inch or 30mm mono-tube chassis with a red and green illuminated reticle and optional adjustable objective.
- Fully Multi-Coated Lenses:
The Vantage range features 11 layer fully multi-coated lenses throughout the entire optical system for enhanced light transmission and increased contrast. - High Torque Zoom Ring:
Easy magnification adjustment which doesn’t shift under recoil thanks to the high torque set-up – smooth yet solid. - Illumination Rheostat:
Every Vantage IR model features dual red and green illumination with 5 brightness settings, allowing reticle visibility to be maximised in dark cover and shrub.
Vantage System H2
A comprehensive range of riflescopes for all calibres and disciplines. All Vantage riflescopes feature our new H2 optical system and are available in a wide variety of configurations.
Models with the ‘IR’ designation feature red and green lighting of the precision-etched reticle with multi-stage brightness control.
Available with the reticle in the first (FFP) and second (SF) image planes.
Key features:
- 30mm and 25.4mm models
- Wide field of view (30 mm models)
- Illuminated glass reticles (IR models)
- Adjustment turrets available with either fine-detent or protective caps
- 11-layer full multi-coating on the lenses
- Zoom ring with high rotational resistance
- Quick-focus eyepiece
- Nitrogen-filled
- Shock-resistant
- Waterproof
- Fog-free
- All calibres

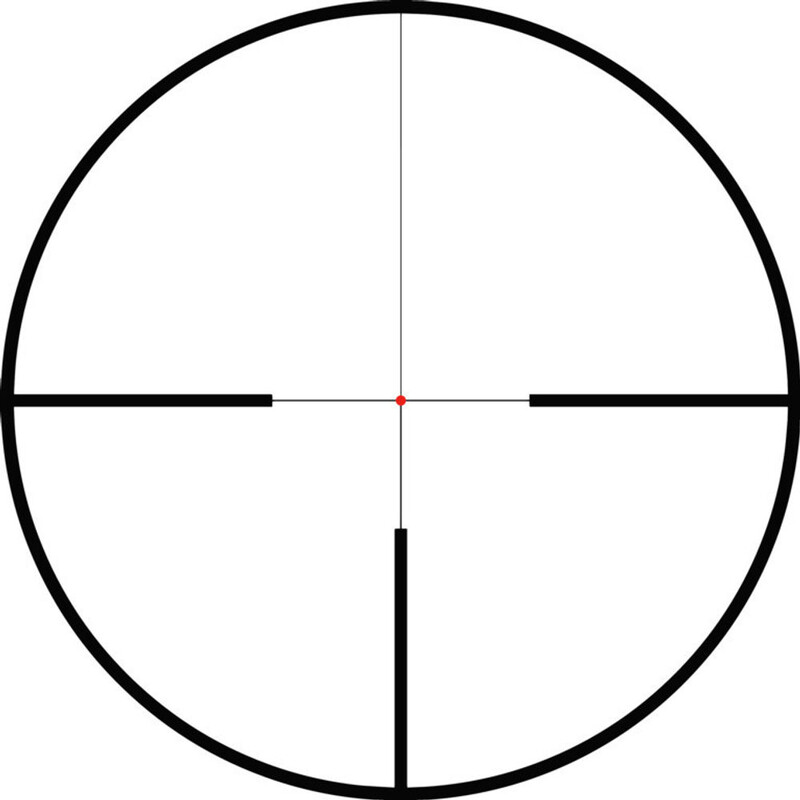

L4A Fiber Dot Reticle
The L4A Dot, a variant of the classic L4 reticle, features a more open outline design, allowing more of the target to remain visible when aiming. The thick outer bars ensure good visibility in low light. A thin top bar does not obstruct your view of the target in any way.
A bright 2 MOA illuminated dot (at 4x magnification) provides a sharp aiming point for quick reference and target acquisition. The distance between the illuminated dot and the thick bar is 30” when aiming at a target 100 yards away at 4x magnification. This corresponds to a distance of 1 m between the centre and the line at 120 m and 4x magnification.
