Night vision devices & thermal cameras > Instruments > HIKMICRO > Raptor > HIKMICRO Night vision device Raptor RQ50LN
Product no.: 80433

Night vision device Raptor RQ50LN

RRP: $ 5,100.00 Our price:
$ 4,900.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

HIKMICRO RAPTOR
Breaks through the visual barrier

The all-in-one solution
Break through the visual barrier: The RAPTOR is the ultimate and innovative combination of a thermal imaging camera, a digital day and night vision camera, a laser rangefinder and an integrated infrared illuminator. This binocular offers a wide range of observation options over short and long distances, day or night, even in poor weather conditions.

Highlights of the RAPTOR series:

  • 20mK high-sensitivity thermal imaging camera
    Extremely high thermal sensitivity, NETD<20mK | High-definition thermal sensor, up to 640x512 @12μm | Super-large f/0.9 lens, 19% improvement | Image Pro, improved proprietary image processing algorithm | Long detection range up to 2600m at a standard object height of 1.7m | Powerful magnification 3.4x optical, up to 5.7x / digital up to 16x from base value.
  • 2560x1440 HD day & night camera
    High-resolution 2560x1440 sensor delivers bright and vivid images in daylight | Supports low light conditions 0.001 lux. With the built-in 850 nm or 940 nm IR illuminator, the image is still clearly visible even in complete darkness. The unique defog mode ensures a clear image on foggy days.

  • 1000m laser rangefinders The built-in laser rangefinder with a range of up to 1000m and an accuracy of ±1m helps you determine the distance to your target so you can make the right decisions.

Technical details RAPTOR RQ50LN:

Thermal sensor: VOx 640x512

Digital sensor: CMOS 2560x1440

IR lighting: 940nm

Optical magnification: 3.4x

Laser rangefinder: 1000m

Measurement accuracy: +/- 1m

Practical intelligent functions


  • automatic on/off display
    When you temporarily move the instrument away from your eyes, the display automatically switches off. No light escapes from the eyepiece of the instrument.
  • GPS & DMC
    The GPS function, in conjunction with the built-in compass, can display your own position and the location of the target measured with LRF. The display is based on the GPS coordinates.
  • Smart IR
    TheIR emitter can automatically and intelligently adjust the brightness to suit different viewing conditions to avoid overexposure. This also reduces power consumption and extends battery life.
  • Local album
    The photos and videos you have taken can be browsed in the device's local album for more convenient and faster viewing.
  • 6 different image modes: Day mode / Night Vision / Black Hot / White Hot / Red Hot / Fusion

Groundbreaking and practical design

Designed by a Red Dot Award-winning designer
Designed by a Red Dot Award-winning design team, the RAPTOR series not only meets aesthetic user requirements, but also allows users to experience the fascinating combination of different technologies.

Intuitive operation
The eye relief of the RAPTOR is adjustable from 60 mm to 70 mm to meet different user requirements, and it supports a diopter range from -5D to +3D. The intelligent button layout is perfect for intuitive operation.

Specifications

Capacity


Type of build
Binocular (one objective)
Technology
Fusion
Magnification
2,9
objective
31mm f:1.2
Zoom (digital)
2x/4x/8x/16x
Maximum operating distance (m)
2600
Sensor type
VOx
Pixel size
12
temperature resolution (mK)
< 20
Display resolution (Pixel)
1024x768
Image display
Different versions
Image cycle rate (Hz)
25
infrared lighting wavelength (nm)
940
Battery durability (h)
8

Special features


Infrared illuminator
yes
Digital imaging
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
yes

Field of view


True field of view (°)
8,8x7,0
Field of view at 100 m (m)
15,4
Close focus limit (m)
5

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
218
Width (mm)
155
Height (mm)
88
Weight (g)
980
Series
Raptor

Product safety

Manufacturer: Hangzhou Microimage Software Co., Ltd, Gebäude A1, Nr. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, , Hangzhou, Zhejiang, CN, www.hikmicrotech.com/de/outdoor/
Responsible person: Hoptics GmbH , Lengericher Weg 37, 49584 Fürstenau, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

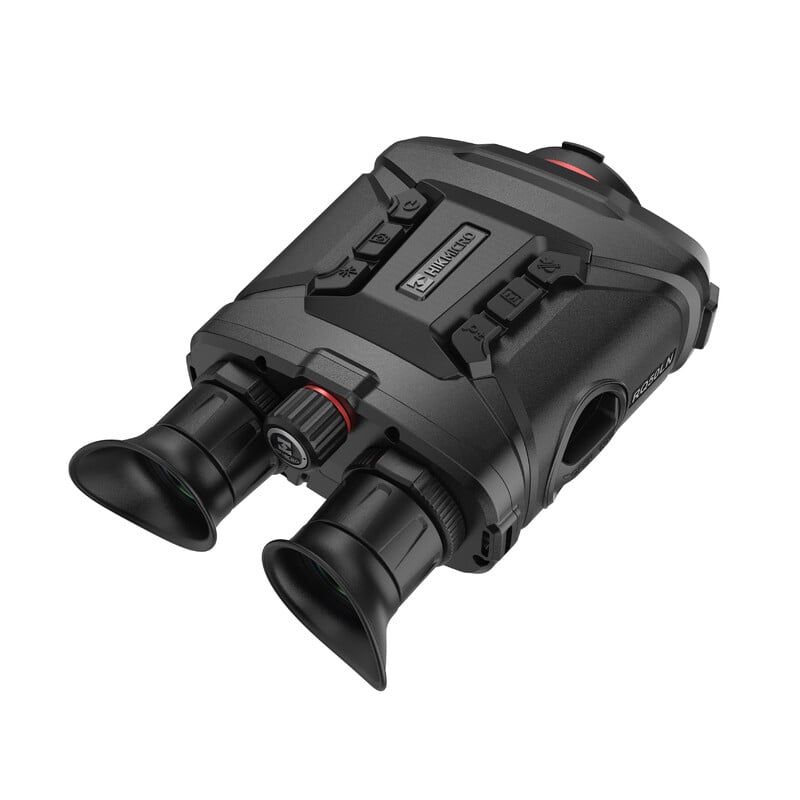

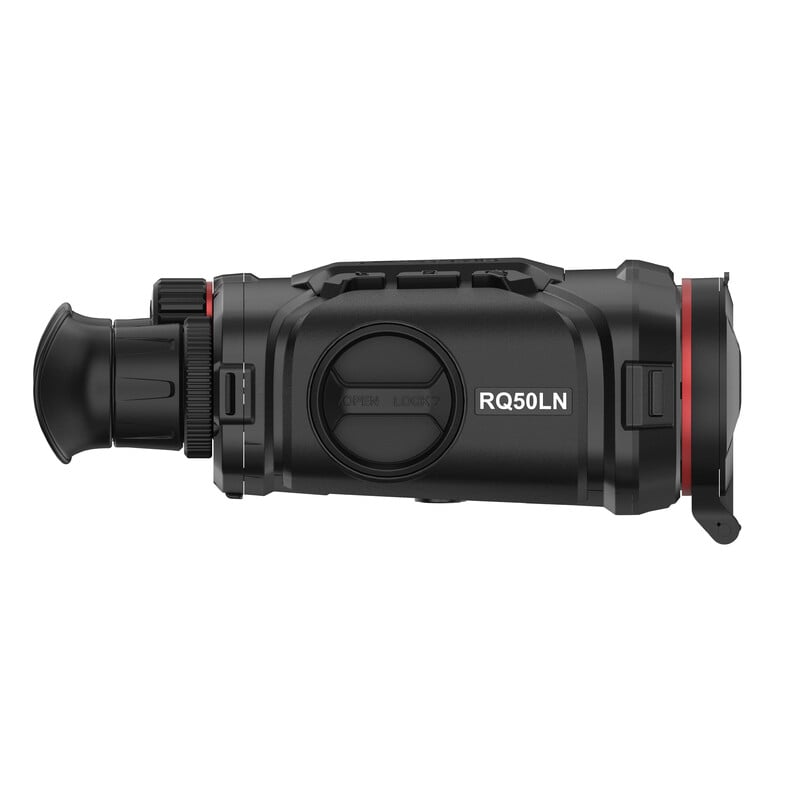

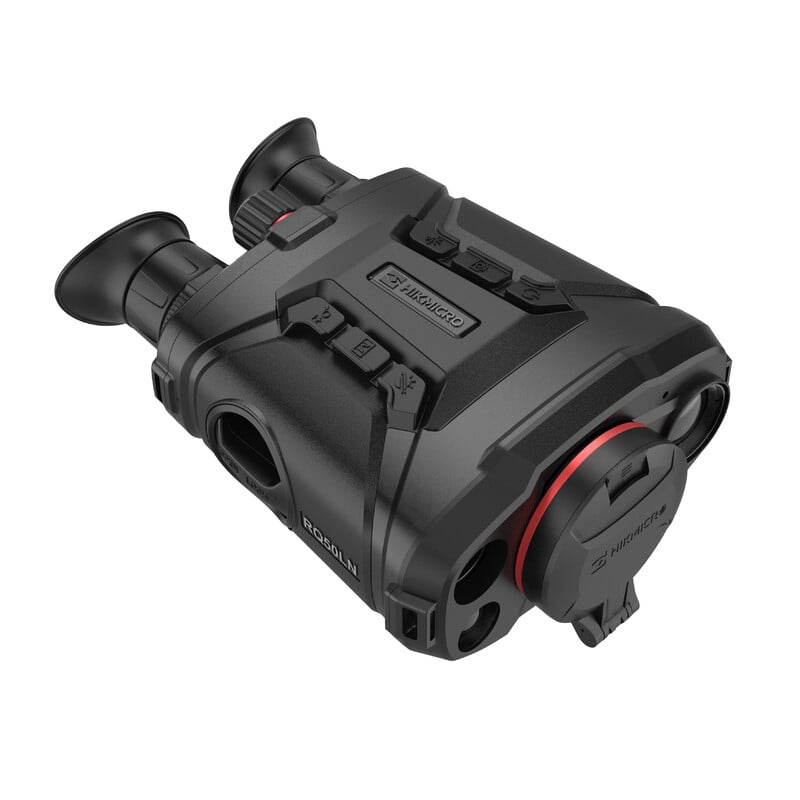

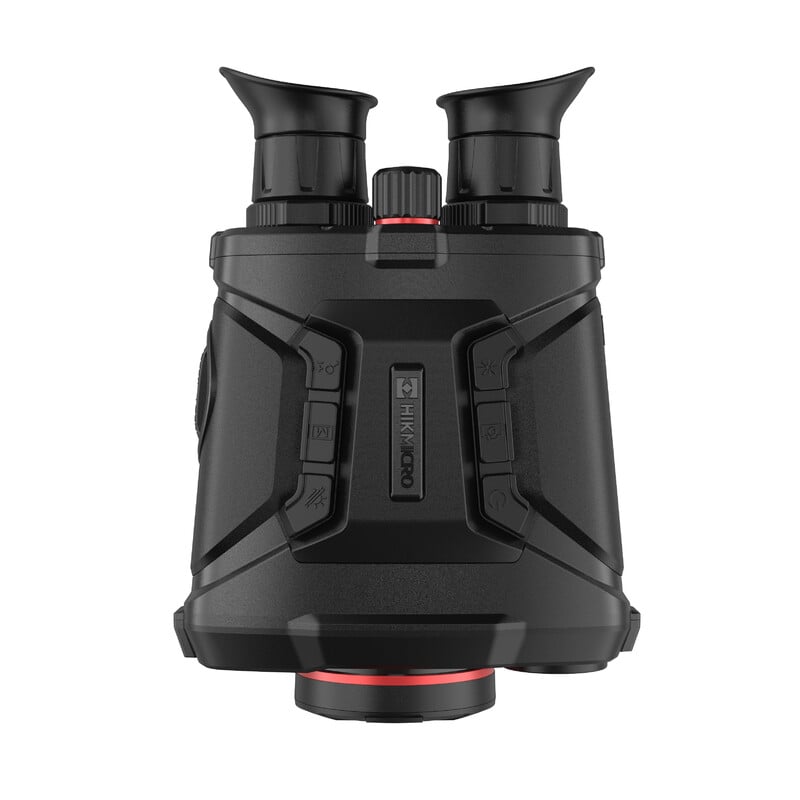

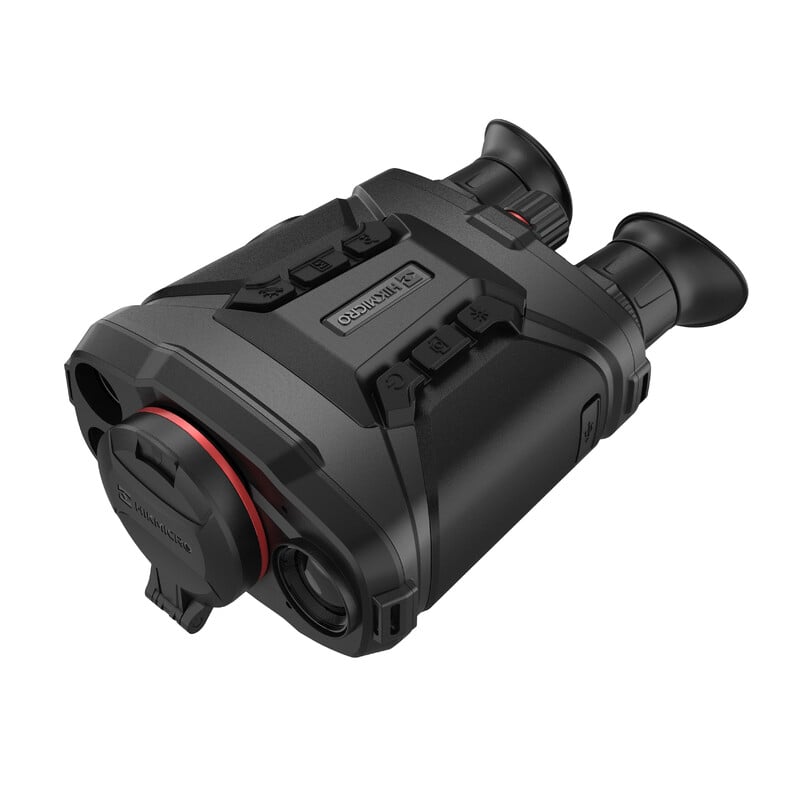

HIKMICRO Night vision device Raptor RQ50LN
Images show model RQ50L
HIKMICRO Night vision device Raptor RQ50LN

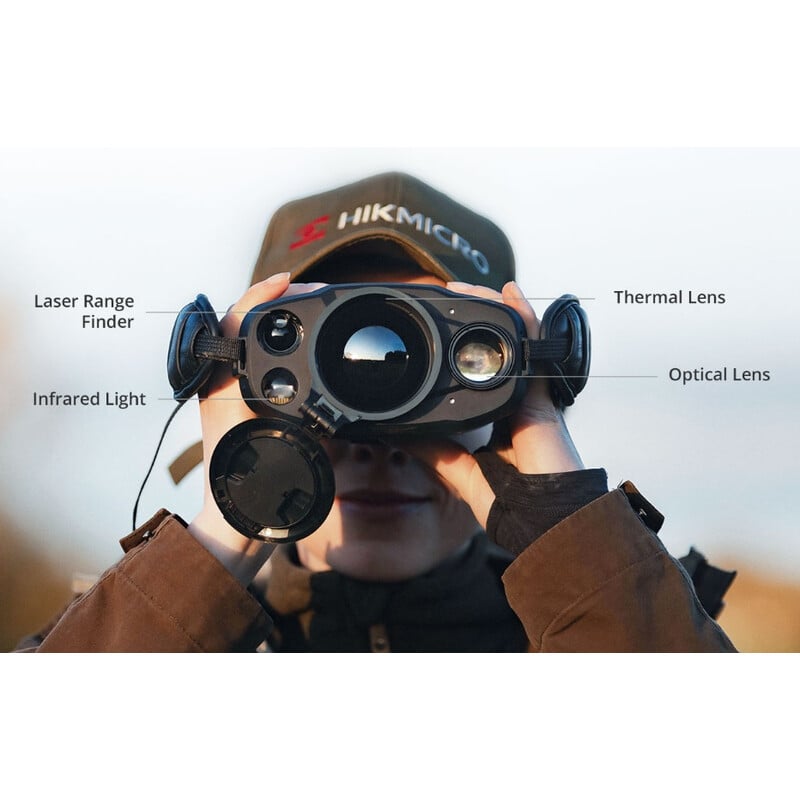

Use Lenses on the front of the instrument
