Riflescopes > Instruments > Schmidt & Bender > Exos > Schmidt & Bender Riflescope 1-8x24 Exos TMR Ret. FD7, 30mm, Without rail // Without rail ASV II // BDC II / Posicon
Product no.: 71813

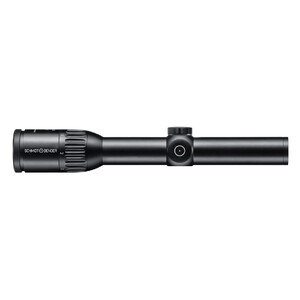

Riflescope 1-8x24 Exos TMR Ret. FD7, 30mm, Without rail // Without rail ASV II // BDC II / Posicon

RRP: $ 3,330.00 Our price:
$ 2,990.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

1-8x24 Exos

With the 1-8x24 from the Exos line, the reticle and FlashDot lighting are located in the second image plane and therefore remain constant when changing magnification. The special feature of this riflescope is the patented CC mode. This allows the riflescope to be used as a parallax-free reflex sight with 1.0x magnification. Thanks to its large field of view (35.3 m/100 m), this model is a true specialist, particularly for quick shots at fleeing game. With a little practice, hunters can keep both eyes open when aiming at short ranges, giving them the best possible overview. When hunting wild boar or on safari for buffalo and other defensive game, it provides ideal support for hunters thanks to its generous exit pupil.

Exos TMR – the sporty version for dynamic shooting

The Exos is also available in a sporty TMR version (Tactical Magnification Ring). This adjustment ring can be equipped with our Throw Lever. The Throw Lever allows for effortless and quick magnification changes even when wearing gloves and can be attached at any position. The large exit pupil and the extra-bright red dot in the second image plane enable fast target acquisition. The shooter receives additional support from the unique and patented CC mode (Close Combat). By slightly turning the adjustment ring for magnification change beyond 1.1x to "CC" with a gentle click, the system switches to 1x magnification with no parallax error at close ranges of approx. 7–10 m. The CQB2 reticle is also particularly suitable for 3-gun and IPSC competitions. The robust and compact design allows the shooter to be successful even under the toughest competition conditions.

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
1
Maximum magnification
8
Front lens diameter (mm)
24
Exit pupil
9.6 - 13.9
Exit pupil at min. enlargement (mm)
9.6
Exit pupil at max. enlargement (mm)
13.9
Eye relief (mm)
90
Central tube diameter (mm)
30

Field of view


Twilight factor
3.9 - 13.9
Twilight factor at min. enlargement
3.9
Twilight factor at max. enlargement
13.9
Field of view at 100 m (m)
35.3 - 4.9
Field of view at min. enlargement (m)
35.3
Field of view at max. enlargement (m)
4.9

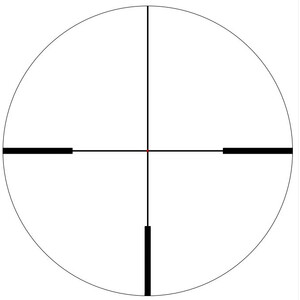

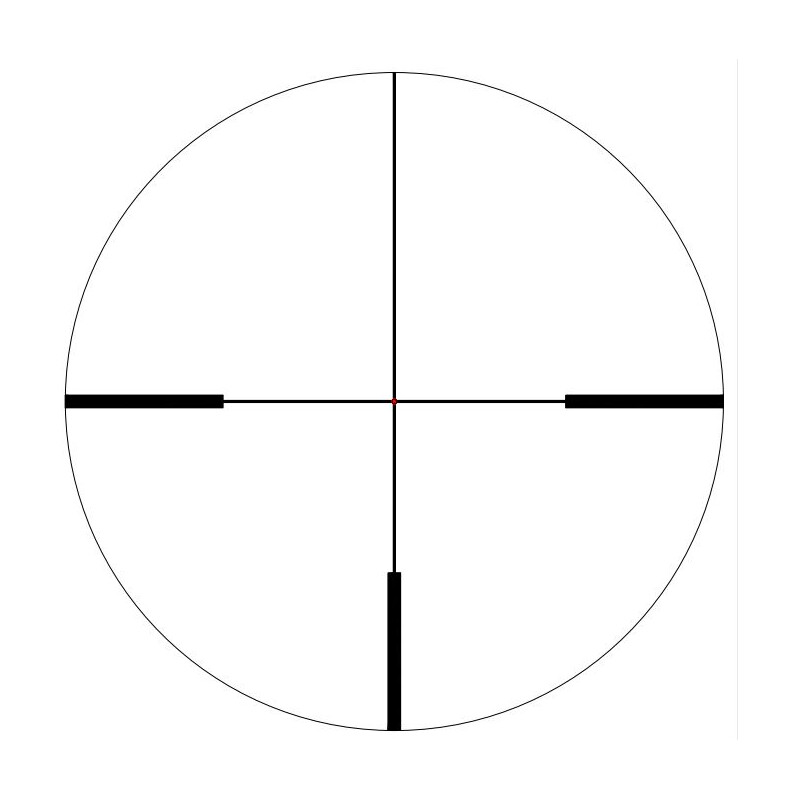

Reticle
FD7
Reticle plane
2. focal plane (SFP)

Special features


Illuminated reticle
yes
Automatic switch-off
-
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
-
Bullet drop compensator
yes
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes
Rapid magnification adjustment
yes

General


Colour
matt black
Length (mm)
291.45
Weight (g)
550
Series
Exos

Area of application


Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Product safety

Manufacturer: Schmidt & Bender GmbH & Co. KG, Am Großacker 42, 35444 Biebertal, DE, www.schmidt-bender.de
Responsible person: Schmidt & Bender GmbH & Co. KG, Am Großacker 42, 35444 Biebertal, DE, [email protected]
