Capacity

Maximum magnification

9

Front lens diameter (mm)

56

Lens coating

multiple

Central tube diameter (mm)

25,4

Type of build

zoomable magnification

Minimum magnification

3

Exit pupil at min. enlargement (mm)

18,7

Exit pupil at max. enlargement (mm)

6,2

Type of mounting

Mounts not included in delivery

Field of view

Wide-angle

-

100 m adjustment per clic

1/4 M.O.A.

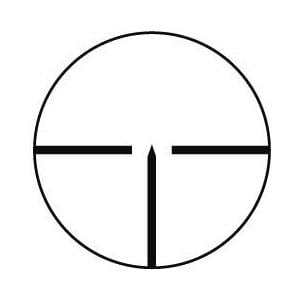

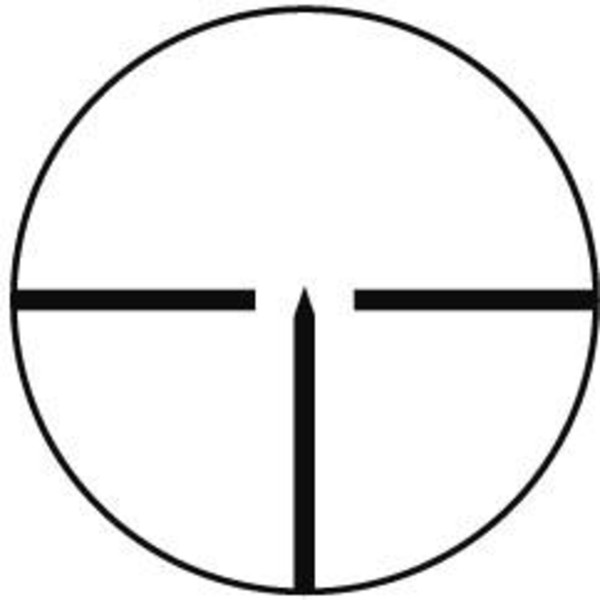

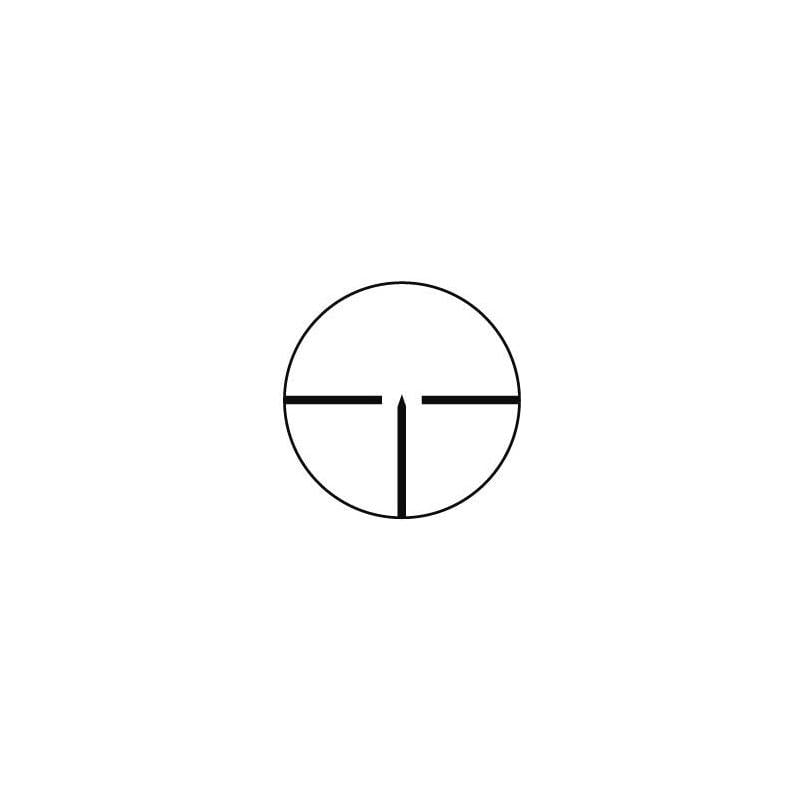

Reticle

Absehen 1

Reticle plane

2. focal plane (SFP)

Twilight factor at min. enlargement

12,9

Twilight factor at max. enlargement

22,4

Field of view at min. enlargement (m)

12,0

Field of view at max. enlargement (m)

4,0

Reticle usage

Hunting

Special features

Illuminated reticle

-

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

yes

Protection cap

-

Lens hood

-

Water-proof

yes

Dew protected

yes

Integrated rangefinder

-

Bullet drop compensator

-

General

Weight (g)

682

Length (mm)

370

Colour

matt black

Area of application

Stalk hunting

good

Raised hide

good

Drive hunting

middle

Magnum caliber

-

long distance

middle

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

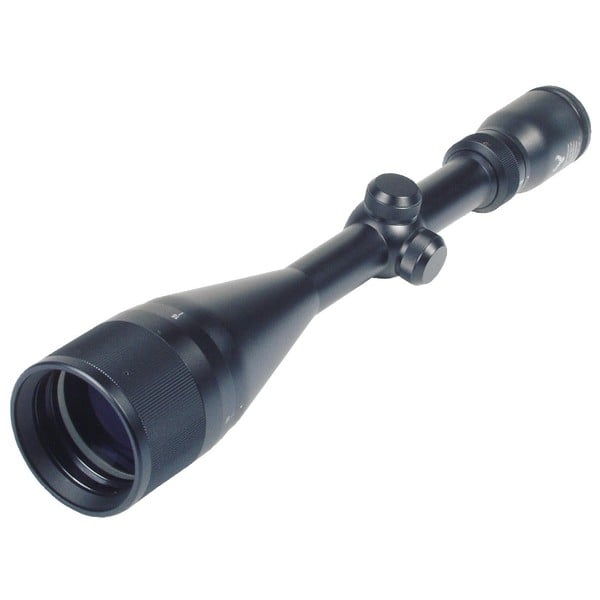

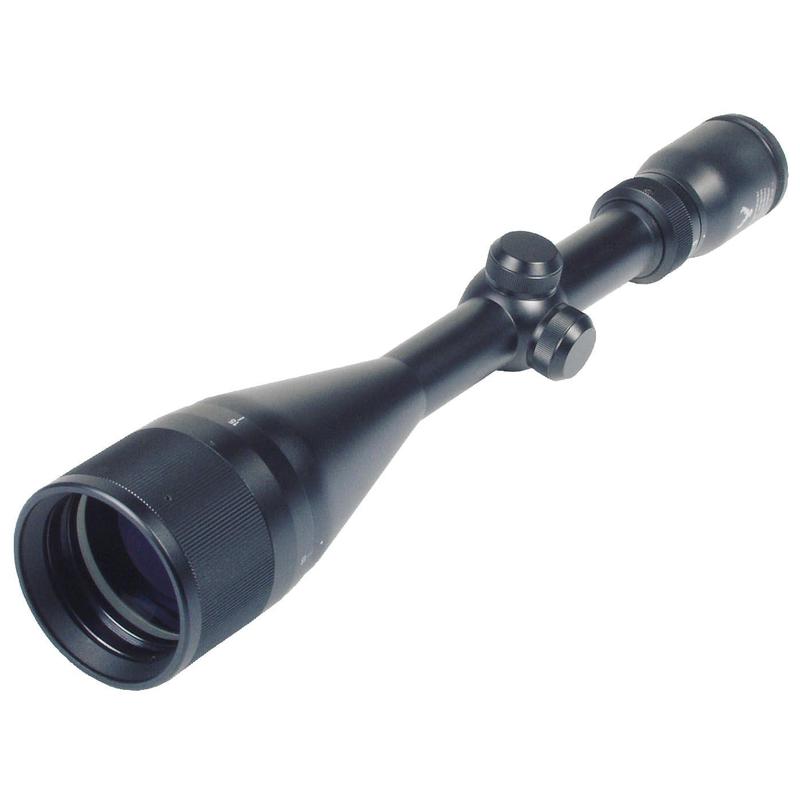

Riflescope 3-9x56; reticle 1
