Capacity

Type of build

zoomable magnification

Minimum magnification

1.1

Maximum magnification

8

Front lens diameter (mm)

30

Exit pupil

3.9 - 9.9

Exit pupil at min. enlargement (mm)

9.9

Exit pupil at max. enlargement (mm)

3.9

Eye relief (mm)

95

Diopter compensation

-3.5 / +2

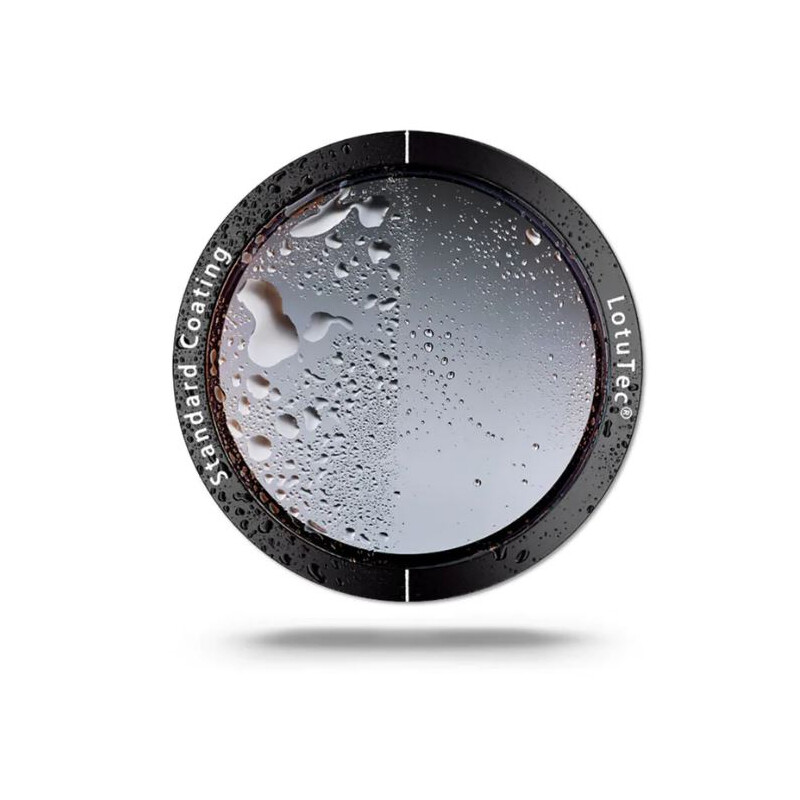

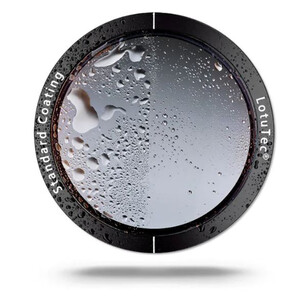

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

36

Field of view

No parallax over (m)

100

100 m adjustment per clic

1

Twilight factor

3.1 - 15.5

Twilight factor at min. enlargement

15.5

Twilight factor at max. enlargement

3.1

Field of view at 100 m (m)

39.6 - 5.4

Field of view at min. enlargement (m)

39.6

Field of view at max. enlargement (m)

5.4

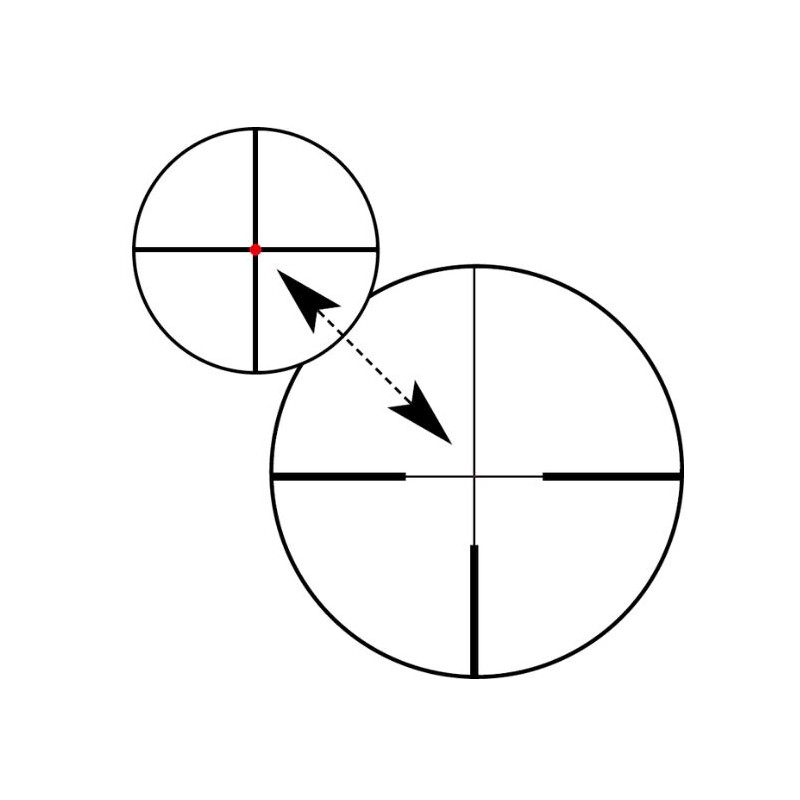

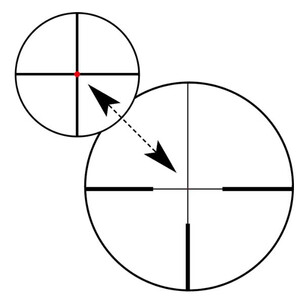

Reticle

Abs. 60

Reticle plane

2. focal plane (SFP)

Bulletproof up to

1.555g

Reticle usage

Hunting

Special features

Illuminated reticle

yes

Automatic switch-off

-

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

yes

Bullet drop compensator

yes

Integrated rangefinder

-

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Watertight

yes

General

Colour

matt black

Length (mm)

303

Weight (g)

600

objective lens outside diameter (mm)

36

eyepiece outer diameter (mm)

46

Series

Victory V8

Area of application

Stalk hunting

very good

Raised hide

very good

Drive hunting

very good

Magnum caliber

good

long distance

good

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

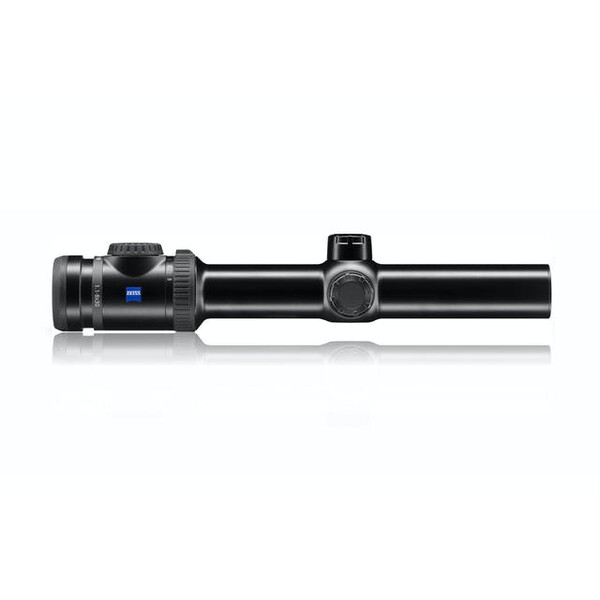

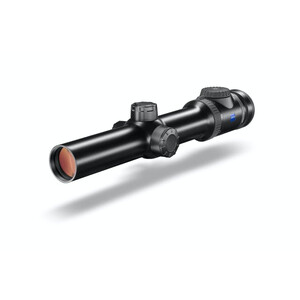

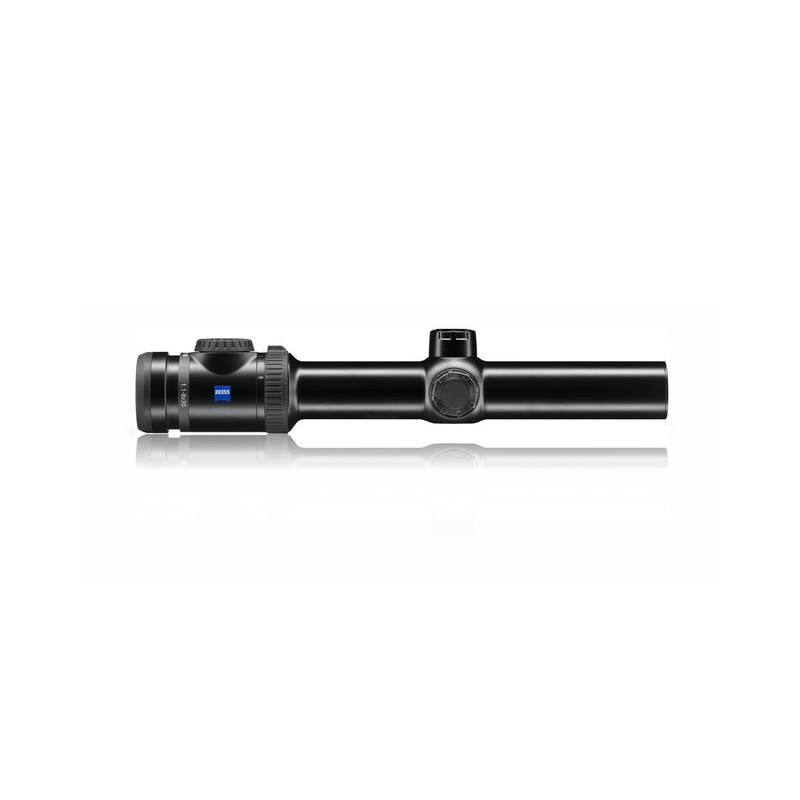

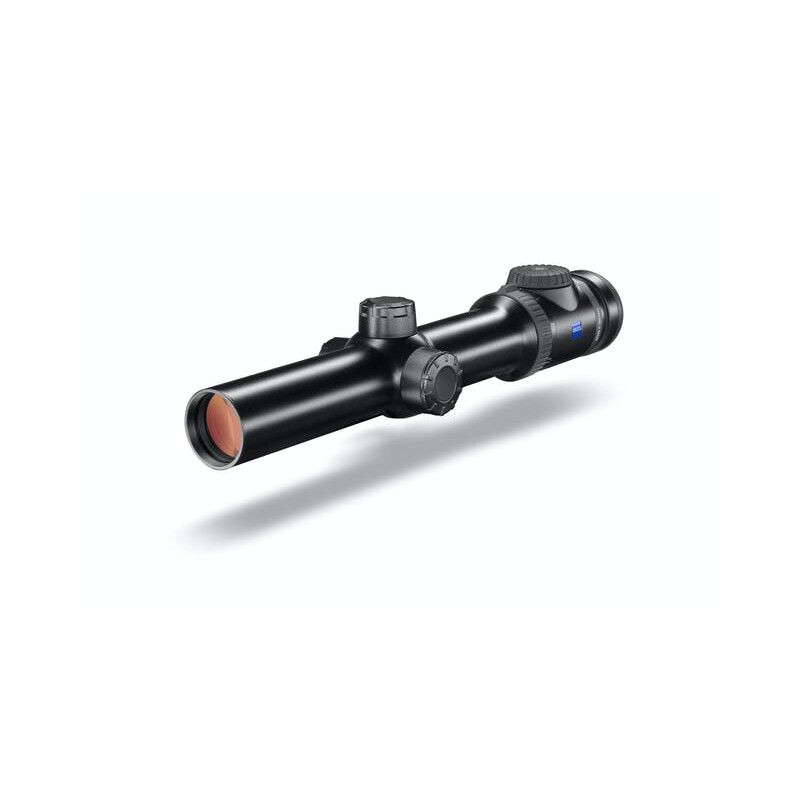

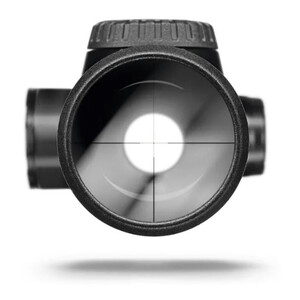

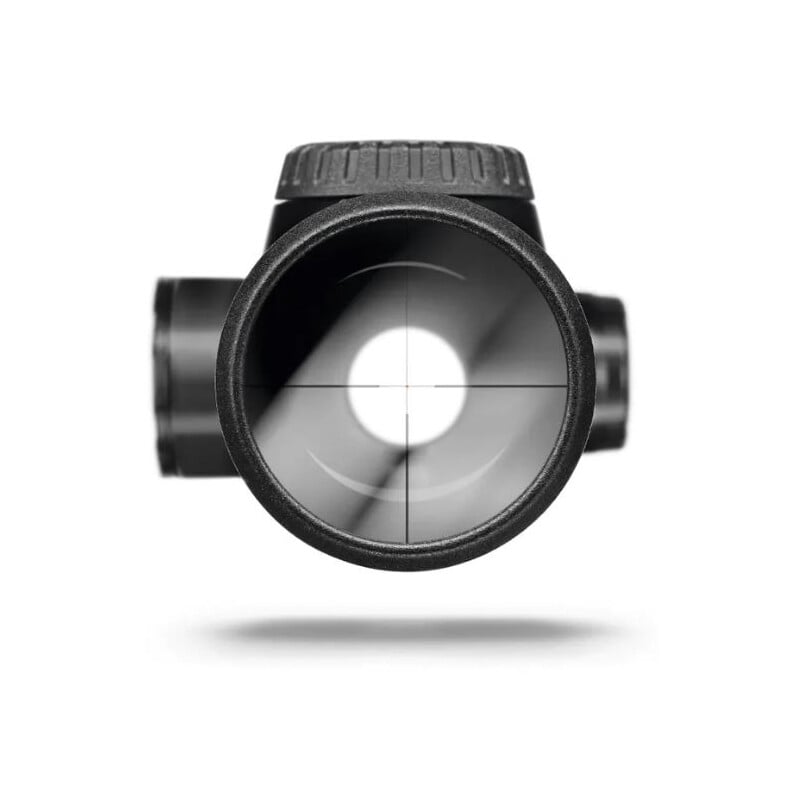

Riflescope Victory V8 1.1-8 x 30 Ret. 60 ASV LR H
