Capacity

Type of build

zoomable magnification

Minimum magnification

4.8

Maximum magnification

35

Front lens diameter (mm)

60

Exit pupil

1.4 - 9.9

Exit pupil at min. enlargement (mm)

9.9

Exit pupil at max. enlargement (mm)

1.4

Eye relief (mm)

95

Diopter compensation

-3.5 / +2

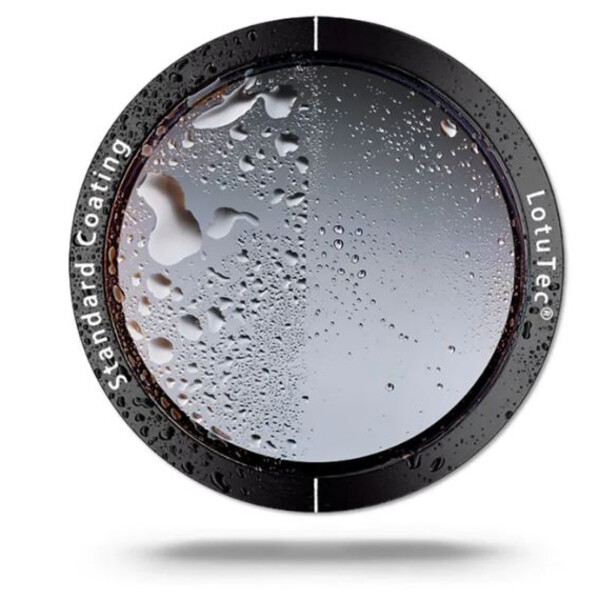

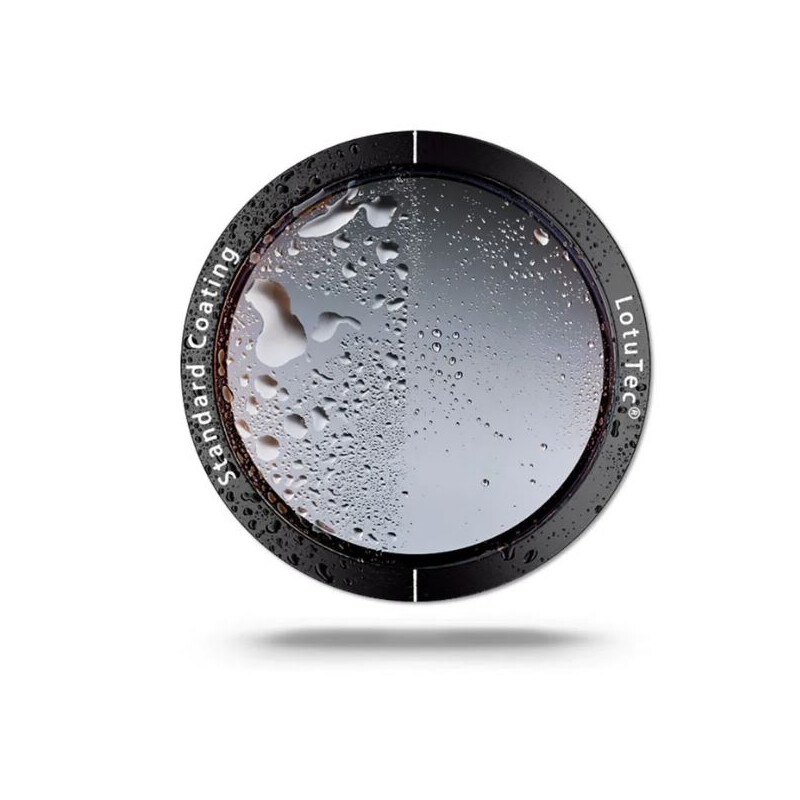

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

36

Field of view

No parallax over (m)

50 - ∞

100 m adjustment per clic

0.5

Twilight factor

13.6 - 45.8

Twilight factor at min. enlargement

45.8

Twilight factor at max. enlargement

13.6

Field of view at 100 m (m)

8.6 - 1.2

Field of view at min. enlargement (m)

8.6

Field of view at max. enlargement (m)

1.2

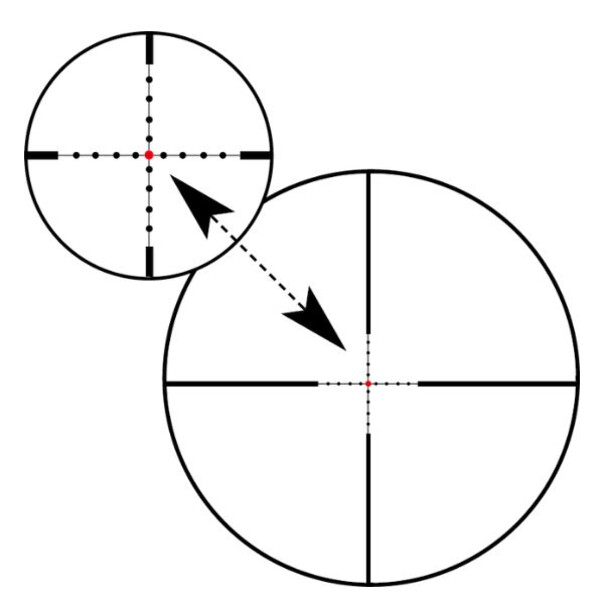

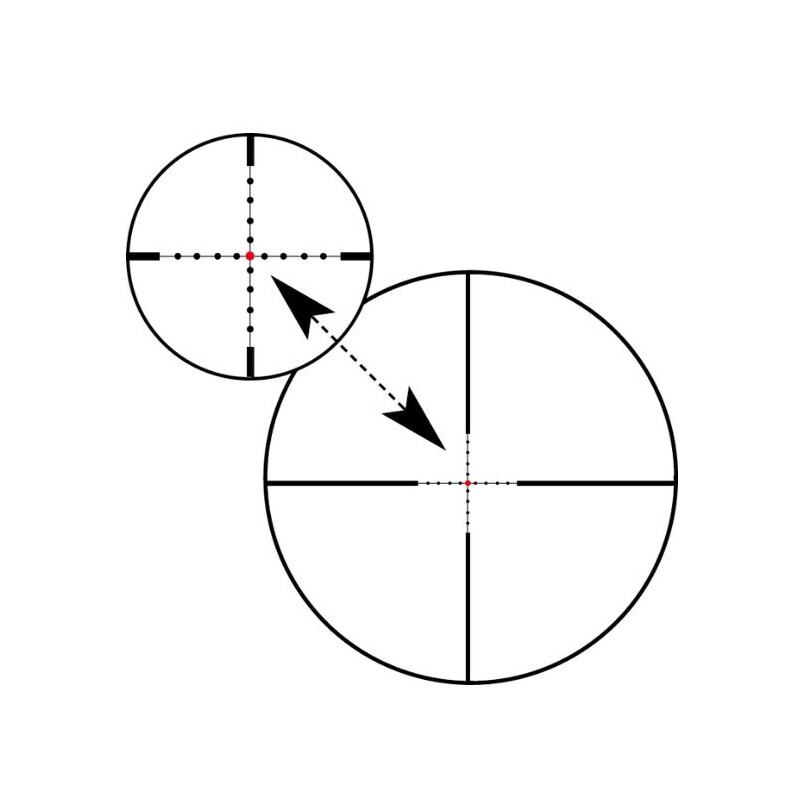

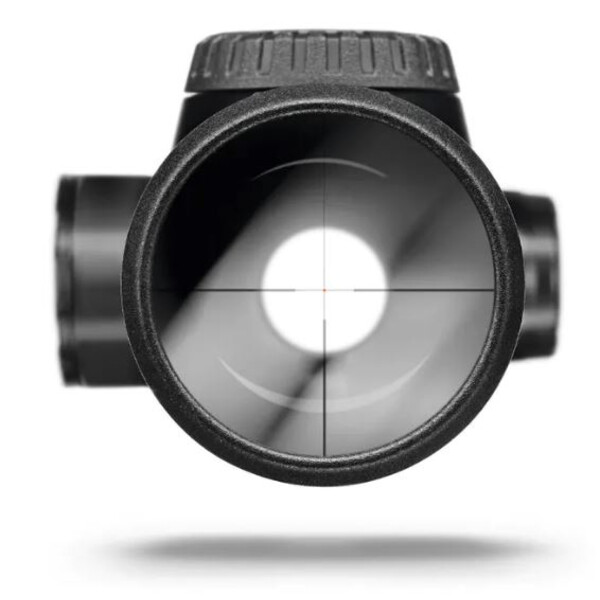

Reticle

Abs. 43

Reticle plane

2. focal plane (SFP)

Bulletproof up to

1.555g

Reticle usage

Hunting

Special features

Illuminated reticle

yes

Automatic switch-off

-

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

yes

Bullet drop compensator

yes

Integrated rangefinder

-

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Watertight

yes

General

Colour

matt black

Length (mm)

402

Weight (g)

970

objective lens outside diameter (mm)

67

eyepiece outer diameter (mm)

46

Series

Victory V8

Area of application

Stalk hunting

good

Raised hide

good

Drive hunting

very good

Magnum caliber

very good

long distance

very good

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

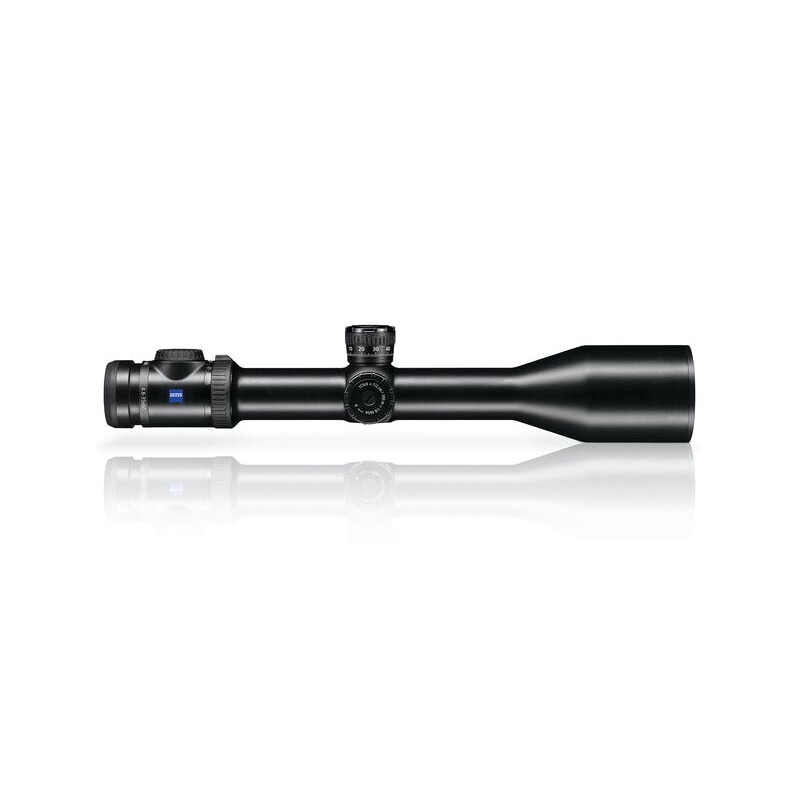

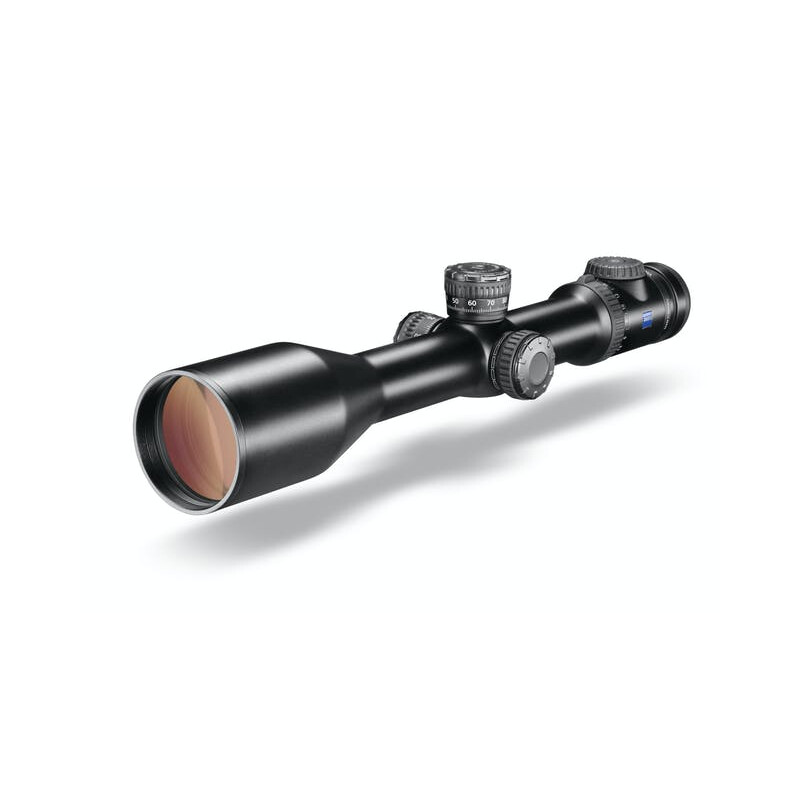

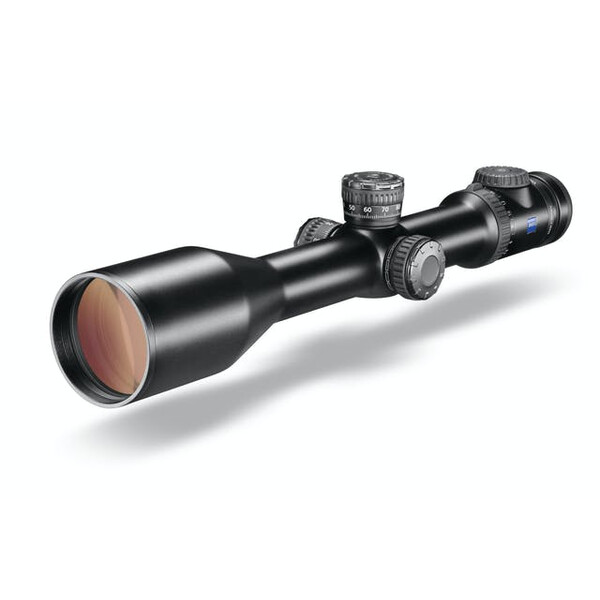

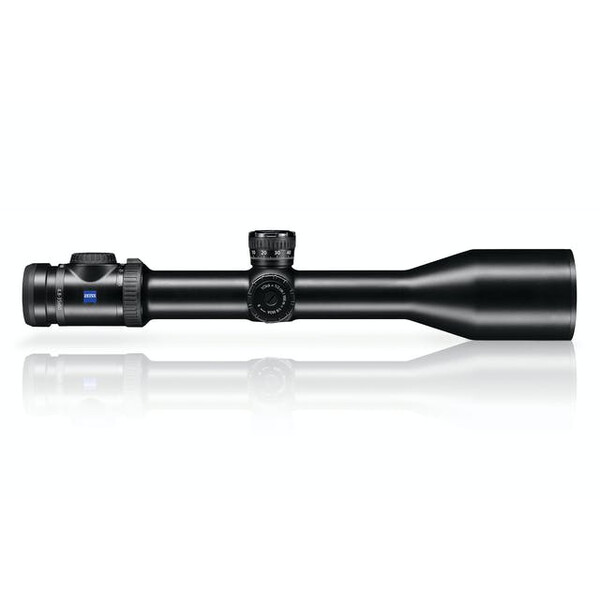

Riflescope Victory V8 4.8-35 x 60 Ret. 43 ASV H & S
